Newland N1

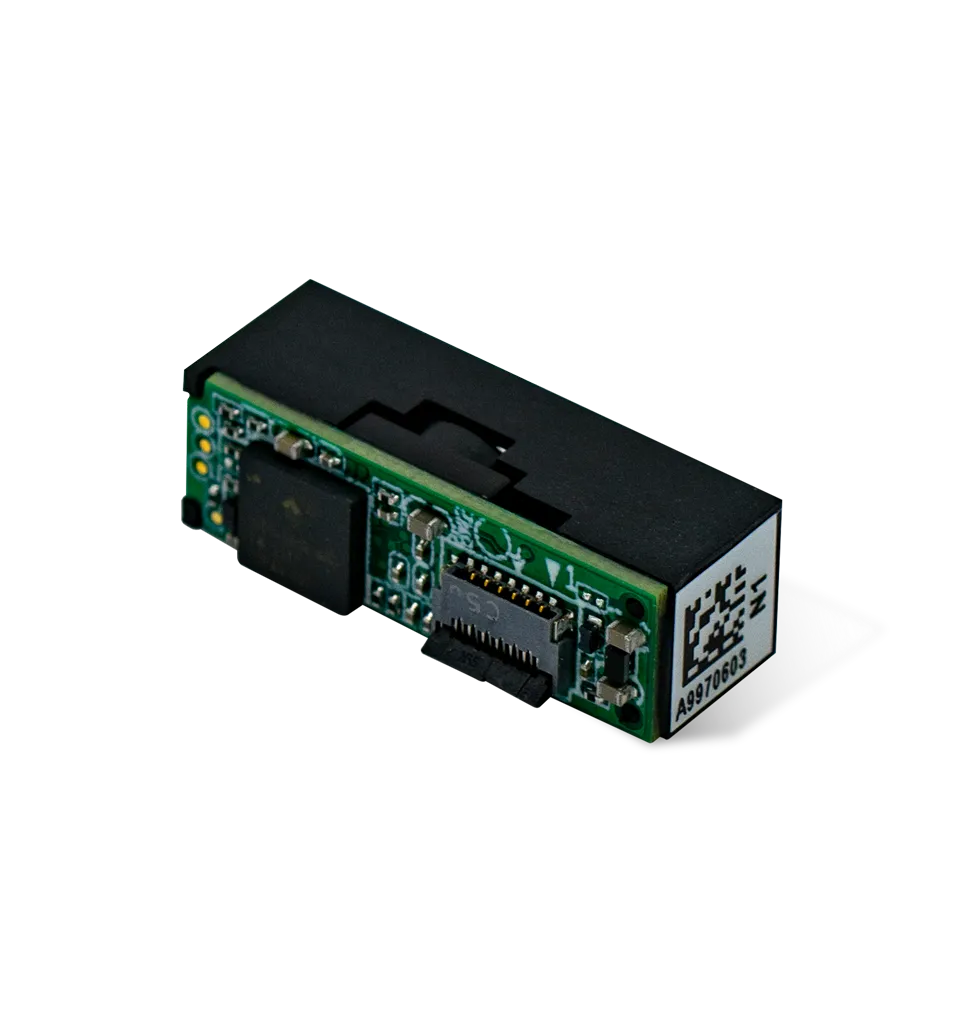

At only 21.5 x 9 x 7mm, the N1 OEM Scan Engine stars as our smallest scan engine in the range. Armed with 6th generation decoding chip, accuracy & speed are optimal, even for otherwise hard-to-read 1D & 2D barcodes.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey.
- 2D
- All major 2D symbologies, including PDF417, QR Code, Micro QR, Data Matrix, Aztec.
- Aiming
- Red LED (625nm)
- Scan range / decode distances
- 40 mm - 150 mm
- Scan range / decode distances
- 45 mm - 120 mm
- Scan range / decode distances
- 60 mm - 350 mm
- Scan range / decode distances
- 50 mm - 125 mm
- Scan range / decode distances
- 30 mm - 170 mm
- Field of View Horizontal
- 42°
- Field of View Vertical
- 31.5°
- Illumination
- White LED (5000K)
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Resolution
- ≥3mil
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 91.08 mA (typical)
- Current @ 3.3VDC Sleep
- < 0.3mA
- Current @ 3.3VDC Standby
- 11.8 mA
- Dimensions
- 21.5(W) x 9.0(D) x 7.0(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 456 mW (typical)
- Weight
- 1.2 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B, RoHS 2.0, IEC 62471
- Warranty
- 2 Years
- Accessories Optional
- USB cable, RS-232 cable, Software development board
- Accessories Standard

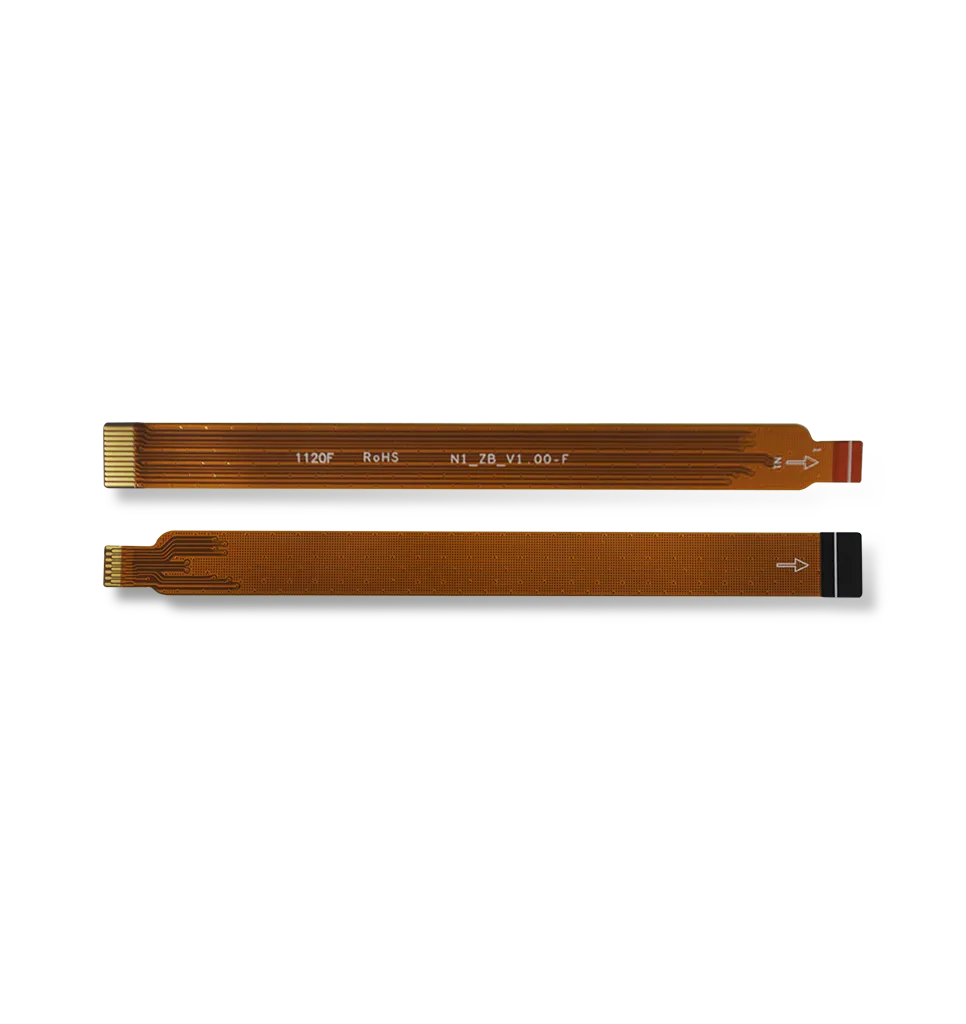

- 75mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-N1
- 2D CMOS Area Imager, Standard, CMOS 640 x 480 , All-in-one, Newland Decoderchip 0610, TTL-232/USB interface with FFC (flexible flat cable), white Illumination, LED Aimer, small footprint, low power consumption
- Scan range / decode distances
- 40 mm - 150 mm
- Scan range / decode distances
- 45 mm - 120 mm
- Scan range / decode distances
- 60 mm - 350 mm
- Scan range / decode distances
- 50 mm - 125 mm
- Scan range / decode distances
- 30 mm - 170 mm
- Field of View Horizontal
- 42°
- Field of View Vertical
- 31.5°
- Illumination
- White LED (5000K)
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Resolution
- ≥3mil
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 91.08 mA (typical)
- Current @ 3.3VDC Sleep
- < 0.3mA
- Current @ 3.3VDC Standby
- 11.8 mA
- Dimensions
- 21.5(W) x 9.0(D) x 7.0(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 456 mW (typical)
- Weight
- 1.2 g
