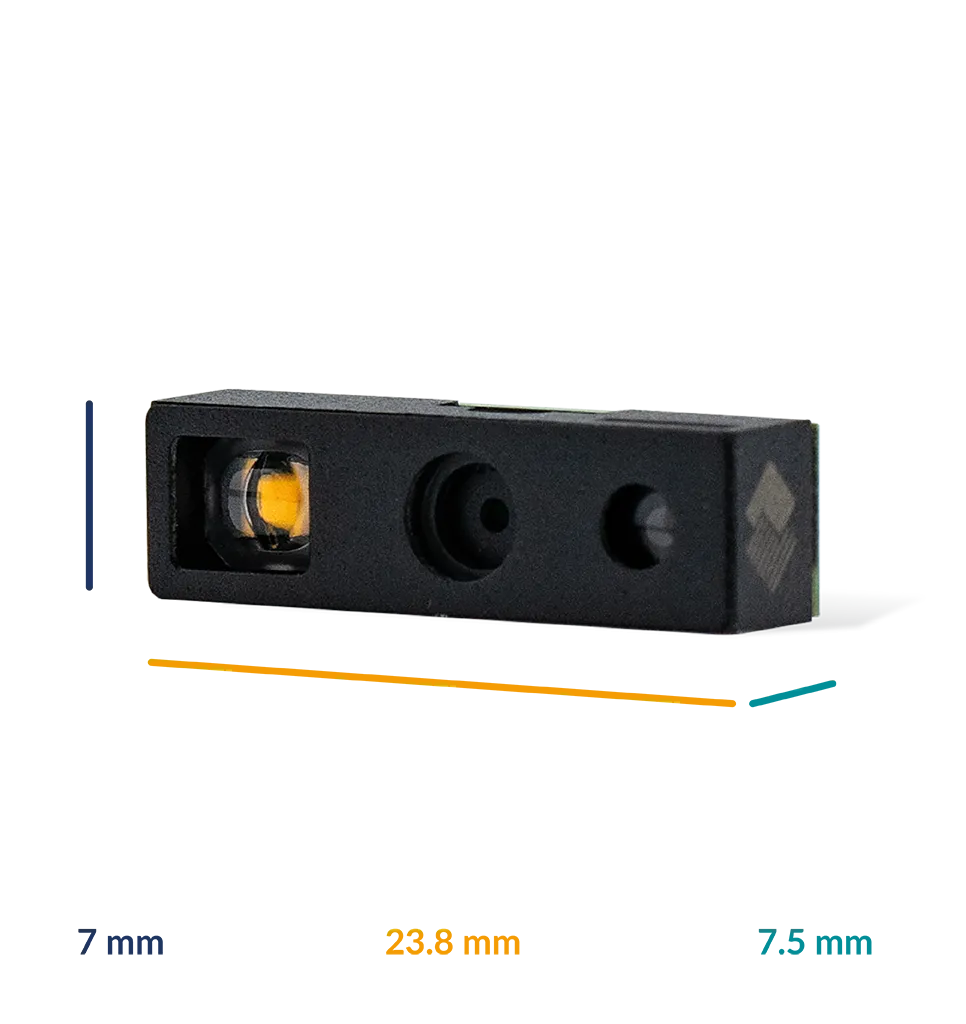

Newland N1-W
The N1-W combines minimal power consumption with a compact design while boasting outstanding accuracy and speed when scanning close-range to hard-to-read 1D and 2D barcodes.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2/5, ITF-14, ITF-6, Matrix 2/5, Code 39, Codabar, Code 93, UCC/EAN-128, GSl Databar, Codell, ISBN, ISSN, Industrial 2/5, Standard 2/5, Plessey, MSI-Plessey, AIM 128
- 2D
- PDF417, QR Code, Micro QR, Data Matrix, Aztec
- Aiming
- Red LED (625nm)
- Scan range / decode distances
- 25 mm - 50 mm
- Scan range / decode distances
- 25 mm - 45 mm
- Scan range / decode distances
- 20 mm - 60 mm
- Field of View Horizontal
- 68˚
- Field of View Vertical
- 51˚
- Illumination
- White LED (3000K)
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Resolution
- ≥3mil (1D), ≥6.67mil (2D)
- Scan Angle Pitch
- ±50°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±50°
- Current @ 3.3VDC Operating
- 68 mA (typical)
- Current @ 3.3VDC Standby
- < 0.3 mA
- Dimensions
- 23.8(W) x 7.5(D) x 7(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Weight
- 1.2 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, IEC 62471, CE EMC Class B, RoHS 2.0
- Warranty
- 2 Years
- Accessories Optional
- USB cable, RS-232 cable
- Accessories Standard
- Software development board
- Part Number
- Description
- NLS-N1-W

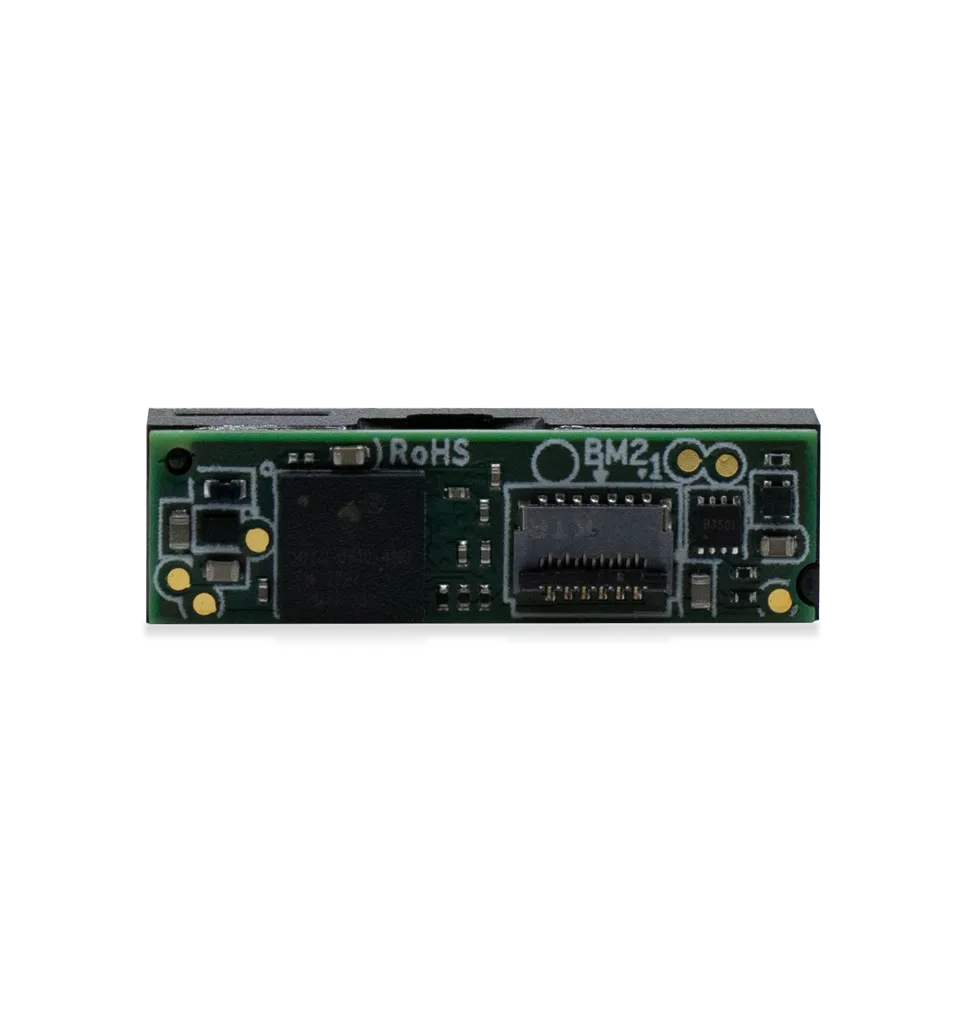

- 2D CMOS Area imager, Standard CMOS 640x480, all in one, Newland Decoder 0610, TTL-RS232/USB interface with FFC(flexible flat cable) white illumination, LED aimer, small footprint, low power consumption, wide field of view, H:68˚, V:51˚
- Scan range / decode distances
- 25 mm - 50 mm
- Scan range / decode distances
- 25 mm - 45 mm
- Scan range / decode distances
- 20 mm - 60 mm
- Field of View Horizontal
- 68˚
- Field of View Vertical
- 51˚
- Illumination
- White LED (3000K)
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Resolution
- ≥3mil (1D), ≥6.67mil (2D)
- Scan Angle Pitch
- ±50°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±50°
- Current @ 3.3VDC Operating
- 68 mA (typical)
- Current @ 3.3VDC Standby
- < 0.3 mA
- Dimensions
- 23.8(W) x 7.5(D) x 7(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Weight
- 1.2 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Warranty
- 2 Years
