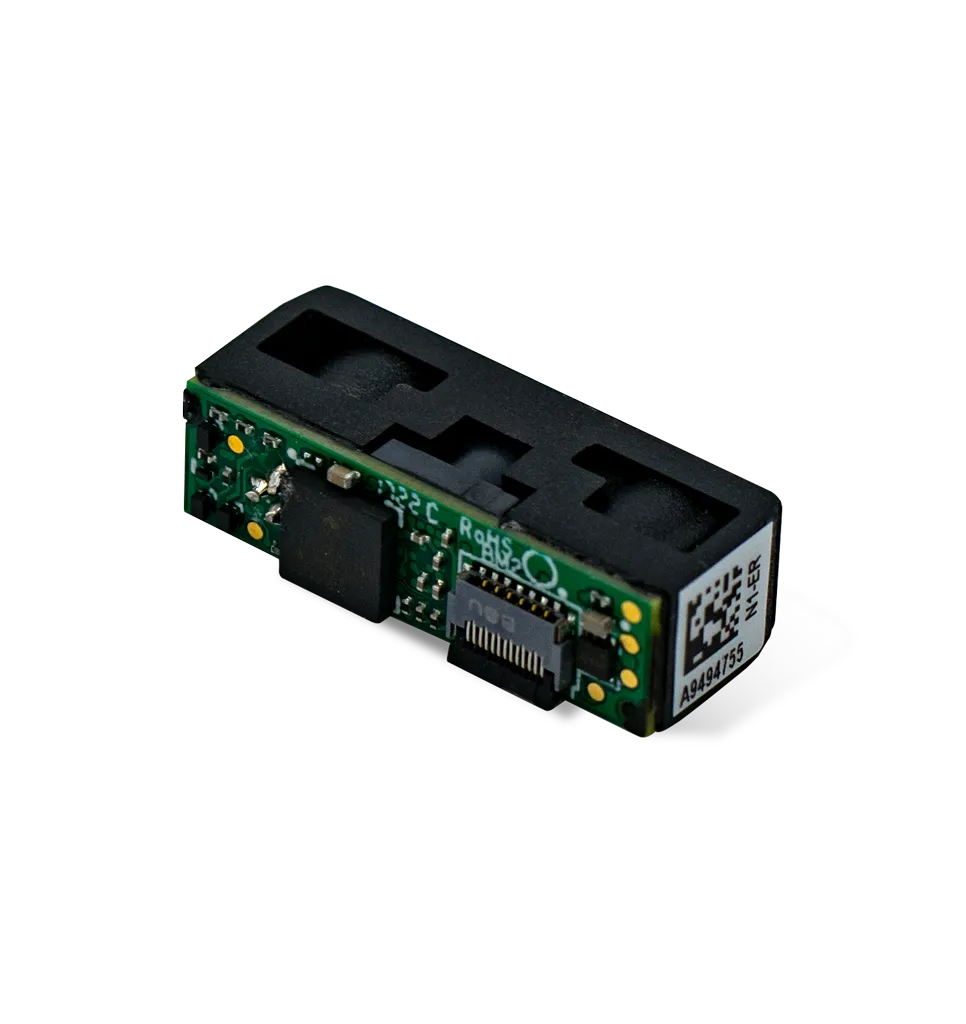

Newland N1-ER
Featuring an extended range, the N1-ER Scan Engine can scan from up to 1.4-meter distances. With its 6th generation UIMG scanning technology, the N1-ER has outstanding accuracy and speed, even when it comes to hard-to-read 1D and 2D barcodes.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey.
- 2D
- All major 2D symbologies, including PDF417, QR Code, Micro QR, Data Matrix, Aztec.
- Aiming
- Laser diode (650nm)
- Scan range / decode distances
- 115 mm - 1400 mm
- Scan range / decode distances
- 65 mm - 800 mm
- Scan range / decode distances
- 120 mm - 260 mm
- Scan range / decode distances
- 105 mm - 680 mm
- Scan range / decode distances
- 80 mm - 250 mm
- Field of View Horizontal
- 28°
- Field of View Vertical
- 21°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 20%
- Resolution
- ≥3mil (1D), ≥6.67mil (2D)
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 176 mA (typical)
- Current @ 3.3VDC Standby
- 11.8 mA
- Dimensions
- 23.8(W) x 10.5(D) x 7(H) mm (max)
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 581 mW (typical)
- Weight
- 2 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B, RoHS
- Warranty
- 2 Years
- Accessories Optional
- Software development board, USB cable, RS-232 cable
- Part Number
- Description
- NLS-N1-ER

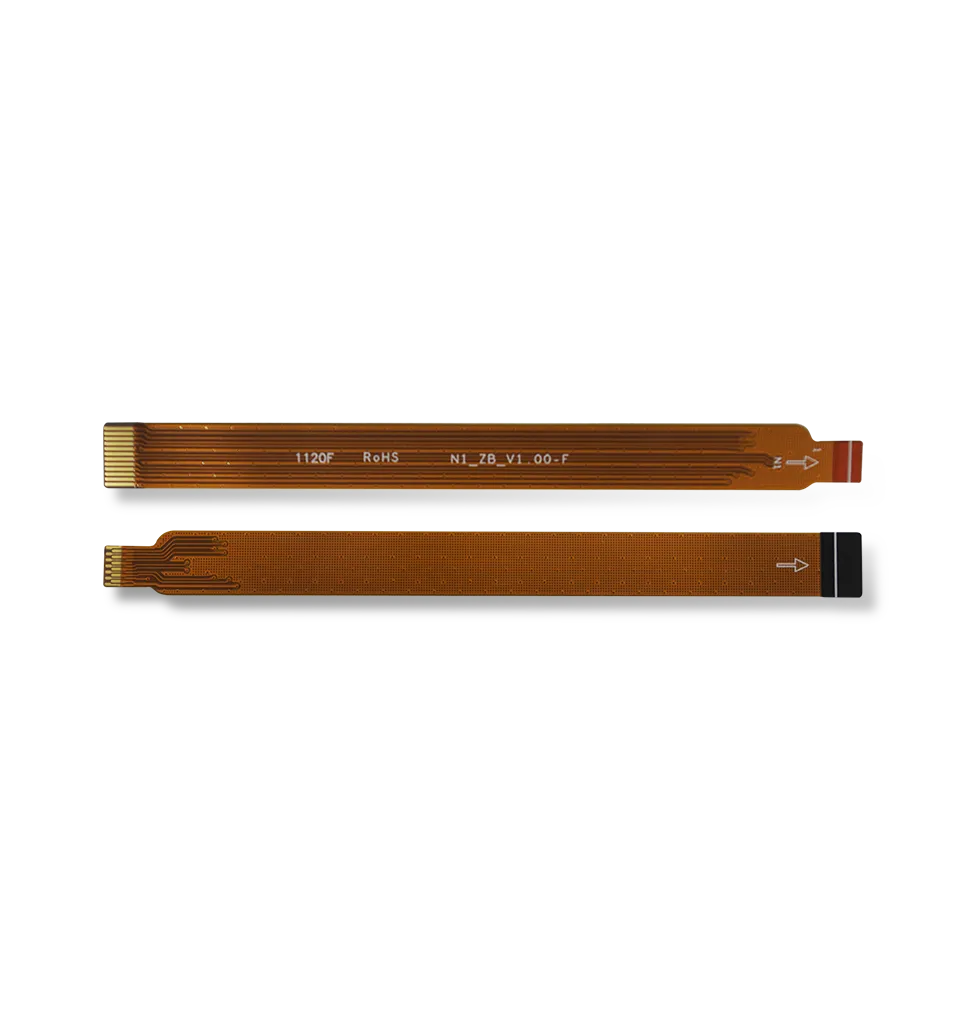

- 2D CMOS Area Imager, Standard, CMOS 640 x 480 , All-in-one, Extended Range, Newland Decoder chip 0610, TTL-232/USB interface with FPC cable (Flexible Printed Circuits), white Illumination, LED Aimer, small footprint, low power consumption
- Scan range / decode distances
- 115 mm - 1400 mm
- Scan range / decode distances
- 65 mm - 800 mm
- Scan range / decode distances
- 120 mm - 260 mm
- Scan range / decode distances
- 105 mm - 680 mm
- Scan range / decode distances
- 80 mm - 250 mm
- Field of View Horizontal
- 28°
- Field of View Vertical
- 21°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 20%
- Resolution
- ≥3mil (1D), ≥6.67mil (2D)
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 176 mA (typical)
- Current @ 3.3VDC Standby
- 11.8 mA
- Dimensions
- 23.8(W) x 10.5(D) x 7(H) mm (max)
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 581 mW (typical)
- Weight
- 2 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
