Newland · Barcode scanner

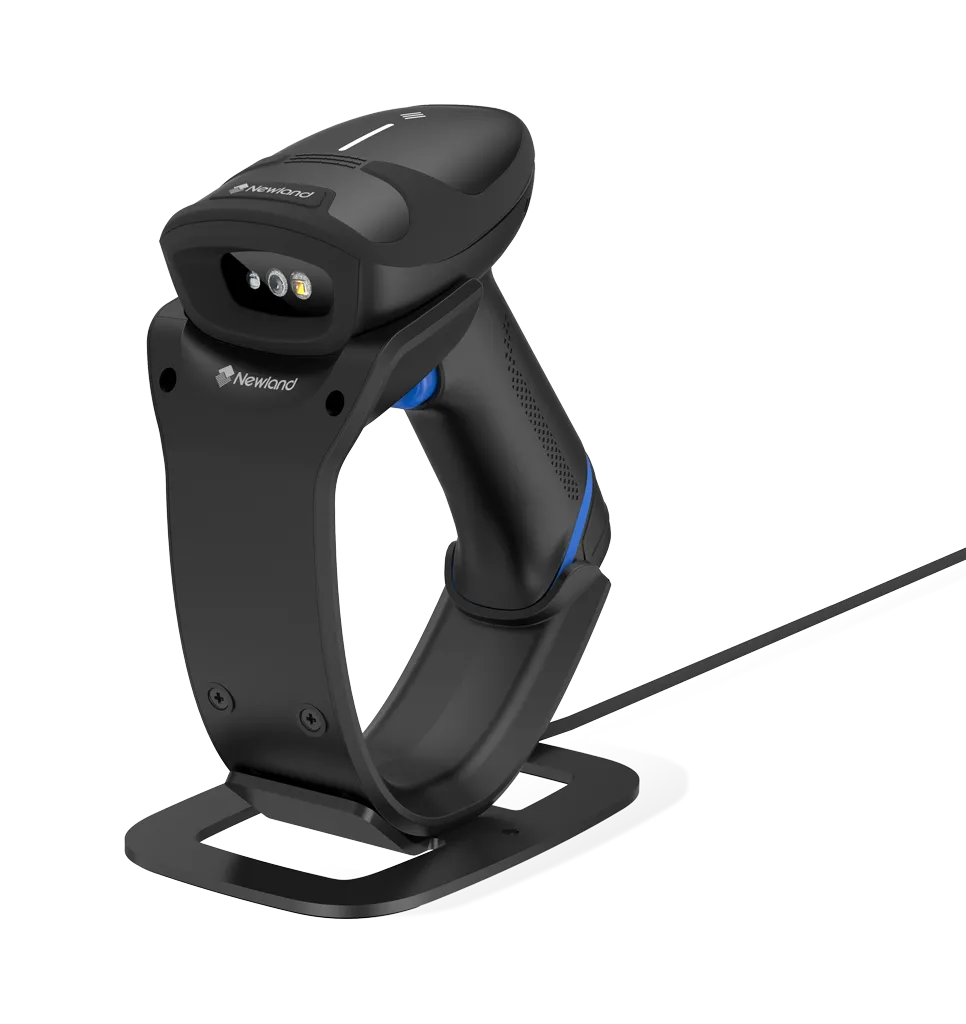

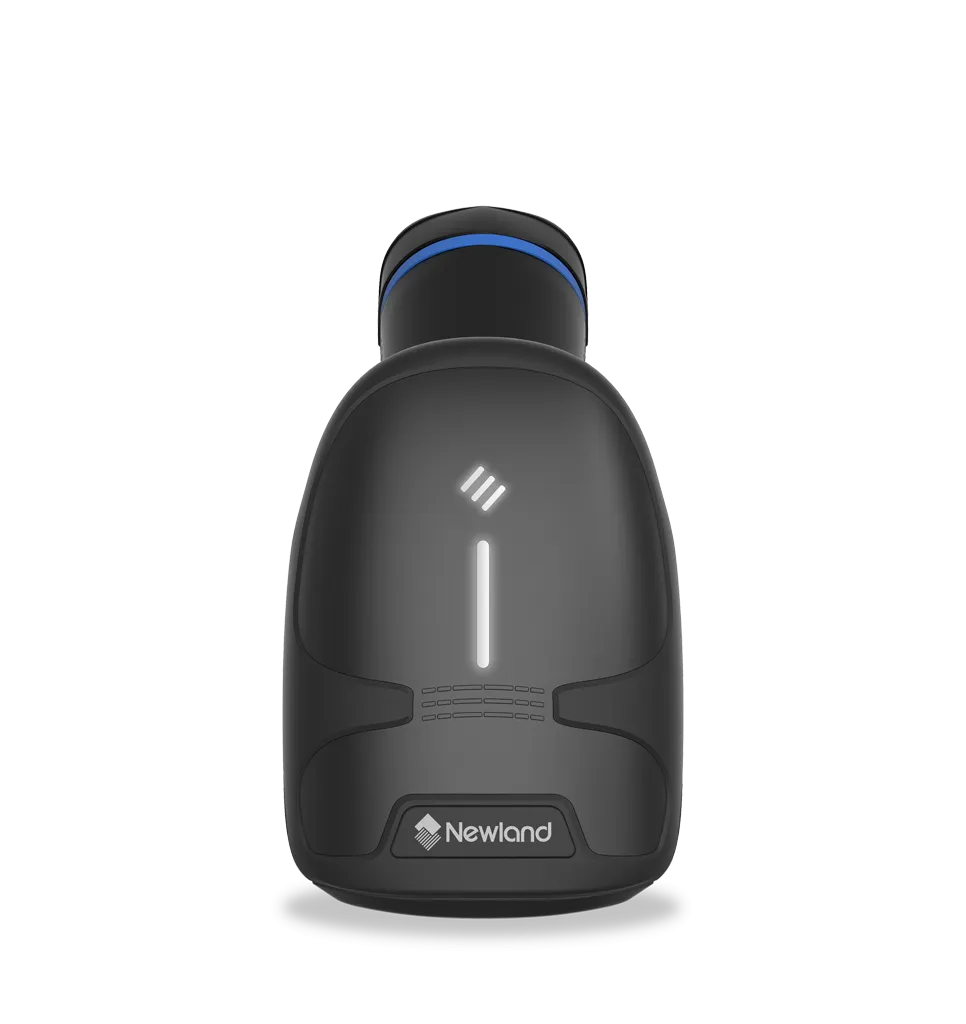

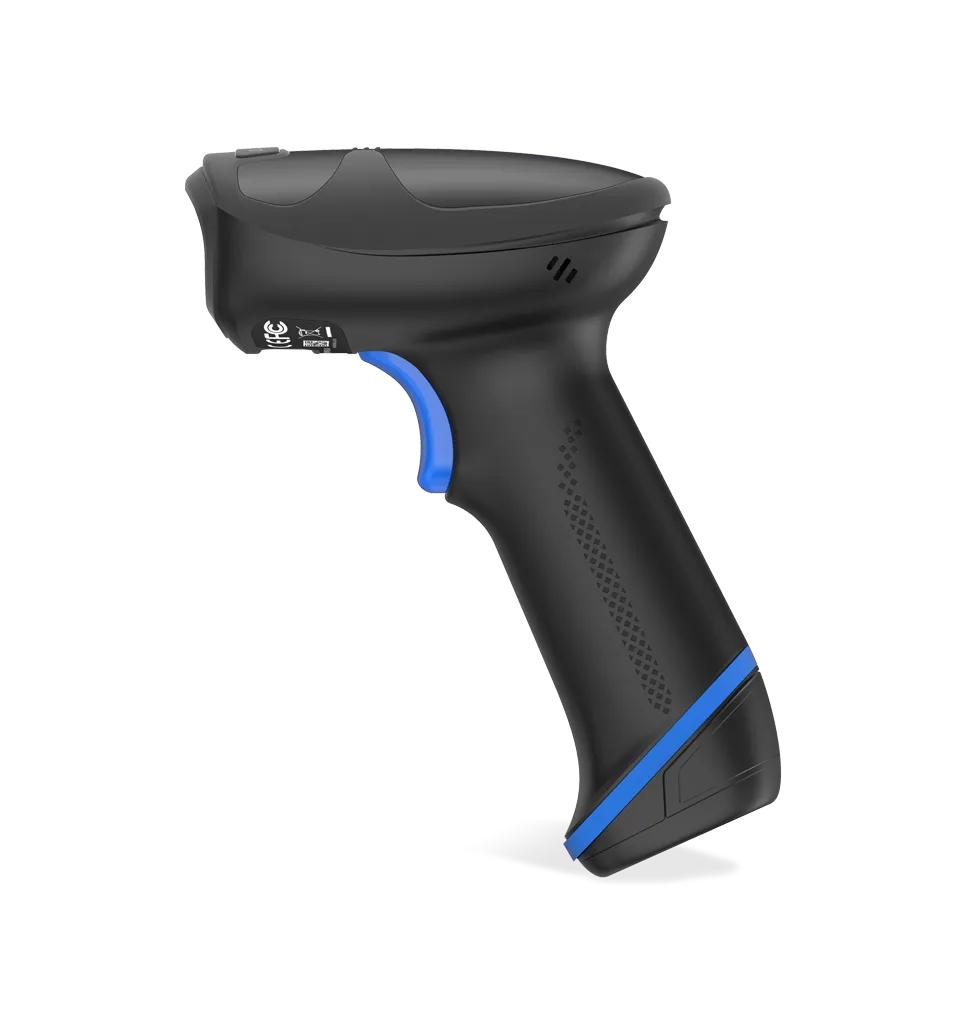

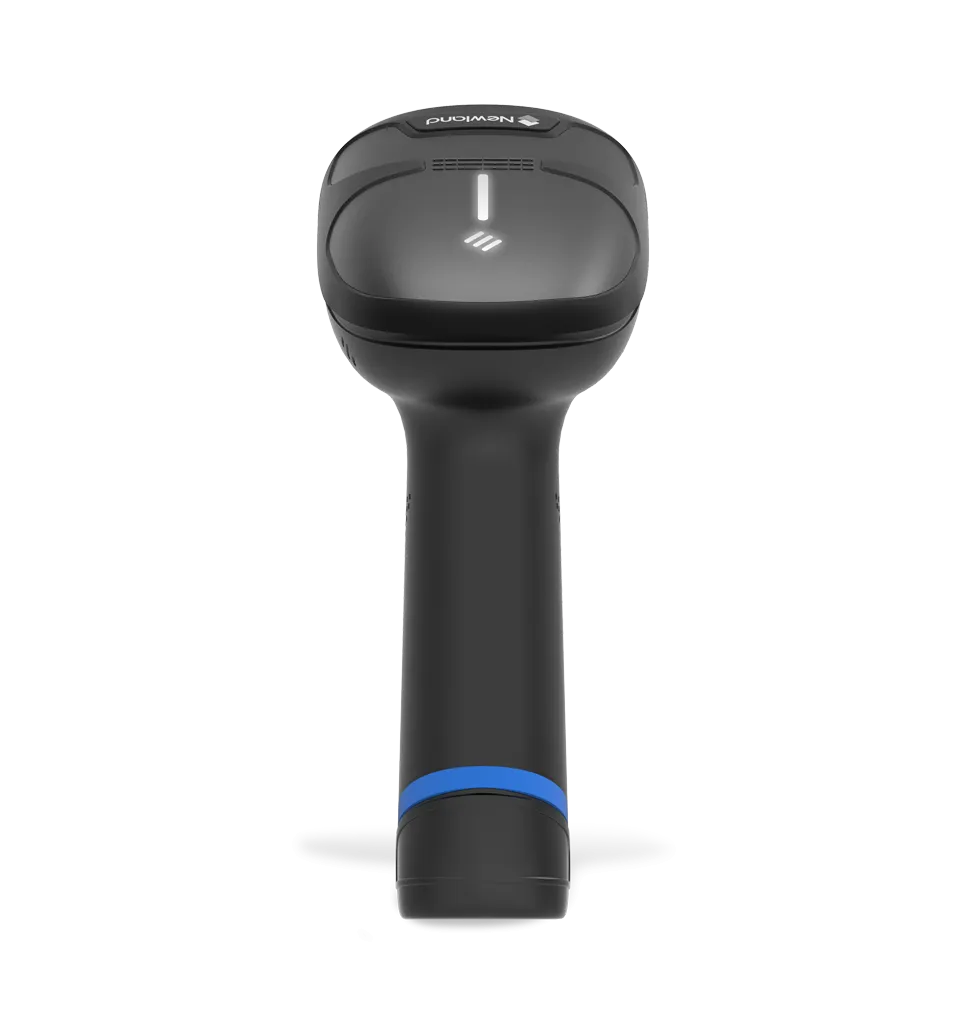

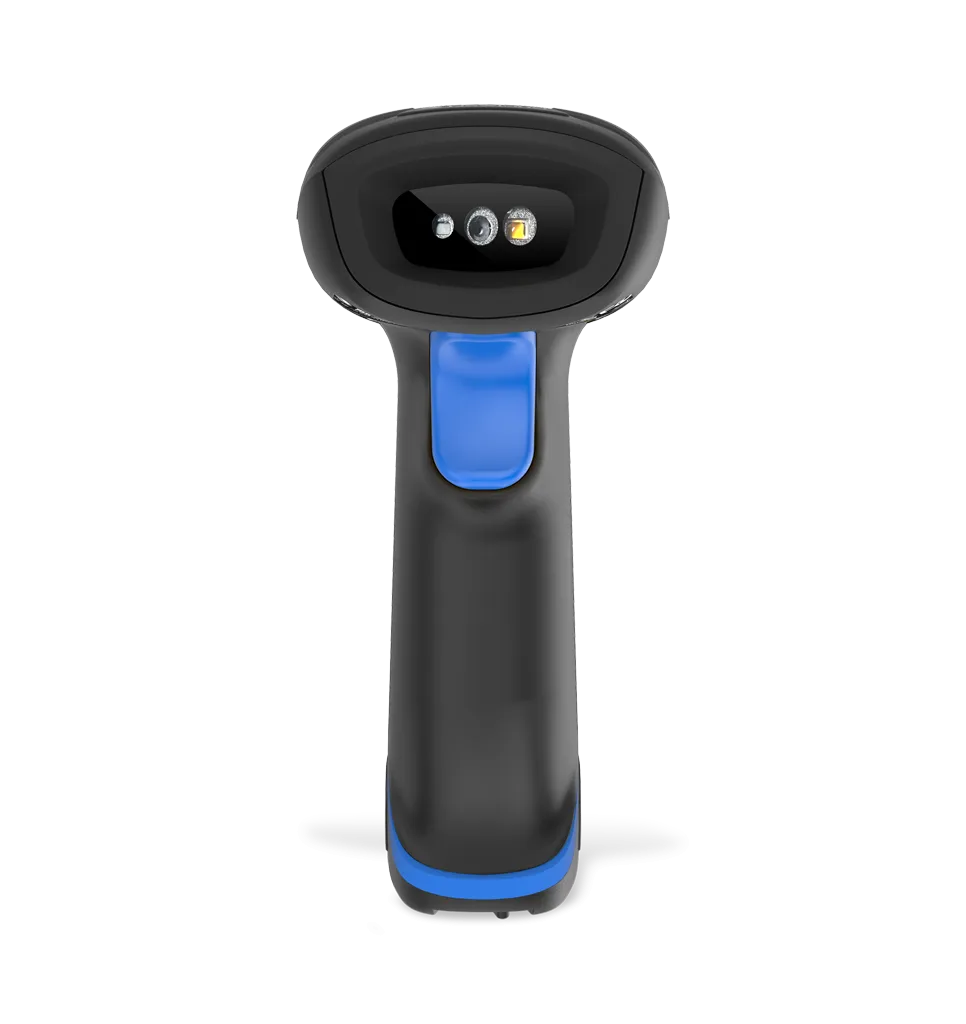

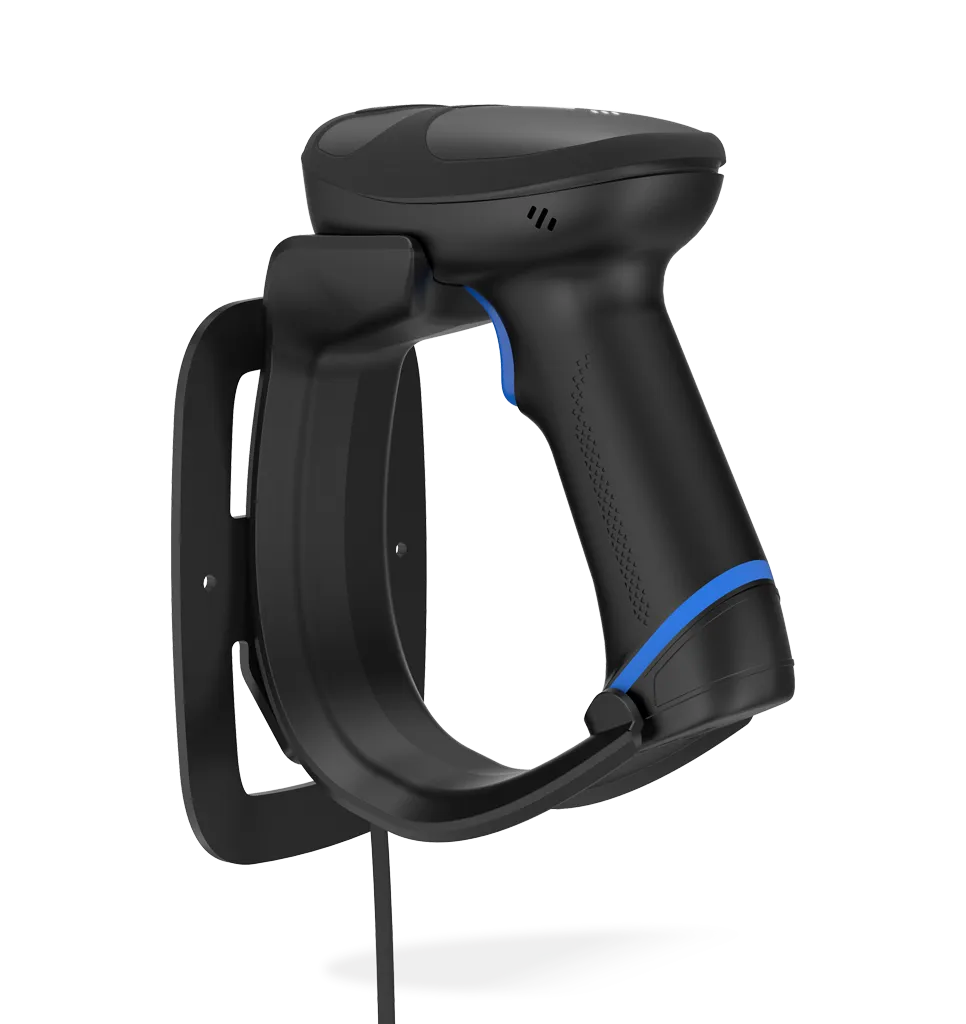

Newland HR33 Marlin Bluetooth
The HR33 Marlin Bluetooth offers effortless and uninterrupted barcode scanning with its easily replaceable battery. See more.
- Scanning1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar,
- Battery2600 mAh lithium-ion battery
- SealingIP52
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar,
- Scan range / decode distances
- 50 mm - 230 mm 30 mm - 245 mm 40 mm - 535 mm 45 mm - 215 mm Field of View Horizontal 48˚
Power
- Battery / runtime
- 2600 mAh lithium-ion battery
- Charging / power
- 5 VDC ±5%
Connectivity
- Bluetooth
- 5.0
- Ports / interfaces
- USB-A, USB-KBW, USB-CDC, HID-POS
Rugged
- IP / sealing
- IP52
- Drop specification
- 1.5 m
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- Scanner: 210 g, Cradle: 340,5 g
- Dimensions
- Scanner: 117.5(L)×67.5(W)×144(H)mm; Cradle: 140(L)×90(W)×144.5(H)mm
Software & service
- Warranty
- 5 Years Comprehensive Service Contract 3 Years, 5 Years
Send a request
Get a quote for the HR33 Marlin Bluetooth
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
