Newland · Barcode scanner

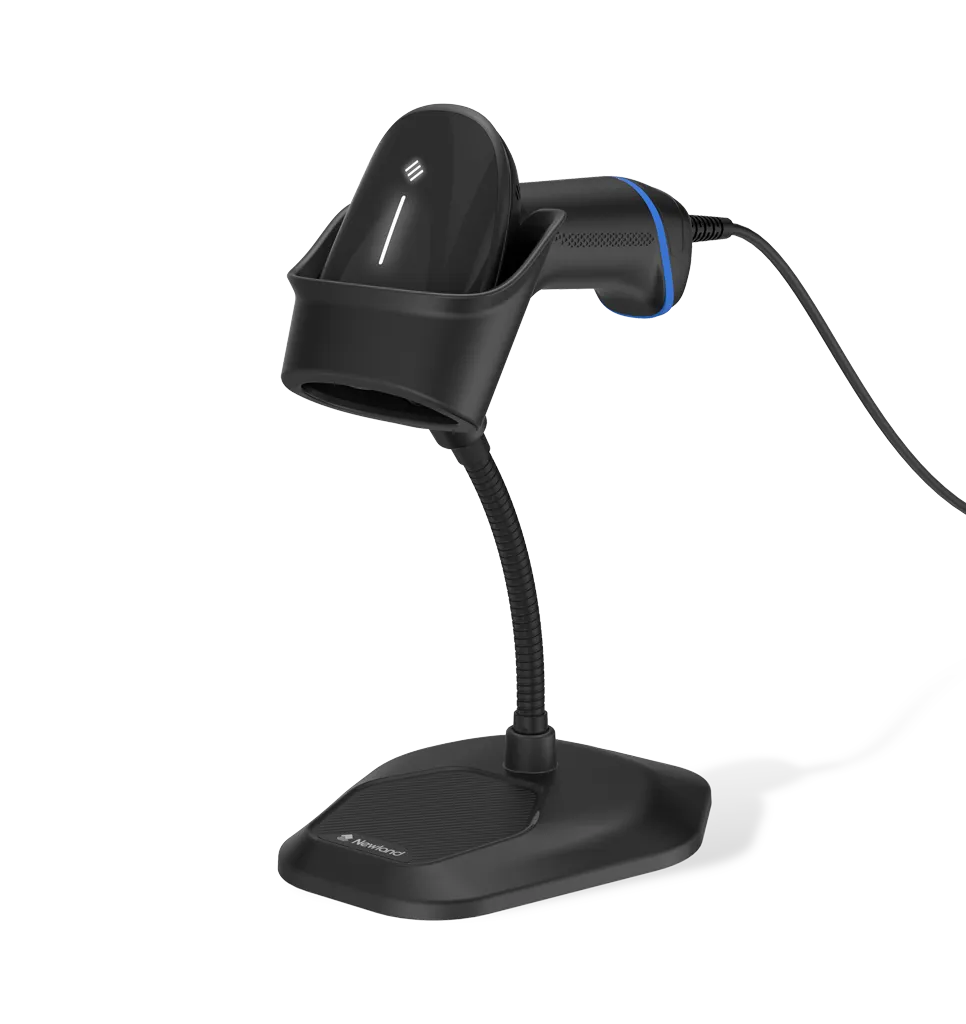

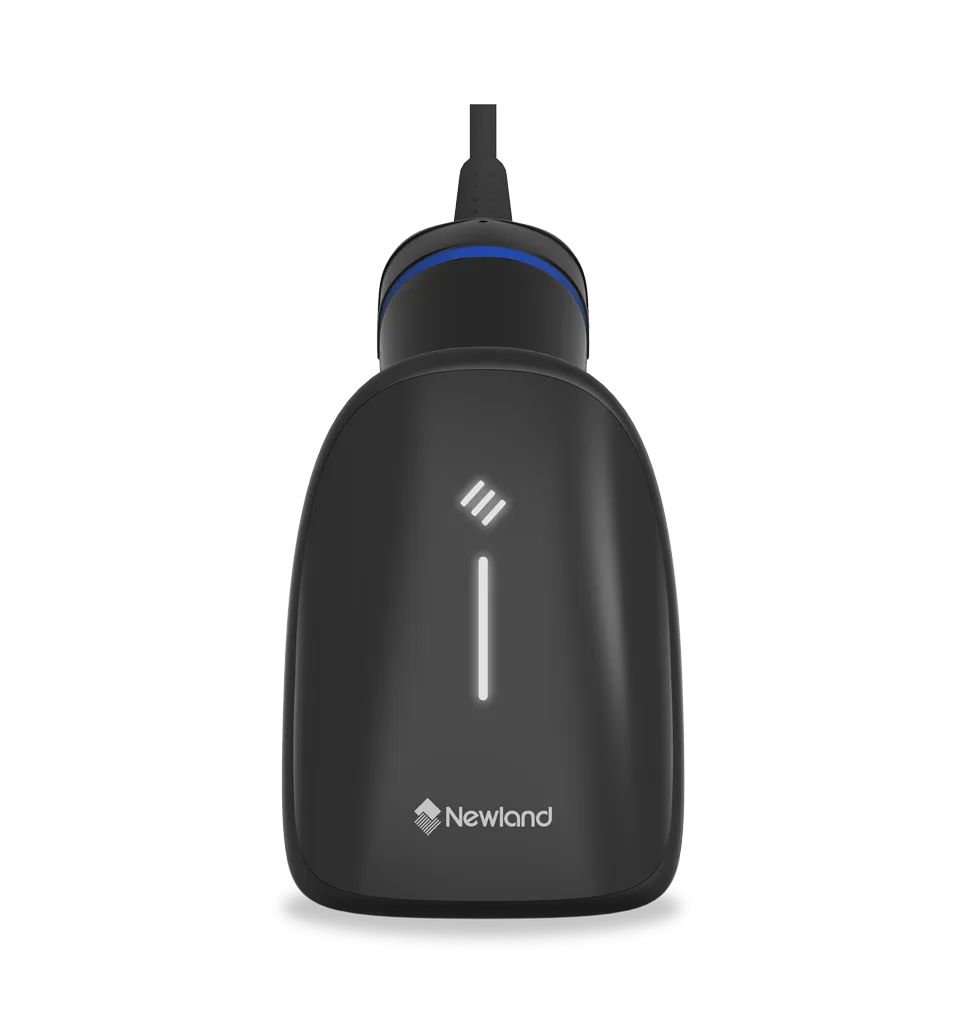

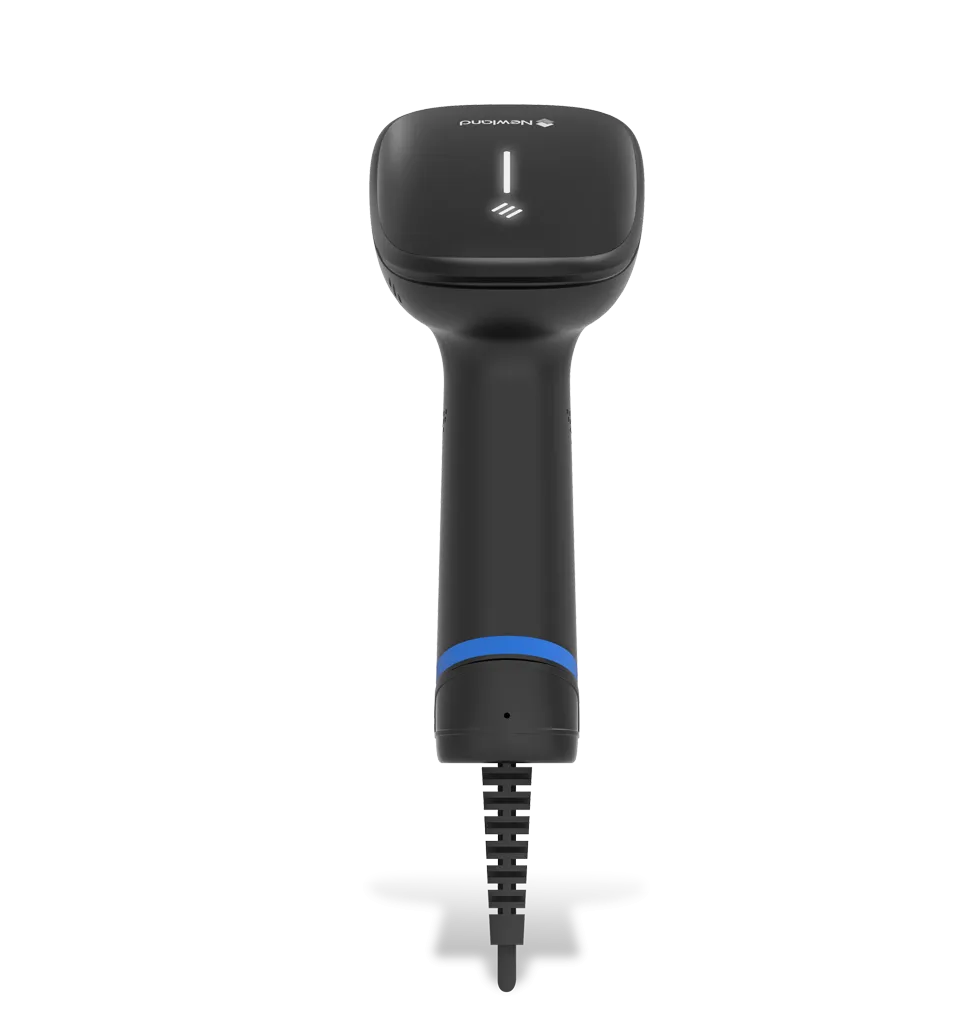

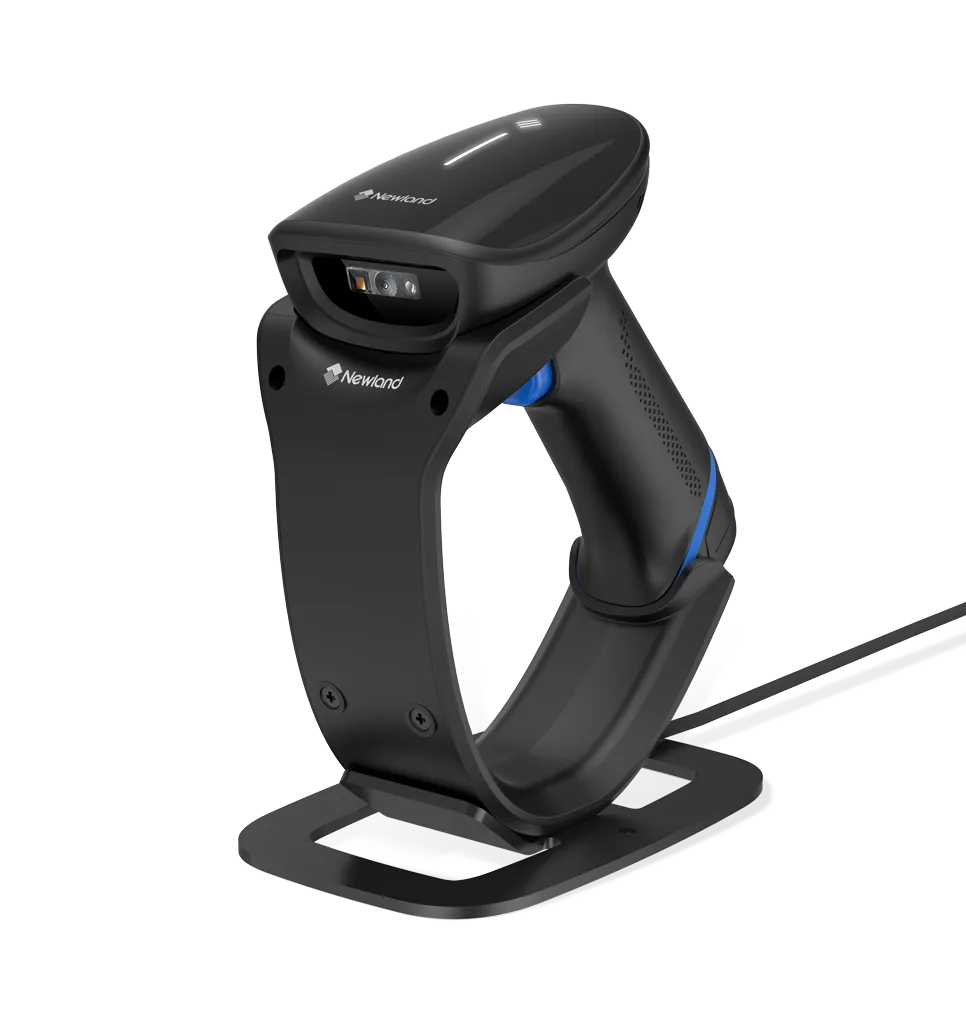

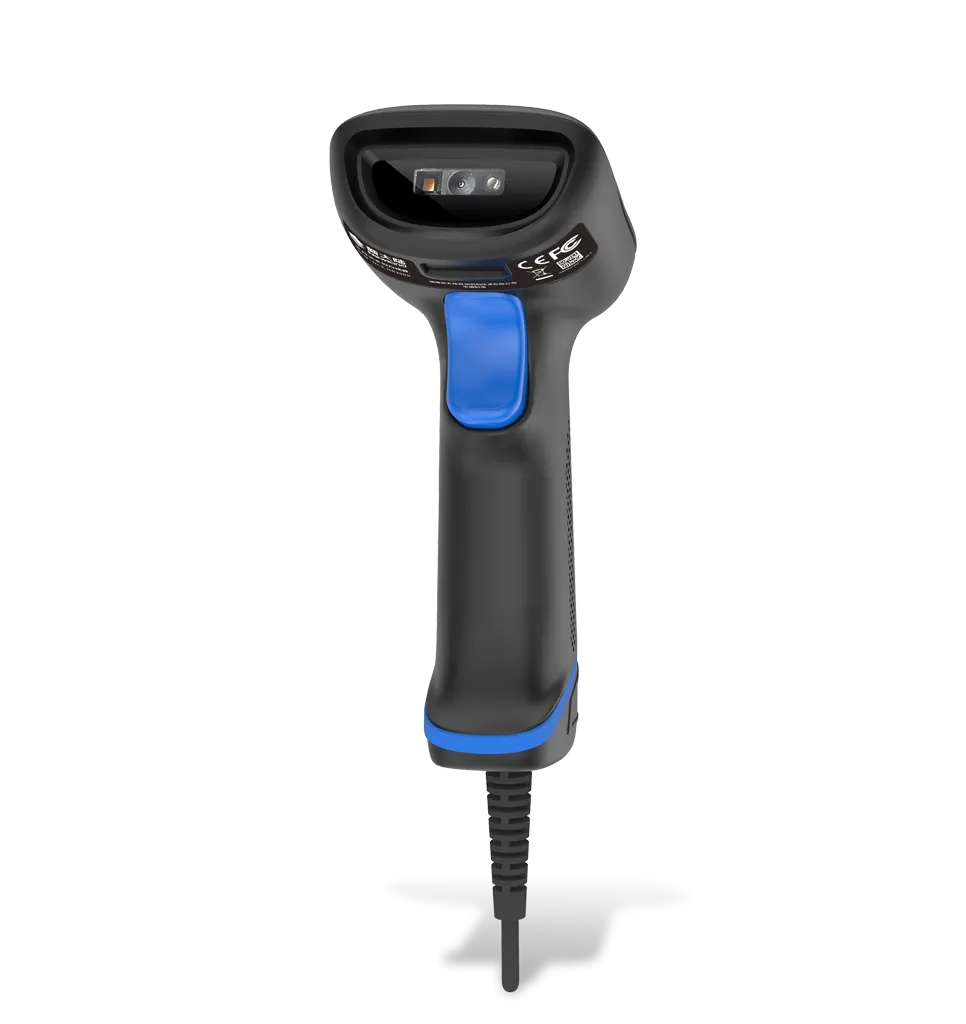

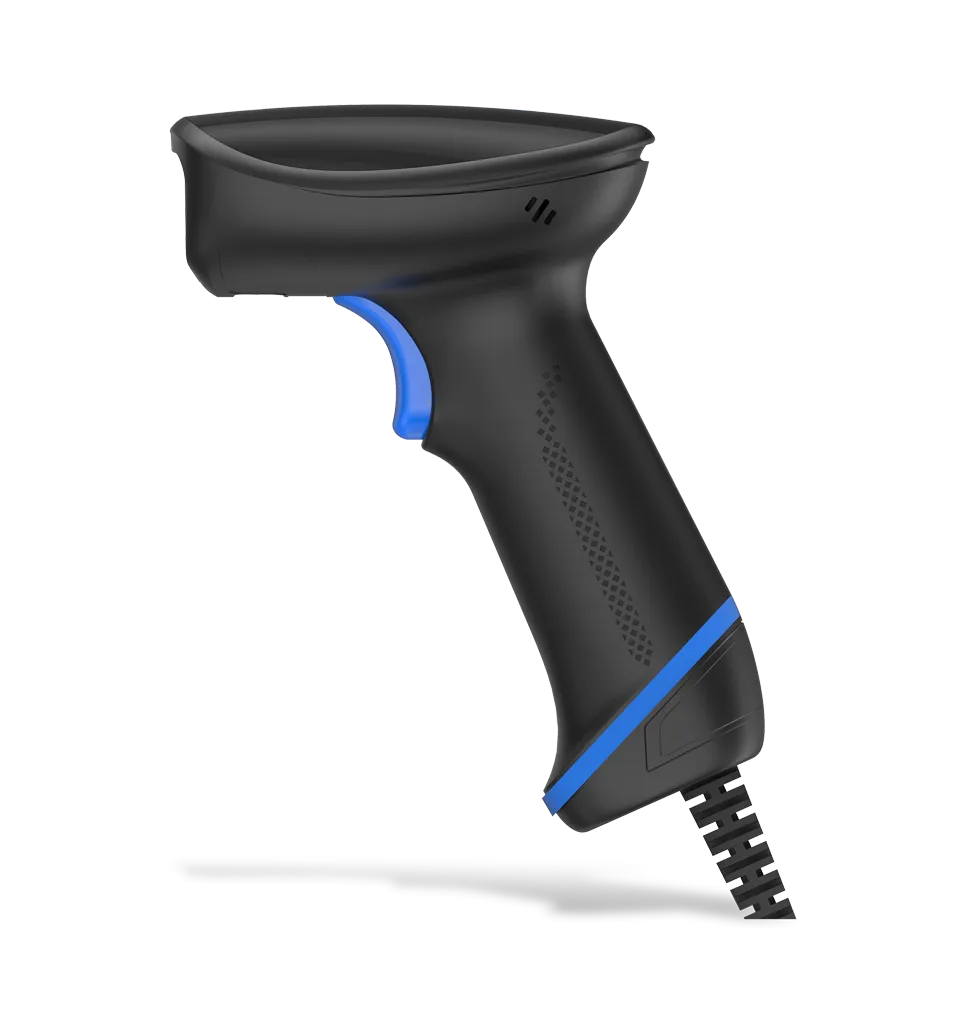

Newland HR23 Dorada Corded
The HR23 Dorada handheld barcode scanner offers the best 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. The Dorada scanner delivers exceptional performance at an entry-level price for various applications.
- Scanning1D Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar,
- SealingIP52
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar,
- Scan range / decode distances
- 50 mm - 120 mm 30 mm - 125 mm 50 mm - 280 mm 40 mm - 120 mm Field of View Horizontal 45˚
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- USB-KBW, USB-CDC, HID-POS, RS-232
Rugged
- IP / sealing
- IP52
- Drop specification
- 1.5 m
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 137 g
- Dimensions
- 117.5(L)×67.5(W)×144(H)mm
Software & service
- Warranty
- 5 Years Comprehensive Service Contract 3 Years, 5 Years
