Newland · Barcode scanner

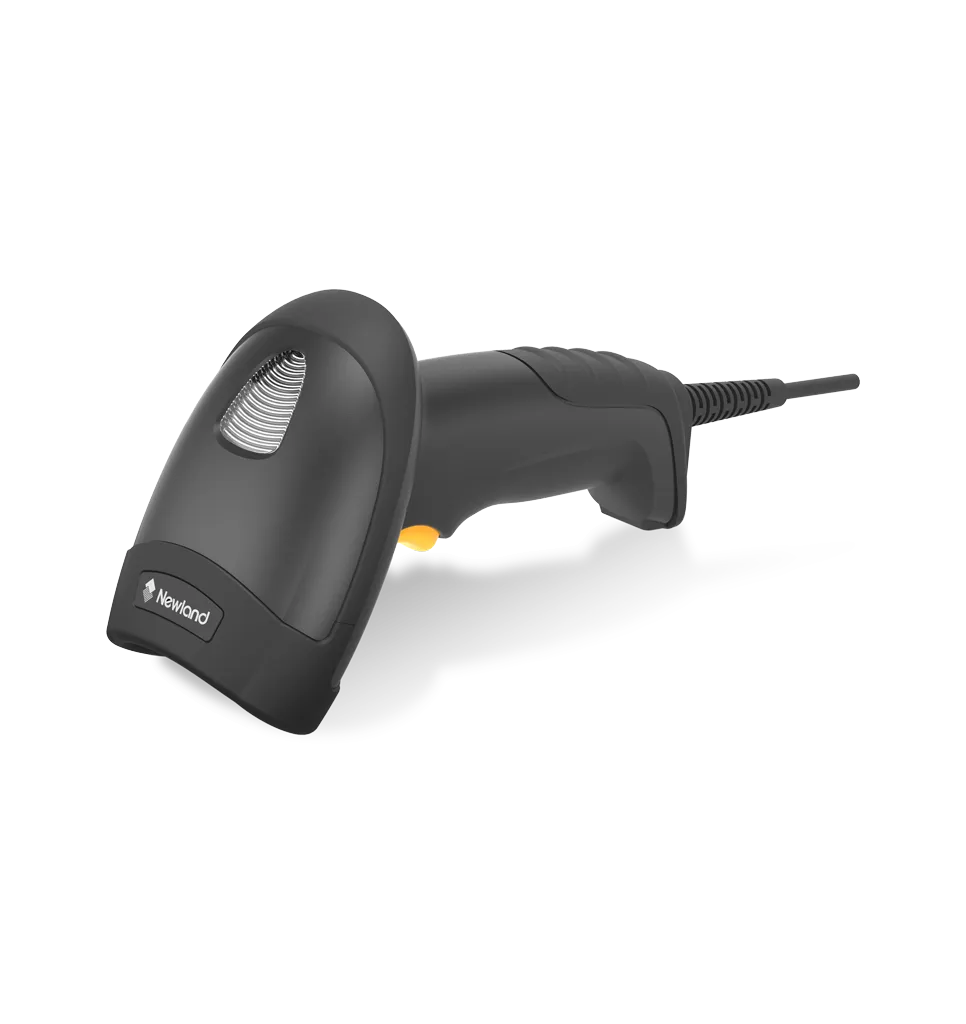

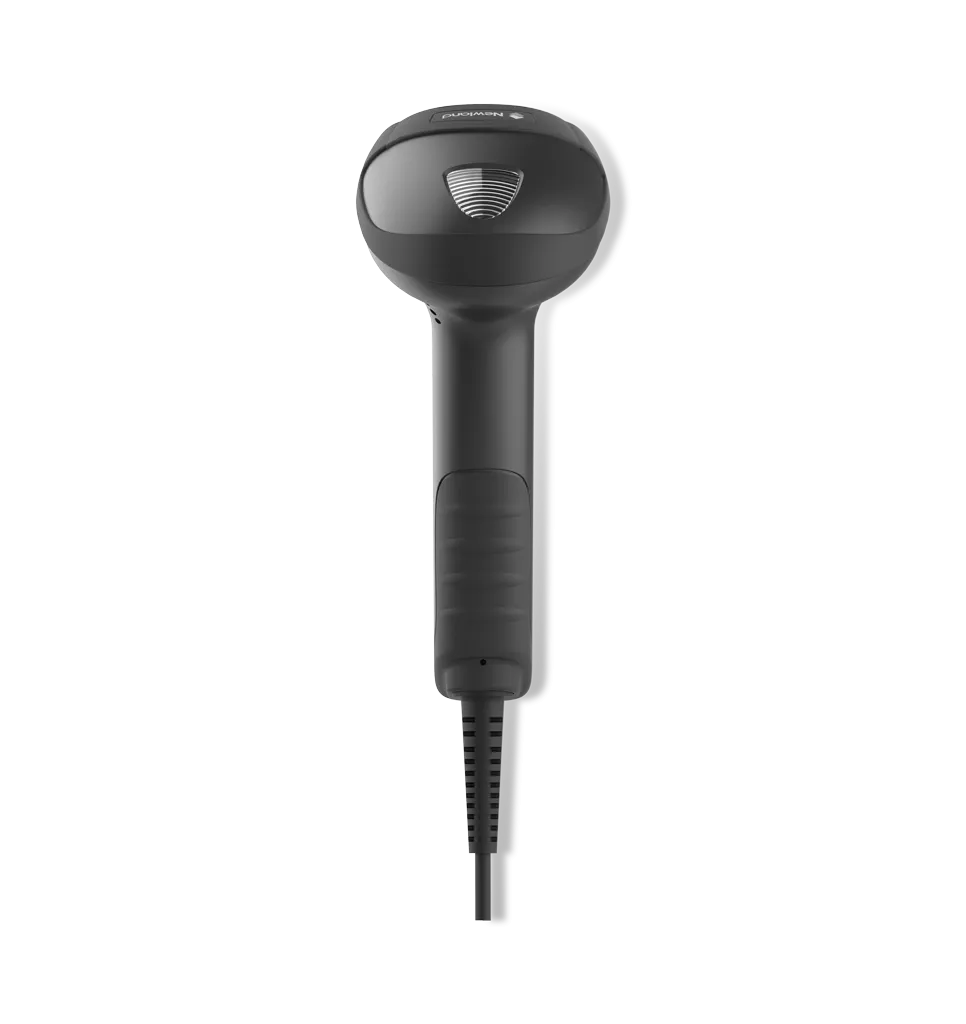

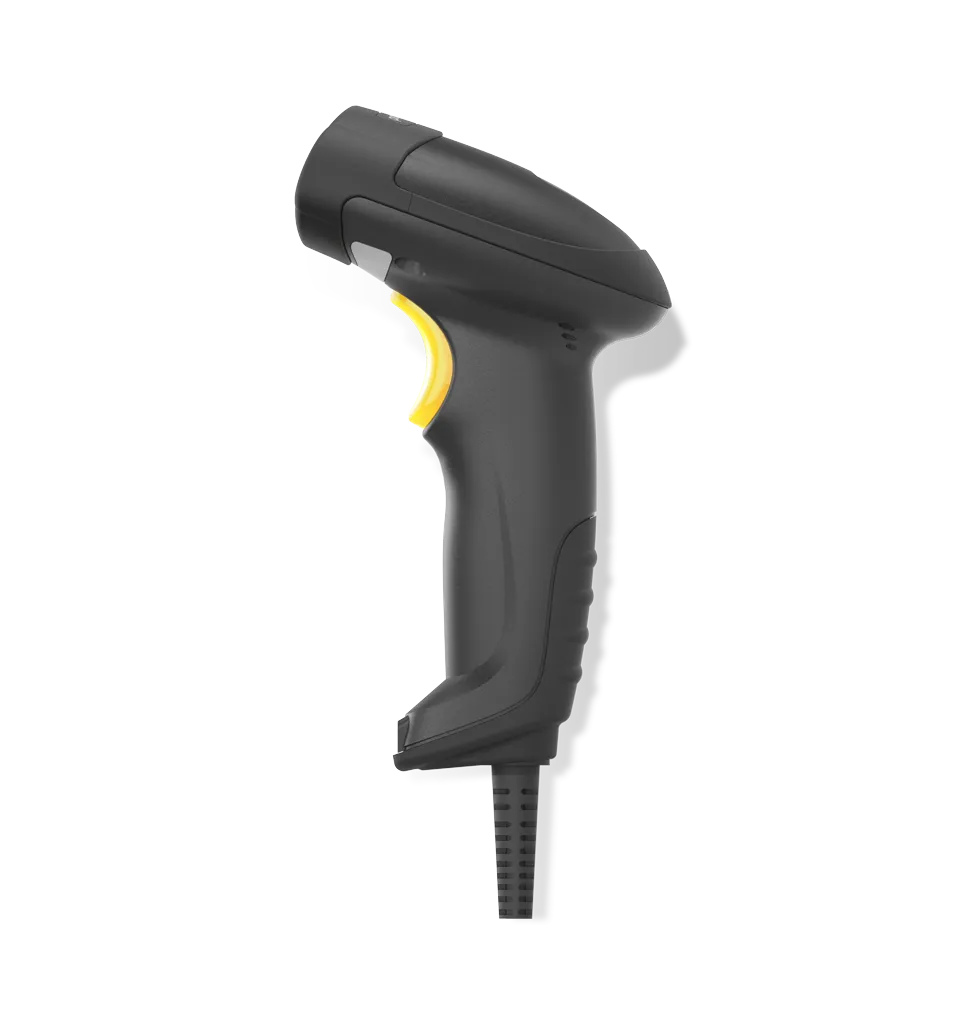

Newland HR15 Wahoo Corded

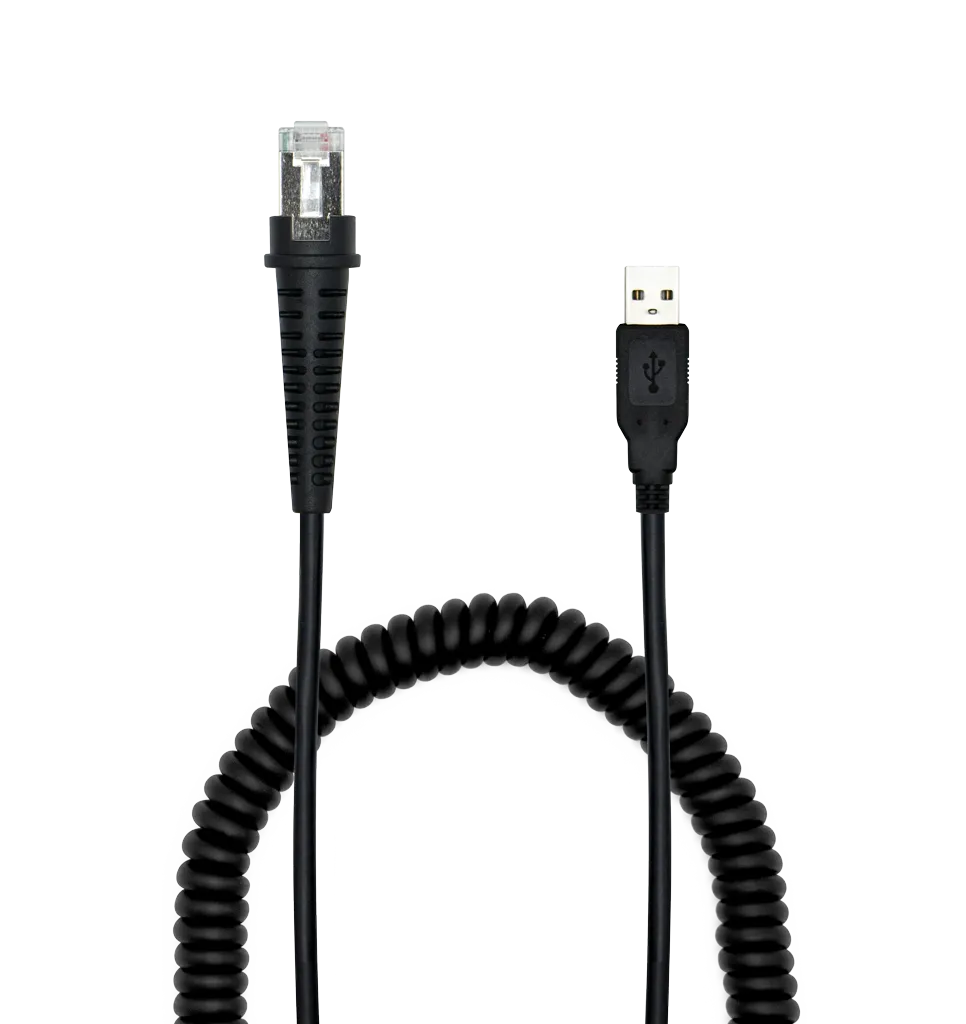

The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.View more information now.
- Scanning1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code39, UPC-A, UPCE, Codabar,Interleaved 2…
- SealingIP54
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code39, UPC-A, UPCE, Codabar,Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar,PDF417
- Scan range / decode distances
- 31.5 mm - 465.6 mm Field of View Horizontal 42°
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232, USB The HR15 Wahoo Corded supports standard RS-232 and USB IP54
Rugged
- IP / sealing
- IP54
- Drop specification
- 1.5 m
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -20°C to 60°C (-4°F to 140°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 152 g
- Dimensions
- 113.5(W) x 73.3(D) x 159(H) mm
Software & service
- Warranty
- 5 Years Comprehensive Service Contract 3 Years, 5 Years
Send a request
Get a quote for the HR15 Wahoo Corded
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
