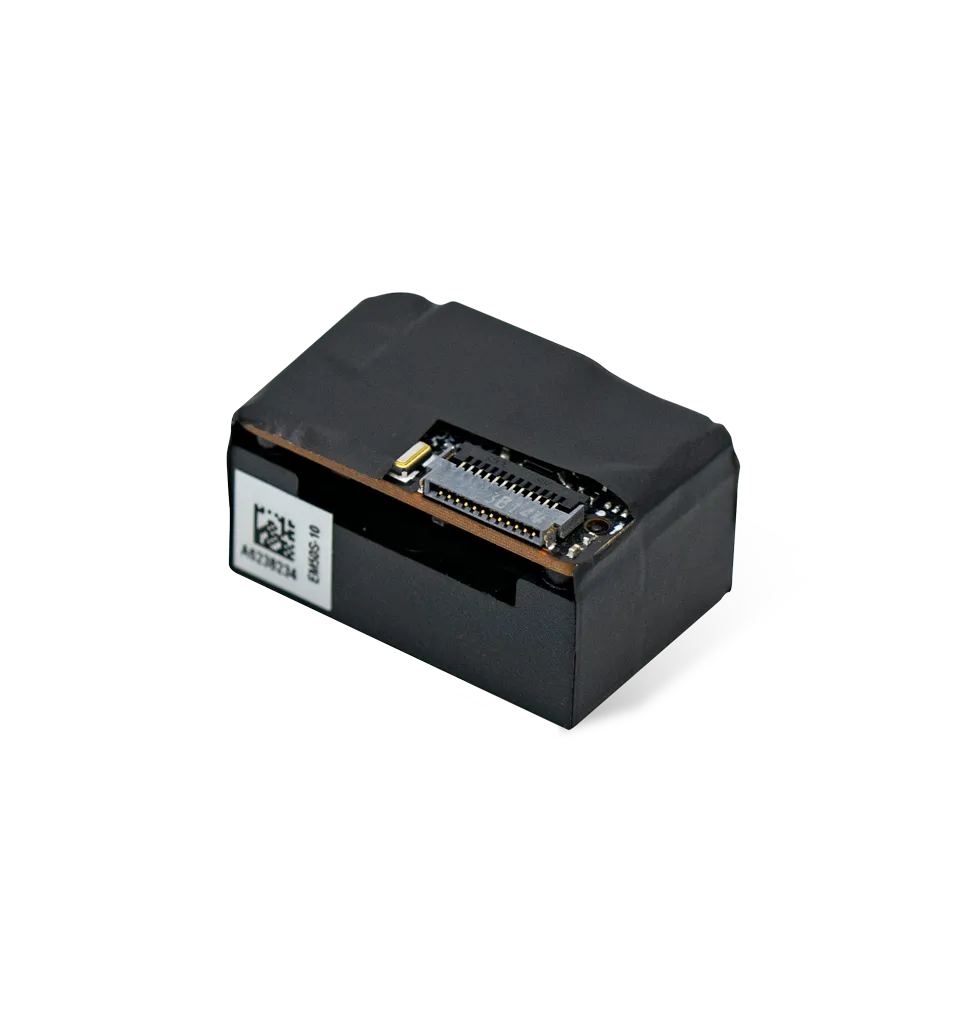

Newland EM50S-10
The EM50S-10 offers you high-end performance in high-demand situations. This megapixel engine scans even the most complicated codes with convincing ease, including OCR, high-density, dual barcodes and DotCode.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including Code 11, Code 128, Code 39, GS1 128 (UCC/EAN-128), AMI 128, Codabar, ISBT 128, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, ITF14, ITF6, Industrial 25, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS), Code 49, Code 16K.
- 2D
- All major 2D symbologies, including PDF417, QR Code, Micro QR, Data Matrix, Aztec, MaxiCode, GM Code, Chinese Sensible Code, MicroPDF417, Code One
- Aiming
- Laser diode (650nm)
- Scan range / decode distances
- 90 mm - 265 mm
- Scan range / decode distances
- 65 mm - 215 mm
- Scan range / decode distances
- 70 mm - 500 mm
- Scan range / decode distances
- 70 mm - 225 mm
- Scan range / decode distances
- 40 mm - 295 mm
- Field of View Horizontal
- 42°
- Field of View Vertical
- 28°
- Illumination
- White LED
- Image Sensor
- 1280 x 800 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Current @ 3.3VDC Operating
- 269 mA (RMS typical), 399 mA (RMS max)
- Current @ 3.3VDC Standby
- < 70 mA
- Dimensions
- 21.7(W) x 14.7(D) x 11.9(H) mm
- Charging / power
- 3.3 VDC ±5%
- Power Consumption
- 888 mW (typical)
- Weight
- 3.9 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- CE EMC Class B, RoHS, FCC Part15 Class B
- Warranty
- 2 Years
- Accessories Optional
- Software development board, RS-232 cable, USB cable, Adapter
- Accessories Standard
- 75mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-EM50S-10
- 2D CMOS Area Imager, Superior, Megapixel CMOS 1280 x 800 , All-in-one, Processor, TTL-232/USB interface with FFC (flexible flat cable), white Illumination, Laser Aimer, small footprint
- Scan range / decode distances
- 90 mm - 265 mm
- Scan range / decode distances
- 65 mm - 215 mm
- Scan range / decode distances
- 70 mm - 500 mm
- Scan range / decode distances
- 70 mm - 225 mm
- Scan range / decode distances
- 40 mm - 295 mm
- Field of View Horizontal
- 42°
- Field of View Vertical
- 28°
- Illumination
- White LED
- Image Sensor
- 1280 x 800 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Current @ 3.3VDC Operating
- 269 mA (RMS typical), 399 mA (RMS max)
- Current @ 3.3VDC Standby
- < 70 mA
- Dimensions
- 21.7(W) x 14.7(D) x 11.9(H) mm
- Charging / power
- 3.3 VDC ±5%
- Power Consumption
- 888 mW (typical)
- Weight
- 3.9 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Warranty
- 2 Years
