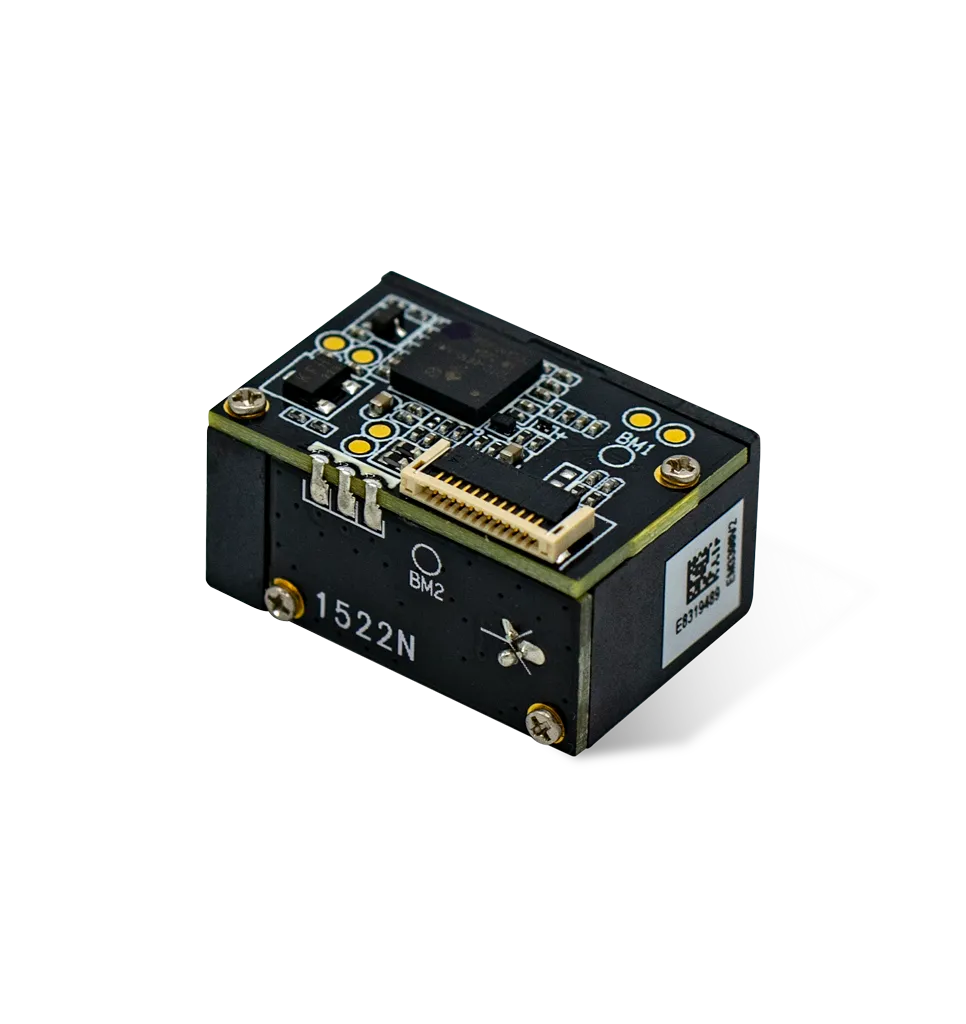

Newland EM3396V2
The EM3396 OEM Scan Engine with bright laser aimer presents a convincing allround solution for a wide range of 1D & 2D barcodes. Its CMOS sensor empowers successful reads on damaged or dense barcodes, even in low light situations.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey.
- 2D
- All major 2D symbologies, including PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code, Aztec, Chinese Sensible Code.
- Aiming
- Laser diode (650nm)
- Scan range / decode distances
- 55 mm - 165 mm
- Scan range / decode distances
- 55 mm - 130 mm
- Scan range / decode distances
- 60 mm - 290 mm
- Scan range / decode distances
- 55 mm - 135 mm
- Scan range / decode distances
- 45 mm - 175 mm
- Field of View Horizontal
- 36°
- Field of View Vertical
- 23°
- Illumination
- White LED (625±10nm)
- Image Sensor
- 752 x 480 CMOS
- Minimal Print Contrast
- 20%
- Scan Angle Pitch
- ±55°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±55°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 116 mA (typical), 195 mA (max)
- Current @ 3.3VDC Sleep
- < 0,1 mA
- Current @ 3.3VDC Standby
- 9,1 mA
- Dimensions
- 21.5(W) × 15.3(D) × 11.8(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- RS-232, USB
- Power Consumption
- 383 mW
- Weight
- 5 g
- Ambient Light
- 0 to 100,000 lux
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- CE EMC Class B, FCC Part15 Class B
- Warranty
- 2 Years
- Accessories Optional
- Software development board, RS-232 cable, Adapter
- Accessories Standard
- 75mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-EM3396V2
- 2D CMOS Area Imager, Standard, CMOS 640 x 480 , All-in-one, Newland Decoderchip 0610, TTL-232/USB interface with FFC (flexible flat cable), Laser Aimer, extra MCU, small footprint
- Scan range / decode distances
- 55 mm - 165 mm
- Scan range / decode distances
- 55 mm - 130 mm
- Scan range / decode distances
- 60 mm - 290 mm
- Scan range / decode distances
- 55 mm - 135 mm
- Scan range / decode distances
- 45 mm - 175 mm
- Field of View Horizontal
- 36°
- Field of View Vertical
- 23°
- Illumination
- White LED (625±10nm)
- Image Sensor
- 752 x 480 CMOS
- Minimal Print Contrast
- 20%
- Scan Angle Pitch
- ±55°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±55°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 116 mA (typical), 195 mA (max)
- Current @ 3.3VDC Sleep
- < 0,1 mA
- Current @ 3.3VDC Standby
- 9,1 mA
- Dimensions
- 21.5(W) × 15.3(D) × 11.8(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- RS-232, USB
- Power Consumption
- 383 mW
- Weight
- 5 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
