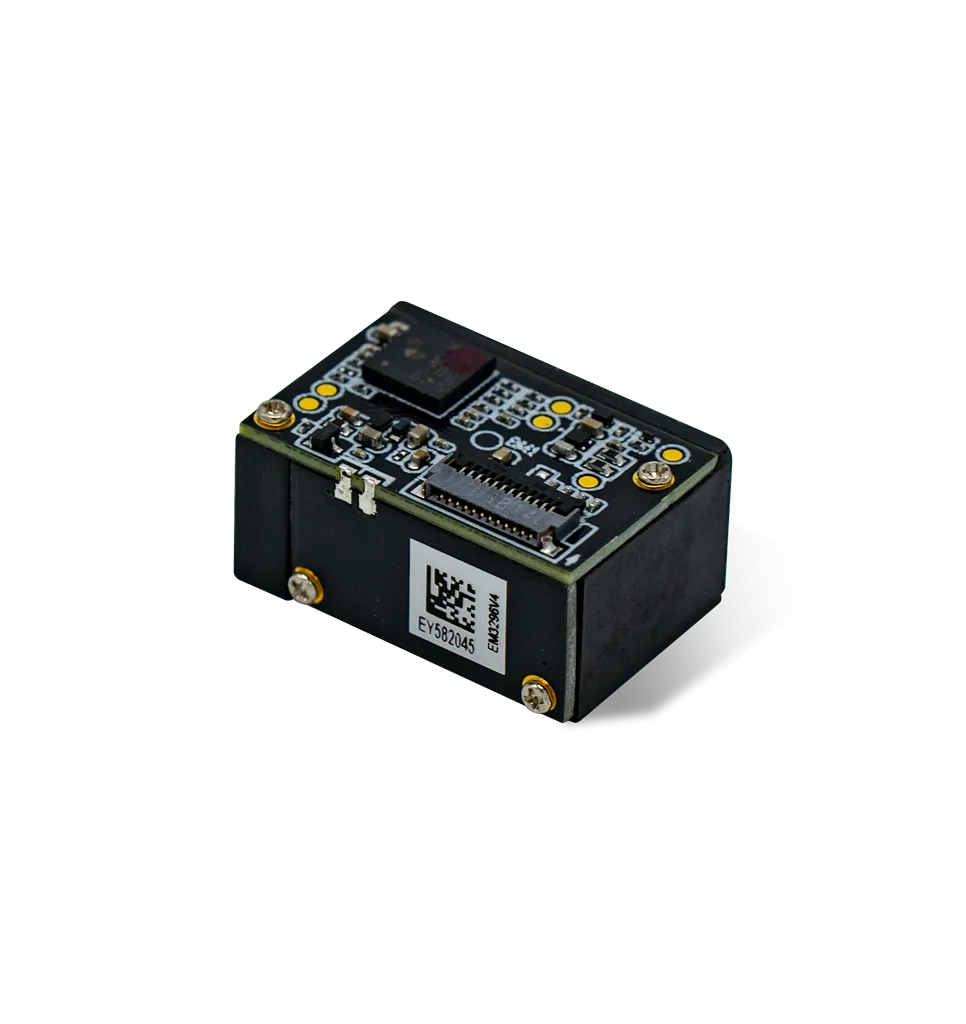

Newland EM3296V4
The EM3296 OEM Scan Engine offers consistent performance to operations facing a wide range of 1D & 2D barcodes. From small on-screen QR codes to long, printed 1D barcodes at a short distance, the EM3296 is fast and effective.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand).
- 2D
- All major 2D symbologies, including PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Aztec, Chinese Sensible Code.
- Aiming
- Red LED (625±10nm)
- Scan range / decode distances
- 40 mm - 165 mm
- Scan range / decode distances
- 35 mm - 115 mm
- Scan range / decode distances
- 50 mm - 365 mm
- Scan range / decode distances
- 45 mm - 115 mm
- Scan range / decode distances
- 35 mm - 145 mm
- Field of View Horizontal
- 44°
- Field of View Vertical
- 33.2°
- Illumination
- Red LED (625±10nm)
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±50°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±50°
- Scan Modes
- Batch Mode, Trigger Mode, Sense Mode, Continuous Mode
- Scan Rate
- 100 frames per second
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 100 mA (typical), 168 mA (max)
- Current @ 3.3VDC Standby
- 8,1 mA
- Dimensions
- 21.8(W) × 15.3(D) × 11.8(H) mm
- Housing
- PP, PPA
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 330 mW
- Weight
- 4 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- CE, FCC, RoHS, EN 62471
- Warranty
- 2 Years
- Accessories Optional
- Software development board, USB cable, RS-232 cable
- Accessories Standard
- 75mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-EM3296V4
- 2D CMOS Area Imager, Standard, CMOS 640 x 480 , All-in-one, Newland Decoderchip 0610, TTL-232/USB interface with FFC (flexible flat cable), LED Aimer, extra MCU, small footprint
- Scan range / decode distances
- 40 mm - 165 mm
- Scan range / decode distances
- 35 mm - 115 mm
- Scan range / decode distances
- 50 mm - 365 mm
- Scan range / decode distances
- 45 mm - 115 mm
- Scan range / decode distances
- 35 mm - 145 mm
- Field of View Horizontal
- 44°
- Field of View Vertical
- 33.2°
- Illumination
- Red LED (625±10nm)
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±50°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±50°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 100 mA (typical), 168 mA (max)
- Current @ 3.3VDC Standby
- 8,1 mA
- Dimensions
- 21.8(W) × 15.3(D) × 11.8(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 330 mW
- Weight
- 4 g
- Humidity
- 5% to 95% (non-condensing)
