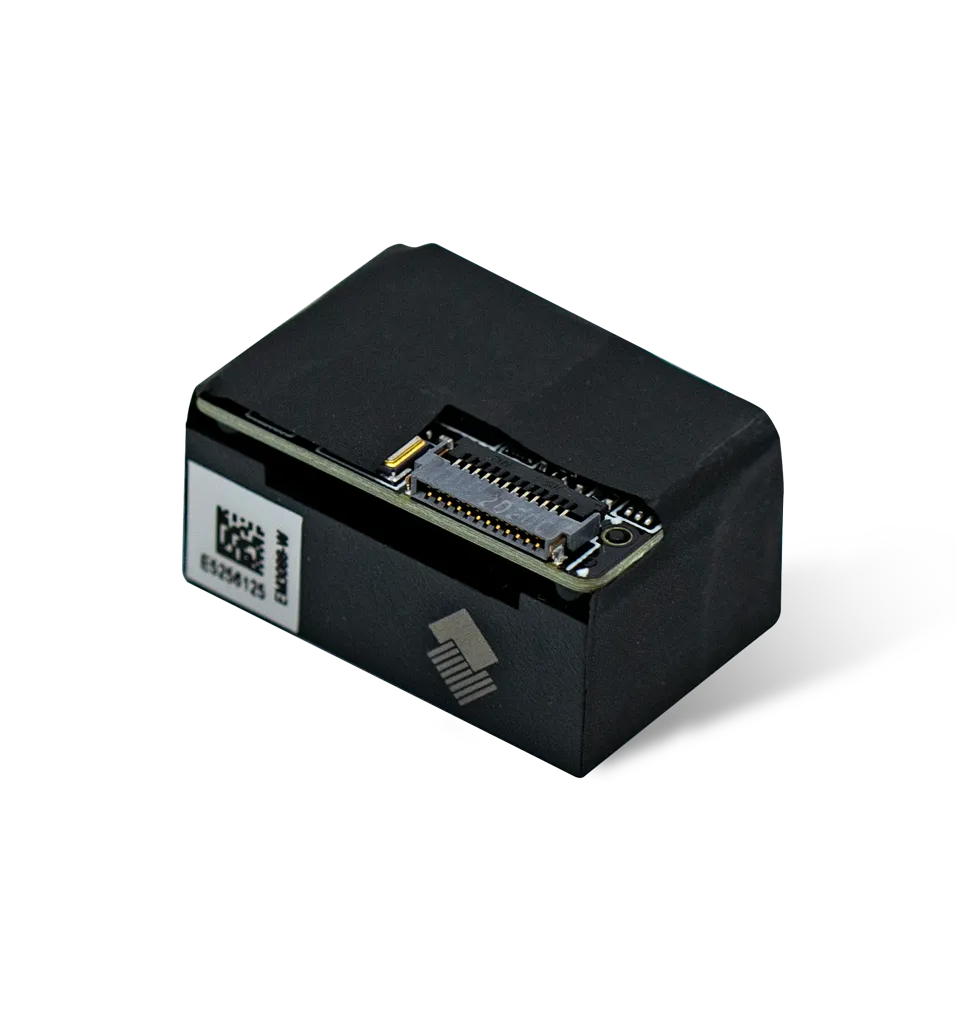

Newland EM3088-W
Our superior-level engine for 1D & 2D barcodes, the EM3088-W, features a CMOS sensor, ultra-wide FOV, and low-power consumption, all in small and compact housing. Optimized for near-distance scanning.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GSl Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
- 2D
- PDF417, QR Code, Micro QR, Data Matrix, Aztec
- Scan range / decode distances
- 35 mm - 65 mm
- Scan range / decode distances
- 23 mm - 65 mm
- Scan range / decode distances
- 30 mm - 85 mm
- Scan range / decode distances
- 30 mm - 55 mm
- Scan range / decode distances
- 20 mm - 80 mm
- Field of View Diagonal
- 109°
- Field of View Horizontal
- 99°
- Field of View Vertical
- 72.4°
- Illumination
- White LED
- Image Sensor
- 1280 x 800 CMOS
- Minimal Print Contrast
- 25%
- Resolution
- ≥3mil (Code 39)
- Scan Angle Pitch
- ±50°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±50°
- Current @ 3.3VDC Operating
- 423 mA (max)
- Current @ 3.3VDC Standby
- 44 mA
- Dimensions
- 21.7(W) × 14.5(D) × 12(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 181.8 mW (Typical)
- Weight
- 3 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B, RoHS, IEC 62471
- Warranty
- 2 Years
- Part Number
- Description
- NLS-EM3088-W
- 2D CMOS Area Imager, Superior, Megapixel CMOS 1280 x 800 , All in one, Processor, Ultra Wide FOV (H:99°/V:72,4°), TTL 232/USB interface with FFC (flexible flat cable), white Illumination, Laser Aimer, small footprint
- Scan range / decode distances
- 35 mm - 65 mm
- Scan range / decode distances
- 23 mm - 65 mm
- Scan range / decode distances
- 30 mm - 85 mm
- Scan range / decode distances
- 30 mm - 55 mm
- Scan range / decode distances
- 20 mm - 80 mm
- Field of View Diagonal
- 109°
- Field of View Horizontal
- 99°
- Field of View Vertical
- 72.4°
- Illumination
- White LED
- Image Sensor
- 1280 x 800 CMOS
- Minimal Print Contrast
- 25%
- Resolution
- ≥3mil (Code 39)
- Scan Angle Pitch
- ±50°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±50°
- Current @ 3.3VDC Operating
- 423 mA (max)
- Current @ 3.3VDC Standby
- 44 mA
- Dimensions
- 21.7(W) × 14.5(D) × 12(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 181.8 mW (Typical)
- Weight
- 3 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Warranty
- 2 Years
