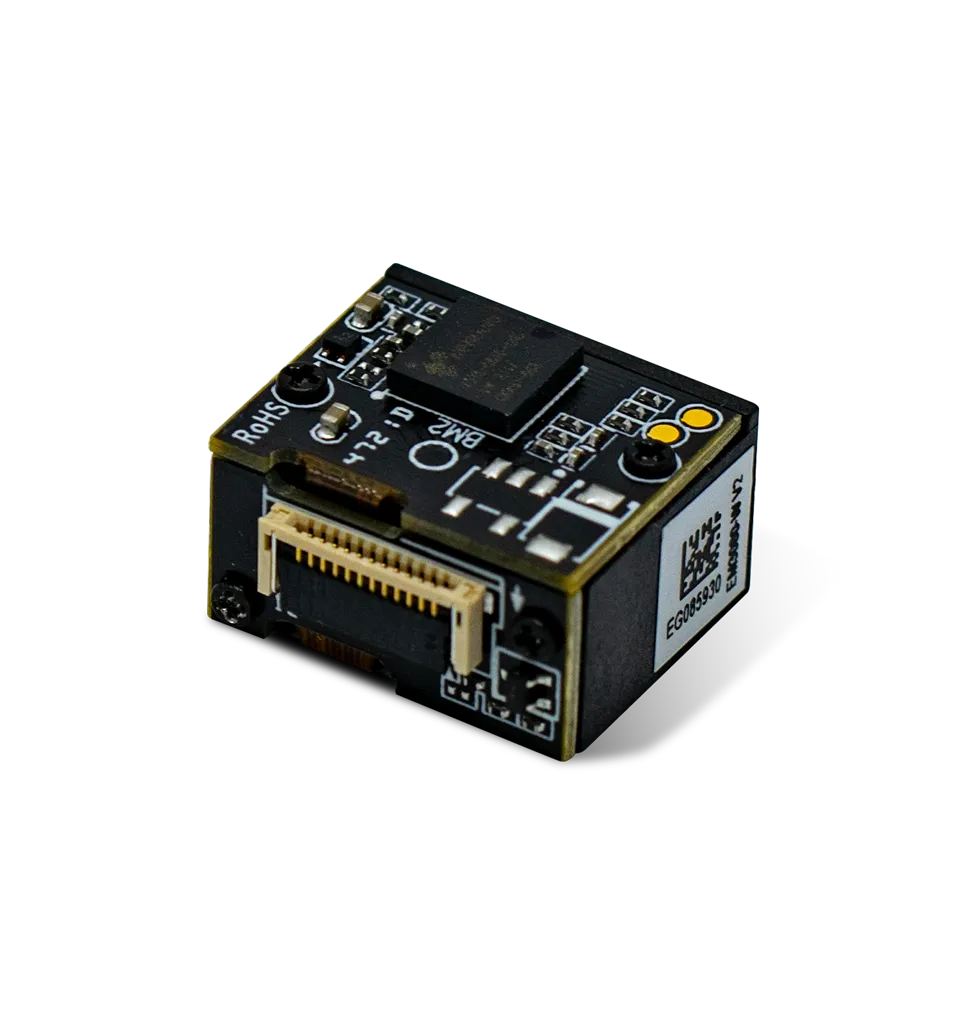

Newland EM3080-W V2
As our entry-level engine for 1D & 2D barcodes, the EM3080-W features CMOS sensor, chip-based engine, low-power consumption, all in a small and compact housing. Optimized for near-distance scanning.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GSl Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
- 2D
- PDF4 l 7, QR Code, Micro QR, Data Matrix, Aztec
- Scan range / decode distances
- 40 mm - 110 mm
- Scan range / decode distances
- 30 mm - 70 mm
- Field of View Horizontal
- 69.5°
- Field of View Vertical
- 54.8°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±45°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±45°
- Scan Modes
- Manual Mode, Trigger Mode, Continuous Mode, Sense Mode
- Scan Rate
- 30 frames per second
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 55.1 mA (typical), 105 mA (max)
- Current @ 3.3VDC Sleep
- 1 mA
- Current @ 3.3VDC Standby
- 9,0 mA
- Dimensions
- 15.5(W) × 13.9(D) × 9.7(H) mm
- Housing
- PPA
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 181.8 mW (Typical)
- Weight
- 2.2±0.2 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B, RoHS
- Warranty
- 2 Years
- Accessories Optional
- Software development board
- Accessories Standard
- 100mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-EM3080-W V2
- 2D CMOS Area Imager, Standard, CMOS 640 x 480 , All-in-one, Newland Decoderchip 0610, TTL-232/USB interface with FFC (flexible flat cable), very small footprint and no aimer
- Scan range / decode distances
- 40 mm - 110 mm
- Scan range / decode distances
- 30 mm - 70 mm
- Field of View Horizontal
- 69.5°
- Field of View Vertical
- 54.8°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±45°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±45°
- Decoder
- ASIC (0610)
- Current @ 3.3VDC Operating
- 55.1 mA (typical), 105 mA (max)
- Current @ 3.3VDC Sleep
- 1 mA
- Current @ 3.3VDC Standby
- 9,0 mA
- Dimensions
- 15.5(W) × 13.9(D) × 9.7(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 181.8 mW (Typical)
- Weight
- 2.2±0.2 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Warranty
- 2 Years
