Newland EM27

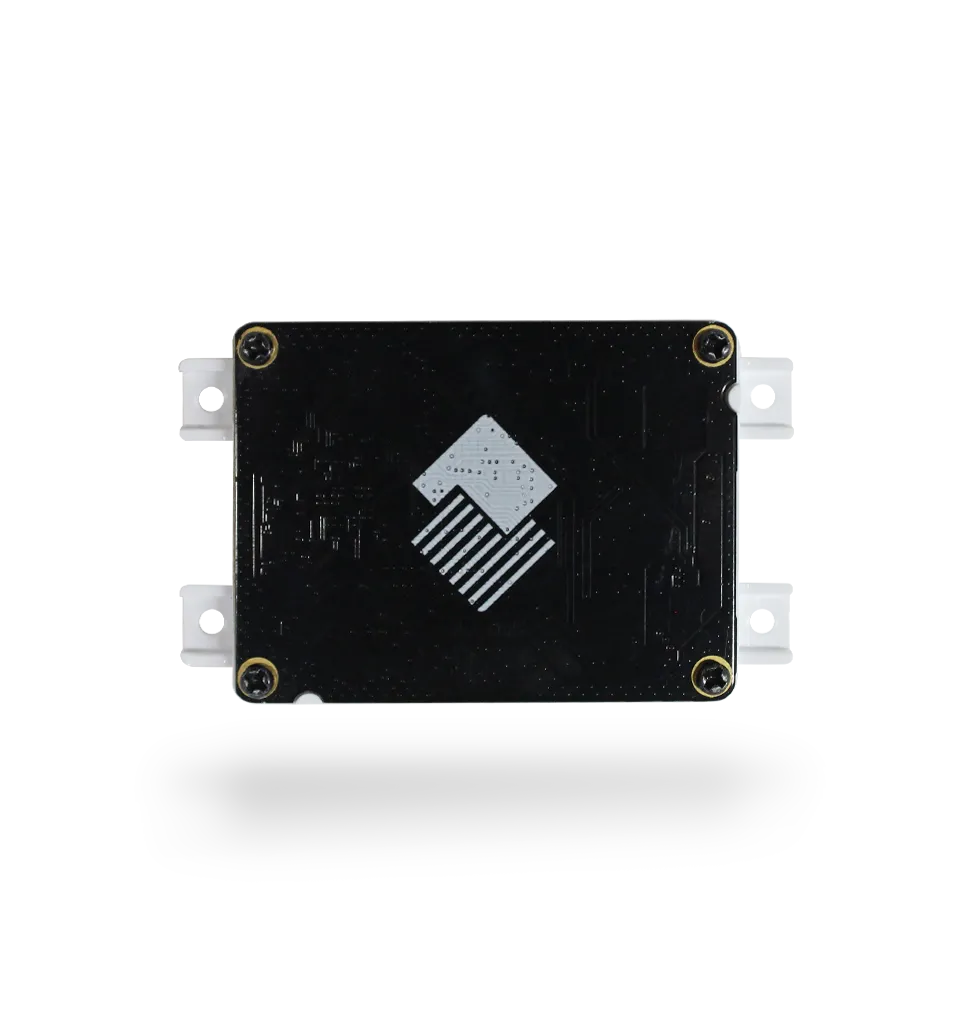

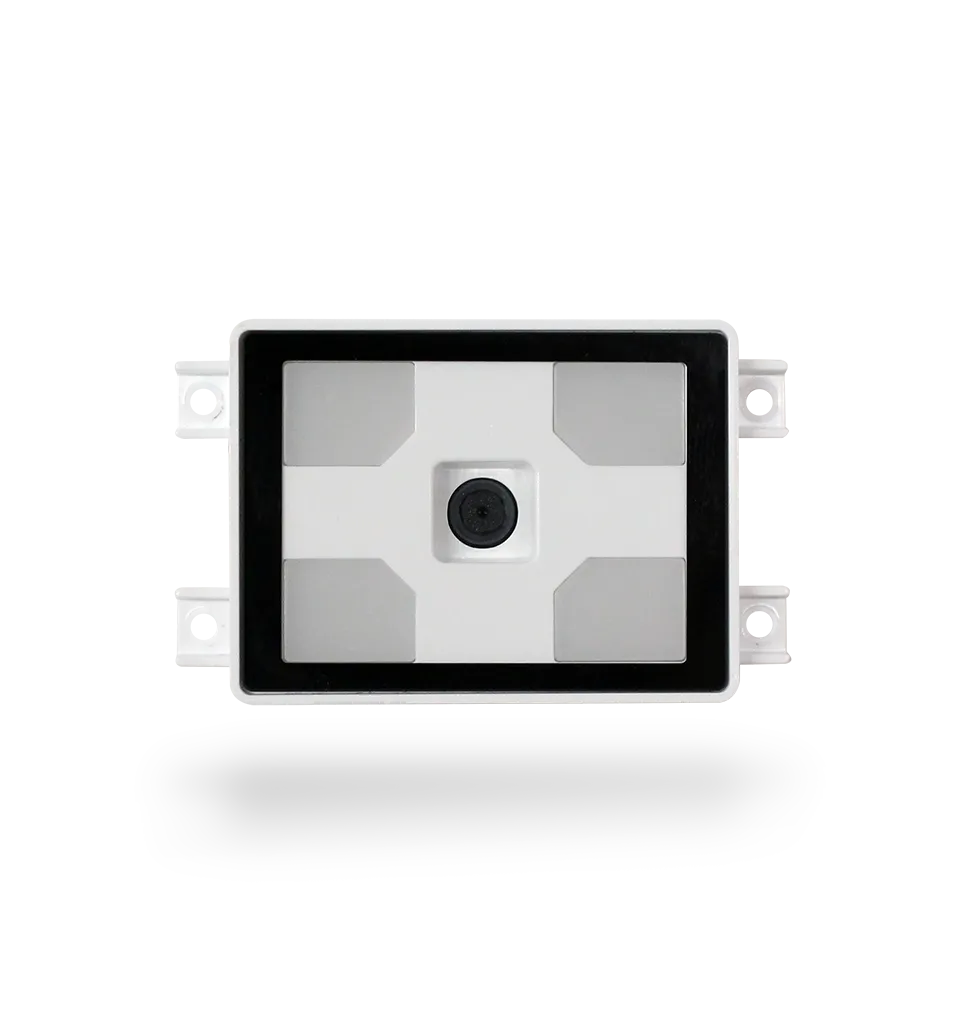

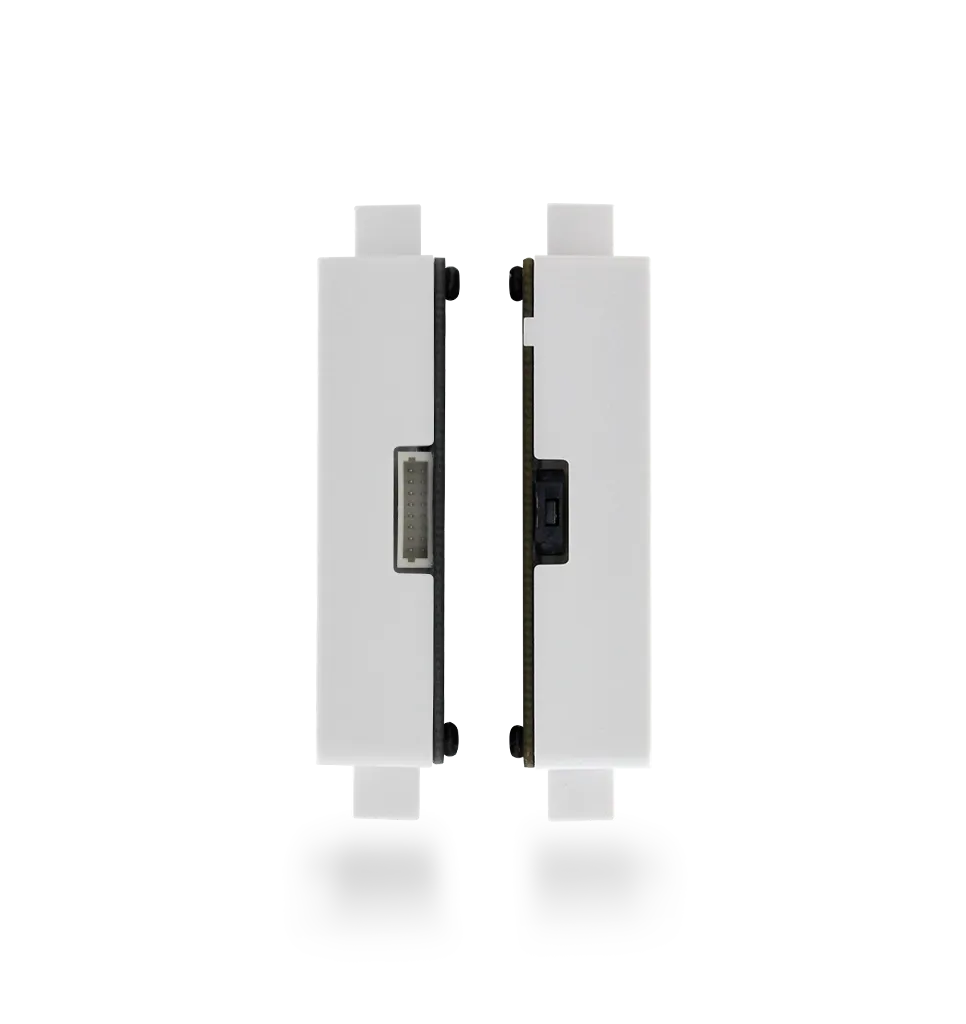

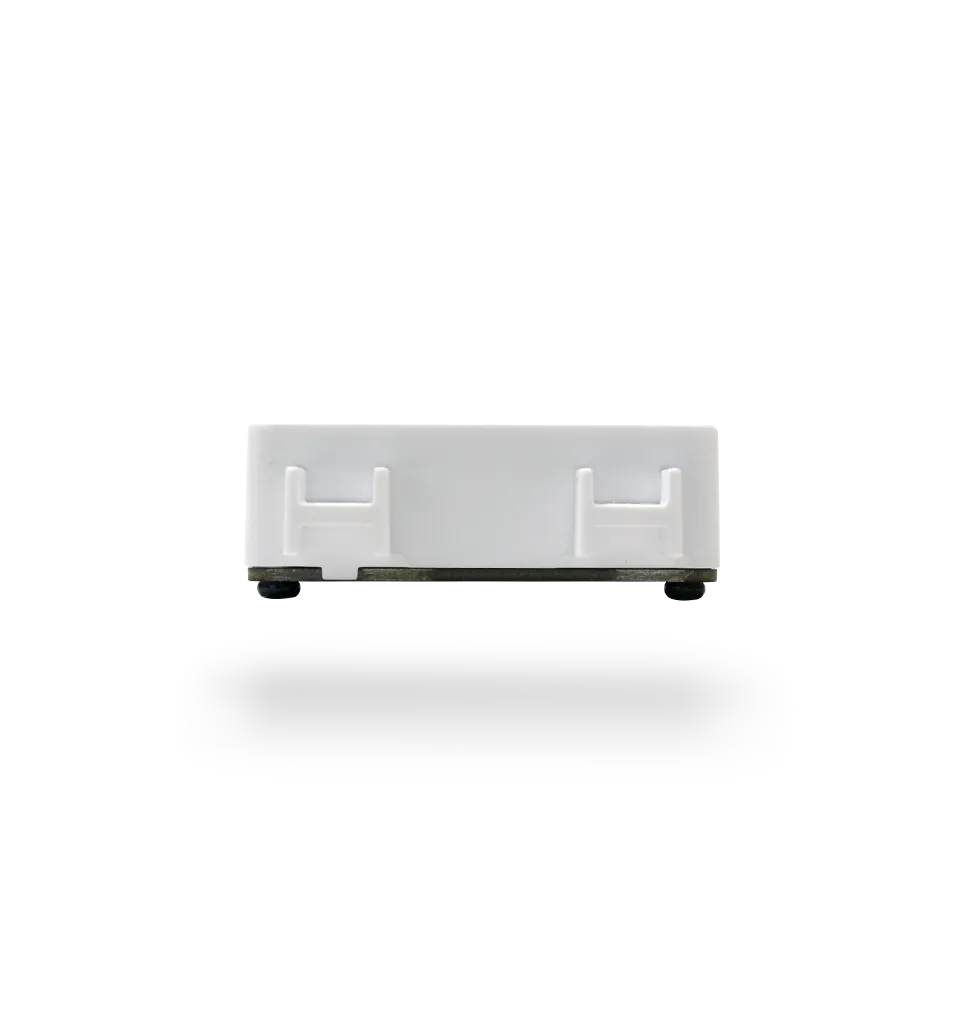

The EM27 OEM Scan Engine is a robust barcode scanner with a CMOS Image Sensor. Its soft illumination and small form factor make it easily embeddable into customer-facing solutions.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- Code 128, UCC/EAN128, AIM128, EAN-8, EAN-13, ISSN/ISBN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Standard 25, CodaBar, Industrial 25, Code 39, Code 93, Code 11, Plessey, MSI-Plessey, GS1-128 (UCC/EAN-128), GS1-Databar™ (RSS) (RSS14, RSS-Limited, RSS-Expand, Matrix 2 of 5
- 2D
- PDF 417, Micro PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode
- Scan range / decode distances
- 25 mm - 70 mm
- Scan range / decode distances
- 35 mm - 60 mm
- Scan range / decode distances
- 40 mm - 90 mm
- Scan range / decode distances
- 32 mm - 55 mm
- Scan range / decode distances
- 15 mm - 75 mm
- Field of View Horizontal
- 68°
- Field of View Vertical
- 51°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Motion Tolerance
- 1.0 m/s
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Current @ 5VDC Operating
- 196 mA (typical), 616 mA (max)
- Current @ 5VDC Standby
- 35 mA
- Dimensions
- With foam: 55.0(W) x 34.4(D) x 13.2(H) mm, With glass: 55.0(W) x 34.4(D) x 12.7(H) mm
- Charging / power
- 5 VDC ±5%
- Ports / interfaces
- RS-232, USB
- Notifications
- Beep
- Power Consumption
- 980 mW (typical)
- Weight
- With foam: 14.2 g, With glass: 17.9 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B, RoHS
- Warranty
- 2 Years
- Accessories Optional
- USB cable, RS-232 cable
- Part Number
- Description
- NLS-EM27-00
- '2D CMOS Area Imager, Slim Type, customer facing scanner, CMOS 640 x 480 , All-in-one, 8-PIN connector for USB/RS232 direct connection to host, Buzzer, without glass cover.
- NLS-EM27-01
- '2D CMOS Area Imager, Slim Type, customer facing scanner, CMOS 640 x 480 , All-in-one, 8-PIN connector for USB/RS232 direct connection to host, Buzzer, with glass cover.
- Scan range / decode distances
- 25 mm - 70 mm
- Scan range / decode distances
- 35 mm - 60 mm
- Scan range / decode distances
- 40 mm - 90 mm
- Scan range / decode distances
- 32 mm - 55 mm
- Scan range / decode distances
- 15 mm - 75 mm
- Field of View Horizontal
- 68°
- Field of View Vertical
- 51°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Current @ 5VDC Operating
- 196 mA (typical), 616 mA (max)
- Current @ 5VDC Standby
- 35 mA
- Dimensions
- With foam: 55.0(W) x 34.4(D) x 13.2(H) mm, With glass: 55.0(W) x 34.4(D) x 12.7(H) mm
- Charging / power
- 5 VDC ±5%
- Ports / interfaces
- RS-232, USB
- Power Consumption
- 980 mW (typical)
- Weight
- With foam: 14.2 g, With glass: 17.9 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Warranty
- 2 Years
