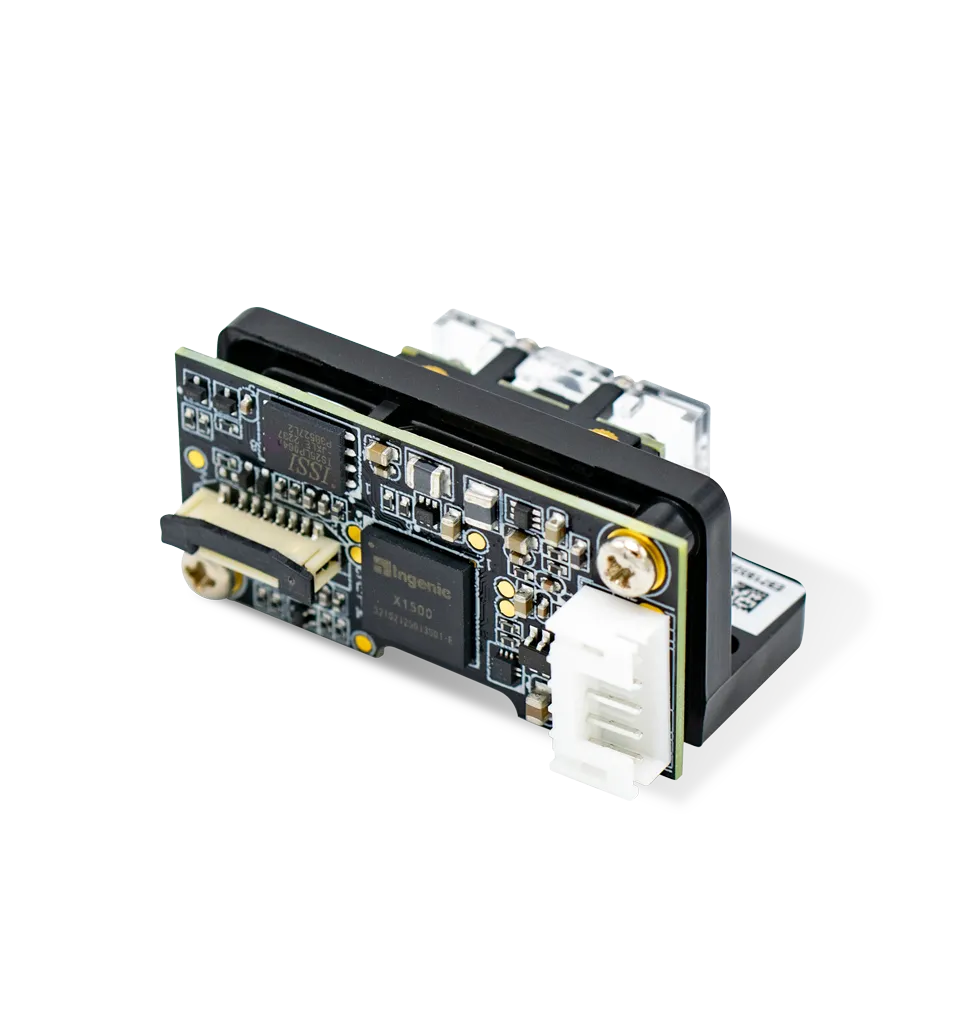

Newland EM2037 V4
The EM2037 scan engine boasts a megapixel imager with superior scanning in high demanding environments. Available with Standard Range (SR) or High Density (HD) lenses to adjust for optimal distance.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6,Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25,Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, China Post 25,Code 49, Code 16K.
- 2D
- All major 2D symbologies, including PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode,Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One.
- Aiming
- Red LED
- Scan range / decode distances
- HD: 50 mm - 90 mm
- Scan range / decode distances
- SR: 70 mm - 180 mm, HD: 50 mm - 105 mm
- Scan range / decode distances
- SR: 55 mm - 220 mm
- Scan range / decode distances
- HD: 45 mm - 75 mm
- Scan range / decode distances
- SR: 55 mm - 365 mm
- Scan range / decode distances
- HD: 45 mm - 95 mm
- Scan range / decode distances
- SR: 55 mm - 175 mm
- Field of View Horizontal
- 39°
- Field of View Vertical
- 24°
- Illumination
- Red LED
- Image Sensor
- 1280 x 800 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±55°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±55°
- Current @ 5VDC Operating
- 276.6 mA (typical), 332.3 mA (max)
- Current @ 5VDC Standby
- 57.4 mA (typical)
- Dimensions
- 39.5(W) × 25.4(D) × 20(H) mm
- Housing
- PC, PMMA
- Charging / power
- 3.3 VCD via 12-pin FPC; 5 VCD via 5-pin box connector
- Ports / interfaces
- TTL-232, USB
- Power Consumption
- 1456.5 mW (typical)
- Power Supply Input
- 5 VDC (1.5 A)
- Power Supply Output
- AC100 to 240 V (50 to 60 Hz)
- Weight
- 11 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- CE EMC Class B, RoHS, IEC 62471, FCC Part15 Class B
- Warranty
- 2 Years
- Accessories Optional
- Software development board, USB cable, RS-232 cable, Adapter
- Accessories Standard
- 75mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-EM2037V4-HD-13
- 2D CMOS Area Imager, Superior, Megapixel CMOS 1280 x 800 , HD (High Density), Split, Processor, TTL-232/USB interface with FFC (flexible flat cable), 5-PIN connector for USB direct connection to host, bracket
- NLS-EM2037V4-SR-14
- 2D CMOS Area Imager, Superior, Megapixel CMOS 1280 x 800 , SR (Standard Range), Split, Processor, TTL-232/USB interface with FFC (flexible flat cable), 5-PIN connector for USB direct connection to host, bracket
- Scan range / decode distances
- HD: 50 mm - 90 mm
- Scan range / decode distances
- SR: 70 mm - 180 mm, HD: 50 mm - 105 mm
- Scan range / decode distances
- SR: 55 mm - 220 mm
- Scan range / decode distances
- HD: 45 mm - 75 mm
- Scan range / decode distances
- SR: 55 mm - 365 mm
- Scan range / decode distances
- HD: 45 mm - 95 mm
- Scan range / decode distances
- SR: 55 mm - 175 mm
- Field of View Horizontal
- 39°
- Field of View Vertical
- 24°
- Illumination
- Red LED
- Image Sensor
- 1280 x 800 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±55°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±55°
- Current @ 5VDC Operating
- 276.6 mA (typical), 332.3 mA (max)
- Current @ 5VDC Standby
- 57.4 mA (typical)
- Dimensions
- 39.5(W) × 25.4(D) × 20(H) mm
- Charging / power
- 3.3 VCD via 12-pin FPC; 5 VCD via 5-pin box connector
- Ports / interfaces
- TTL-232, USB
