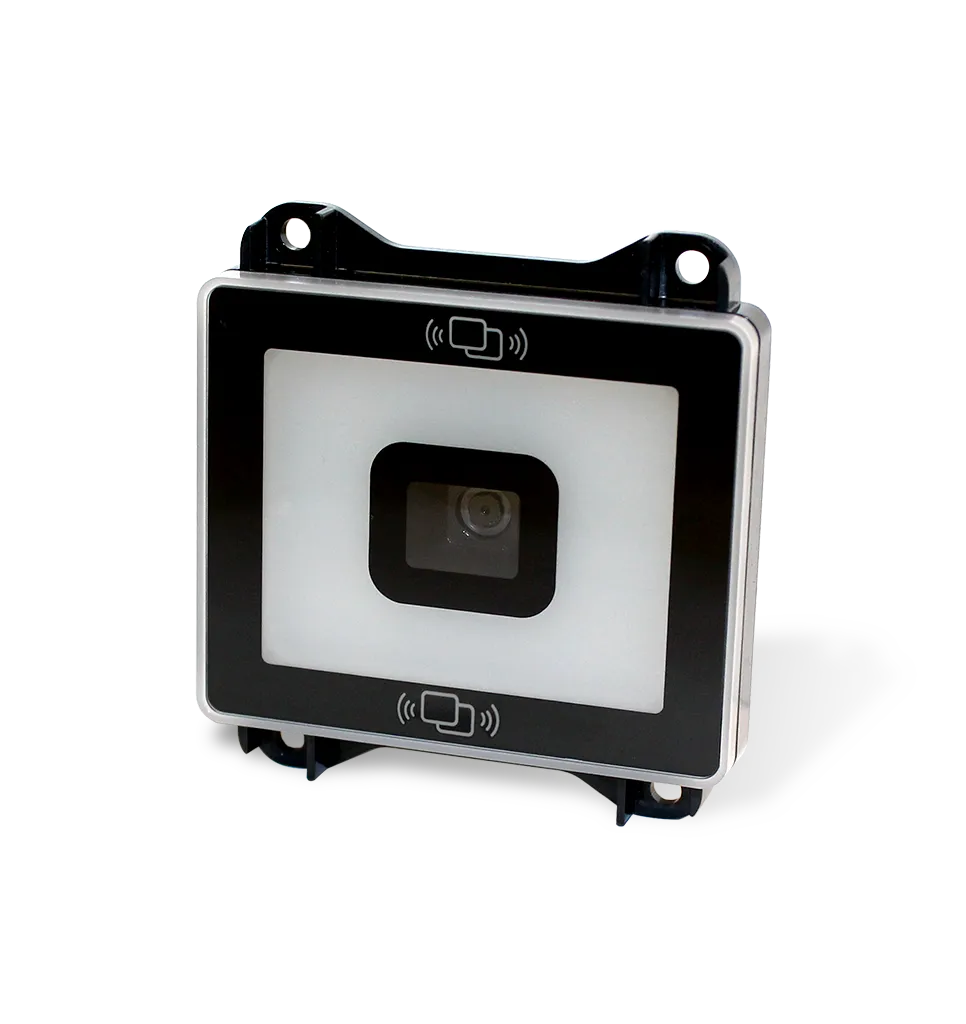

Newland EM20-85
As a close-range embeddable scanner with soft illumination, the EM20-85 Scan Engine can be aligned in a user’s direction without glare while still ensuring unique usability for scanning processes in customer self-service. See more information now!
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- Code 128, UCC/EAN128, AIM128, EAN-8, EAN-13, ISSN/ISBN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Standard 25, CodaBar, Industrial 25, Code 39, Code 93, Code 11, Plessey, MSI-Plessey, GS1-128 (UCC/EAN-128), GS1-Databar™ (RSS) (RSS14, RSS-Limited, RSS-Expand, Matrix 2 of 5
- 2D
- PDF 417, Micro PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode
- Scan range / decode distances
- 25 mm - 70 mm
- Scan range / decode distances
- 25 mm - 60 mm
- Scan range / decode distances
- 30 mm - 85 mm
- Scan range / decode distances
- 30 mm - 50 mm
- Scan range / decode distances
- 15 mm - 75 mm
- Field of View Horizontal
- 68°
- Field of View Vertical
- 51°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Motion Tolerance
- 1.5 m/s
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Current @ 5VDC Operating
- Non NFC: 215 mA (typical), 578 mA (max), NFC: 253 mA (typical), 736 mA (max)
- Current @ 5VDC Standby
- Non NFC: 120 mA, NFC: 144 mA
- Dimensions
- With foam: 61.5(W) x 65.5(D) x 18.8(H) mm, With glass: 61.5(W) x 65.5(D) x 18.3(H) mm
- Charging / power
- 5 VDC ±5%
- Ports / interfaces
- TTL-232, RS-232, USB
- Notifications
- Beep
- Power Consumption
- Non NFC: 1.07 W, NFC: 1.26 W
- Weight
- With foam: 27.4 g, With glass: 36.4 g
- NFC
- NFC Function Available, Reading distance of NFC card 0-40mm (typical)
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B, RoHS
- Warranty
- 2 Years
- Accessories Standard
- USB cable, RS-232 cable, 75mm flexible flat cable (FFC)
- Part Number
- Description
- NLS-EM20-85-02
- 2D CMOS Area Imager, Slim Type, customer facing scanner, CMOS 640 x 480 , All-in-one, TTL-232/USB interface with FFC (flexible flat cable), 8-PIN connector for USB/RS232 direct connection to host, Buzzer, with foam (no glass), NFC reading
- NLS-EM20-85-03
- 2D CMOS Area Imager, Slim Type, customer facing scanner, CMOS 640 x 480 , All-in-one, TTL-232/USB interface with FFC (flexible flat cable), 8-PIN connector for USB/RS232 direct connection to host, Buzzer, with glass, NFC reading
- Scan range / decode distances
- 25 mm - 70 mm
- Scan range / decode distances
- 25 mm - 60 mm
- Scan range / decode distances
- 30 mm - 85 mm
- Scan range / decode distances
- 30 mm - 50 mm
- Scan range / decode distances
- 15 mm - 75 mm
- Field of View Horizontal
- 68°
- Field of View Vertical
- 51°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 25%
- Scan Angle Pitch
- ±60°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±60°
- Current @ 5VDC Operating
- Non NFC: 215 mA (typical), 578 mA (max), NFC: 253 mA (typical), 736 mA (max)
- Current @ 5VDC Standby
- Non NFC: 120 mA, NFC: 144 mA
- Dimensions
- With foam: 61.5(W) x 65.5(D) x 18.8(H) mm, With glass: 61.5(W) x 65.5(D) x 18.3(H) mm
- Charging / power
- 5 VDC ±5%
- Ports / interfaces
- TTL-232, RS-232, USB
- Power Consumption
- Non NFC: 1.07 W, NFC: 1.26 W
- Weight
- With foam: 27.4 g, With glass: 36.4 g
- NFC
- NFC Function Available, Reading distance of NFC card 0-40mm (typical)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
