Newland EM20-80 V2
Designed for customer-facing applications, the EM20-80 OEM Scan Engine present a wide scan angle, soft illumination, powerful CMOS sensor and high resistance to vibrations in an easy integratable desing. Learn more about our unique EM20-80 engine.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies, including EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K.
- 2D
- All major 2D symbologies, including PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One.
- Scan range / decode distances
- 35 mm - 50 mm
- Scan range / decode distances
- 25 mm - 110 mm
- Scan range / decode distances
- 35 mm - 45 mm
- Scan range / decode distances
- 0 mm - 90 mm
- Field of View Horizontal
- 68°
- Field of View Vertical
- 51°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 30%
- Scan Angle Pitch
- ±40°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±45°
- Current @ 3.3VDC Operating
- 141 mA
- Current @ 3.3VDC Standby
- 93 mA
- Current @ 5VDC Standby
- 51 mA
- Dimensions
- 61.5(W) x 65.5(D) x 31.9(H) mm
- Charging / power
- 12-pin FPC connector: 3.3-5 VDC ±5%, 4-pin box connector: 3.3-5 VDC ±5%
- Ports / interfaces
- TTL-232, RS-232, USB
- Notifications
- Beep, Green LED
- Power Consumption
- 3.3 VDC: 466 mW, 5 VDC: 755 mW (typical)
- Weight
- 33 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -40°C to 60°C (-40˚F to 140˚F)
- Storage temperature
- -40°C to 75°C (-40°F to 167°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- CE EMC Class B, FCC Part15 Class B
- Warranty
- 2 Years
- Accessories Optional

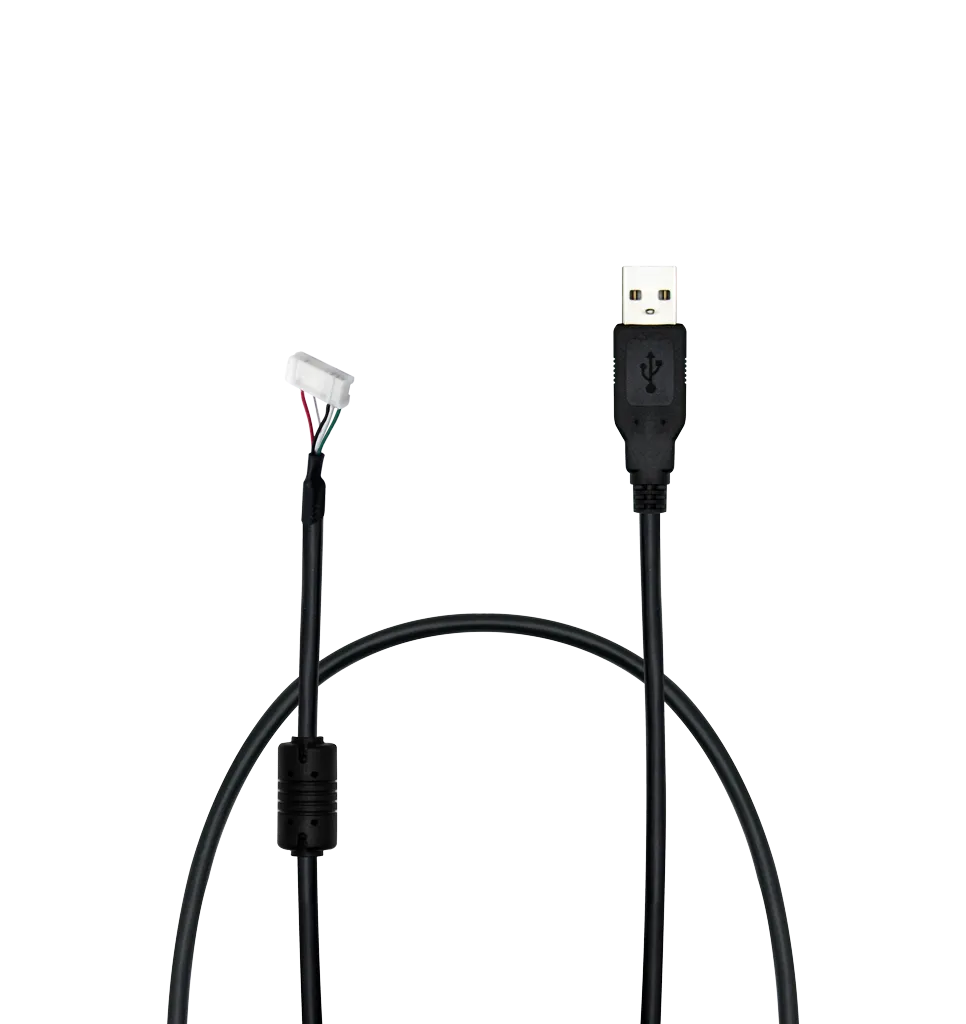

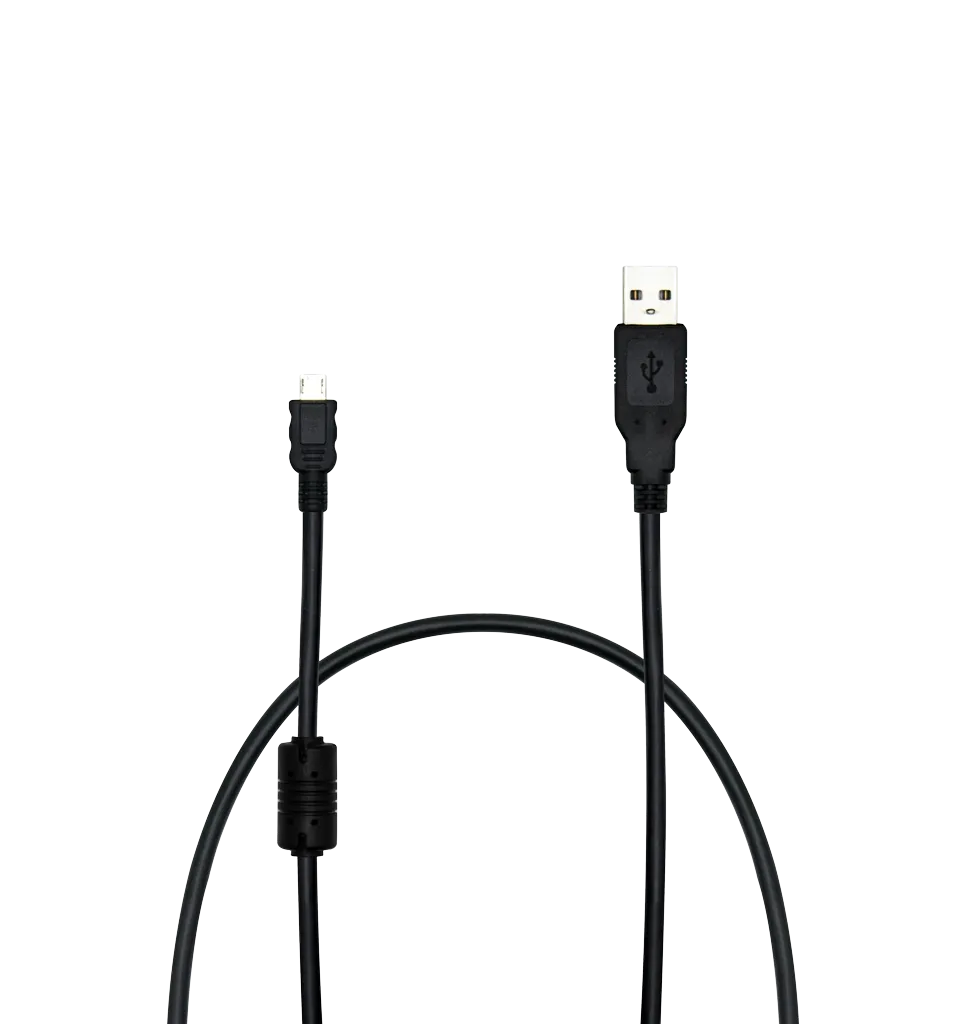

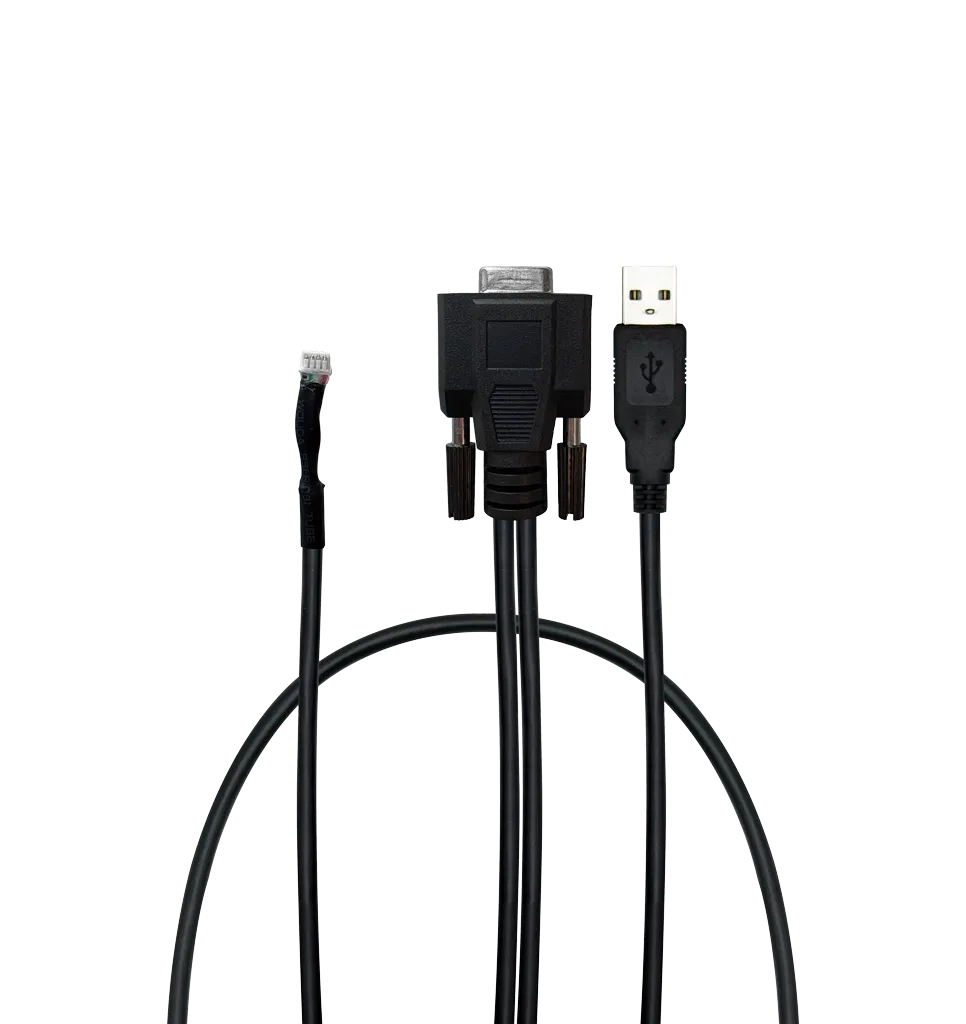

- USB cable, RS-232 cable, Adapter
- Accessories Standard
- 180mm flexible flat cable (FFC), Software development board
- Part Number
- Description
- NLS-EM20-80V2
- 2D CMOS Area Imager, customer facing scanner, CMOS 640 x 480 , All-in-one, TTL-232/USB interface with FFC (flexible flat cable), 4-PIN connector for USB/RS232 direct connection to host, Buzzer
- Scan range / decode distances
- 35 mm - 50 mm
- Scan range / decode distances
- 25 mm - 110 mm
- Scan range / decode distances
- 35 mm - 45 mm
- Scan range / decode distances
- 0 mm - 90 mm
- Field of View Horizontal
- 68°
- Field of View Vertical
- 51°
- Illumination
- White LED
- Image Sensor
- 640 x 480 CMOS
- Minimal Print Contrast
- 30%
- Scan Angle Pitch
- ±40°
- Scan Angle Roll
- 360°
- Scan Angle Skew
- ±45°
- Current @ 3.3VDC Operating
- 141 mA
- Current @ 3.3VDC Standby
- 93 mA
- Current @ 5VDC Standby
- 51 mA
- Dimensions
- 61.5(W) x 65.5(D) x 31.9(H) mm
- Charging / power
- 12-pin FPC connector: 3.3-5 VDC ±5%, 4-pin box connector: 3.3-5 VDC ±5%
- Ports / interfaces
- TTL-232, RS-232, USB
- Power Consumption
- 3.3 VDC: 466 mW, 5 VDC: 755 mW (typical)
- Weight
- 33 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -40°C to 60°C (-40˚F to 140˚F)
- Storage temperature
- -40°C to 75°C (-40°F to 167°F)
- Warranty
- 2 Years
