Newland EM1365-EX

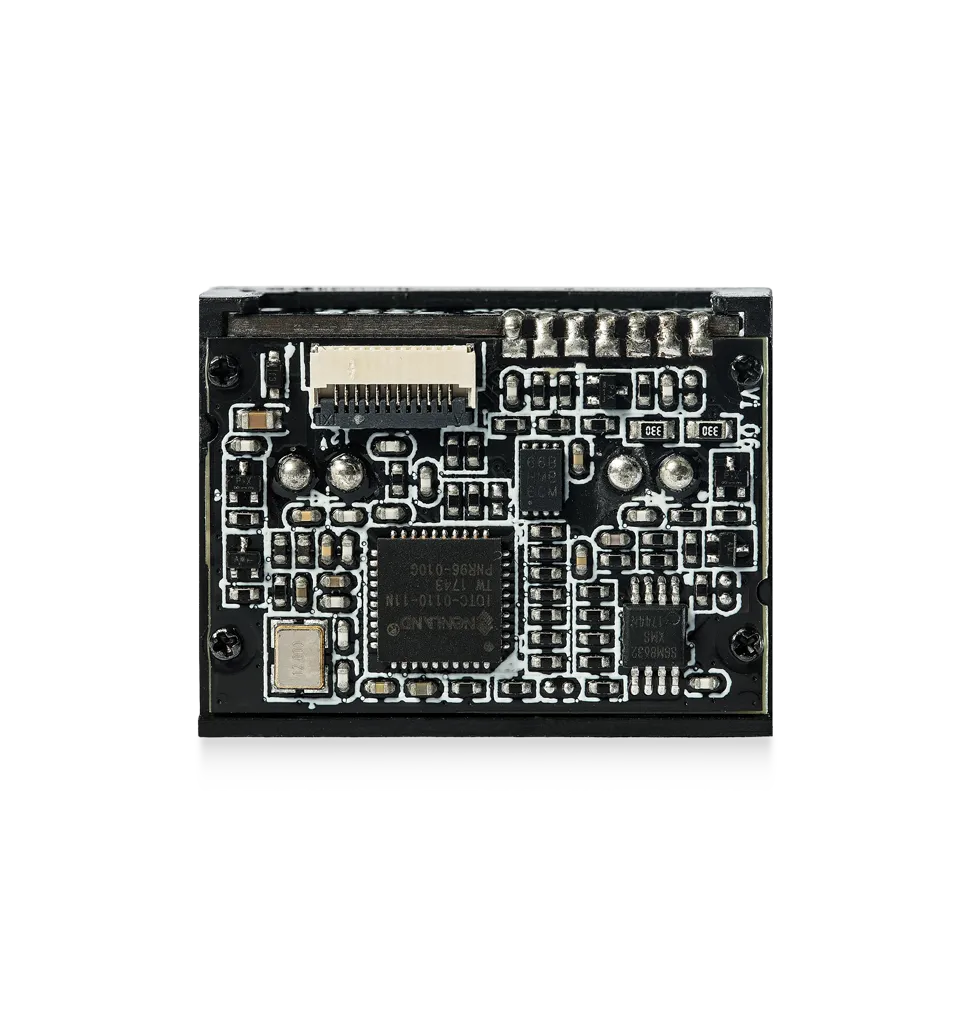

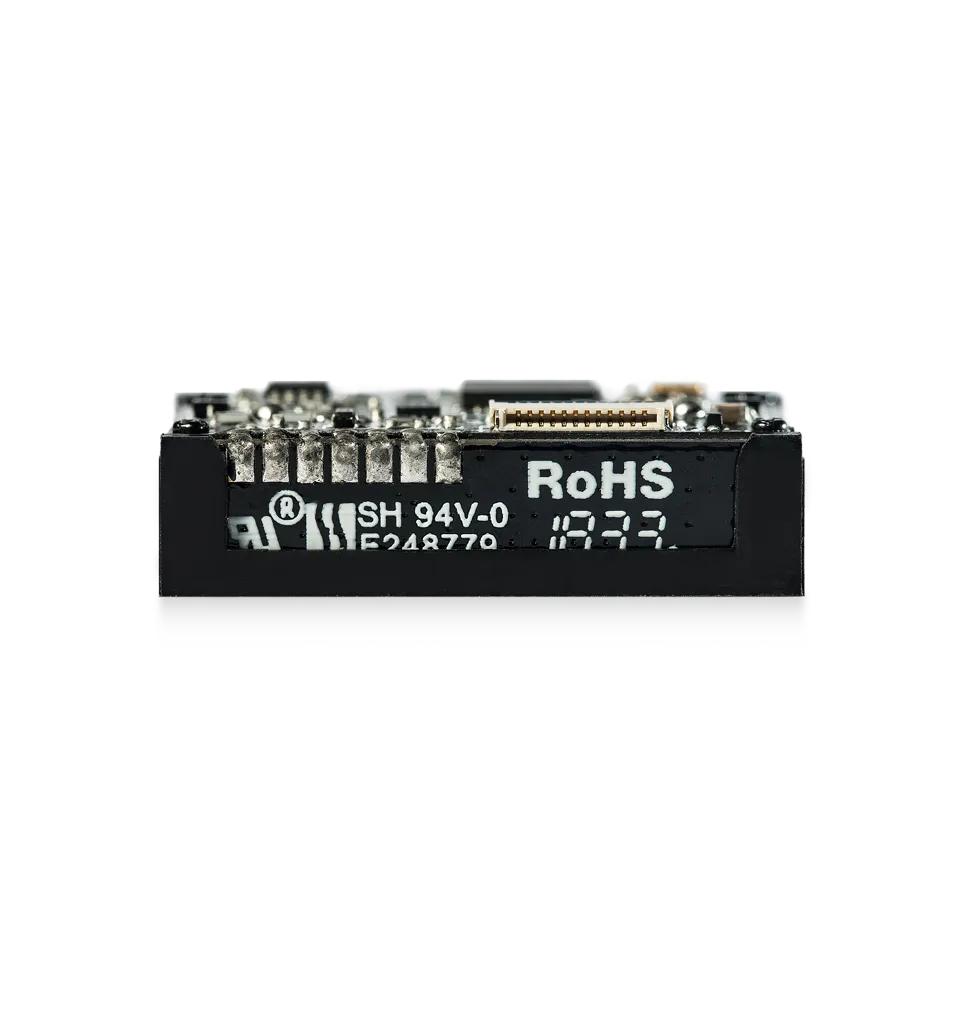

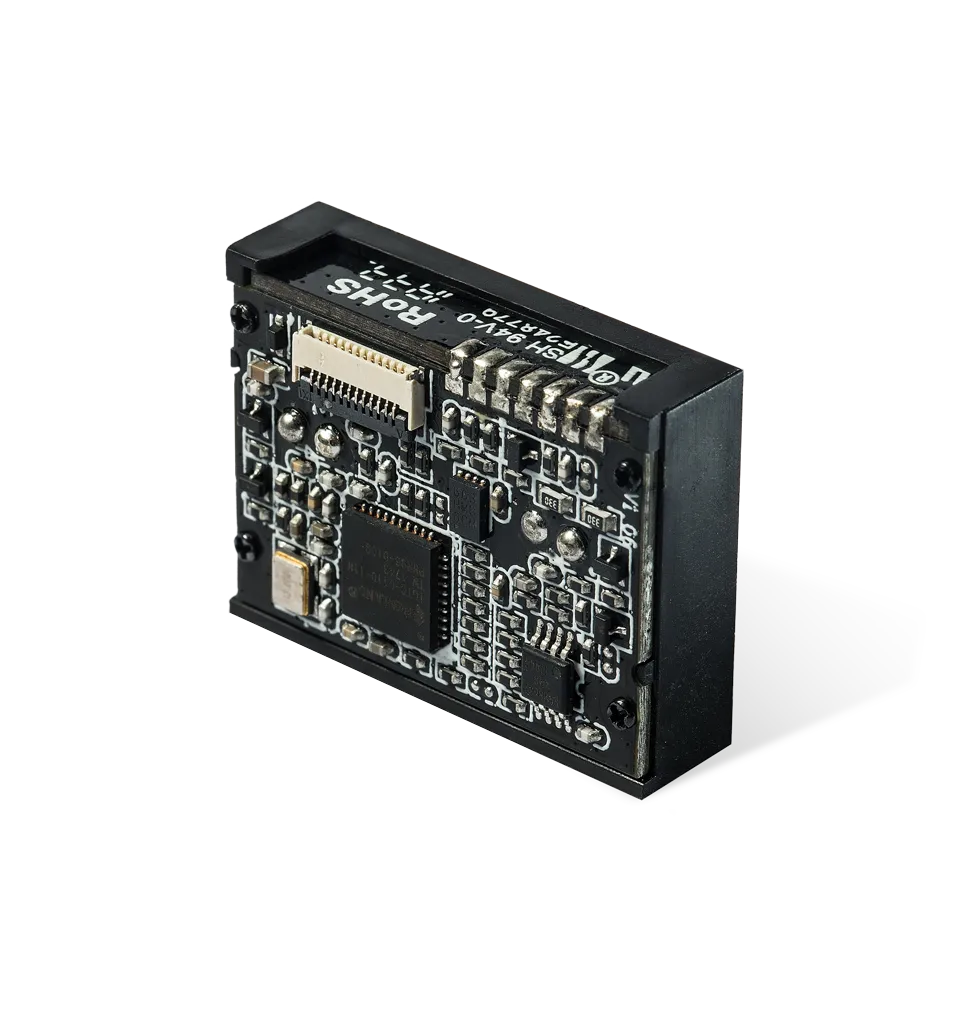

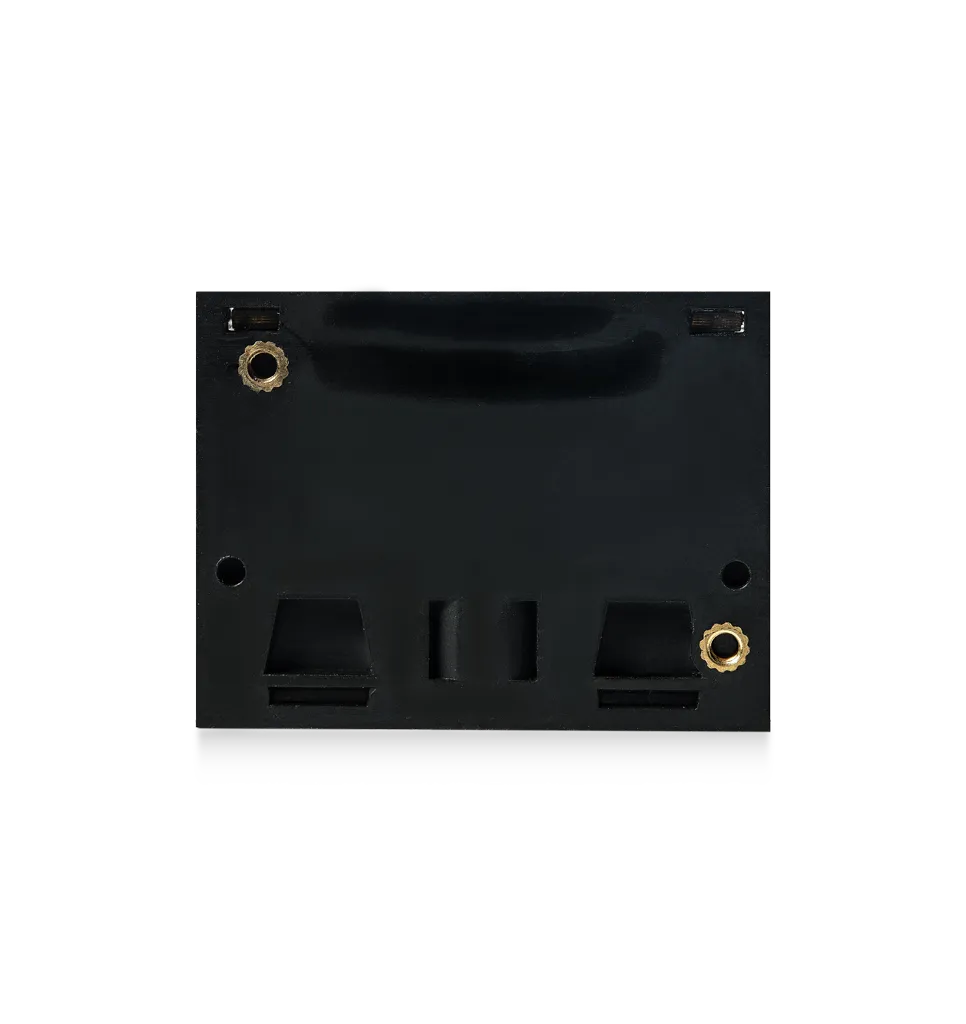

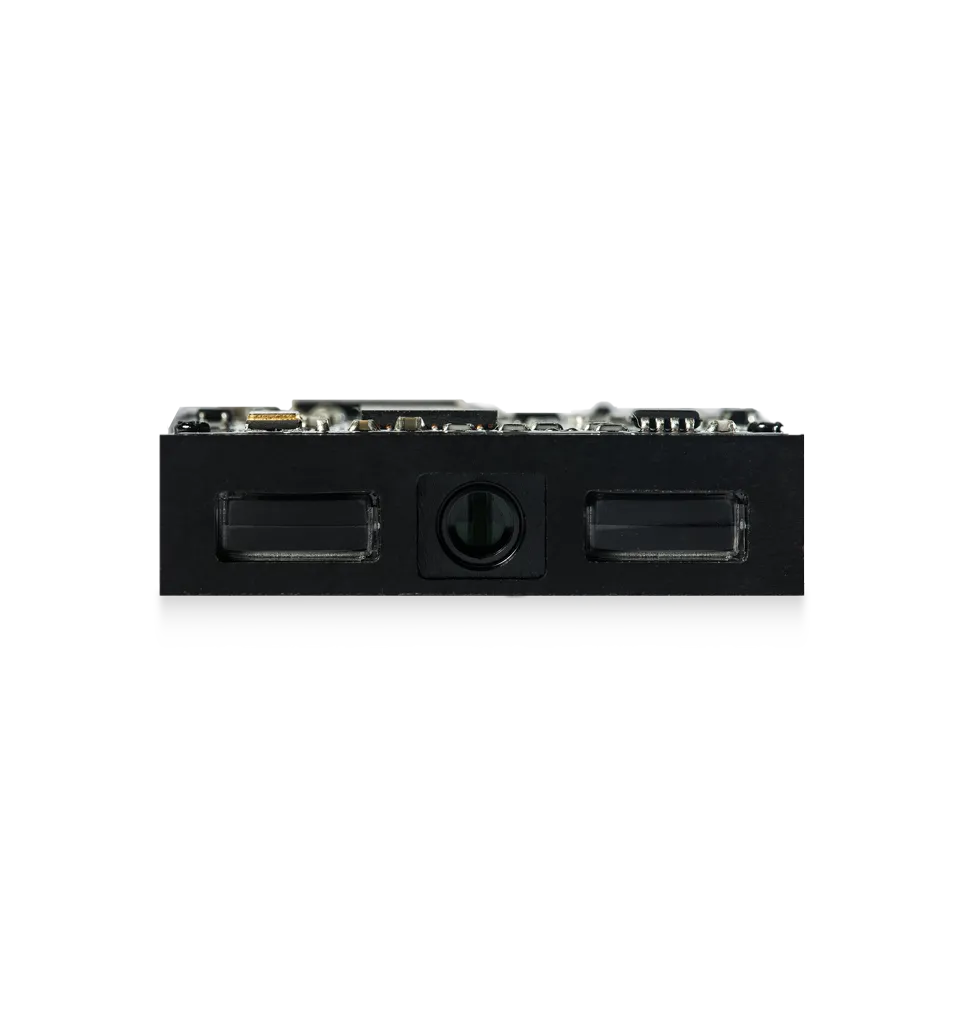

The EM1365-EX is a reliable OEM Scan Engine for 1D barcodes. Equipped with a CCD sensor and a powerful processor, the EM1365-EX is small, lightweight, and easy to integrate into kiosks and ticketing machines.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, GS1 Databar, Code 128, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, Code 93, Plessey
- Decode Rate
- 300 times per second (max.)
- Scan range / decode distances
- 90 mm - 190 mm
- Scan range / decode distances
- 60 mm - 600 mm
- Field of View Horizontal
- 43˚
- Illumination
- Red LED (620nm-630nm)
- Image Sensor
- 2500 CCD
- Minimal Print Contrast
- 30%
- Resolution
- ≥3mil
- Scan Angle Pitch
- ±65˚
- Scan Angle Skew
- ±65˚
- Current @ 3.3VDC Operating
- 21 mA (typical), 88 mA (max)
- Current @ 3.3VDC Standby
- 10 mA
- Dimensions
- 28.2(W) × 21.6(D) × 8.6(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB 1.1
- Power Consumption
- 69 mW (typical)
- Weight
- 5.7 g
- Ambient Light
- 0 to 100,000 lux (natural light)
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- EasySet
- Certifications Hardware
- FCC Part15 Class B, CE EMC Class B
- Warranty
- 2 Years
- Accessories Optional
- USB cable, RS-232 cable, Adapter
- Part Number
- Description
- NLS-EM1365-EX
- 1D type scanning module, 2500 CCD, red LED backlight and red LED sight. 12-pin FPC connector, USB + TTL232. Standard depth of field, FFC cable 12PIN-75mm.
- Decode Rate
- 300 times per second (max.)
- Scan range / decode distances
- 90 mm - 190 mm
- Scan range / decode distances
- 60 mm - 600 mm
- Field of View Horizontal
- 43˚
- Illumination
- Red LED (620nm-630nm)
- Image Sensor
- 2500 CCD
- Minimal Print Contrast
- 30%
- Resolution
- ≥3mil
- Scan Angle Pitch
- ±65˚
- Scan Angle Skew
- ±65˚
- Current @ 3.3VDC Operating
- 21 mA (typical), 88 mA (max)
- Current @ 3.3VDC Standby
- 10 mA
- Dimensions
- 28.2(W) × 21.6(D) × 8.6(H) mm
- Charging / power
- 3.3 VDC ±5%
- Ports / interfaces
- TTL-232, USB 1.1
- Power Consumption
- 69 mW (typical)
- Weight
- 5.7 g
- Humidity
- 5% to 95% (non-condensing)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Warranty
- 2 Years
