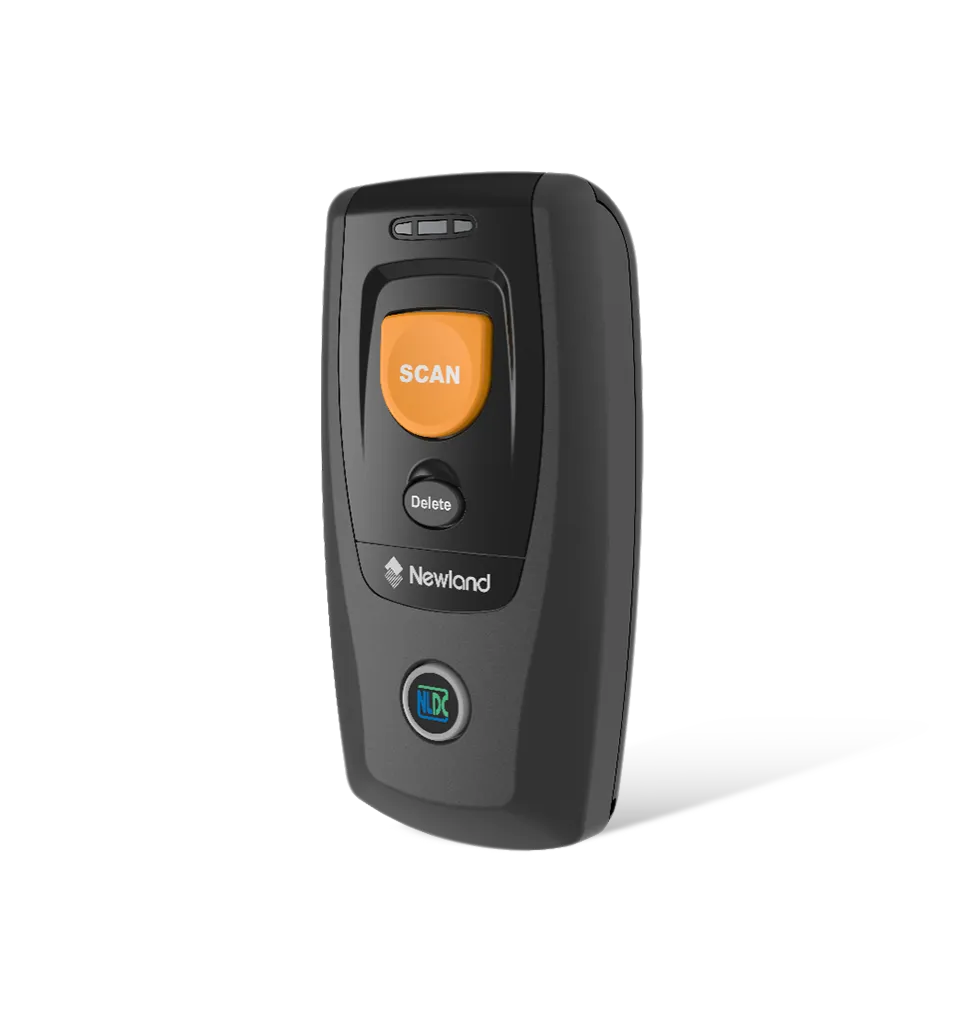

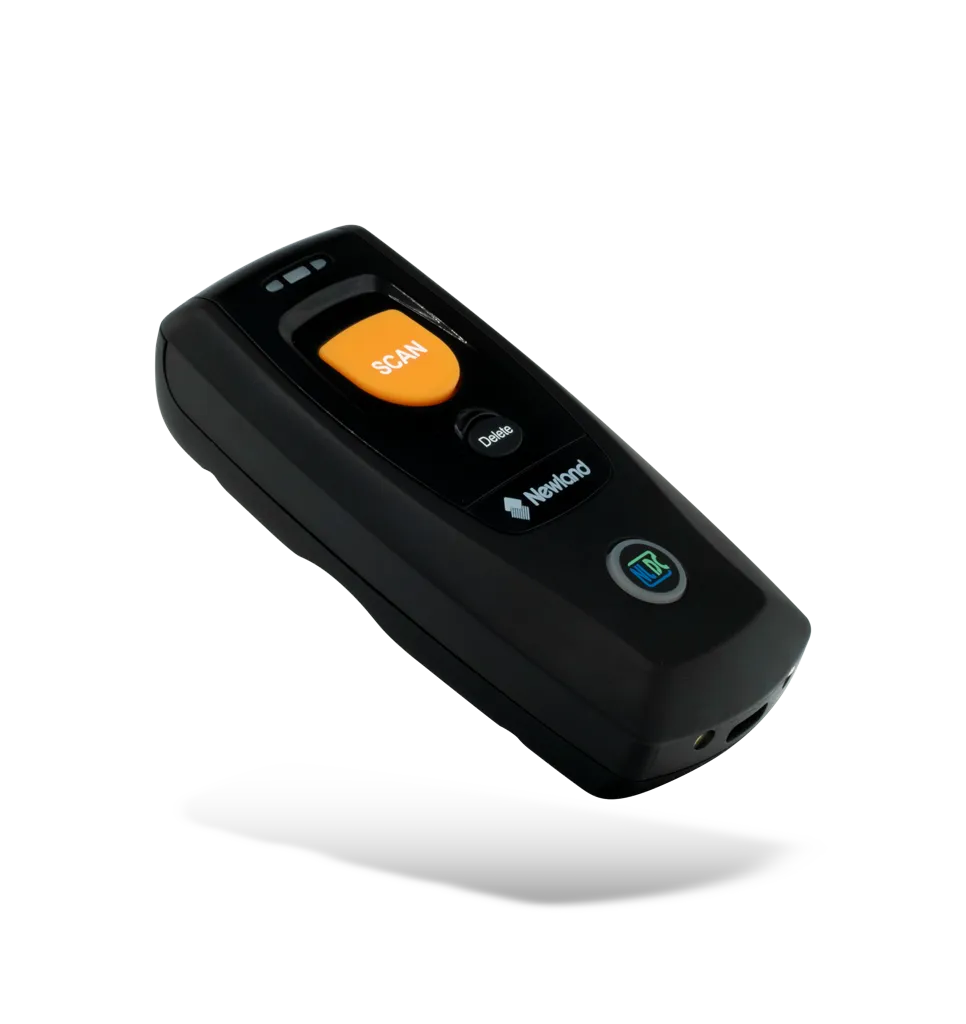

Newland BS80 Piranha II 1D
The BS80 Piranha II is a snappy, small, and portable barcode scanner, providing the convenience of always having a scanner at your fingertips. Dimensions of 88 x 46 x 24.5 mm make it small enough to fit into your pocket.
- Scanning1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPCE, Codabar, ISSN…
- Battery3.7 V, 900 mA, Rechargeable Li-ion battery
- SealingIP42
- Drop1.2 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPCE, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc.
- Scan range / decode distances
- 60 mm - 500 mm 70 mm - 185 mm 55 mm - 550 mm Image Sensor 2500 linear imager
Power
- Battery / runtime
- 3.7 V, 900 mA, Rechargeable Li-ion battery
Connectivity
- Ports / interfaces
- USB-C
Rugged
- IP / sealing
- IP42
- Drop specification
- 1.2 m
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 67 g
- Dimensions
- 88(W) × 46(D) × 24.5(H) mm Expected Battery Life 6.5 hours of continuous operation (scan once per 6s)
Software & service
- Warranty
- 3 Years Comprehensive Service Contract 3 Years, 5 Years
