FEIG · Accessory

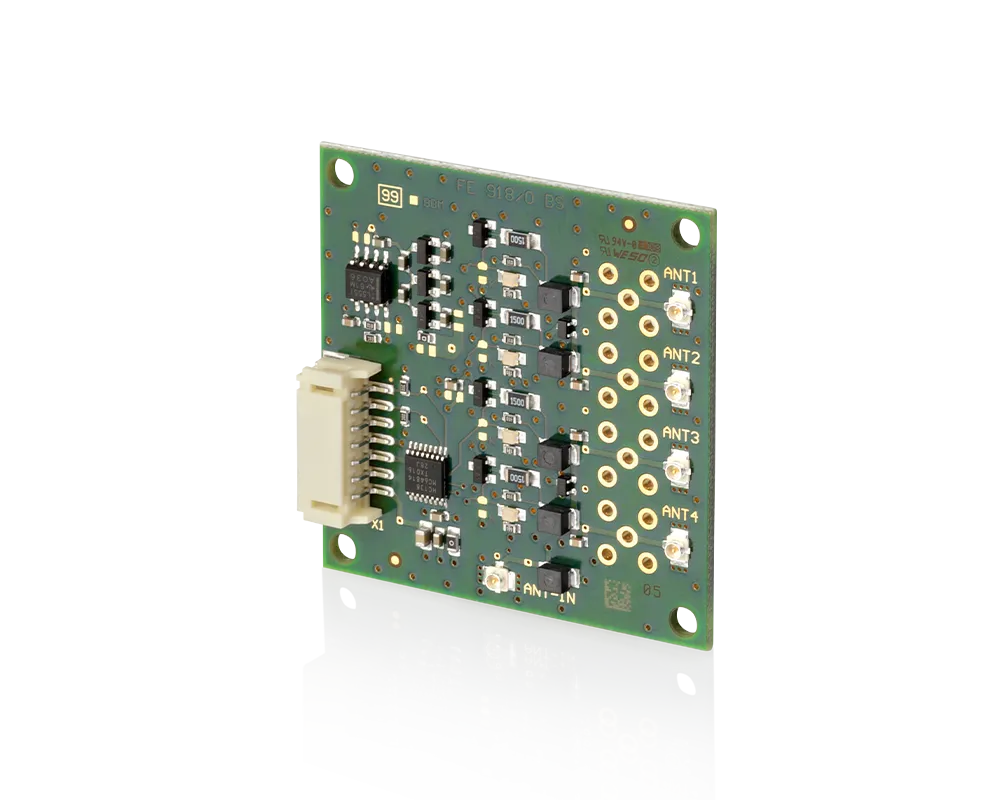

FEIG 4 Channel HF Multiplexer Modul
The 4-fold multiplexer ID ANT.MUX-M4 enables switching between RFID antennas with an operating frequency of 13.56 MHz.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Weight
- 12 g
- MTBF
- 500,000 h
- Charging / power
- +5 V DC ± 5 %
- Current consumption
- < 40 mA
- I/O Digital inputs
- Low level: 0 … 1.0 V / High level: 3.8 V … VCC / Pull-Down: 10 kΩ
- Indicators, optical
- 4 LED (yellow)
- Operating frequency
- 13.56 MHz
- RF power
- max. 500 mW
- Reader connection
- U.FL connector
- Antenna connection
- 4 x U.FL connectors for external antennas
- Temperature range operation
- −25 °C up to +70 °C
- Temperature range storage
- −40 °C up to +85 °C
- Relative air humidity
- max. 95 % (non-condensing)
