Emdoor · Tablet

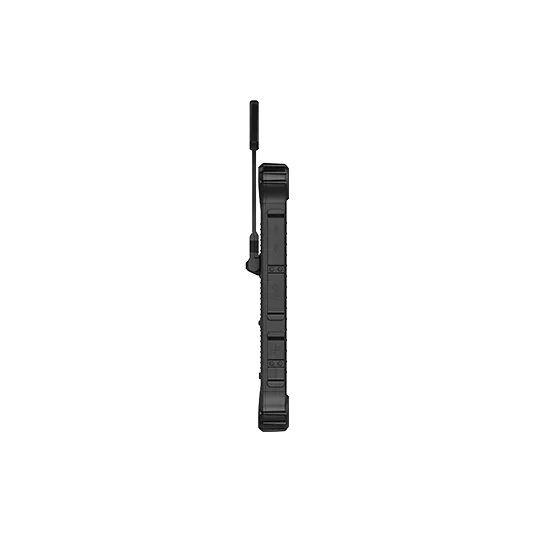

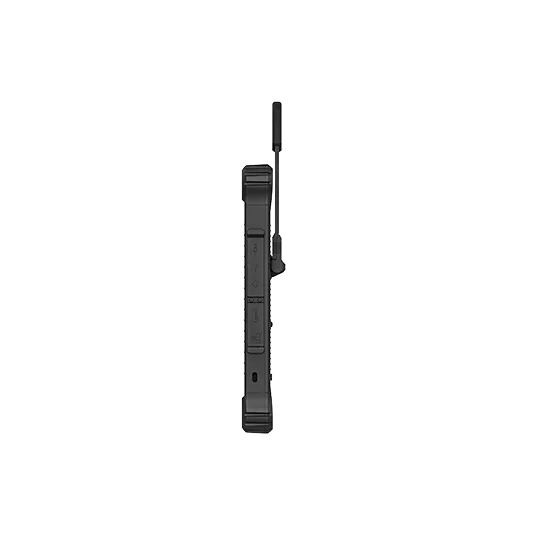

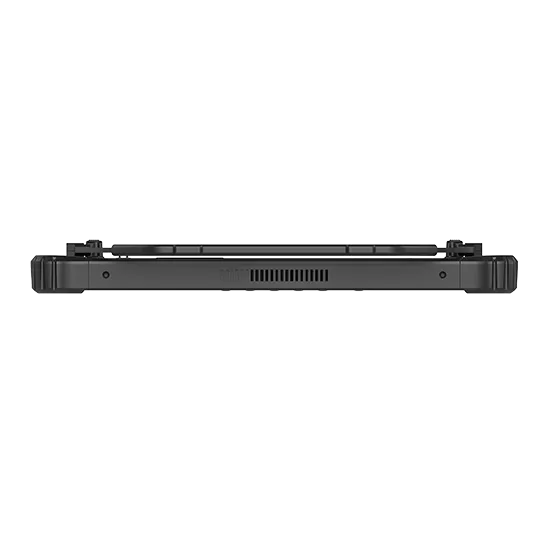

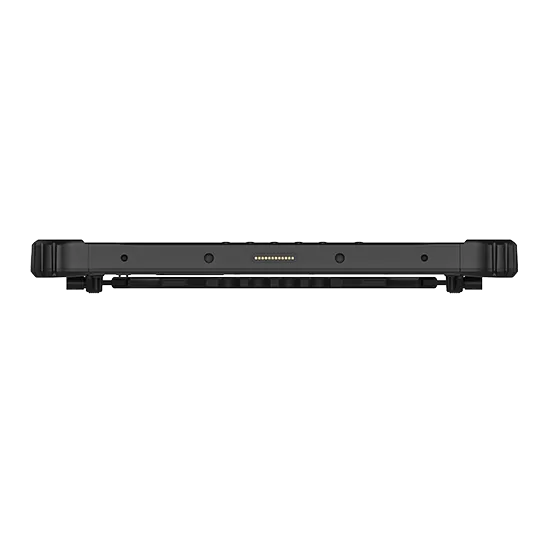

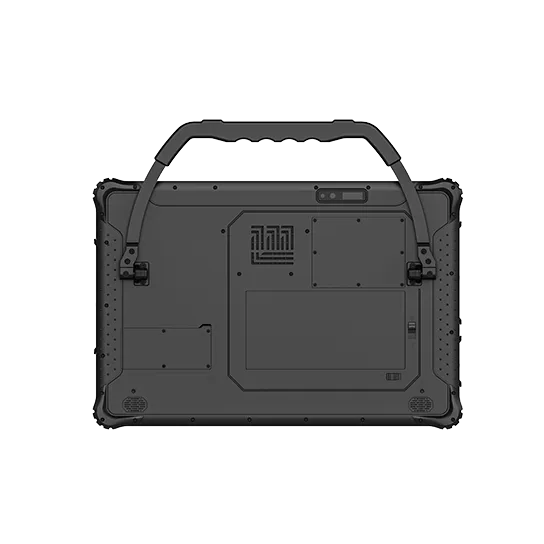

Emdoor EM-I14M
The rugged tablet PC I14M is a 14 inch Rugged AI Tablet PC Windows 11. Powered by the Intel® Core™ Ultra 5 processor 125H processor and running on Windows 11 PRO, it's solid, practical, professional, and efficient.
- Operating systemWindows 11 PRO
- Display14 inch TFT 16:9, 1920×1080, 1000 nits
- BatteryBuilt-in- 1300mAh/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable -…
- Drop1.22m drop resistance
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 366.2mmx246.9mmx24.8mm
- Color
- Black
- Display
- 14 inch TFT 16:9, 1920×1080, 1000 nits
- Touch panel
- 10-point capacitive screen
- Cameras
- Front 5.0MP(USB)+ Rear 13.0MP(mipi)
- I/O Interface
- USB3.2 *1, USB2.0 *2 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45 *1 10M/100M/1000M self-adaptive， RJ45 *1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 12PIN Pogo Pin (USB & Charging) *1
- Charging / power
- AC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard
- Wi-Fi / WLAN
- Intel® Wi-Fi 6E (802.11 ax)
- Bluetooth
- BT5.3
- 2G/3G/4G/5G
- 4G/5G
- Location / GPS
- Supports single GPS or single Glonass, default GPS
- Processor
- Intel® Core™ Ultra 5 processor 125H
- GPU
- iGfx/dGfx (Intel Xe LPG Graphics)
- Operating system
- Windows 11 PRO
- RAM / storage options
- 16GB DDR5(4800MHz), optional 32GB
- Storage capacity
- 256GB SSD
- Battery / runtime
- Built-in- 1300mAh/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 4850mah/11.55V / Removable Li-polyment Battery / 8 hours
- NFC
- Optional
- 1D
- Optional
- 2D
- Optional
- Fingerprint
- YES
- Operating temperature
- -20℃~60℃
- Storage temperature
- -30℃~70℃
- Humidity
- 95%, no condensation
- Protection level
- IP65 certified, MIL-STD-810H certified
- Drop specification
- 1.22m drop resistance
