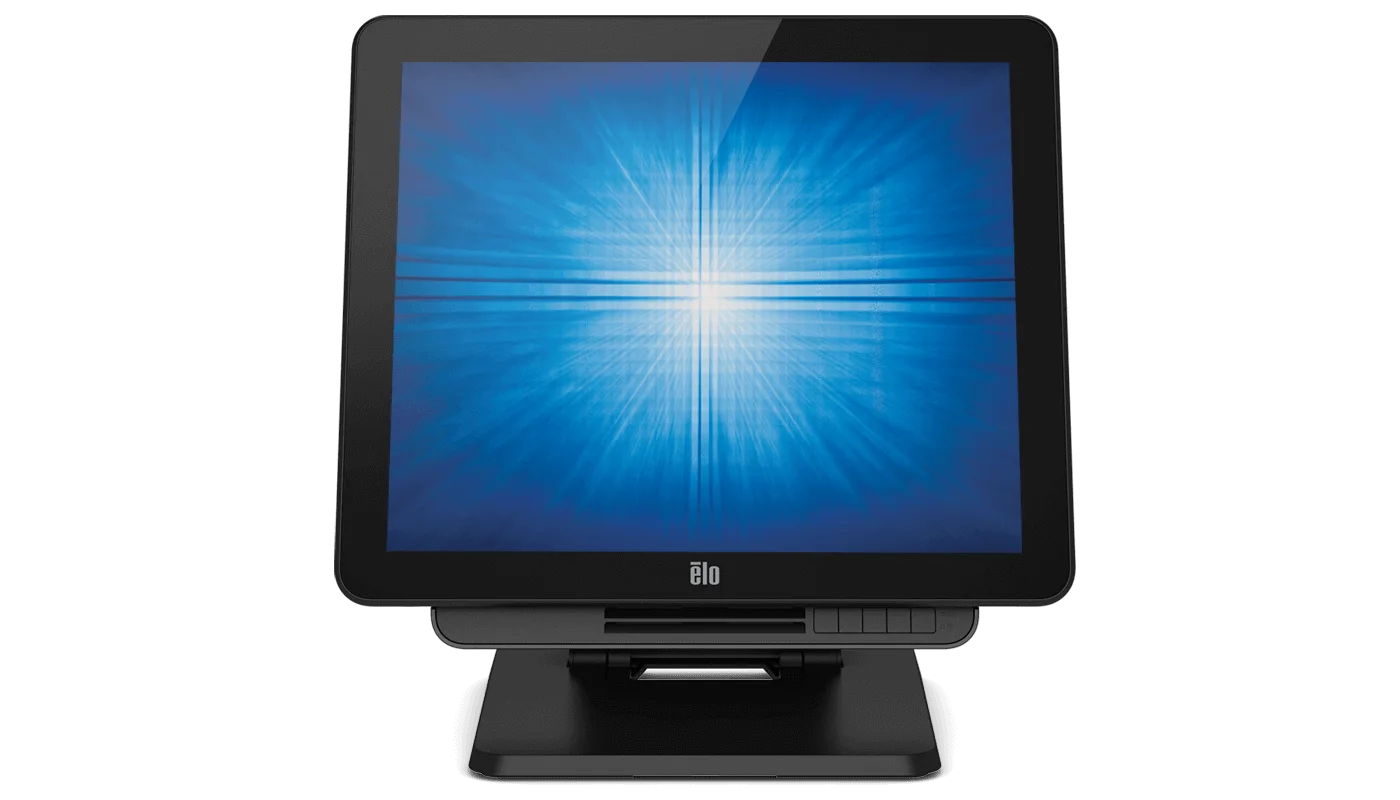

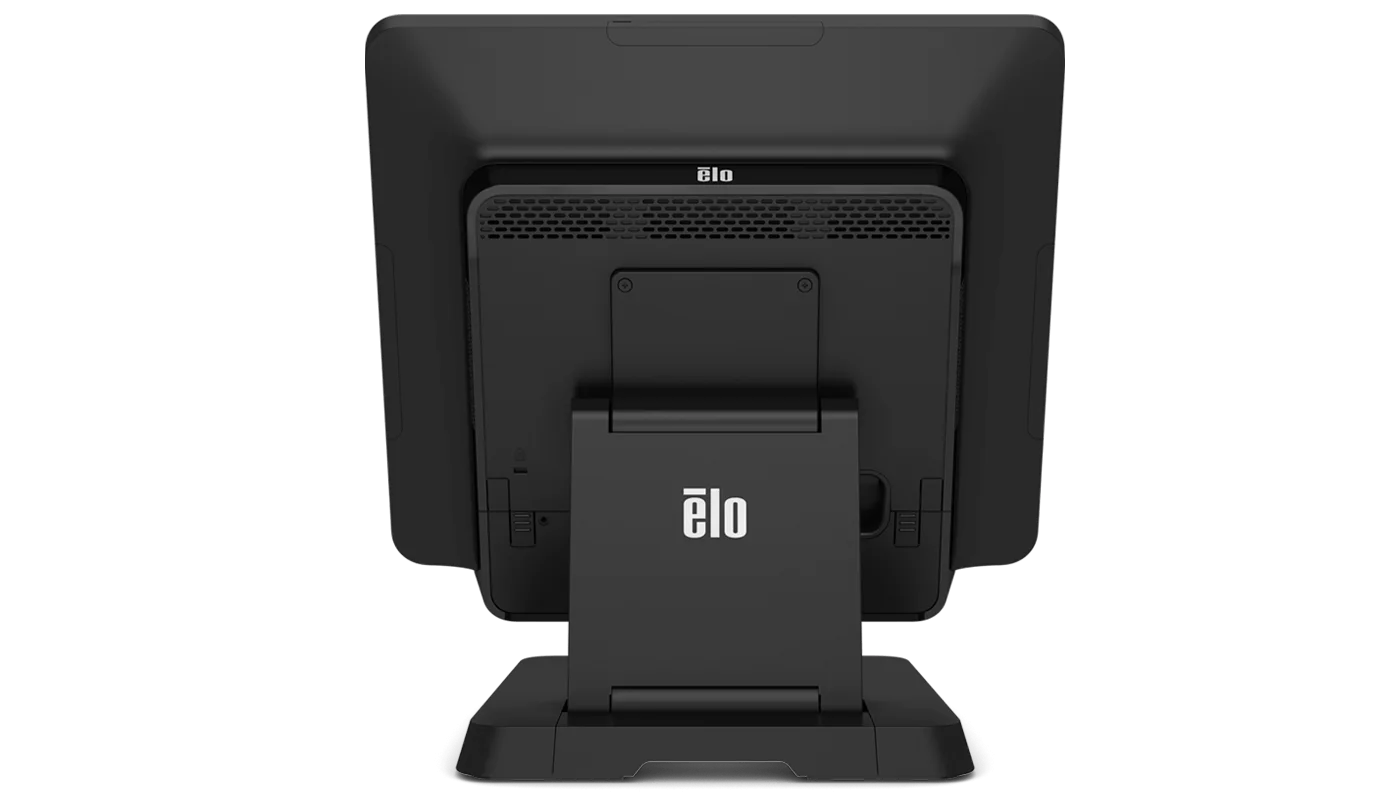

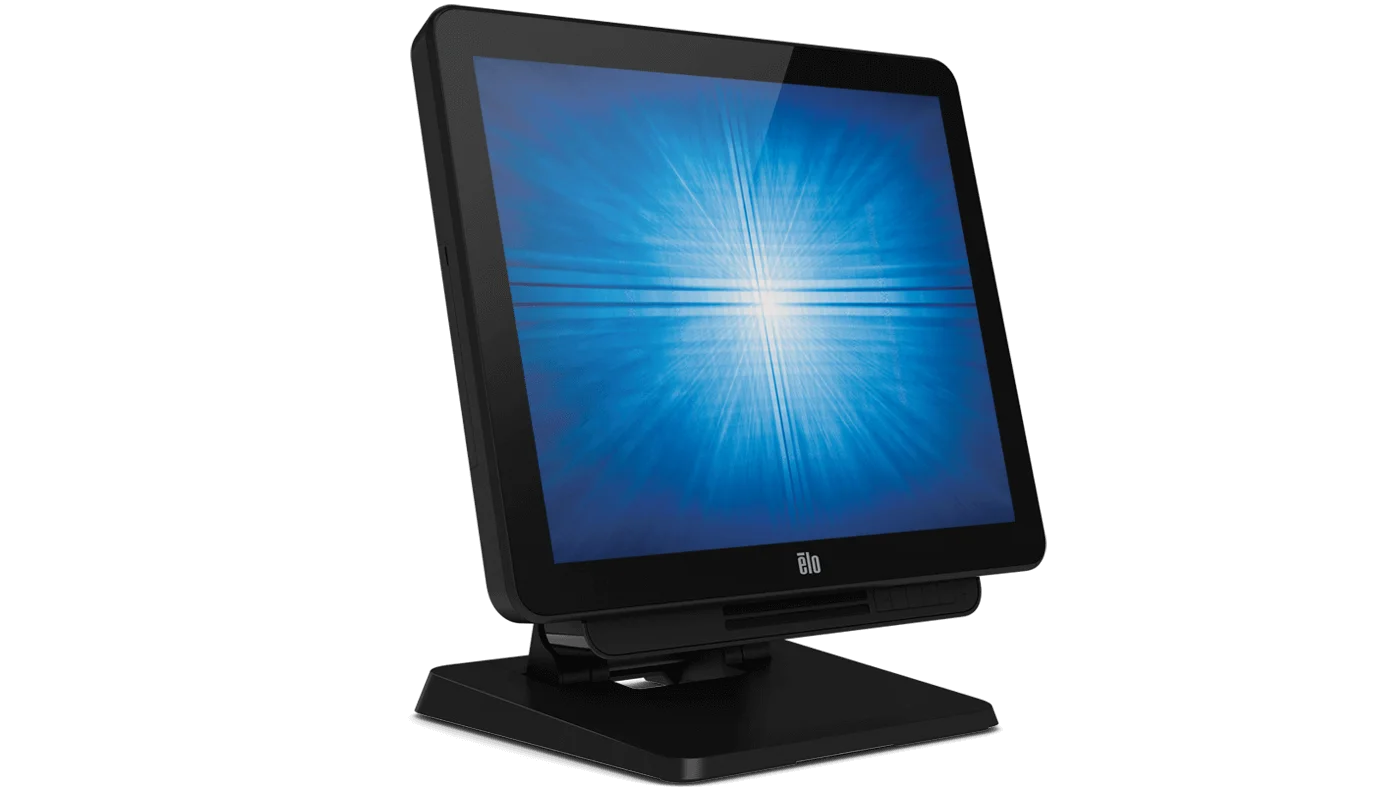

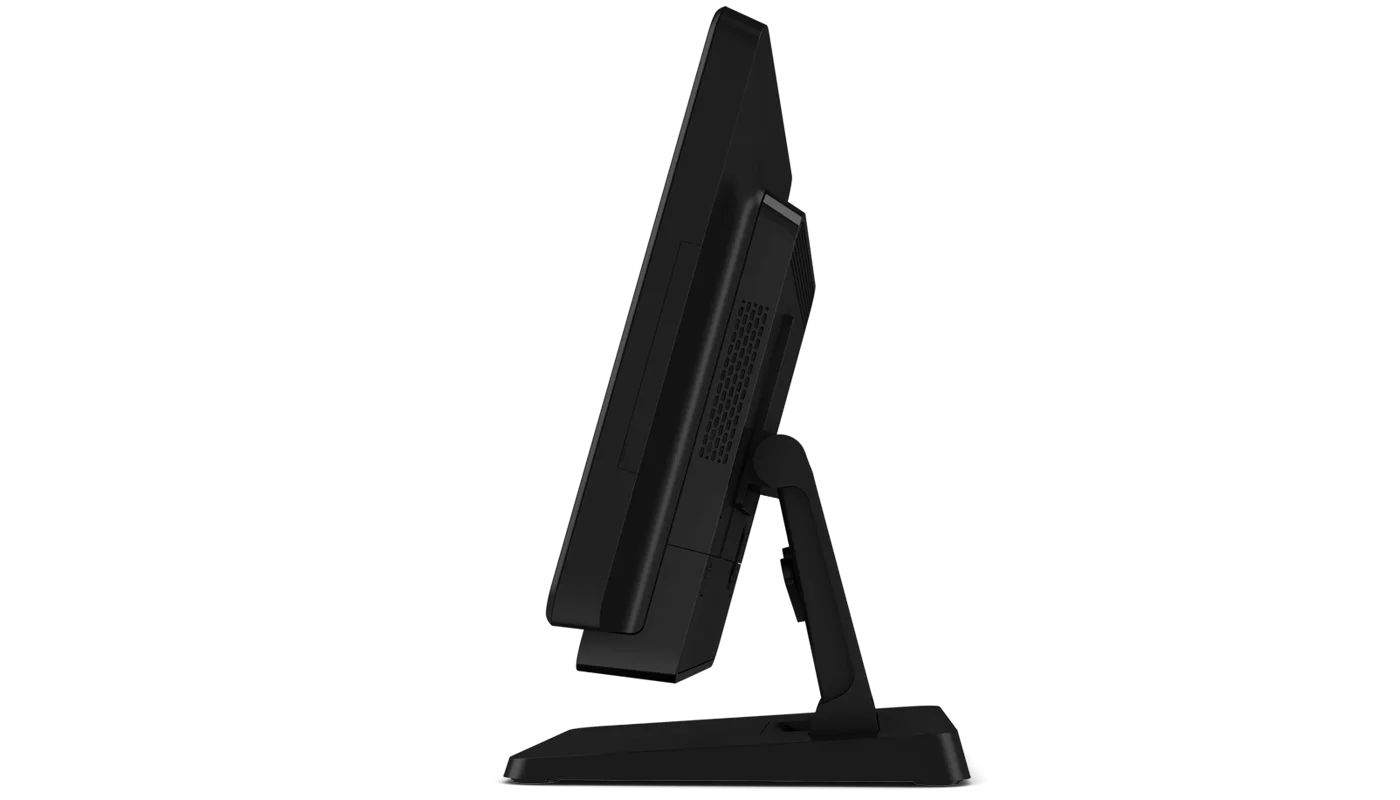

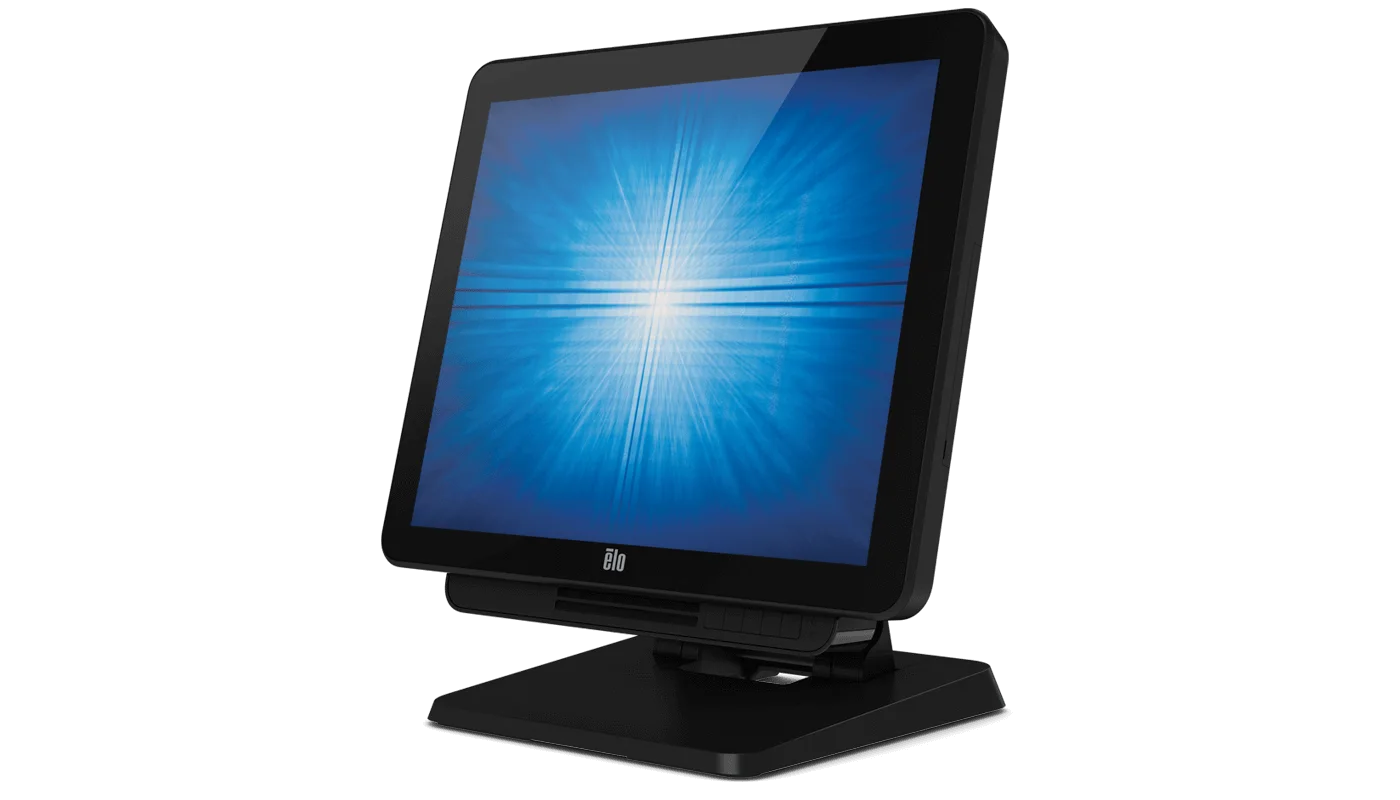

Elo Touch X-Series 17-inch AiO Touchscreen Computer (Rev B)

Technical

Part Number(s)

TouchPro PCAP X2 No OS (Worldwide) - E518201; TouchPro PCAP X2 Win 10 (Worldwide) - E518608; TouchPro PCAP X3 No OS (Worldwide) - E519571; TouchPro PCAP X3 Win 7 (Worldwide) - E519777; TouchPro PCAP X3 Win 10 (Worldwide) - E519178; TouchPro PCAP X5 Win 10 (Worldwide) - E549028; Don't see the configuration you are looking for? Please use the Configure-to-Order form found in the Resource section under Additional Support Resources to submit a request for the configuration you want.

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Surface Treatment

Anti-glare

Processor

Intel Celeron Processor N3450; 2M Cache, up to 2.2 GHz; Intel Core i3-6100TE Processor; 4M Cache, 2.70 GHz; 4 MB Intel Smart Cache; 8 GT/s Direct Media Interface 3 (DMI3); Intel Core i5-6500TE Processor (with Intel vPro); 6M Cache, up to 3.30 GHz by Intel Turbo Boost Technology 2.0; 6MB Intel Smart Cache; 8 GT/s Direct Media Interface 3 (DMI3); Intel Core i7-6700TE Processor (with Intel vPro); 8M Cache, up to 3.40 GHz by Intel Turbo Boost Technology 2.0); 8MB Intel Smart Cache; 8 GT/s Direct Media Interface 3 (DMI3)

Graphics

X2 Model: Intel HD Graphics 500; X3, X5 & X7 Models: Intel HD Graphics 530

BIOS

AMI

Memory (RAM)

X2 Models:; 4GB 1600MHz DDR3L SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum 1 on 2 slots) 3; X3, X5 & X7 Models:; 4GB 2133MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 16GB maximum 2 on 2 slots) 3; 1 Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR3L-1600 (PC3-12800).; 2 Maximum memory using 2 slots. Expandable up to 16GB maximum, SO-DIMM DDR4-2400 (PC4-19200).; 3 Check brand of the memory included in your unit before purchasing the memory kit.

Storage

128GB 2.5” SATA SSD 72 TBW; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

Chipset

X2 Model: N/A; X3 Model: Intel H110 Express; X5 & X7 Models: Intel Q170 Express

RAID

X2 & X3 Models: N/A; X5 & X7 Models: RAID 0 / RAID 1

TPM

X2 & X3 Models: N/A; X5 & X7 Models: TPM 2.0

Active Management Technology (AMT)

X2 & X3 Model: N/A; X5 & X7 Models: Intel AMT 10.0/11.0 Support

Diagonal Size

17'' diagonal, Active matrix TFT LCD (LED)

Control Buttons

Power, brightness up, brightness down, volume up, volume down; Security Lockouts: Power and Control buttons lock.

Aspect Ratio

5:4

Active Area

13.30" x 10.64" / 337.92 mm x 270.36 mm

Resolution

1280 x 1024 @ 60Hz

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 250 nits; TouchPro PCAP: 212.5 nits

Response Time-total (typical)

5 msec

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

USB Ports

X2 & X3 Models:; 2 x USB 3.0 on I/O; 4 x USB 2.0 (2 on I/O, 2 on USB Front Access); 3 x USB 2.0 on edges for optional Elo peripherals.; X5 & X7 Models:; 4 x USB 3.0 on I/O; 2 x USB 2.0 (USB Front Access); 3 x USB 2.0 on edges for optional Elo peripherals

Powered USB

1 x 24V on I/O

Serial Ports

1 x Serial RS-232 (standard); 1 x RJ45 (Native serial); 2 additional on Expansion Module

Ethernet Port

1 x LAN RJ45 (Gigabit); 1 additional on Expansion Module

Wireless

802.11 a/b/g/n/ac; Bluetooth 4.0

Cash Drawer Port

12V/24V Cash Drawer Port (24V default; selectable by BIOS setting)

Additional Video Out

2nd VGA output, DP output

Audio Ports

1 x 3.5 mm Line out, 1 x 3.5 mm MIC in

Speakers

Two 2W internal speakers

Operating System

X2 Models:; No Operating System; Microsoft Windows 10 IoT Enterprise LTSB 64-bit; X3, X5, X7 Models:; No Operating System; Microsoft Windows 7 Professional 64-bit; Microsoft Windows POSReady7 64-bit; Microsoft Windows 10 IoT Enterprise LTSB 64-bit

Languages

X2 Models:; Windows 10 - 36 Language groups; X3, X5, X7 Models:; Windows 7 - 35 Language groups; Windows POSReady7 - 35 Language groups; Windows 10 - 36 Language groups

Power Supply

External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 150W

Power Consumption (Typical)

X2 Model: 38W; X3 Model: 60W; X5 & X7 Models: 64W

Max Touchcomputer Dimensions With Stand

15.64" x 15.40" x 2.86" / 397.29 mm x 391.07 mm x 251.7 mm

Max Touchcomputer Dimensions Without Stand

15.63" x 14.37" x 2.67" / 397.19 mm x 354.24 mm x 67.73 mm

Shipping Box Dimensions

23.43" x 14.4" x 18.90" / 595 mm x 365 mm x 480 mm

Weight (with stand and Expansion Module)

17.09 lbs / 7.76 kg

Weight (with stand)

15.95 lbs / 7.24 kg

Weight (without stand)

10.26 lbs / 4.66 kg

Shipping Weight (With stand)

25.33 lbs / 11.5 kg

Operating Temperature

0°C to 35°C / 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 5% to 95% (38.7℃ max wet bulb temperature)

Regulatory approvals and declarations

UL/cUL, FCC, TUV, CE, CB, Mexico COC, C-Tick, VCCI, Argentina S-Mark, CCC

Real-Time Clock

lithium-ion battery

MTBF

50,000 hours demonstrated

Mounting Options

100mm VESA mount or secure base to tabletop/desktop

Warranty

3-year

Sealability

Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD

Power Cables

North American and European power cables included

Other Features

Serviceable internal components; Threaded holes on bottom of stand for high and low display position; Removable base with 100mm VESA mounting; Kensington lock.

What's in the Box

X-Series Touchcomputer, North America Power Cord, EU Power Cord, Power Adapter – 150W: X3/X5/X7 Or 90W: X2, Adapter Cable RJ-45 to DB-9, Cable cover locking screw, Quick Installation Guide (QIG)

Upgrade Options

500GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E661266; 1TGB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274466; 256GB 2.5" SATA SSD - Elo P/N: E061525; 2GB DDR3L Memory SO-DIMM - Elo P/N: E273479; 4GB 1600 MHzDDR3L Memory SO-DIMM - Elo P/N: E273670; 8GB 1600 MHz DDR3L Memory SO-DIMM - Elo P/N: E273865; 4GB DDR4 Memory SO-DIMM - Elo P/N: E275416; 8GB DDR4 Memory SO-DIMM - Elo P/N: E275635

Expansion Options

Expansion Module for additional I/O port support; 2 x Serial RS-232 (Standard); 1 x Giga LAN; 1 x Powered USB (+12V); 1 x Cash Drawer (+24/+12V selectable)

Replacement DC Power Supply

E394965 - 19V/150W PS, Replacement power supply is available at an additional cost

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Reader (FPR) – Elo P/N: E001001; Barcode Reader (BCR) – Elo P/N: E267080; 7" LCD Customer-facing Display – Elo P/N:E807955 (without touch) - *Requires POLE MOUNT (E038989); 7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®); 10" LCD Customer-facing Display (10 touch) – Elo P/N E045337 (requires display mount kit E038989); 10" LCD Customer-facing Display (no touch) – Elo P/N E138394 (requires pole mount kit E038989); Expansion Module – Elo P/N: E001006; Webcam – Elo P/N: E275233; Kit - USB Expansion Module – Elo P/N: E990645; 2D Barcode Scanner – Elo P/N: E926356; Dallas Key Kit – Elo P/N E055348; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Rear Facing display Pole Mount Kit – Elo P/N: E038989; Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446; Wallaby™ POS Stand (Black) - Elo P/N: E847771; Wallaby™ POS Stand (Black) - Elo P/N: E185084

*Windows 7 License

Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. These systems include an upgrade to Windows 10, depending on the license used, and subject to the licensing terms of the Windows software, you may temporarily use the loaded Windows version before upgrading.
