Elo Touch · Accessory

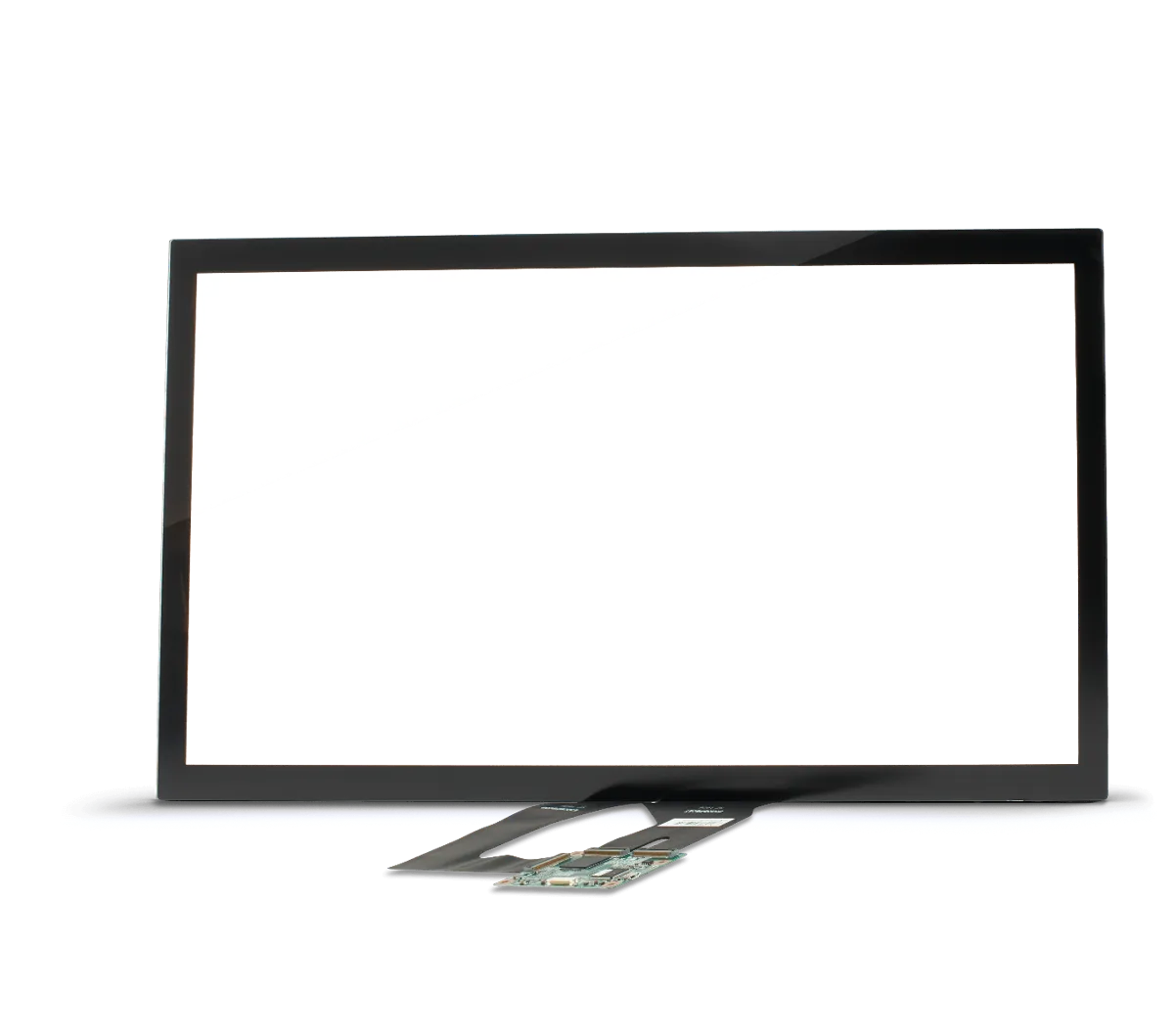

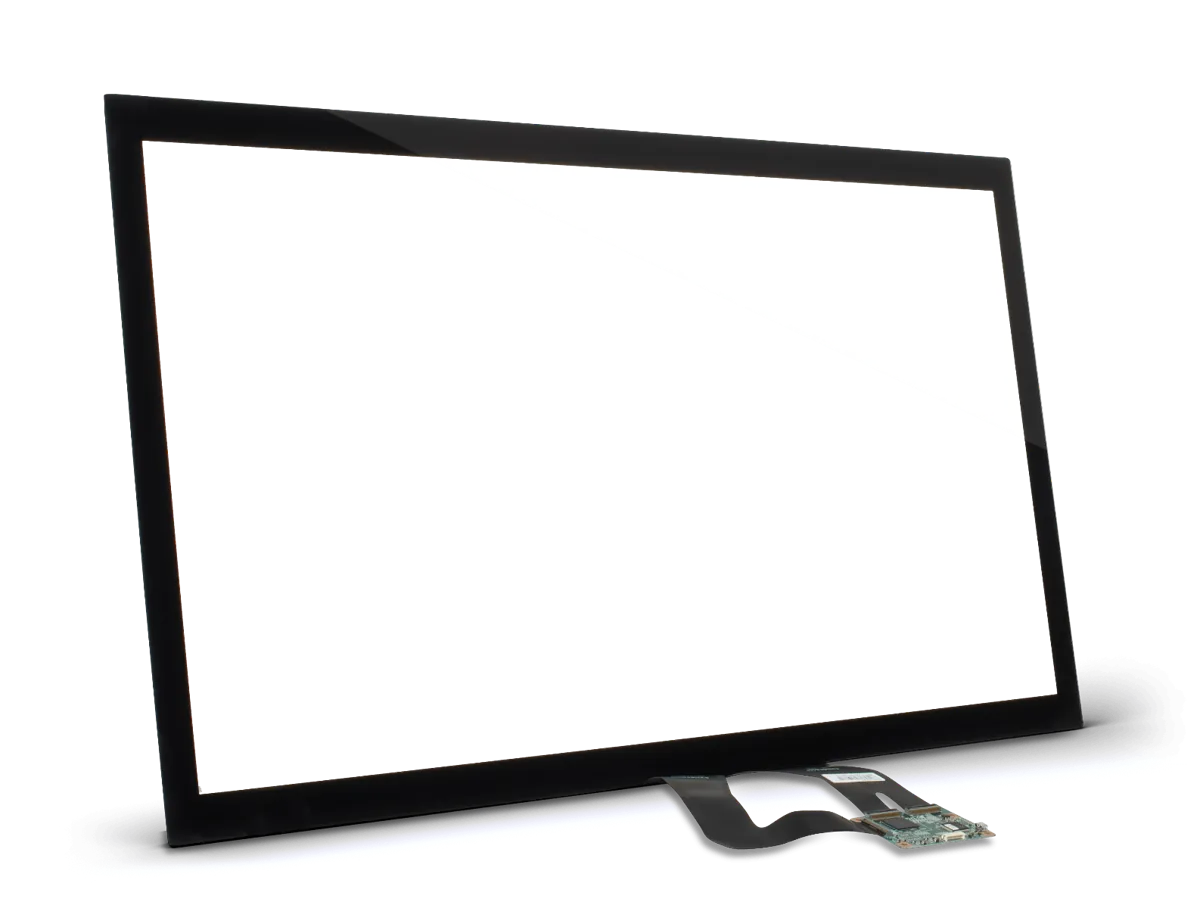

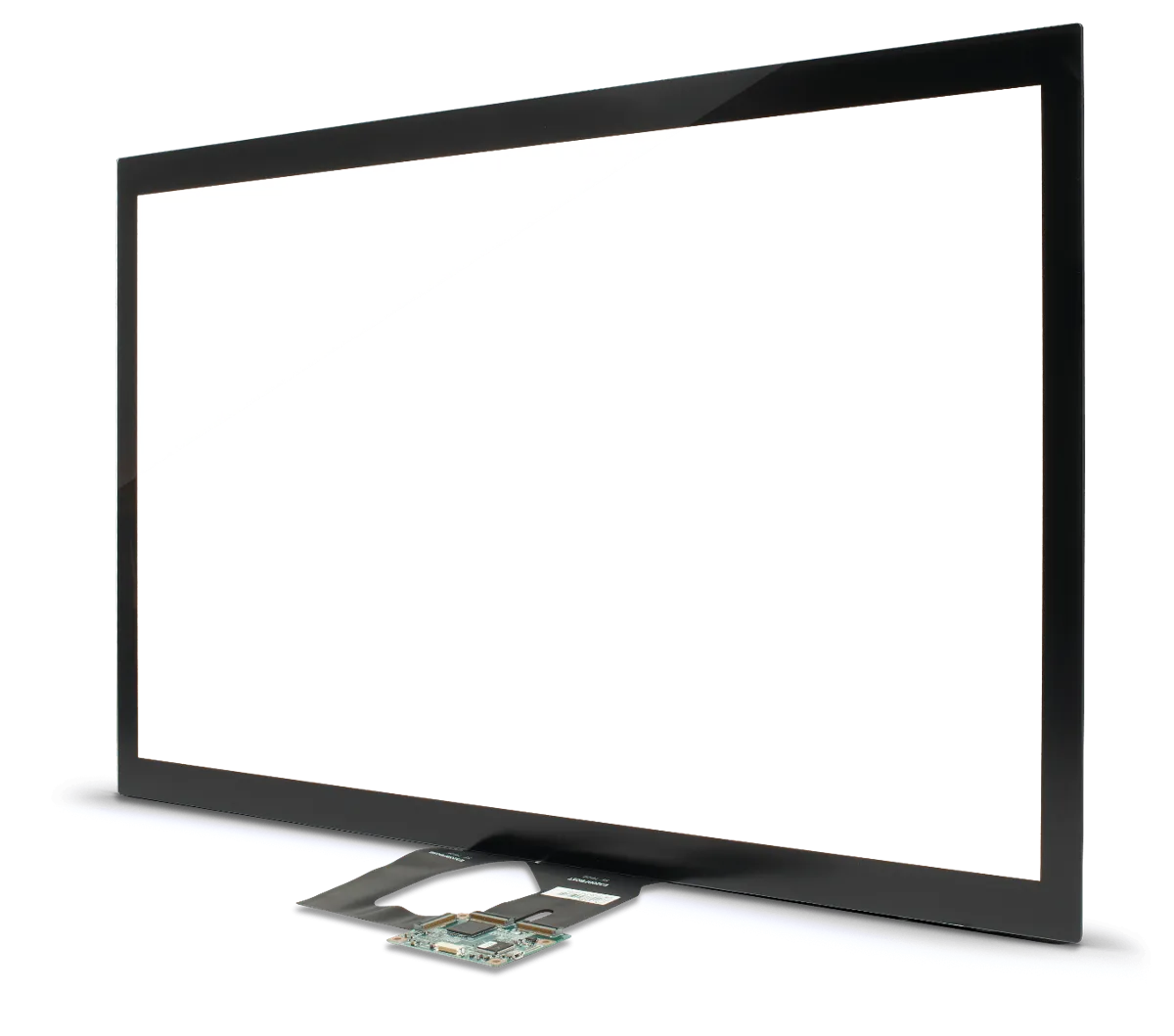

Elo Touch TouchPro™ Pro-M Projected Capacitive, 42"-86"
Elo TouchPro™ Pro-M PCAP Touch Screen. Learn More.
- Operating systemWindows XP Windows 7 Windows 8 Linux Android
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Technology
- PCAP (TouchPro® Projected Capacitive)
- Number of Touches
- Multi Touch (50)
- Input Methods
- Finger Passive stylus
- Dimensions
- sizes from 42" to 86"
- Light Transmittance
- ≥85% ± 3%
- Overall Thickness
- 3.4mm
- Cover Glass Thickness
- 2.8mm chemically strengthened; other thicknesses and tempered glass available
- Surface Treatment
- Anti-Glare Anti-Fingerprint Anti-Bacterial Privacy Filters Colored Borders Printed Icons
- Durability
- Over 50 million touches in one location
- Positional Accuracy
- ± 2.0mm
- Ports / interfaces
- USB, I2C, Serial
- Report Rate
- >100 Hz
- Operating system
- Windows XP Windows 7 Windows 8 Linux Android
- Utilities
- Multiple monitor Various touch modes Touch zones
- Operating temperature
- 0°C to 60°C
- Humidity
- 95% (Non Condensing)
- Safety Approvals
- UL
- Warranty
- 2-year limited warranty
- Note
- Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.
