Elo Touch · Accessory

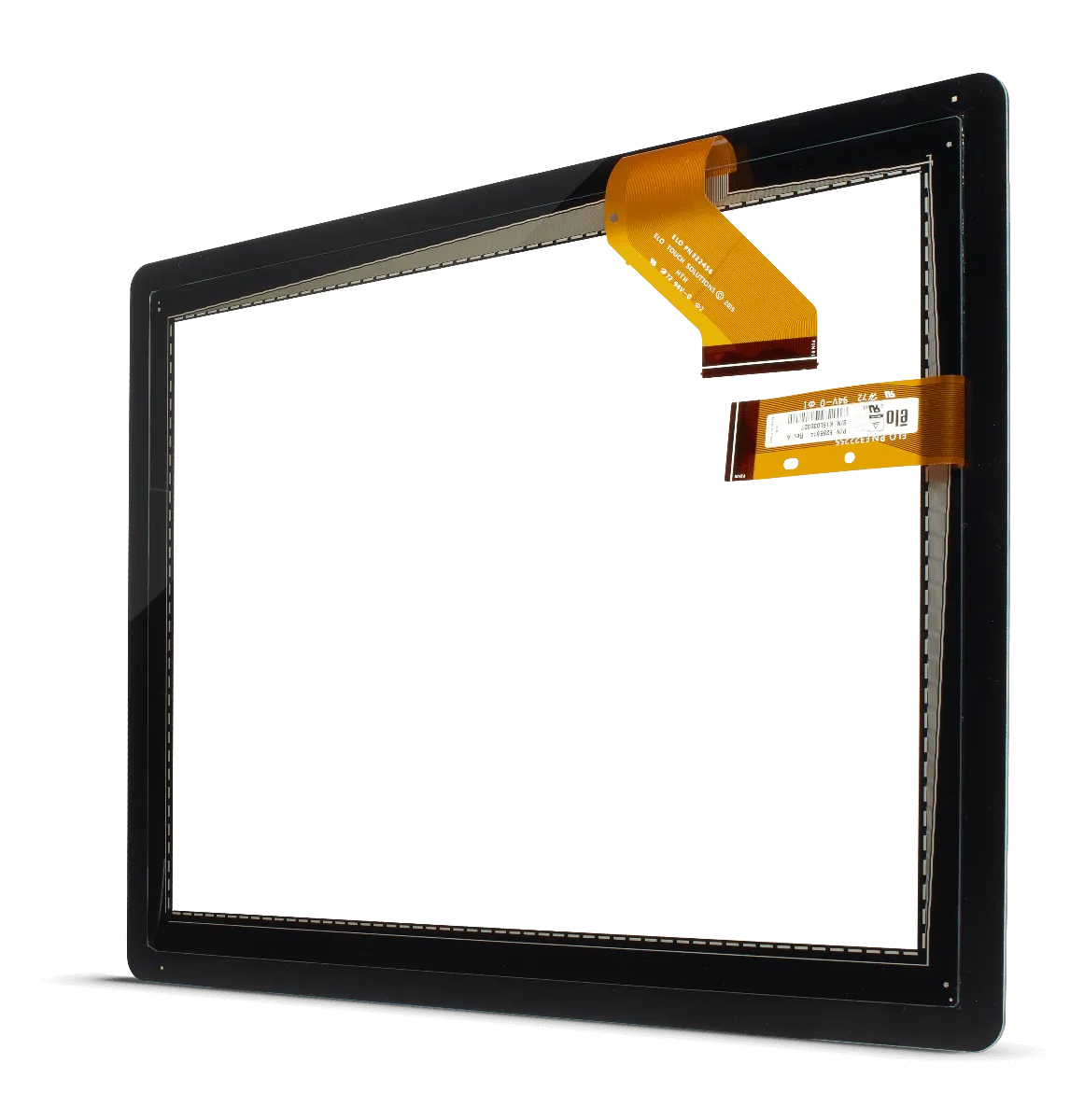

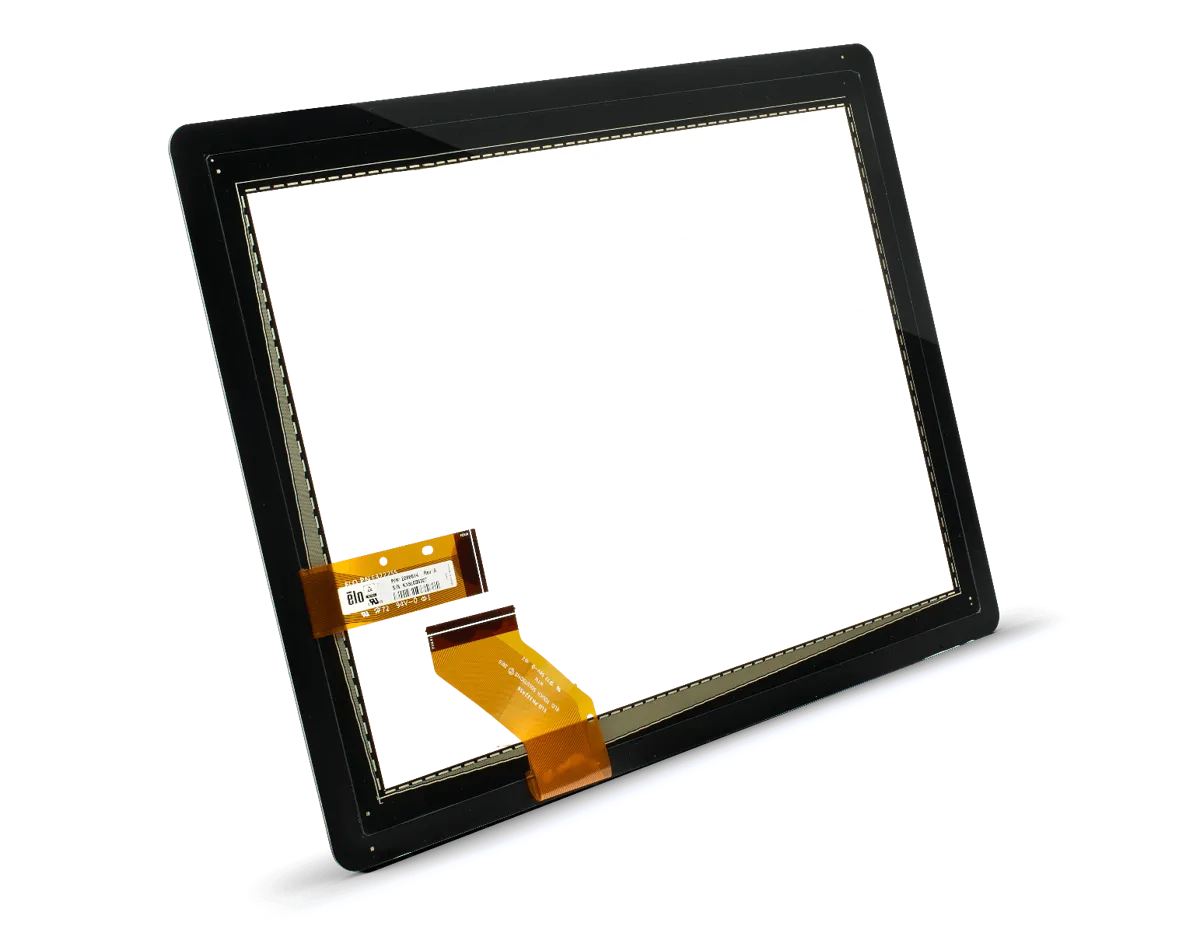

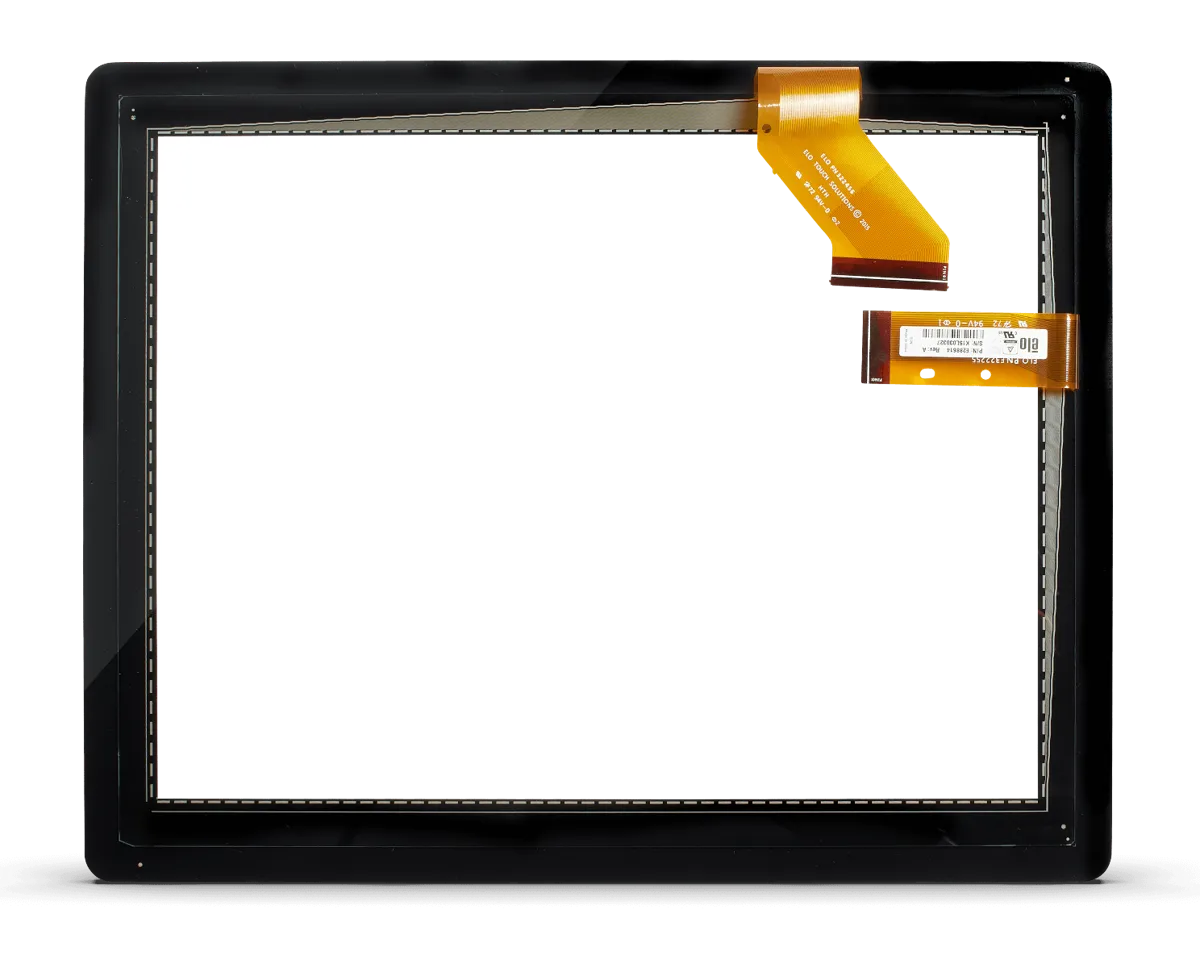

Elo Touch TouchPro® Pro-G (Glass) Projected Capacitive, 7"-22"
Elo's TouchPro® Pro-G PCAP touch screen. Elo manufacturers touchscreen components including chips, controllers and displays.
- Operating systemWindows XP Windows 7 Windows 8 Linux Android
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Technology
- PCAP (TouchPro® Projected Capacitive)
- Number of Touches
- Multi Touch (16)
- Input Methods
- Finger Gloved hand Passive stylus
- Dimensions
- sizes from 7" to 22"
- Light Transmittance
- ≥ 90%
- Haze
- < 1%
- Overall Thickness
- 3.1mm
- Cover Glass Thickness
- 1.8mm
- Surface Treatment
- Anti-glare Anti-fingerprint Anti-smudge
- Durability
- Over 50 million touches in one location
- Positional Accuracy
- ± 1.5mm
- Ports / interfaces
- USB (Standard), I2C, HID Over I2C (Optional)
- Report Rate
- ≥ 100Hz
- Operating system
- Windows XP Windows 7 Windows 8 Linux Android
- Utilities
- Multiple monitor Various touch modes Touch zones
- Operating temperature
- -20° to 70°C (Non Condensing)
- Humidity
- RH <90% (Non-Condensing)
- Safety Approvals
- UL
- Warranty
- 2-year limited warranty
- Note
- Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.
