Elo Touch · Accessory

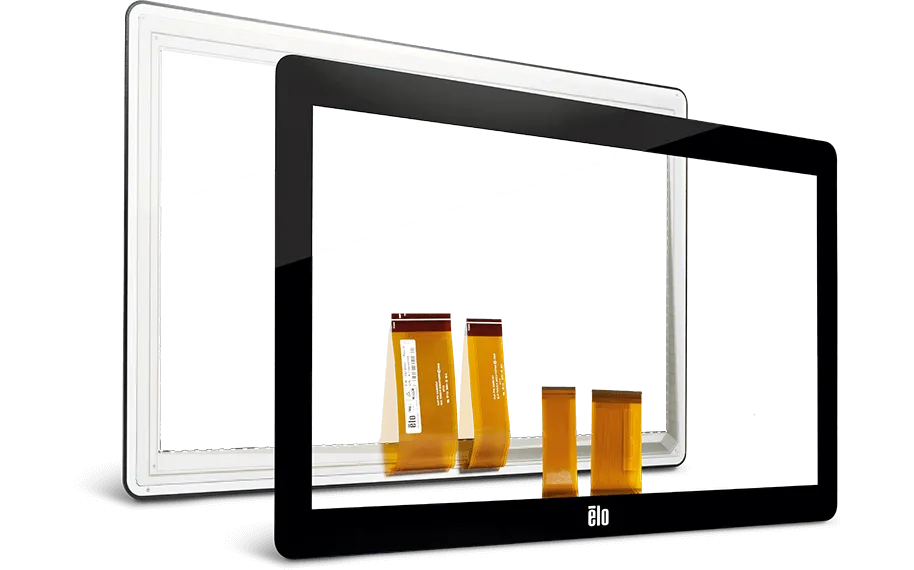

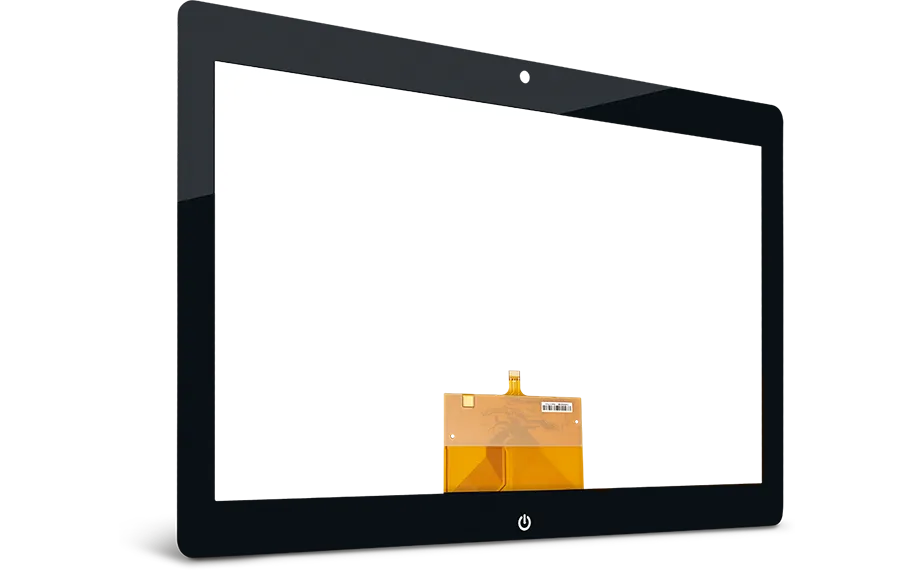

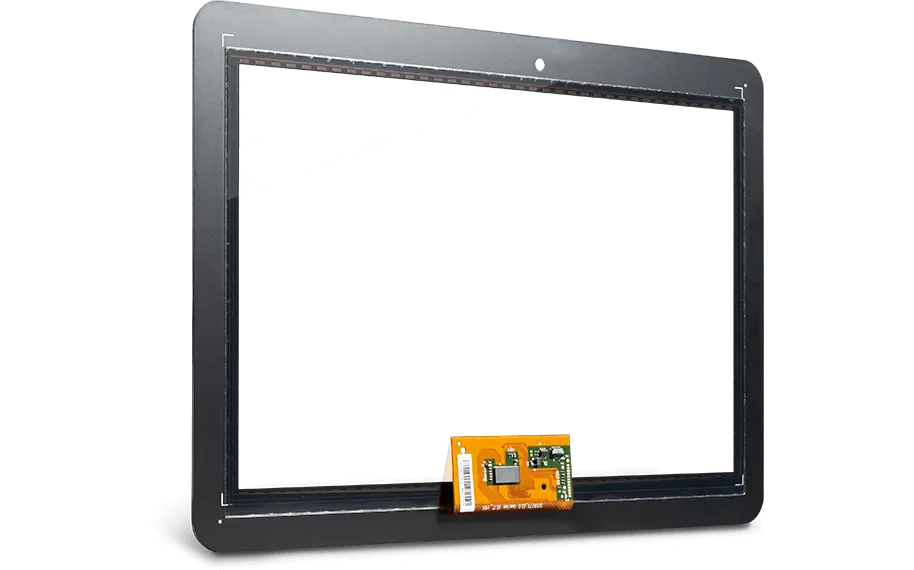

Elo Touch TouchPro™ Pro-F (Film) Projected Capacitive, 7"-32"
Elo TouchPro™ Pro-F PCAP Touch Screen, 7"-32". Learn More.
- Operating systemWindows XP Windows 7 Windows 8 Linux Android
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Technology
- PCAP (TouchPro® Projected Capacitive)
- Number of Touches
- Multi Touch (16)
- Input Methods
- Finger Gloved hand Passive stylus
- Dimensions
- sizes from 7" to 32"
- Light Transmittance
- ≥89%
- Haze
- < 1%
- Cover Glass Thickness
- 1.8mm or 2.8mm
- Surface Treatment
- Anti-glare Anti-fingerprint Anti-smudge
- Durability
- Over 50 million touches in one location
- Positional Accuracy
- ± 1.5mm
- Ports / interfaces
- USB, I2C, Serial
- Report Rate
- ≥100Hz
- Operating system
- Windows XP Windows 7 Windows 8 Linux Android
- Utilities
- Multiple monitor Various touch modes Touch zones
- Operating temperature
- -20°C to 70°C, RH <90% (Non-Condensing)
- Safety Approvals
- UL
- Warranty
- 2-year limited warranty
- Note
- Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.
