Elo Touch · Accessory

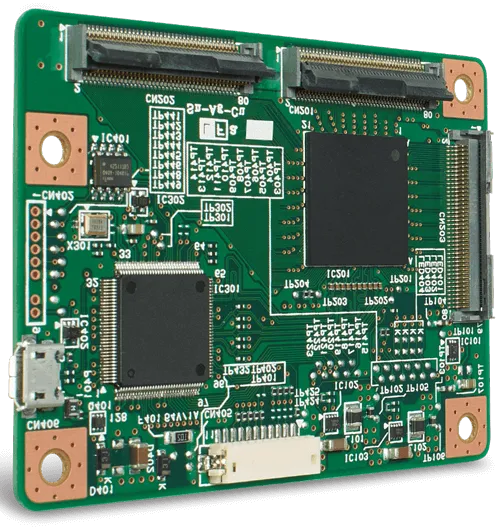

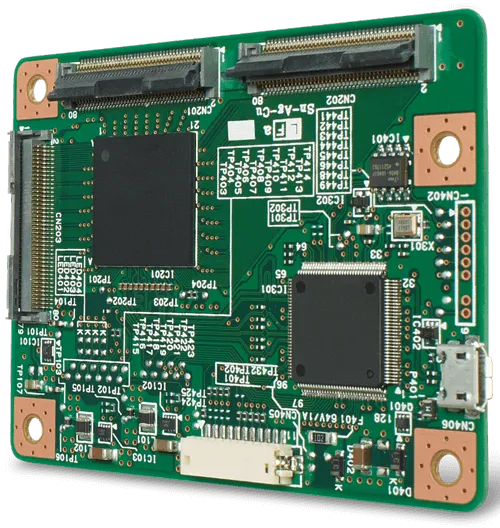

Elo Touch TouchPro™ 8300 Series Controller
Elo TouchPro™ 8300 Series PCAP Touch Screen Controller. Learn More.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Technology
- PCAP (TouchPro® Projected Capacitive)
- Number of Touches
- Multi Touch (40)
- Input Methods
- Finger Gloved hand Passive stylus
- Dimensions
- Elo’s 8300-series controllers have a variety of touch IC’s and form factors to choose from. Contact Elo for more details.
- Surface Treatment
- Clear
- Ports / interfaces
- USB, I2C, Serial
- Positional Accuracy
- ± 2.0mm
- Report Rate
- ≥ 100 Hz
- Operating Environment
- -20°C to 70°C; max 90% RH (non-condensing)
- Controller Cables
- Serial cable: P/N D16890-000 USB cable: P/N D38640-000 Dual serial/USB cable: P/N D40022-000
- Note
- Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
