Elo Touch TouchPro™ 7200 Series Controller COF

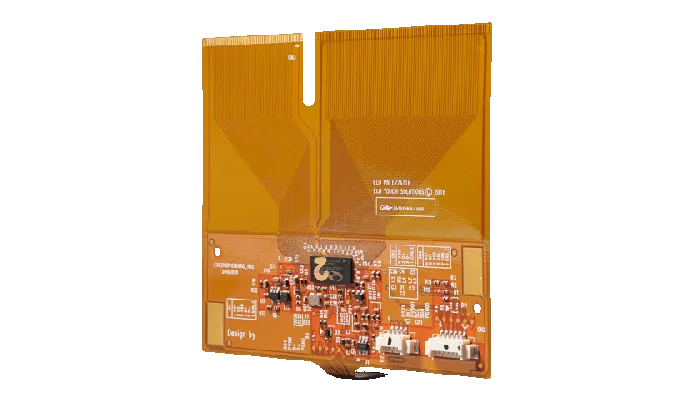

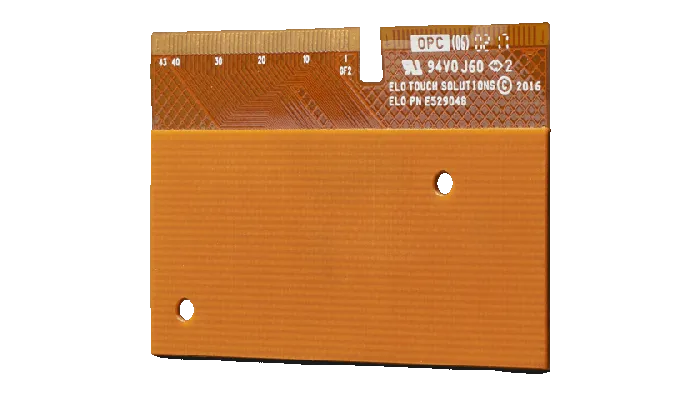

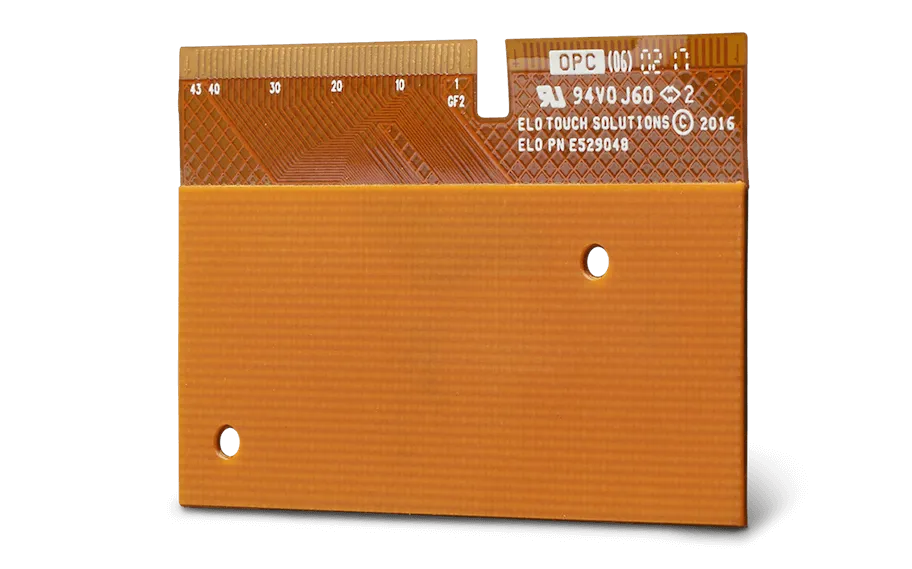

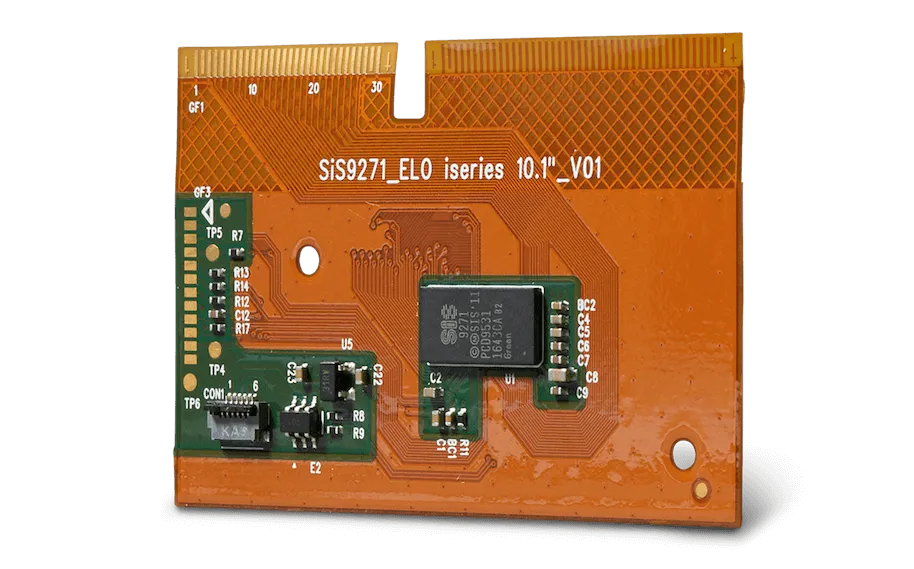

Overview The Elo Touch Solutions 7200-series chip-on-flex (COF) controllers are designed to work with Elo’s Projected Capacitive (PCAP) touchscreens. The 7200 series is compatible with TouchPro™ Pro-F screens from 7” to 15.6”.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Technology
- PCAP (TouchPro® Projected Capacitive)
- Number of Touches
- Multi Touch (10+)
- Input Methods
- Finger Gloved hand Passive stylus
- Dimensions
- Elo’s 7200-series controllers have multiple form factors to choose from. Contact Elo for more details.
- Surface Treatment
- Clear
- Ports / interfaces
- USB, I2C
- Positional Accuracy
- ±1.5mm
- Report Rate
- ≥ 100 Hz
- Operating temperature
- -20°C to 70°C; max 90% RH (non-condensing)
- Controller Cables
- Serial cable: P/N D16890-000 USB cable: P/N D38640-000 Dual serial/USB cable: P/N D40022-000
- Note
- Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
