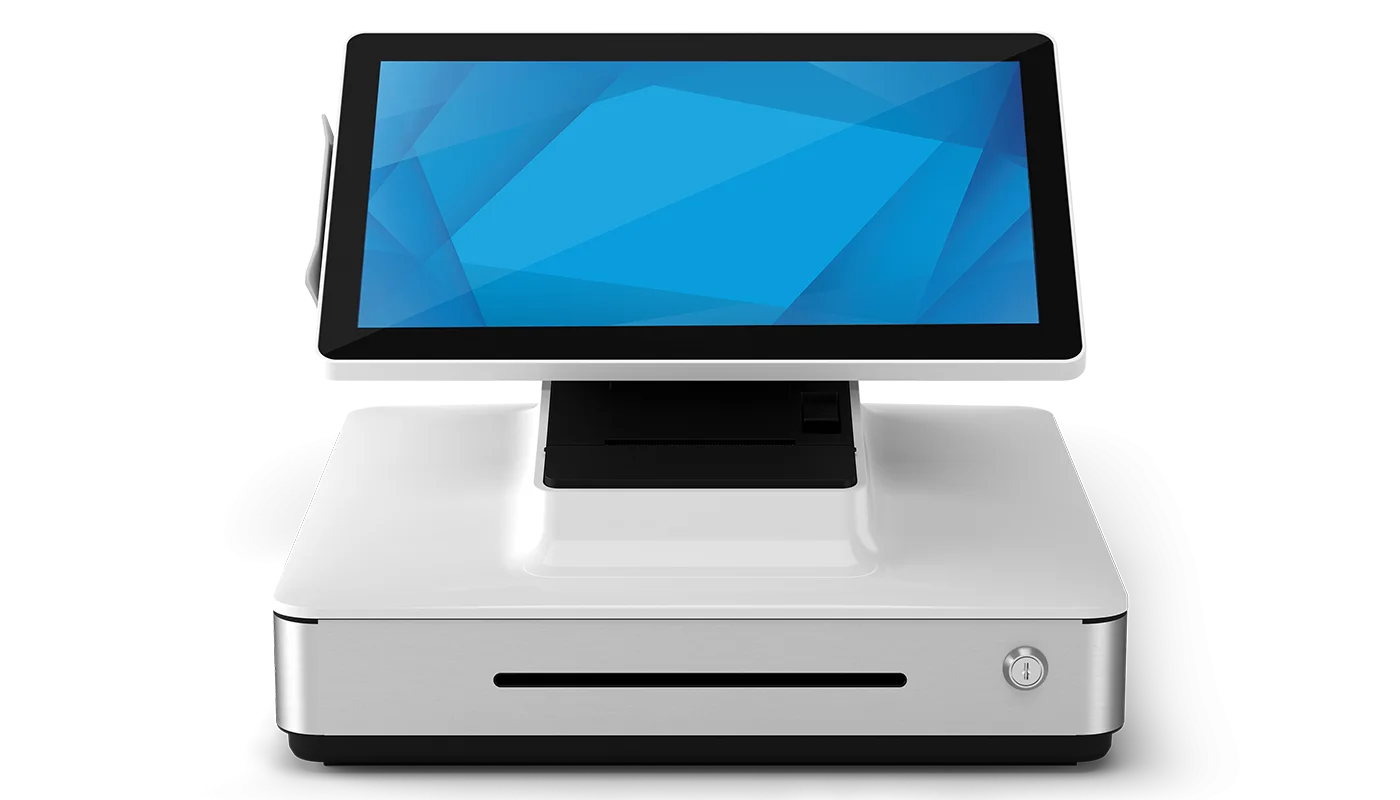

Elo Touch PayPoint Plus for Windows

Operating systemNo OS; Windows 10
Display15.6'' diagonal, Active matrix TFT LCD (LED)
ScanningHoneywell N4680 1D/2D barcode scanner; CMOS sensor with 640 x 480 pixel resolution; Supported symbologies…
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

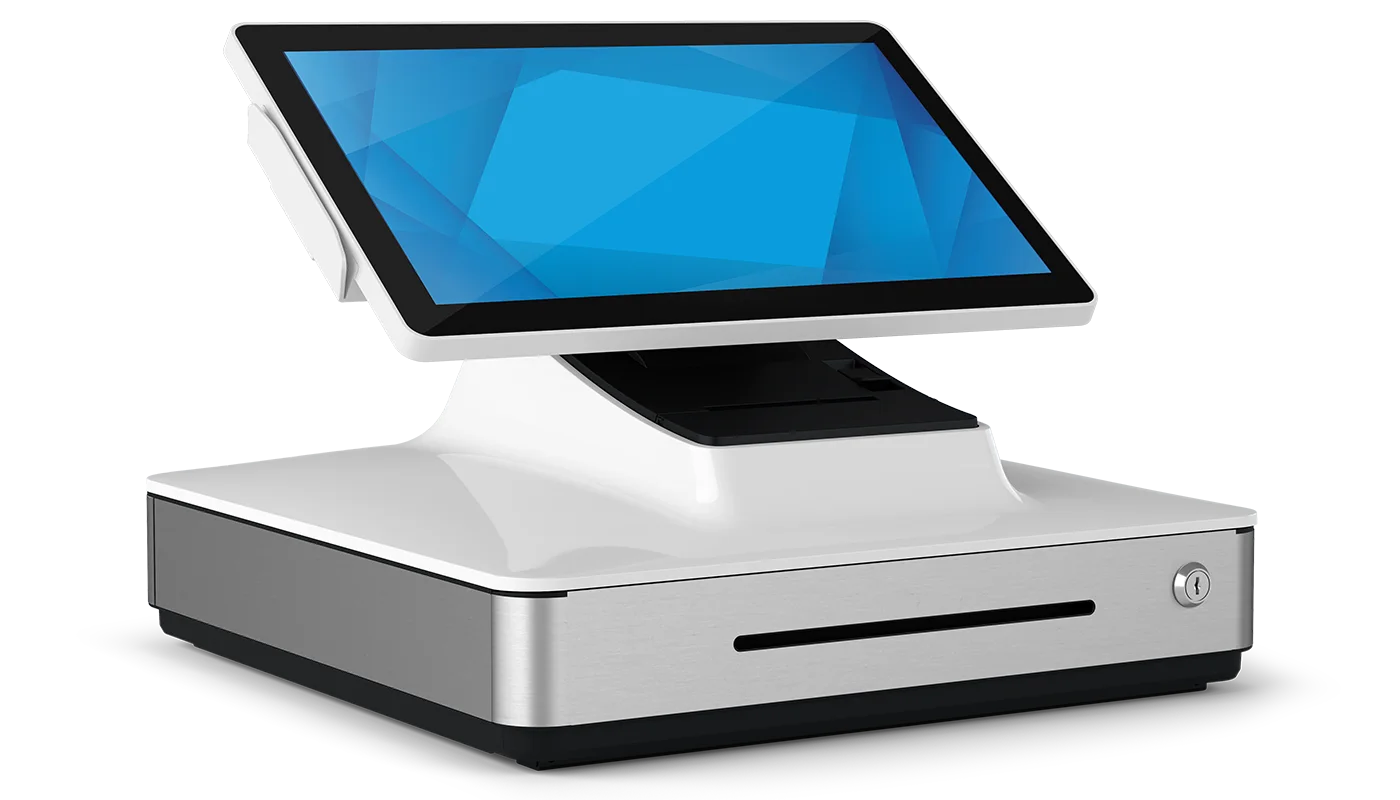

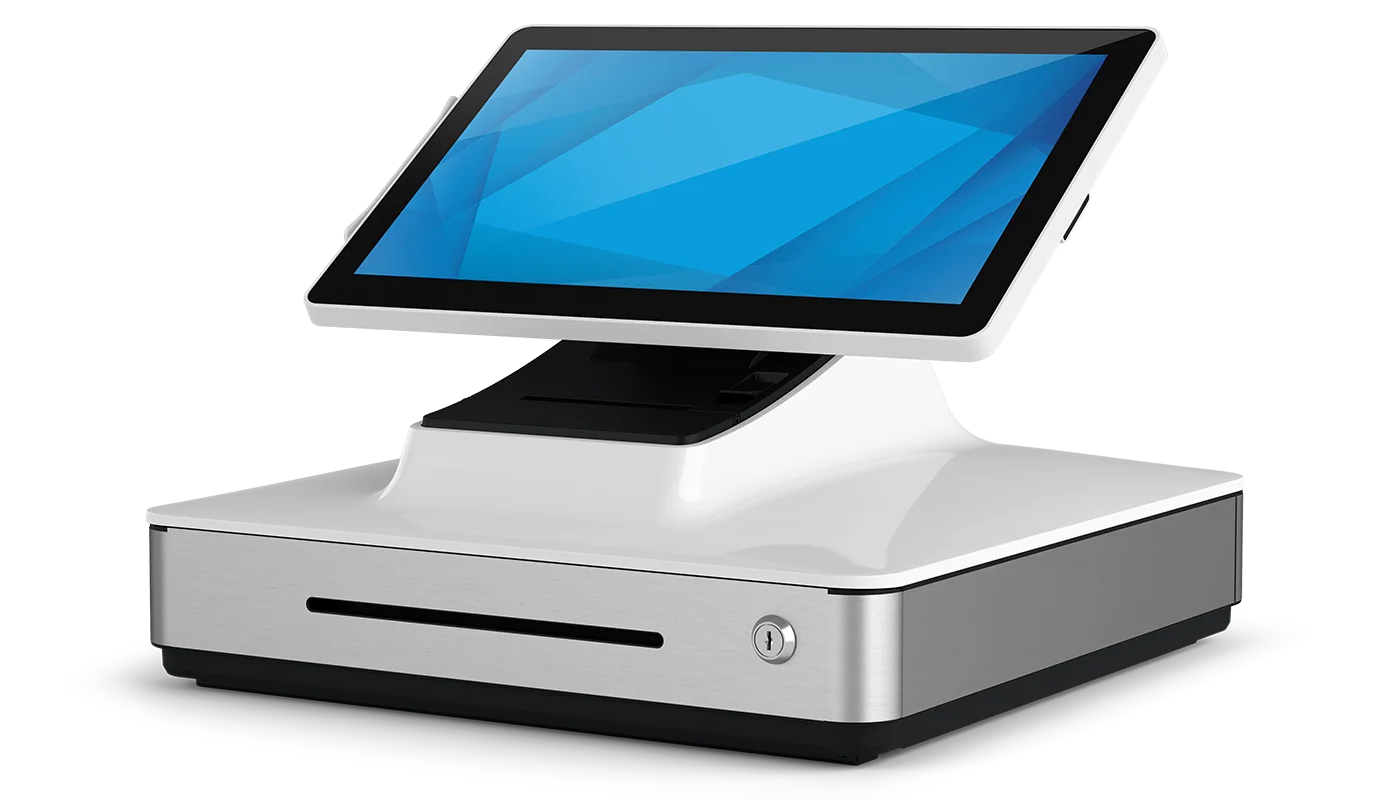

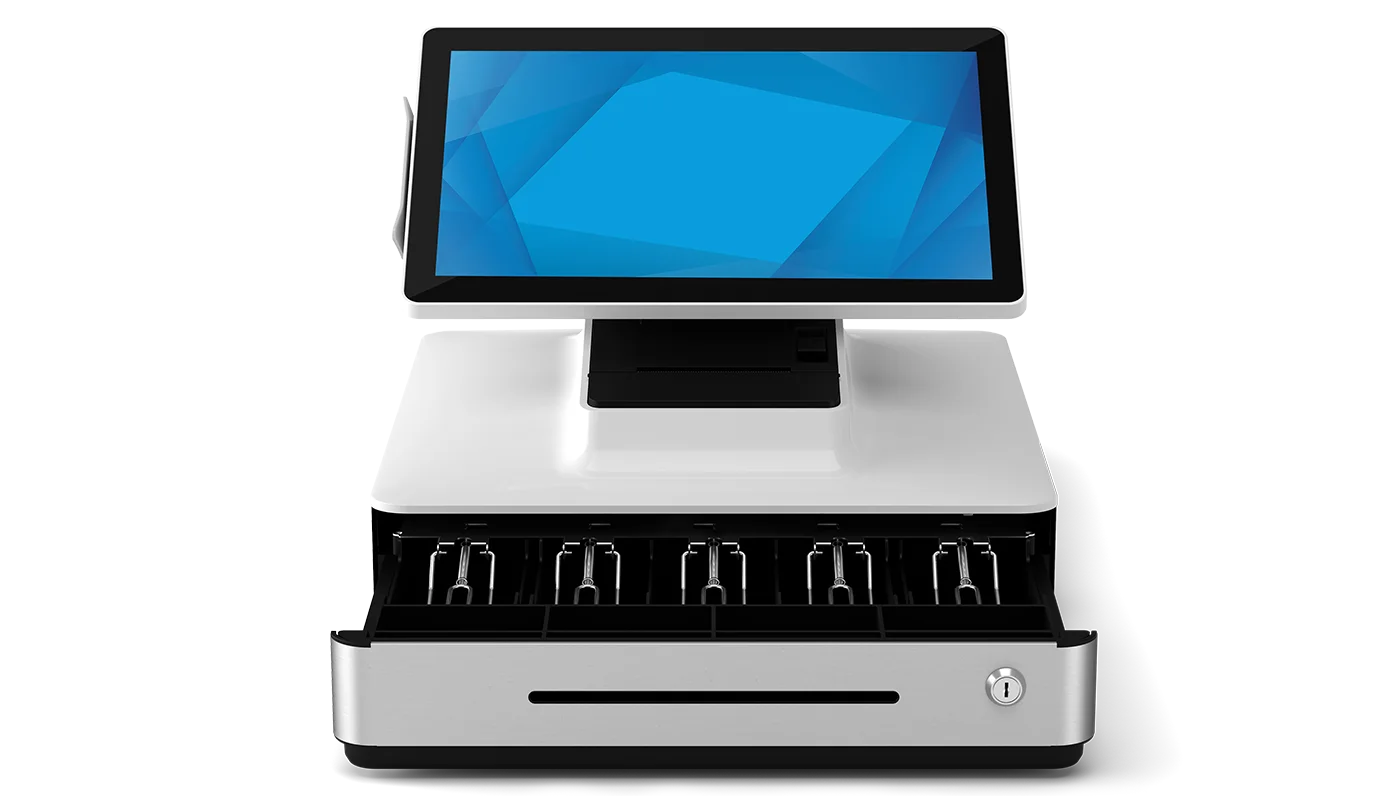

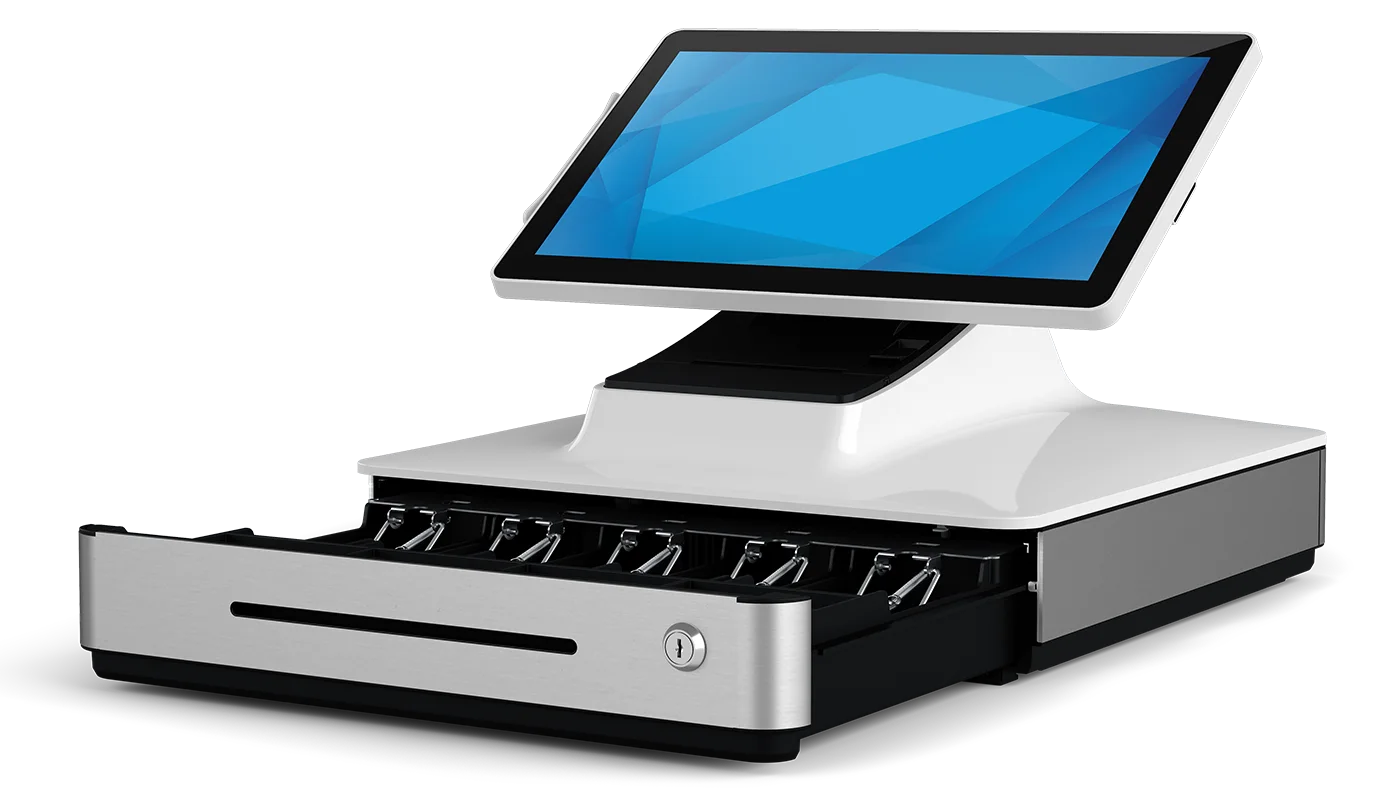

PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel Coffee Lake Core™ i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

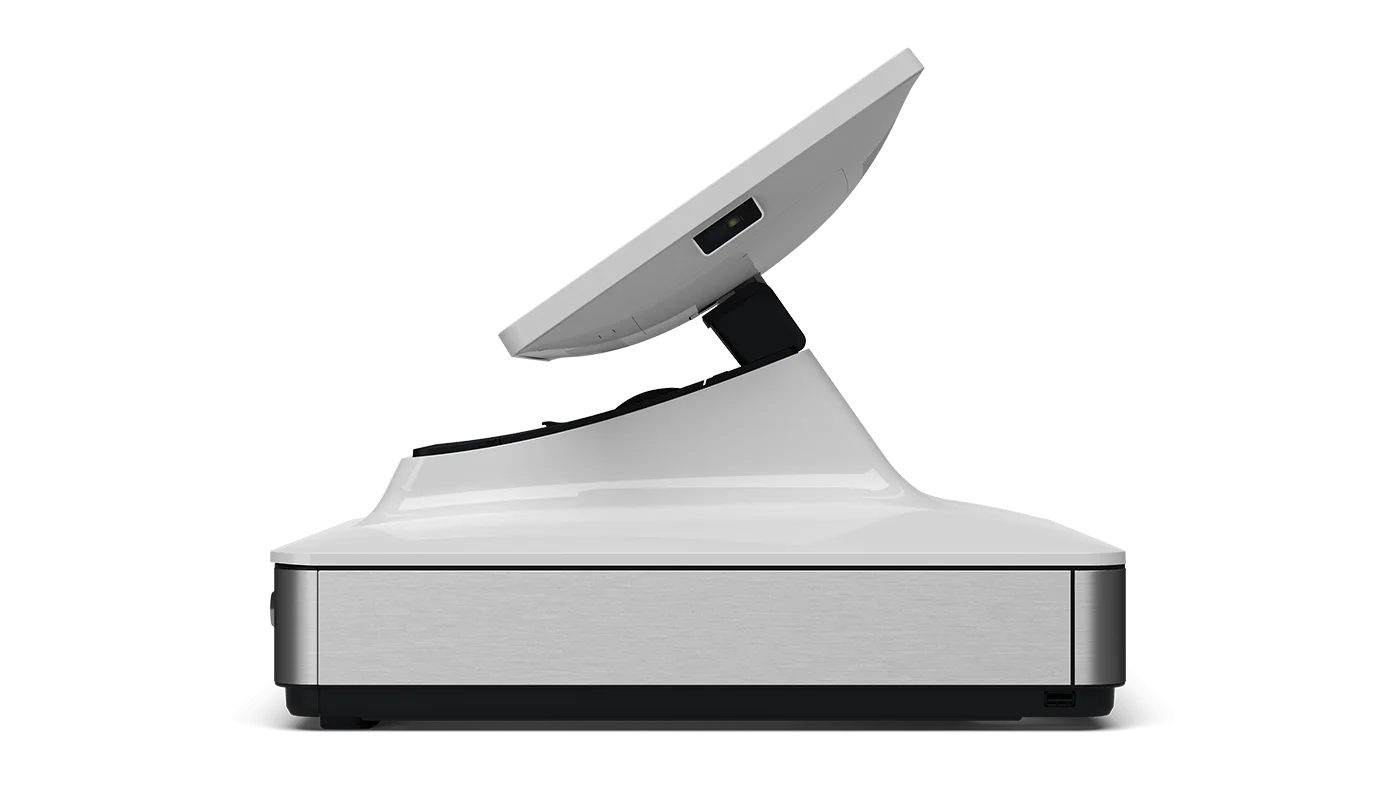

Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.
The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.
The Honeywell N4680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example–EasyDL™ enables users to read government-issued identification cards in US and Canada.

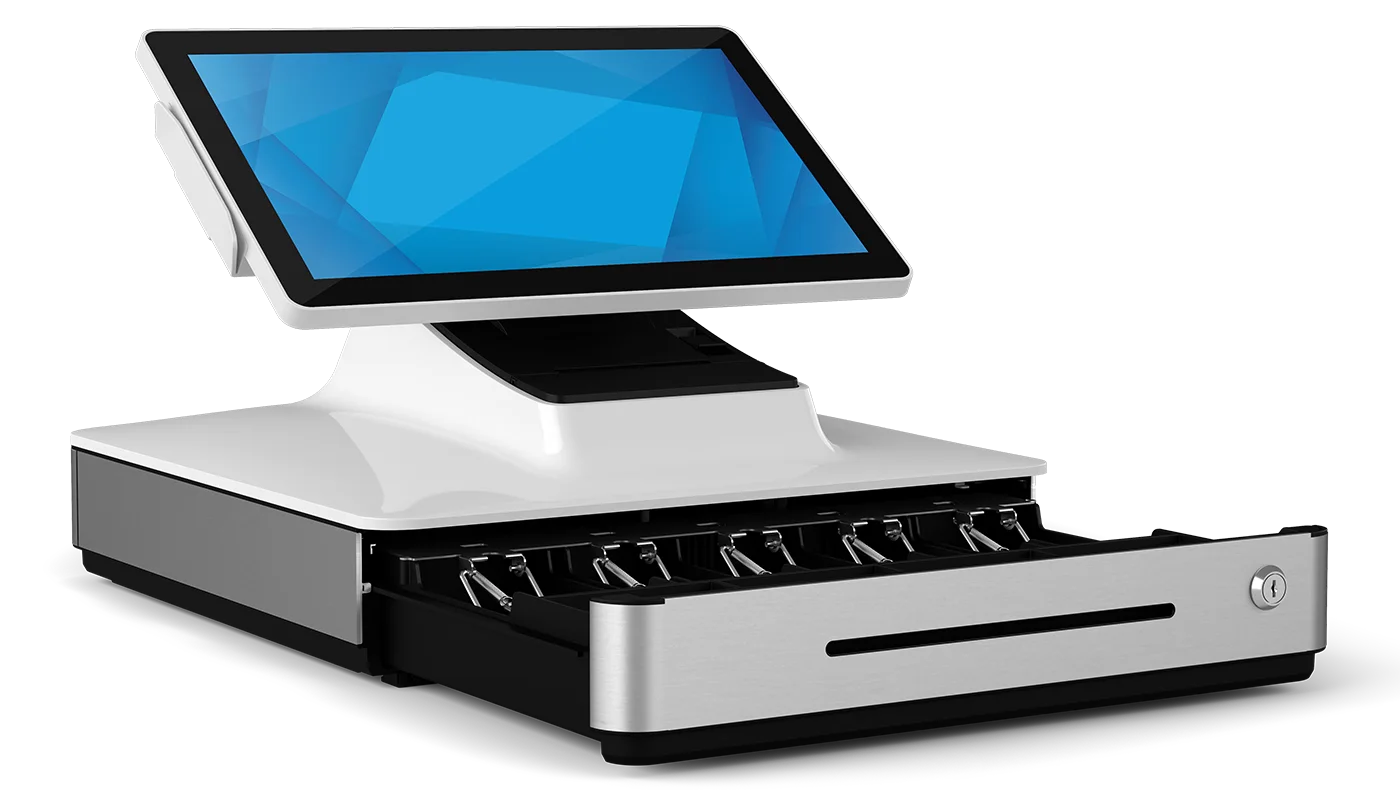

The full size industry–standard cash drawer with 3-position lock offers two layouts–five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.

Specifications

Technical

Part Number(s): E833933 - White, Win 10, 5 Bill/6 Coin Cash Drawer

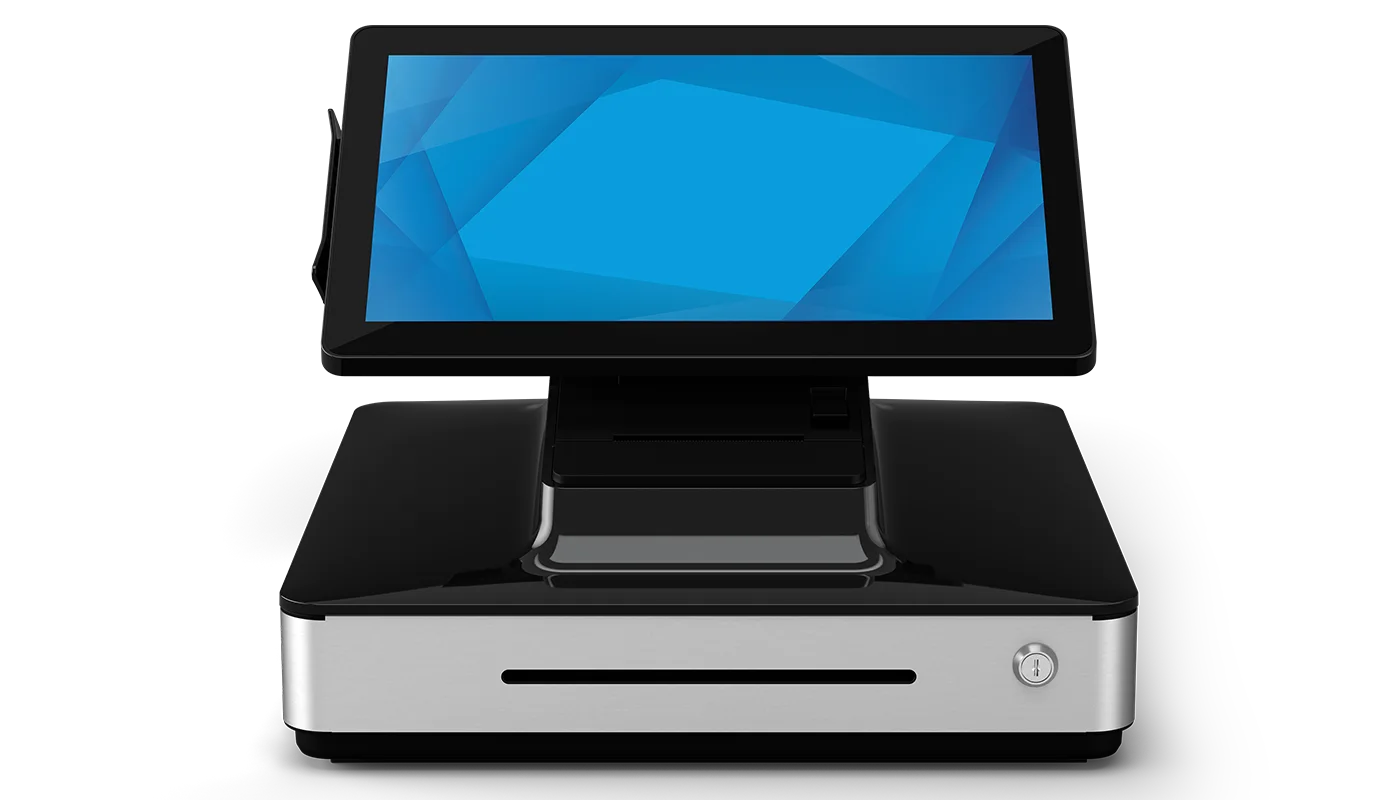

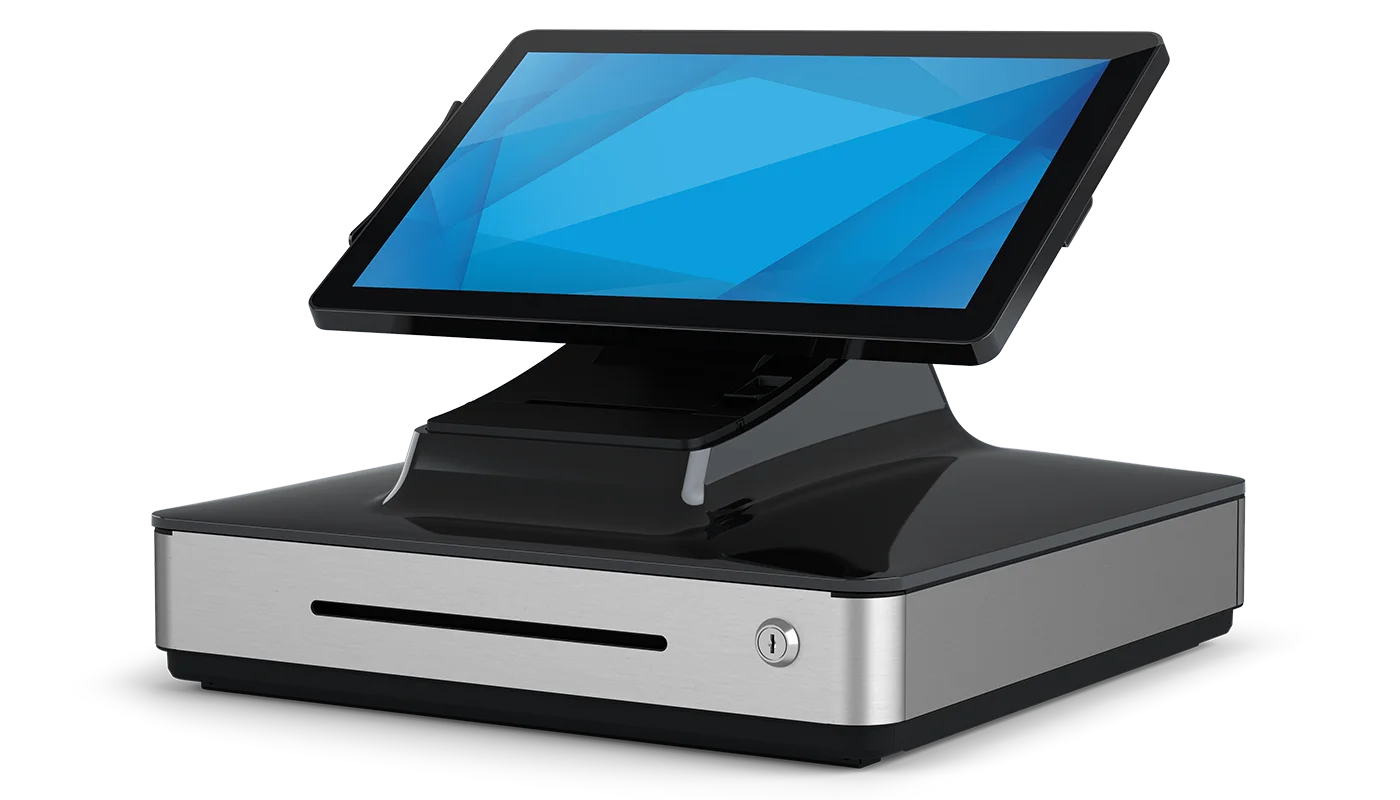

Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - up to 5 touches
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Resolution: 1920 x 1080 @ 60Hz
Active Area: 13.54" x 7.64" / 343.91 mm x 194.05 mm
Brightness (typical): LCD Panel: 300 nits; PCAP: 260 nits
Response Time-total (typical): 30 msec
Touch Interface: USB
Contrast Ratio: 800:1
Viewing Angle: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
OS: No OS; Windows 10
Processor: Intel Core i5-8500T Processor (9M Cache, up to 3.50 GHz) with Intel vPro™ support
BIOS: AMI
Trusted Platform Module (TPM): 2.0
Memory (RAM): 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB)
Storage: 128GB M.2 SSD, 72 TBW; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
USB Ports: 4 x Type A USB 2.0; 1 x 12V powered USB port
Serial Ports: 2 x RJ45
HDMI: 1 x micro HDMI port
Ethernet Port: 1 x LAN (Gigabit)
Wireless: 802.11b/g/n/ac + Bluetooth 5.0
Cash Drawer Port: 1 x RJ12
Magnetic Stripe Reader (MSR): Magtek 3 track encryptable; Default Security Level 2
Barcode Reader: Honeywell N4680 1D/2D barcode scanner; CMOS sensor with 640 x 480 pixel resolution; Supported symbologies:; - Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data bar; - 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417; - 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) code; - Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
Printer: Star TSP100III USB thermal 3" (80mm) receipt printer with auto-cutter; Speed of 250mm/sec; Maximum paper roll diameter 80mm; Paper thickness: 0.053-0.085mm
Cash Drawer: Cash Drawer Outside Dimensions: 16.18" x 16.54" x 3.50" / 411 mm x 420 mm x 89 mm; Removable till insert; Media slot for checks; 3 position lock; NA/China Models:; 5 bill, 6 coin built in cash drawer; Cash Drawer Inside Dimensions:; - Bill: 6.61" x 2.80" x 2.00" / 168 mm x 71 mm x 51 mm; - Coin: 3.39" x 2.28" x 2.00" / 86 mm x 58 mm x 51 mm; Worldwide Models:; 4 bill, 8 coin built in cash drawer; Cash Drawer Inside Dimensions:; - Bill: 6.45" x 3.54" x 2.20" / 164 mm x 90 mm x 56 mm, 90 mm cash slot adjustable +/-6 mm / 0.24"; - Coin: 1.57" x 3.54" x 1.41" / 40 mm x 90 mm x 36 mm)
Speakers: 1 x 1W internal speaker
Power: Input connector (power): 100-240 VAC; Input signal specifications (power): 50-60 Hz
Power Consumption (Typical): 51.86 W
Dimensions: 16.18" x 12.71" x 16.53" / 411 mm x 323 mm x 420 mm
Shipping Box Dimensions: 21.18" x 15.31" x 20.39" / 538 mm x 389 mm x 518 mm
Weight (Unpackaged): 22.47 lbs / 10.20 kg
Weight (Packaged): 29.76 lbs / 13.5kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Real-Time Clock: lithium coin cell battery
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
Sealability: Touchscreen sealed to LCD
Power Cables: Internal Power Supply; Power cable dependent on region of sale
Mounting Options: Ability to secure base to tabletop
What's in the Box: PayPoint Plus for Windows; Power cable; 1 x Receipt paper roll; 2 x Cash drawer keys; Quick Installation Guide; RJ45 to DB9 serial cable
Optional Accessories: White Cable Kit (1 per box) - Elo P/N: E784408; Black Cable Kit (1 per box) - Elo P/N: E784803; Cash Drawer Kit, NA (5 bill/6 coin) - Elo P/N: E784606; Cash Drawer Kit, Worldwide (4 bill/8 coin) - Elo P/N: E202512; Spare Keys 001 (1 set of 2 keys) - Elo P/N: E201914; Spare Keys 002 (1 set of 2 keys) - Elo P/N: E202119; Spare Keys 003 (1 set of 2 keys) - Elo P/N: E202321; RJ45 to DB9 Cable Kit (10 per box) - Elo P/N: E202717; Mount for 1502L - Elo P/N: E963646
Regulatory approvals and declarations: UL/cUL, FCC/IC, CE, CB, EU RF RED, CCC, SRRC, VCCI, Japan RF
Contact PayPoint Sales: 1.844.356.3548

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: EloPOS Z30 with Intel
Status basis: elotouch.com lists it as replaced by EloPOS Z30 with Intel
