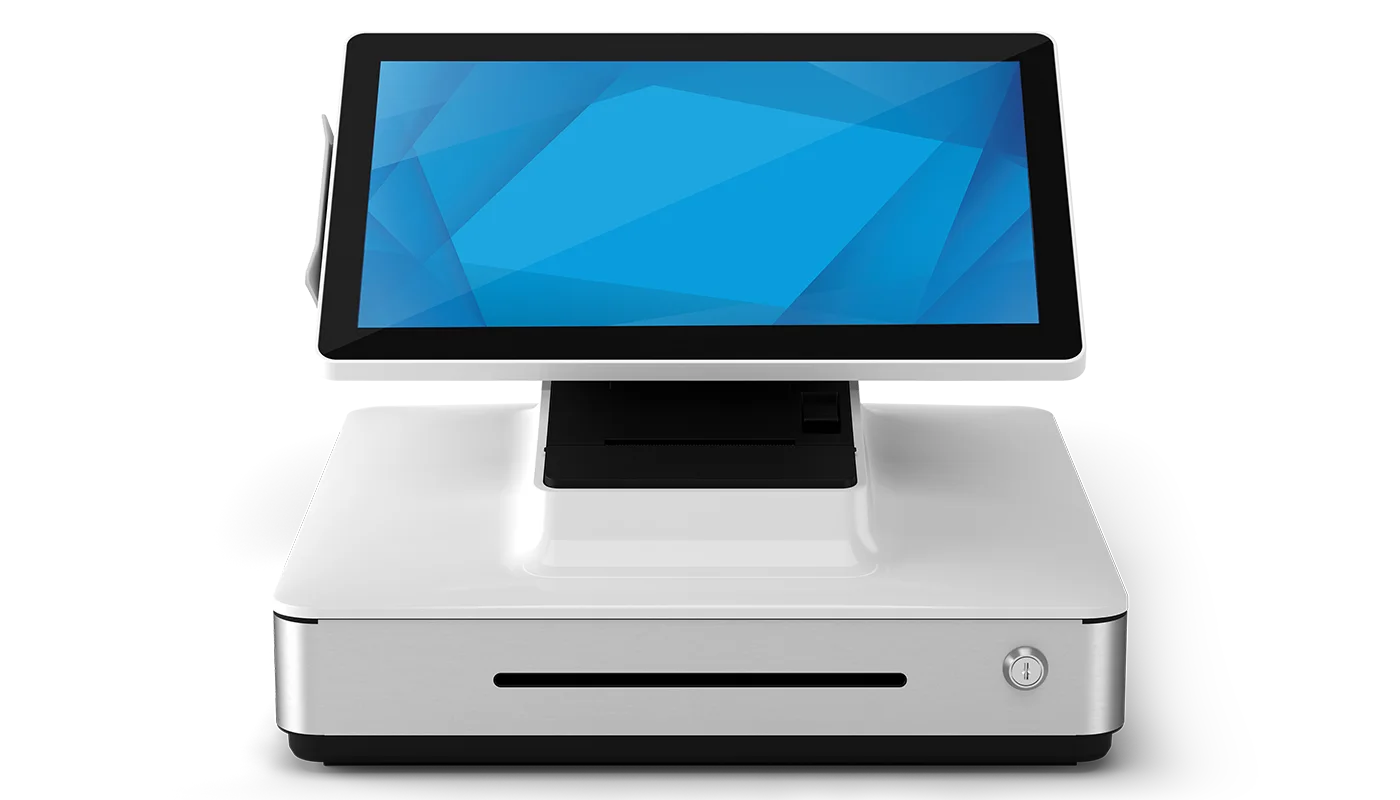

PayPoint Plus for Android — with Google Play Services (3.0) by Elo

Elo Touch · POS computer

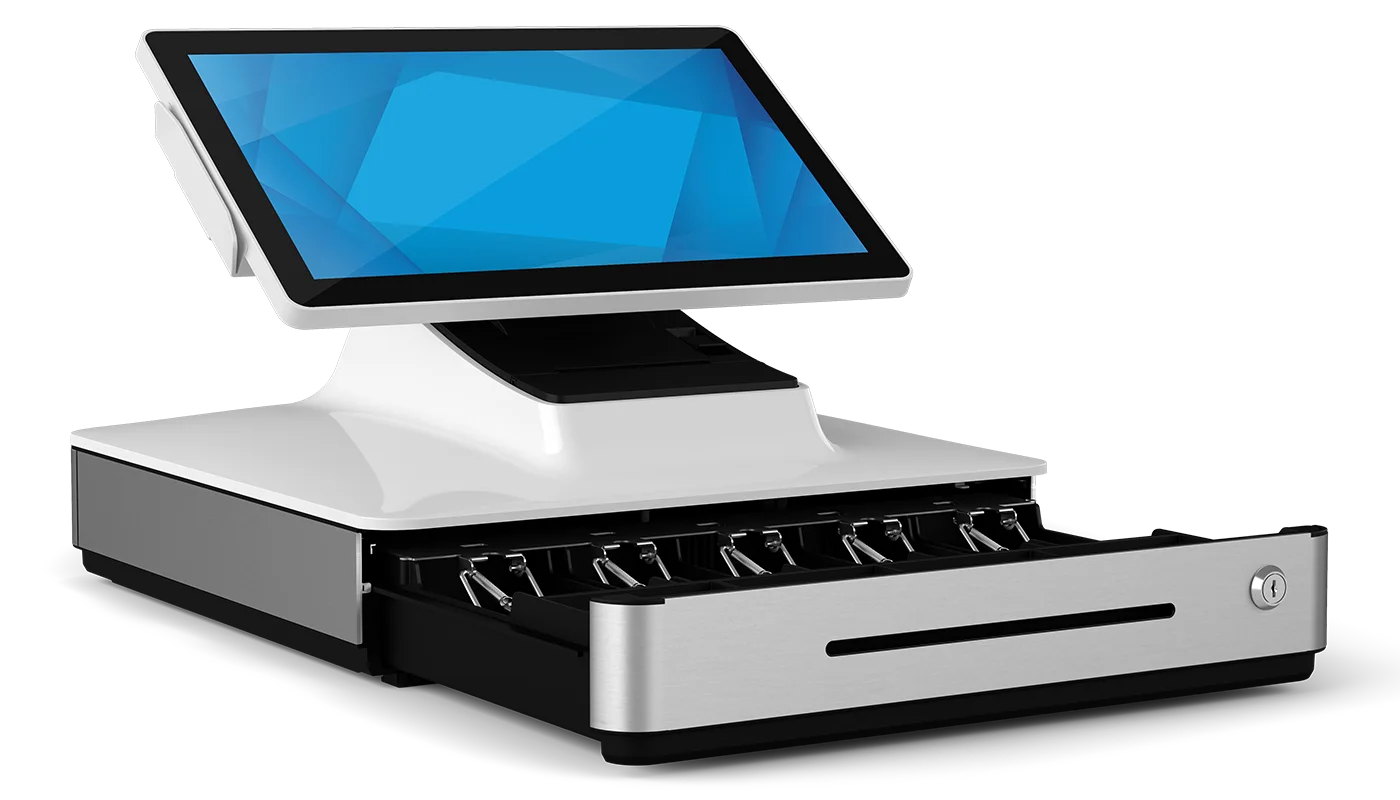

Elo Touch PayPoint Plus for Android — with Google Play Services (3.0)

Operating systemAndroid 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Display15.6'' diagonal, Active matrix TFT LCD (LED)
ScanningHoneywell N3680 1D/2D barcode scanner; CMOS sensor with 640 x 480 pixel resolution; Supported symbologies…
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

PayPoint Plus for Android combines a reliable and secure, commercial-grade POS System with flexibility and functionality of Google Play Services. Running Android 8.1 and powered by a blazing-fast Qualcomm™ Snapdragon™ octa-core processor, the all-in-one mPOS solution brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs including a 15.6" Android-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen and built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

Whether you deploy one hundred or one hundred thousand PayPoint devices, EloView™ makes it easy to connect and control them while Google Mobile Services gives you access to Google’s most popular apps and APIs. Available with your choice of size and configuration, the POS system is designed to offer versatility across environments with the durability to meet the demands of continuous public use.
Now you can create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Play Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
The Android mobile architecture is a smart choice for ensuring your rollout is inexpensive.
One image across all form factors. Customizable behavior. Supports peripherals businesses need.
PayPoint Plus for Android offers a full HD 15.6-inch TouchPro™ PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

Best for: POS Systems for Restaurants · Retail POS Systems · Android Retail POS Systems

Videos

Elo PayPoint Plus for Android — with Google Play Services (3.0) video

Specifications

Technical

Part Number(s): White (North America) - E464326; Black (North America) - E464529; White (Worldwide) - E464915; Black (Worldwide) - E464724

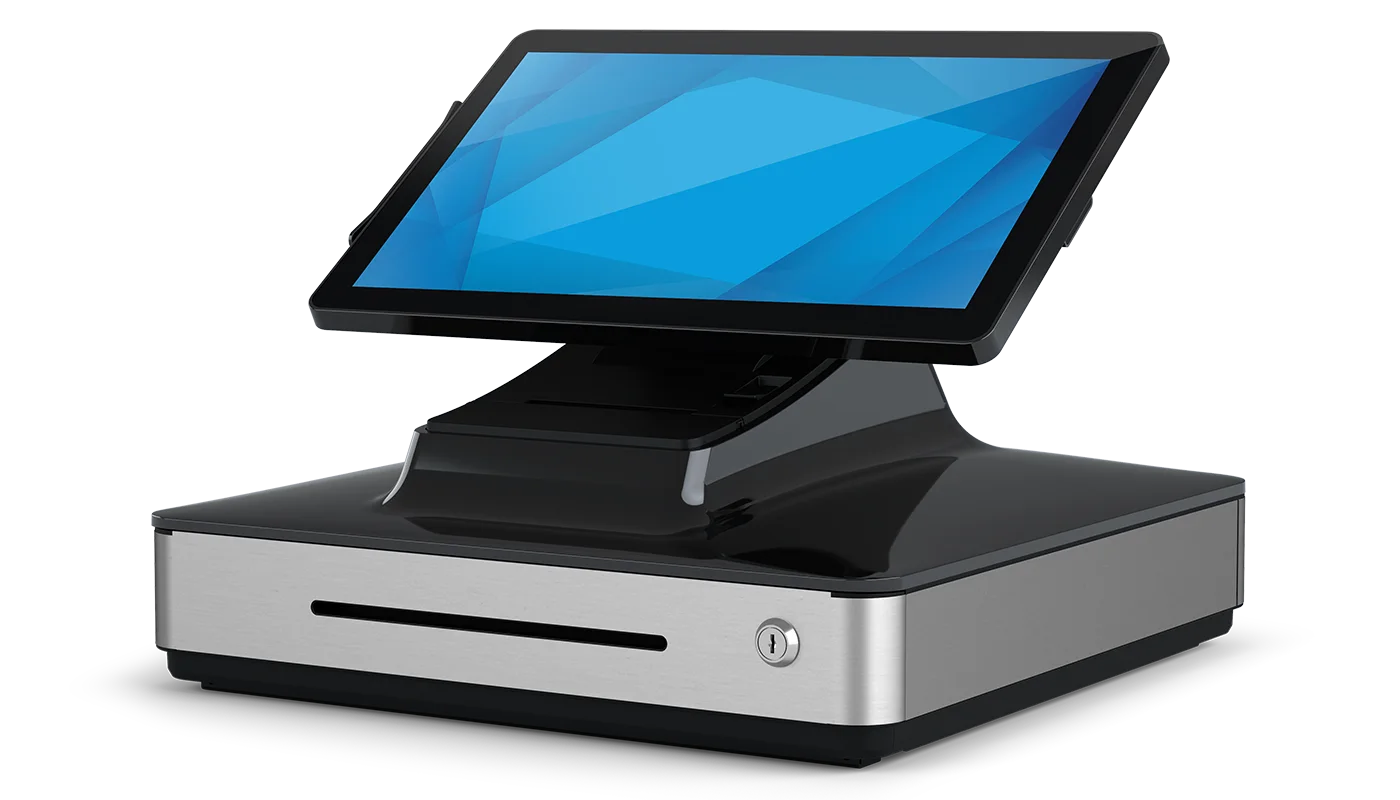

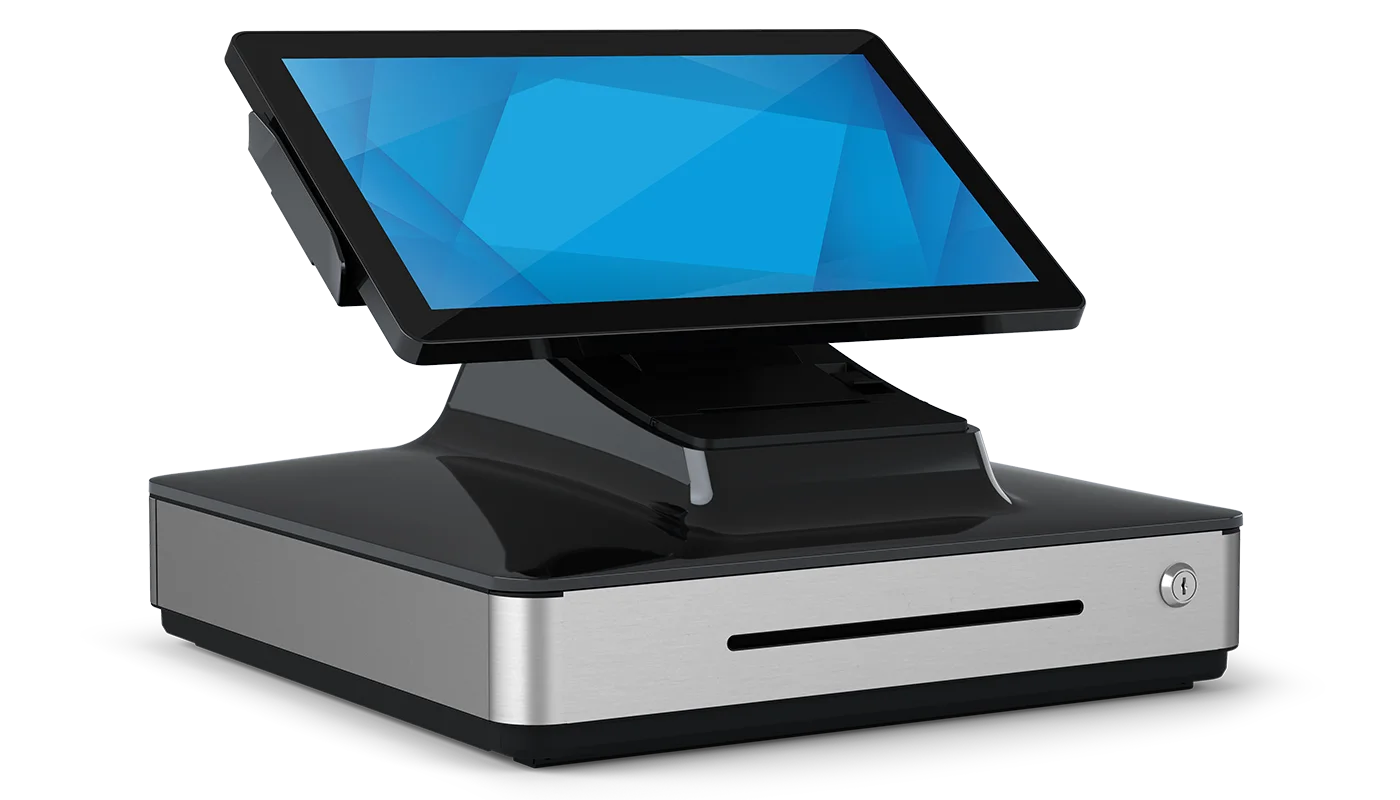

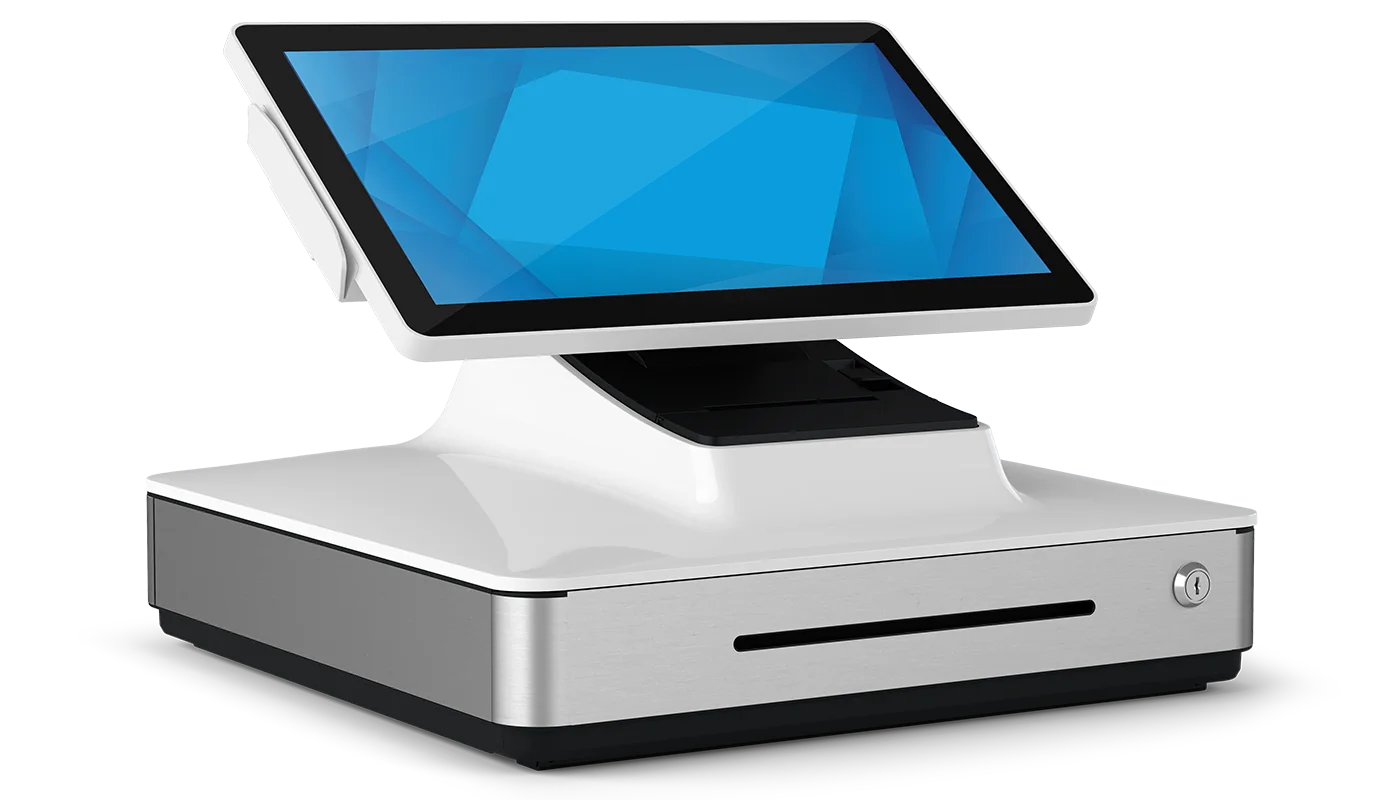

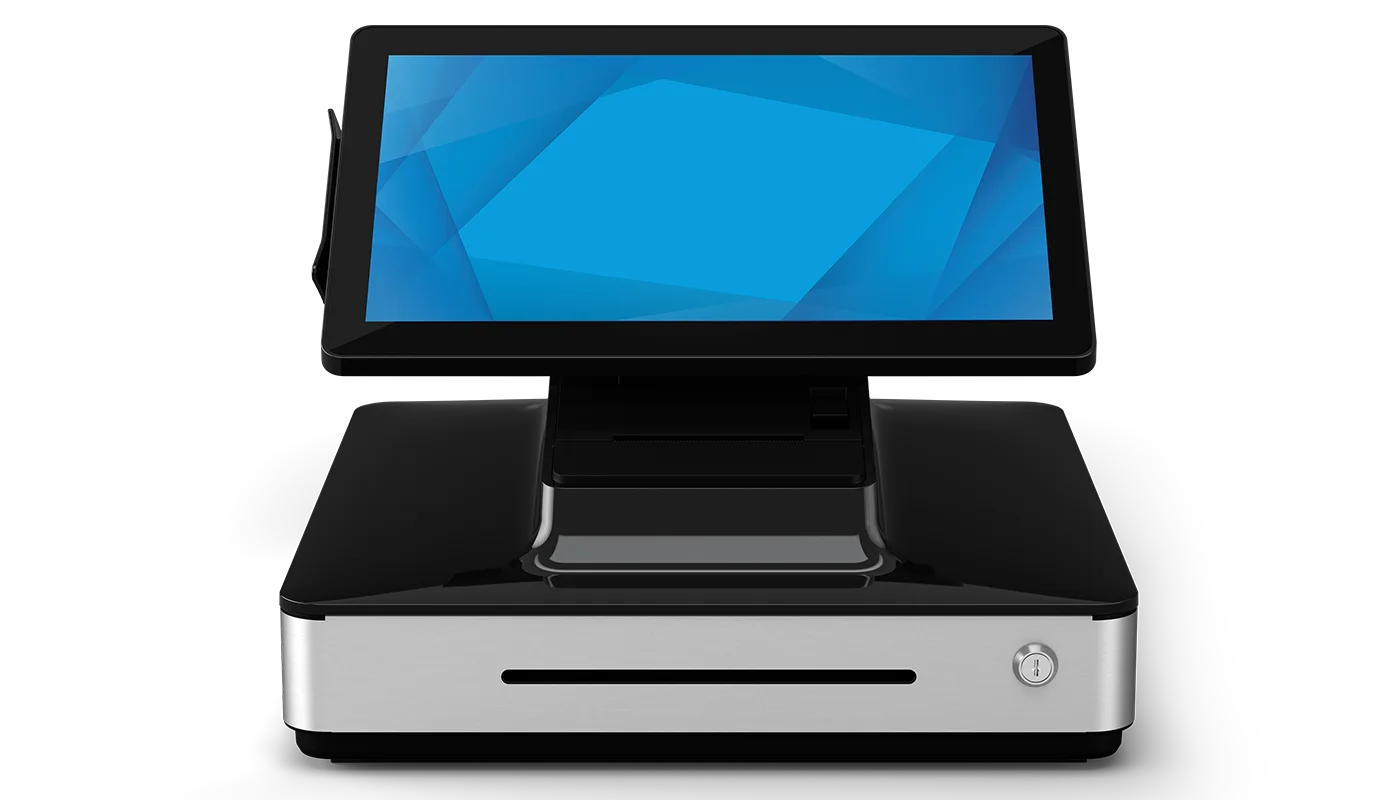

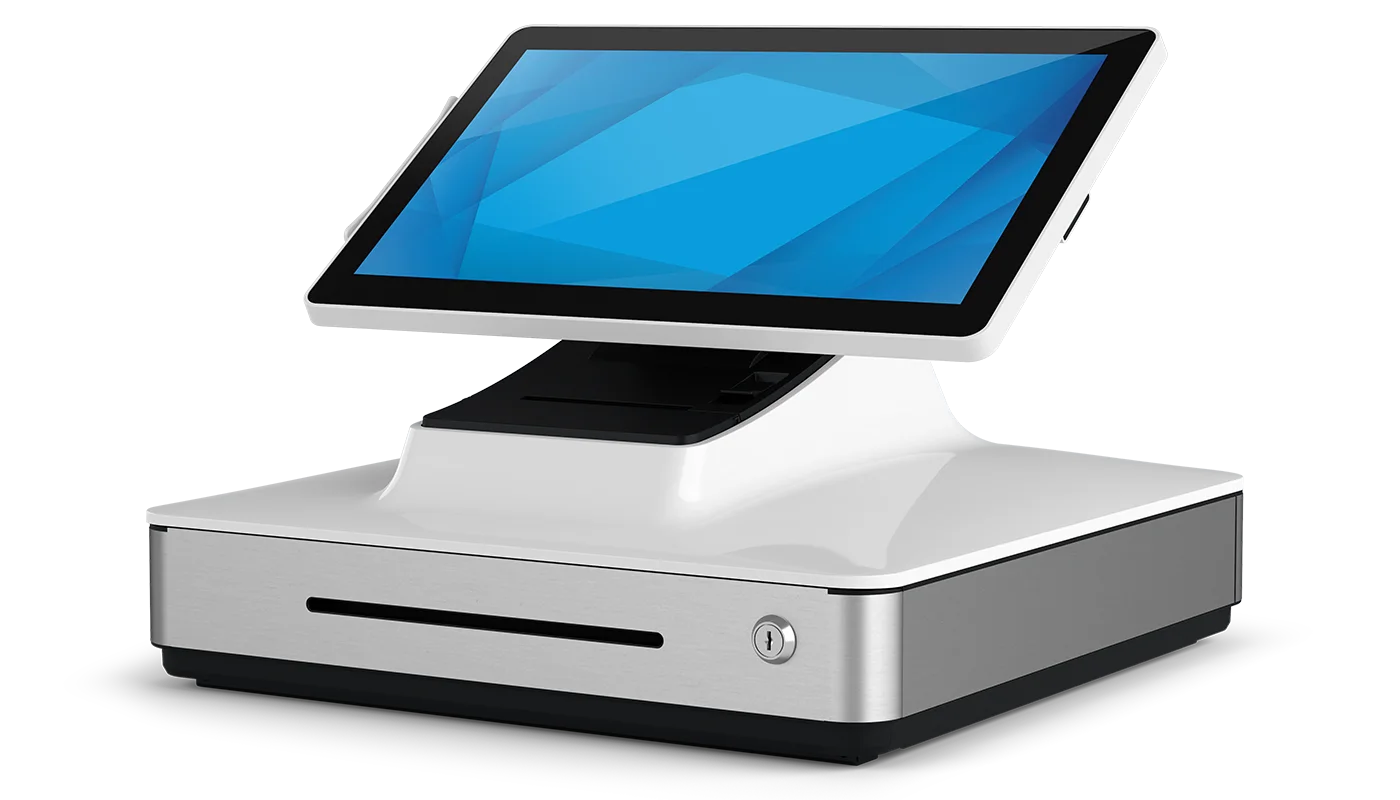

Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - up to 5 touches
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Resolution: 1920 x 1080 @ 60Hz
Active Area: 13.54" x 7.64" / 344 mm x 194 mm
Brightness (typical): LCD Panel: 300 nits; PCAP: 260 nits
Response Time-total (typical): 30 msec
Contrast Ratio: 800:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
OS: Android 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Processor: Qualcomm Snapdragon 2.0GHz Octa-Core
Memory (RAM): 3GB
Storage: 32GB; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
USB Ports: 4 x Type A USB 2.0; 1 x mini USB 2.0; 1 x 12V powered USB port
Serial Ports: 2 x RJ45
HDMI: 1 x micro HDMI port
Ethernet Port: 1 x LAN (Gigabit)
Wireless: 802.11b/g/n/ac + Bluetooth 4.1
Cash Drawer Port: 1 x RJ12
Magnetic Stripe Reader (MSR): Magtek 3 track encryptable; Default Security Level 2
Barcode Reader: Honeywell N3680 1D/2D barcode scanner; CMOS sensor with 640 x 480 pixel resolution; Supported symbologies:; - Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data bar; - 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417; - 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) code; - Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
Customer Display: 2x16 character display*; *North America/China model only
Printer: Star TSP100III USB thermal 3" (80mm) receipt printer with auto-cutter; Speed of 250mm/sec; Maximum paper roll diameter 80mm; Paper thickness: 0.053-0.085mm

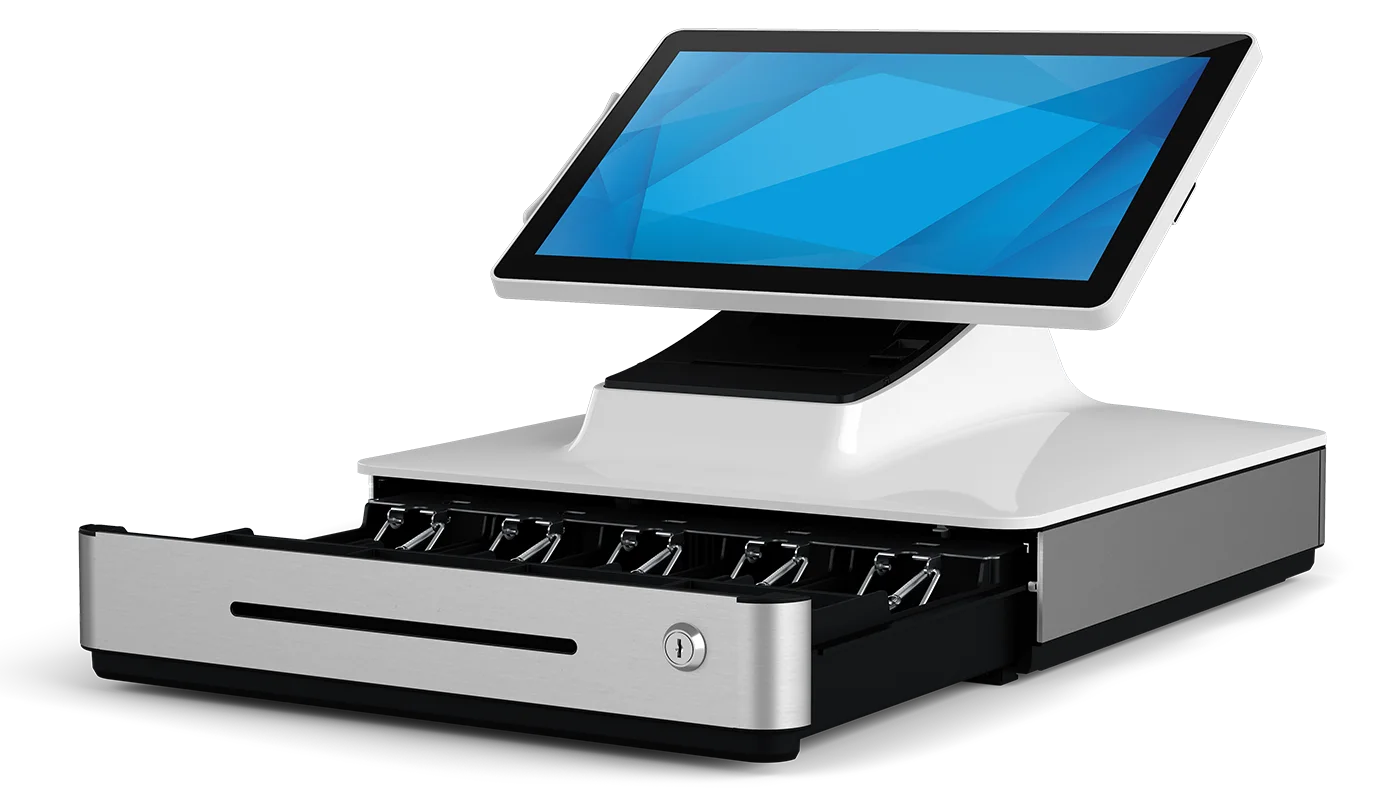

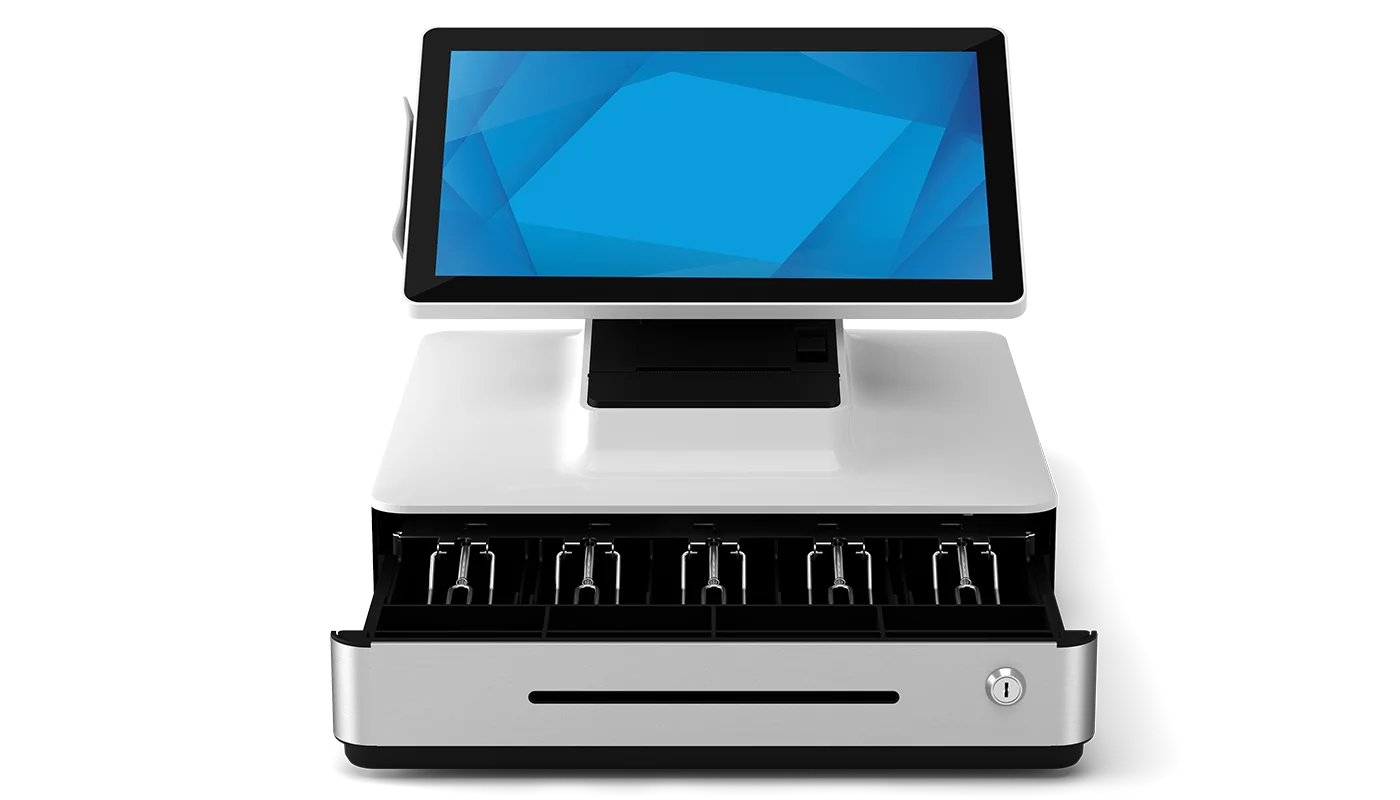

Cash Drawer: Cash Drawer Outside Dimensions: 16.18" x 16.54" x 3.50" / 411 mm x 420 mm x 89 mm; Removable till insert; Media slot for checks; 3 position lock; NA/China Models:; 5 bill, 6 coin built in cash drawer; Cash Drawer Inside Dimensions:; - Bill: 6.61" x 2.80" x 2.00" / 168 mm x 71 mm x 51 mm; - Coin: 3.39" x 2.28" x 2.00" / 86 mm x 58 mm x 51 mm; Worldwide Models:; 4 bill, 8 coin built in cash drawer; Cash Drawer Inside Dimensions:; - Bill: 6.45" x 3.54" x 2.20" / 164 mm x 90 mm x 56 mm, 90 mm cash slot adjustable +/-6 mm / 0.24"; - Coin: 1.57" x 3.54" x 1.41" / 40 mm x 90 mm x 36 mm)
Speakers: 1 x 1W internal speaker
Power: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): 92W
Dimensions: 16.2" x 12.6" x 16.2" / 420 mm x 411 mm x 321 mm
Shipping Box Dimensions: 25.5" x 21.6" x 19.1" / 648 mm x 548 mm x 484 mm
Weight (Unpackaged): 19.84 lbs / 9kg
Weight (Packaged): 29.76 lbs / 13.5kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Real-Time Clock: lithium coin cell battery
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
Sealability: Touchscreen sealed to LCD
Power Cables: Internal Power Supply; Power cable dependent on region of sale
Mounting Options: Ability to secure base to tabletop
What's in the Box: PayPoint Plus for Android; Power cable; 1 x Receipt paper roll; 2 x Cash drawer keys; Quick Installation Guide; RJ45 to DB9 serial cable
Optional Accessories: White Cable Kit (1 per box) - Elo P/N: E784408; Cash Drawer Kit, NA (5 bill/6 coin) - Elo P/N: E784606; Cash Drawer Kit, Worldwide (4 bill/8 coin) - Elo P/N: E202512; Spare Keys 001 (1 set of 2 keys) - Elo P/N: E201914; Spare Keys 002 (1 set of 2 keys) - Elo P/N: E202119; Spare Keys 003 (1 set of 2 keys) - Elo P/N: E202321; RJ45 to DB9 Cable Kit (10 per box) - Elo P/N: E202717
Regulatory approvals and declarations: FCC, UL, cUL, CE, CB, VCCI, MIC, RCM
Supported Countries: Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
