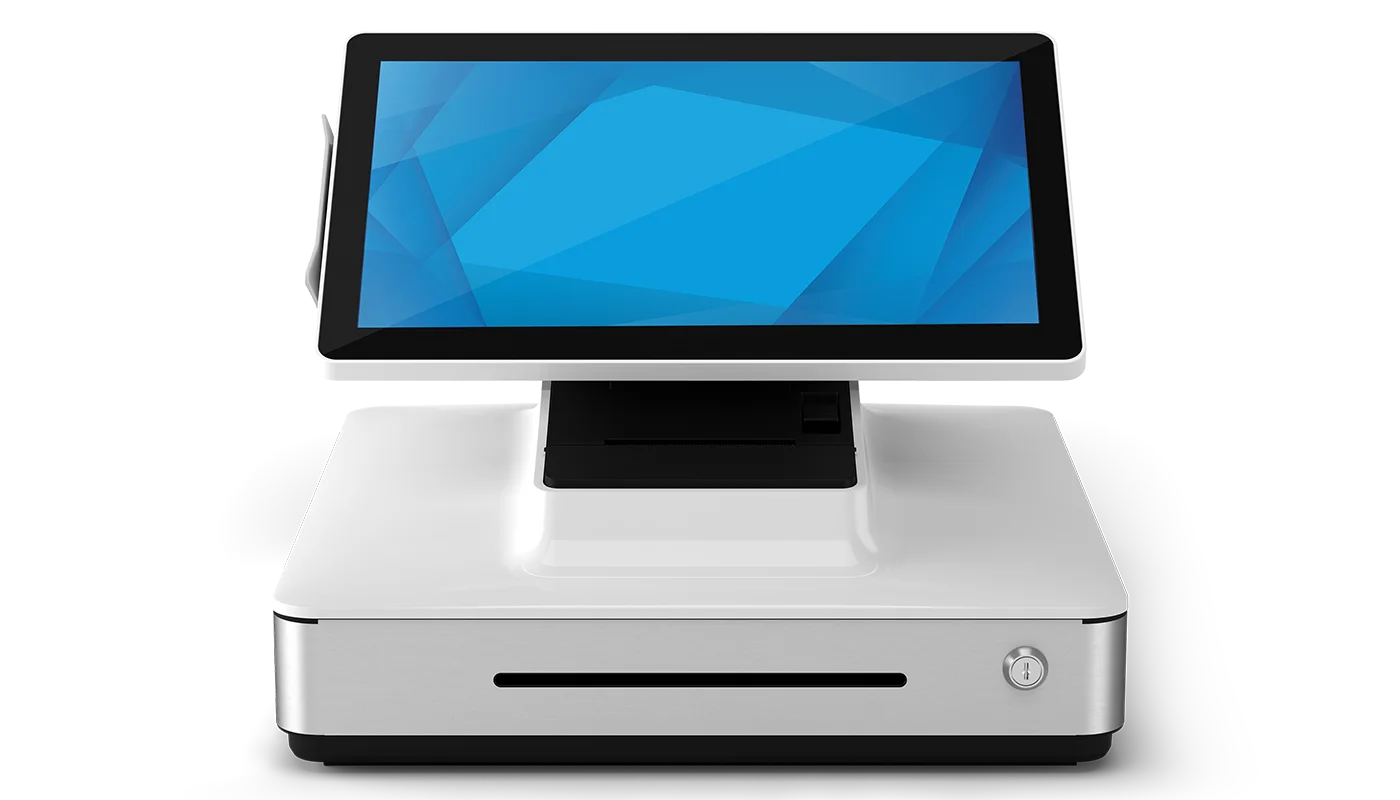

Elo Touch PayPoint Plus for Android — with Android Open Source
PayPoint Plus for Android is a new all-in-one mPOS solution that brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs inc
- Operating systemAndroid 7.1 with EloView content deployment and management
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
- ScanningHoneywell N3680 1D/2D barcode scanner; CMOS sensor with 640 x 480 pixel resolution; Supported symbologies…
- SealingTouchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview

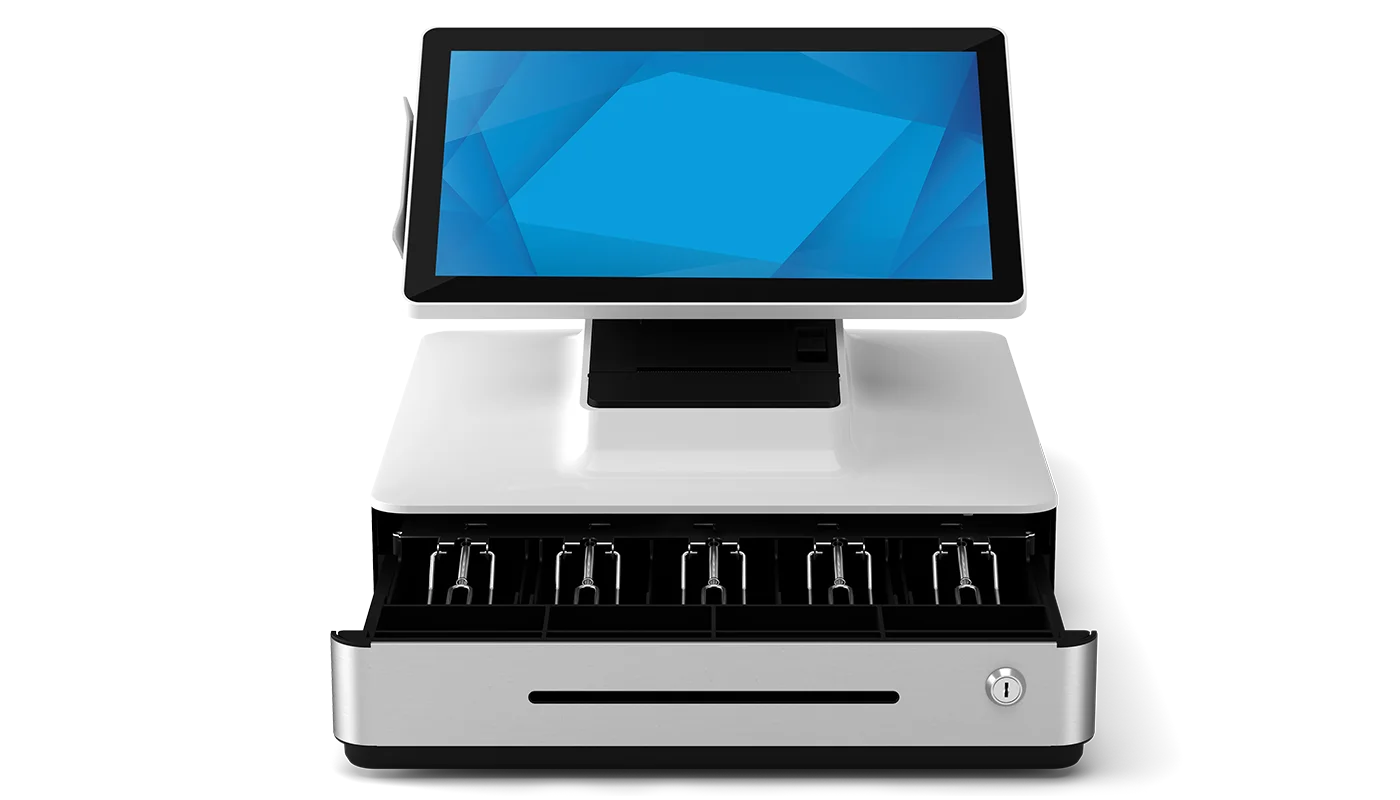

PayPoint Plus for Android is a new all-in-one mPOS solution that brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs including a 15.6" Android-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen and built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
- PayPoint Plus for Android offers a full HD 15.6-inch TouchPro™ PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

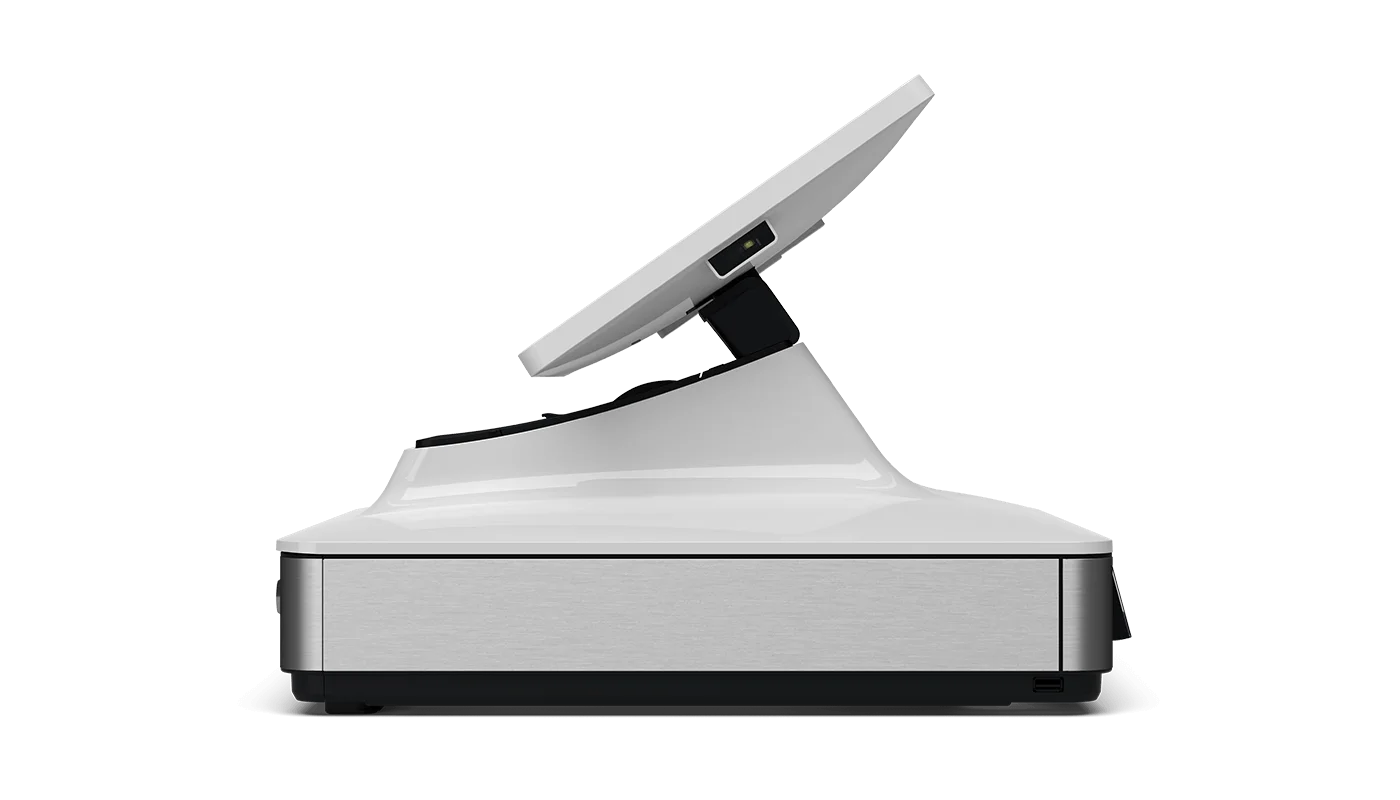

- Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.
- The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.
- The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example-EasyDL TM enables users to read government-issued identification cards in US and Canada.

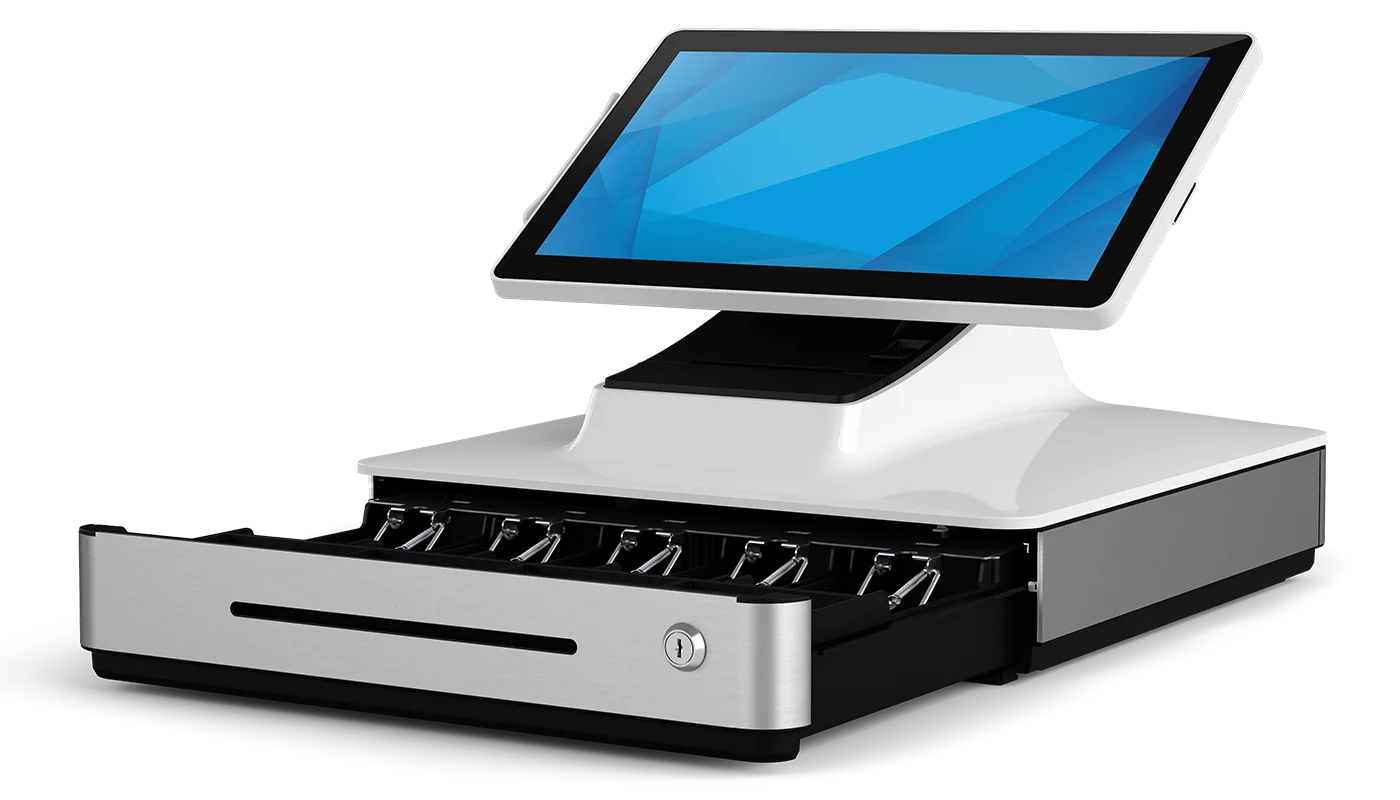

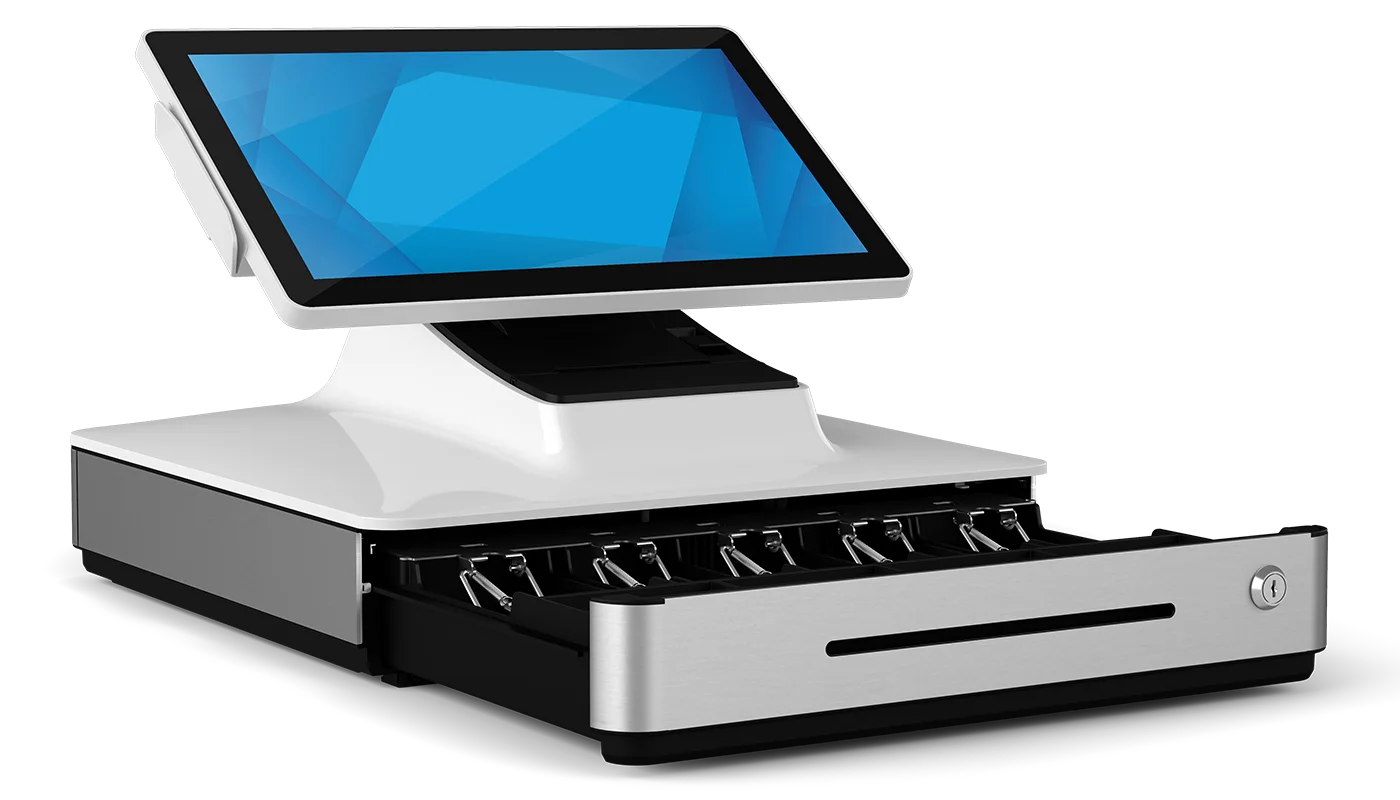

- The full size industry-standard cash drawer with 3-position lock offers two layouts — five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.
Best for: POS Systems for Restaurants · Retail POS Systems · Android Retail POS Systems
Videos
Specifications
Technical
- Part Number(s)
- White (North America/China) - E347513; White (Europe/Japan/Canada/UK/Australia) - E347918
- Enclosure Color
- White
- Touch Technology & Capacity
- PCAP (Projected Capacitive) - up to 5 touches
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Resolution
- 1920 x 1080 @ 60Hz
- Active Area
- 13.54" x 7.64" / 344 mm x 194 mm
- Brightness (typical)
- LCD Panel: 300 nits; PCAP: 260 nits
- Response Time-total (typical)
- 30 msec
- Contrast Ratio
- 800:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- OS
- Android 7.1 with EloView content deployment and management
- Processor
- Qualcomm Snapdragon 2.0GHz Octa-Core
- Memory (RAM)
- 3GB
- Storage
- 32GB; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
- USB Ports
- 4 x Type A USB 2.0; 1 x mini USB 2.0; 1 x 12V powered USB port
- Serial Ports
- 2 x RJ45
- HDMI
- 1 x micro HDMI port
- Ethernet Port
- 1 x LAN (Gigabit)
- Wireless
- 802.11b/g/n/ac + Bluetooth 4.1
- Cash Drawer Port
- 1 x RJ12
- Magnetic Stripe Reader (MSR)
- Magtek 3 track encryptable; Default Security Level 2
- Barcode Reader
- Honeywell N3680 1D/2D barcode scanner; CMOS sensor with 640 x 480 pixel resolution; Supported symbologies:; - Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data bar; - 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417; - 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) code; - Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
- Customer Display

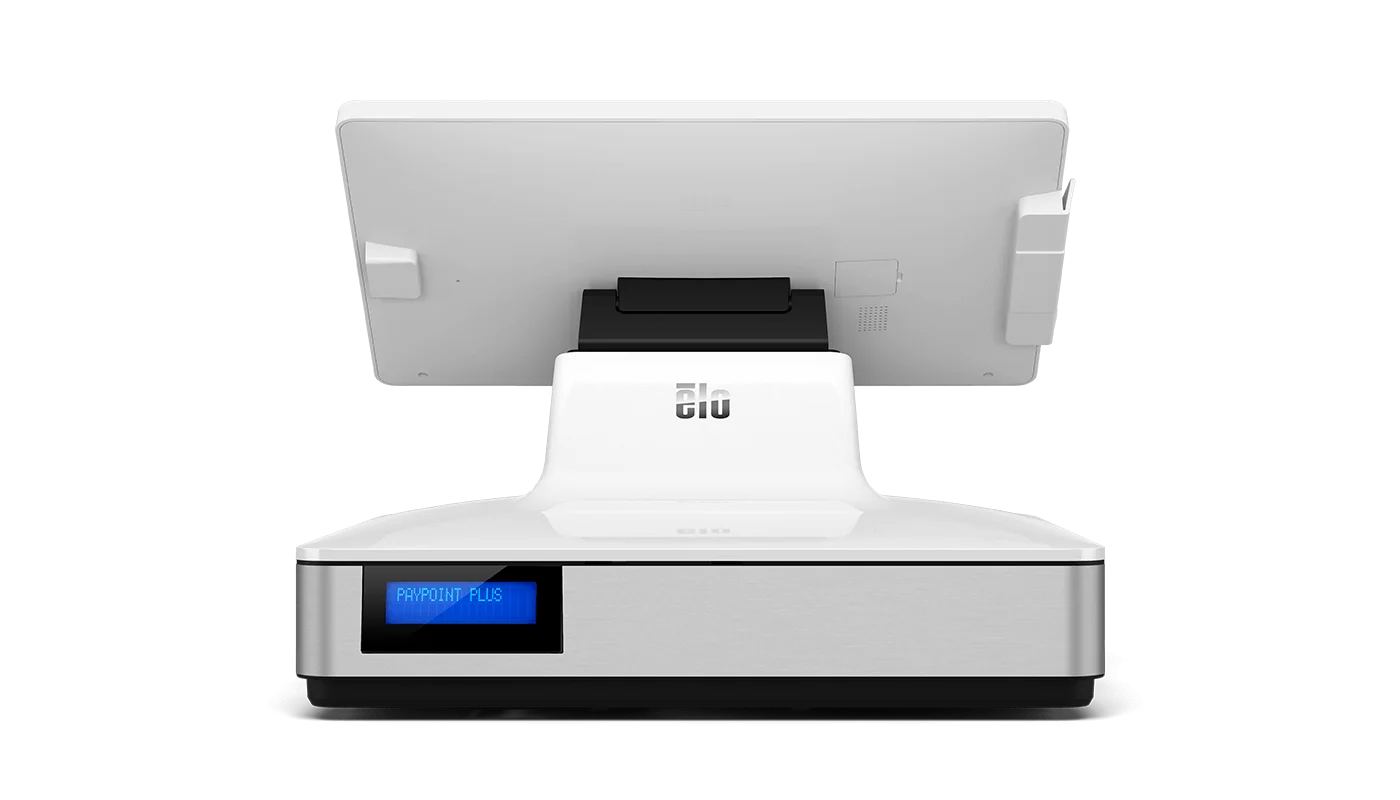

- 2x16 character display*; *North America/China model only
- Printer
- Star TSP100III USB thermal 3" (80mm) receipt printer with auto-cutter; Speed of 250mm/sec; Maximum paper roll diameter 80mm; Paper thickness: 0.053-0.085mm
- Cash Drawer
- Cash Drawer Outside Dimensions: 16.18" x 16.54" x 3.50" / 411 mm x 420 mm x 89 mm; Removable till insert; Media slot for checks; 3 position lock; NA/China Models:; 5 bill, 6 coin built in cash drawer; Cash Drawer Inside Dimensions:; - Bill: 6.61" x 2.80" x 2.00" / 168 mm x 71 mm x 51 mm; - Coin: 3.39" x 2.28" x 2.00" / 86 mm x 58 mm x 51 mm; Worldwide Models:; 4 bill, 8 coin built in cash drawer; Cash Drawer Inside Dimensions:; - Bill: 6.45" x 3.54" x 2.20" / 164 mm x 90 mm x 56 mm, 90 mm cash slot adjustable +/-6 mm / 0.24"; - Coin: 1.57" x 3.54" x 1.41" / 40 mm x 90 mm x 36 mm)
- Speakers
- 1 x 1W internal speaker
- Power
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- 92W
- Dimensions
- 16.2" x 12.6" x 16.2" / 420 mm x 411 mm x 321 mm
- Shipping Box Dimensions
- 25.5" x 21.6" x 19.1" / 648 mm x 548 mm x 484 mm
- Weight (Unpackaged)
- 19.84 lbs / 9kg
- Weight (Packaged)
- 29.76 lbs / 13.5kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95%
- Real-Time Clock
- lithium coin cell battery
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
- Sealability
- Touchscreen sealed to LCD
- Power Cables
- Internal Power Supply; Power cable dependent on region of sale
- Mounting Options
- Ability to secure base to tabletop
- What's in the Box
- PayPoint Plus for Android; Power cable; 1 x Receipt paper roll; 2 x Cash drawer keys; Quick Installation Guide; RJ45 to DB9 serial cable
- Optional Accessories
- White Cable Kit (1 per box) - Elo P/N: E784408; Cash Drawer Kit, NA (5 bill/6 coin) - Elo P/N: E784606; Cash Drawer Kit, Worldwide (4 bill/8 coin) - Elo P/N: E202512; Spare Keys 001 (1 set of 2 keys) - Elo P/N: E201914; Spare Keys 002 (1 set of 2 keys) - Elo P/N: E202119; Spare Keys 003 (1 set of 2 keys) - Elo P/N: E202321; RJ45 to DB9 Cable Kit (10 per box) - Elo P/N: E202717
- Regulatory approvals and declarations
- UL/cUL, CE, CB, CCC, SRRC, VCCI, MIC, RCM
- Contact PayPoint Sales
- 1.844.356.3548
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
