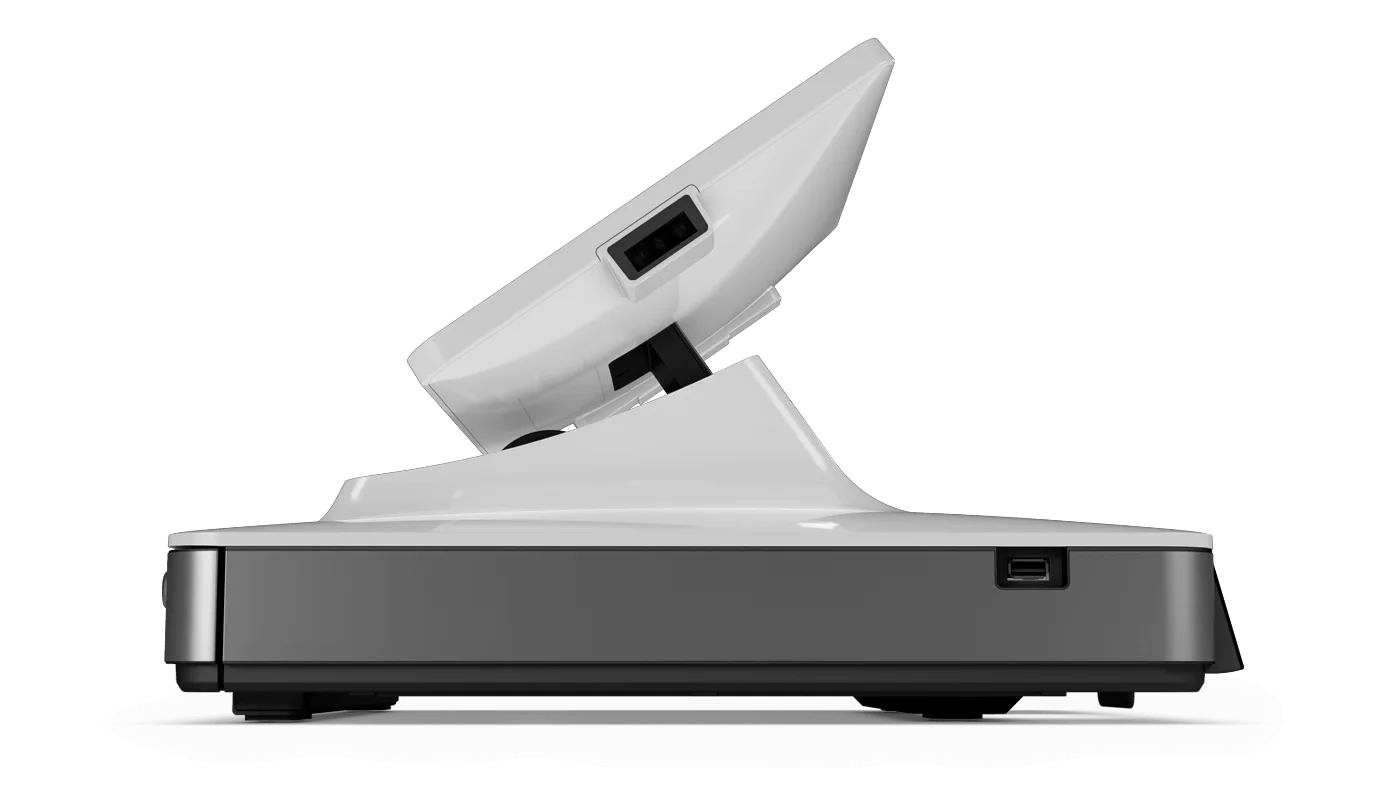

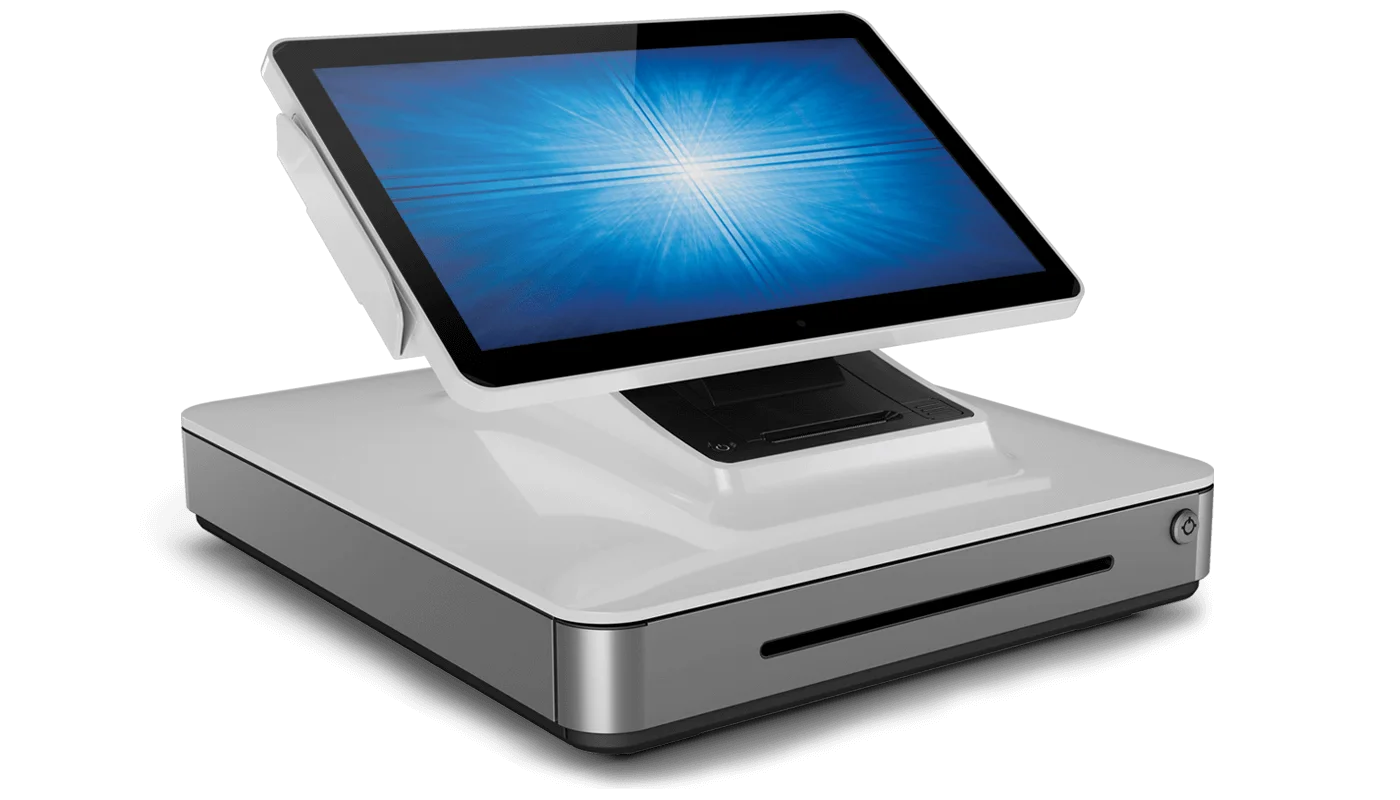

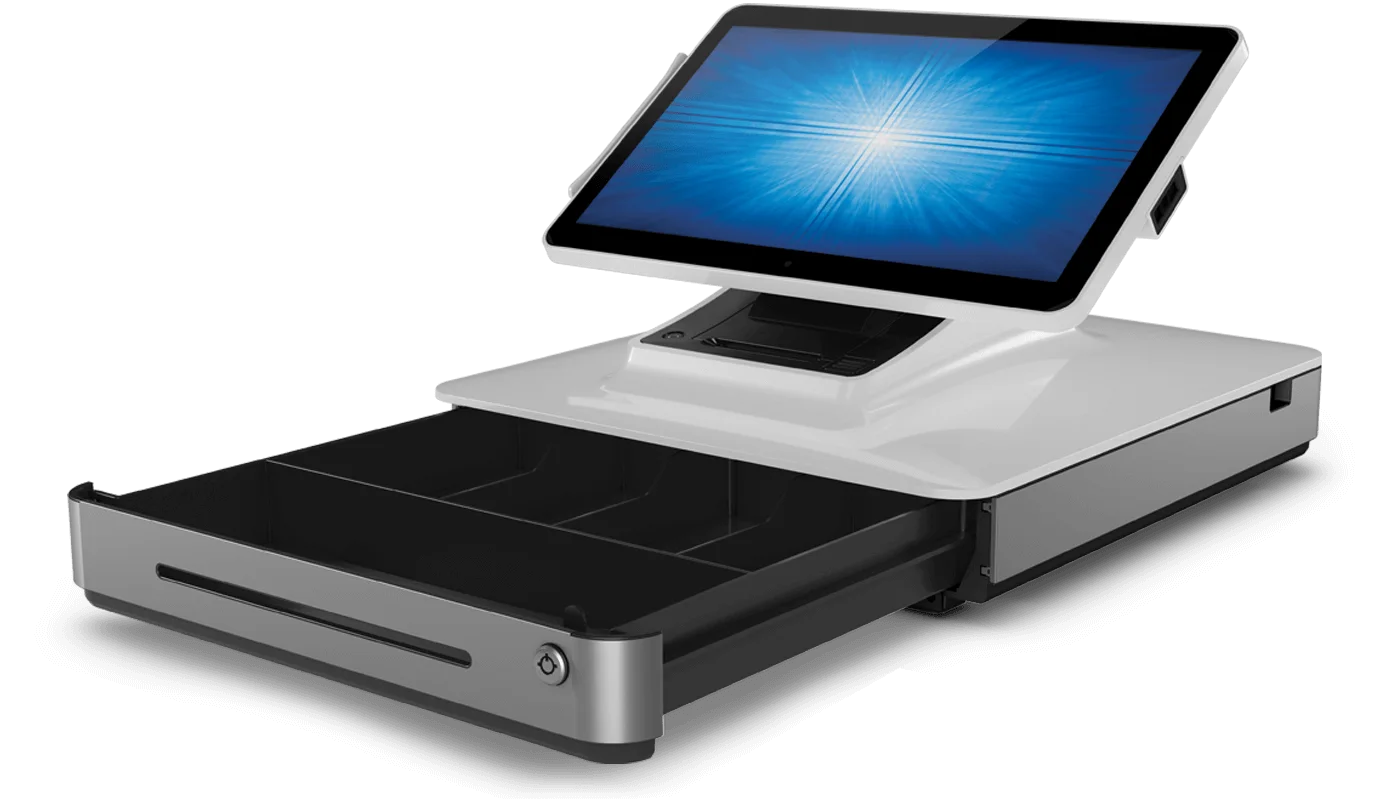

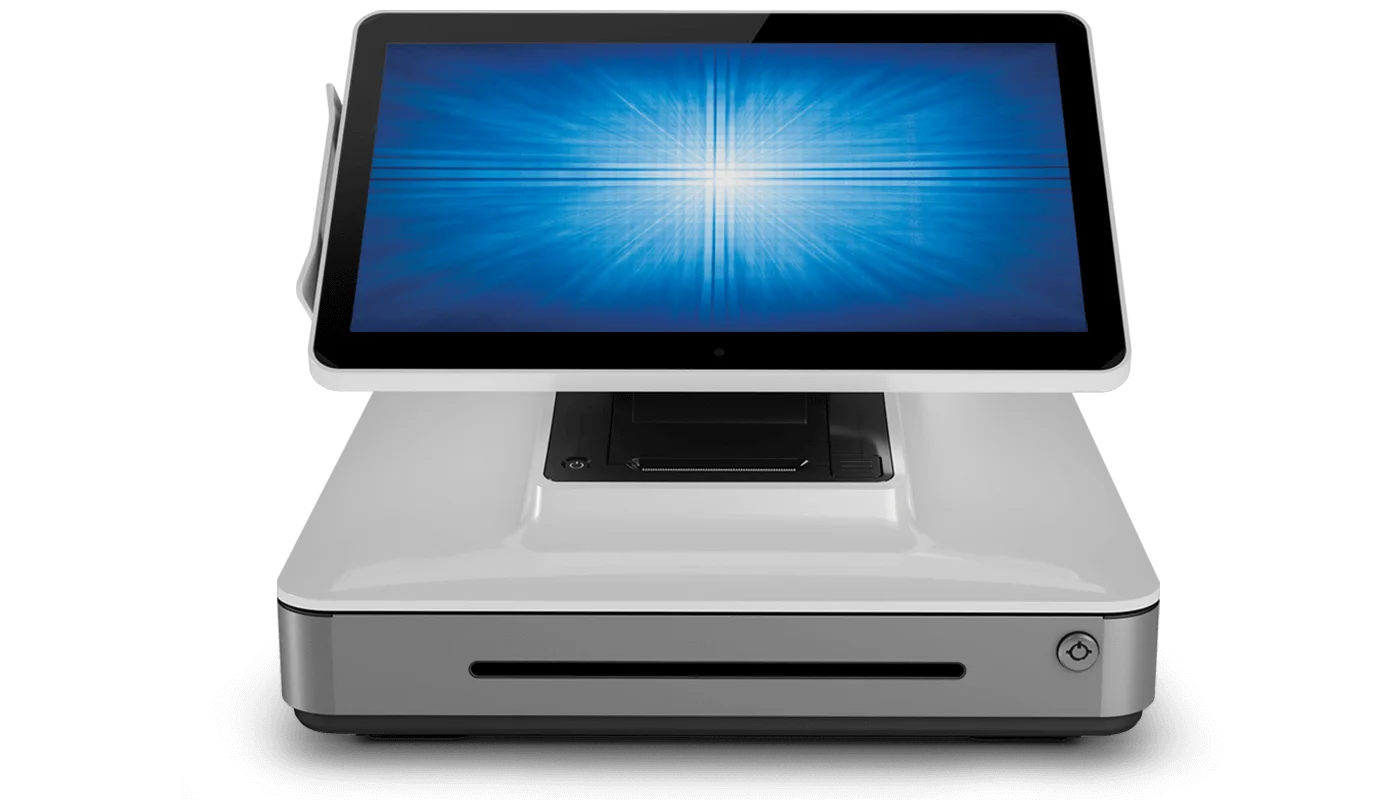

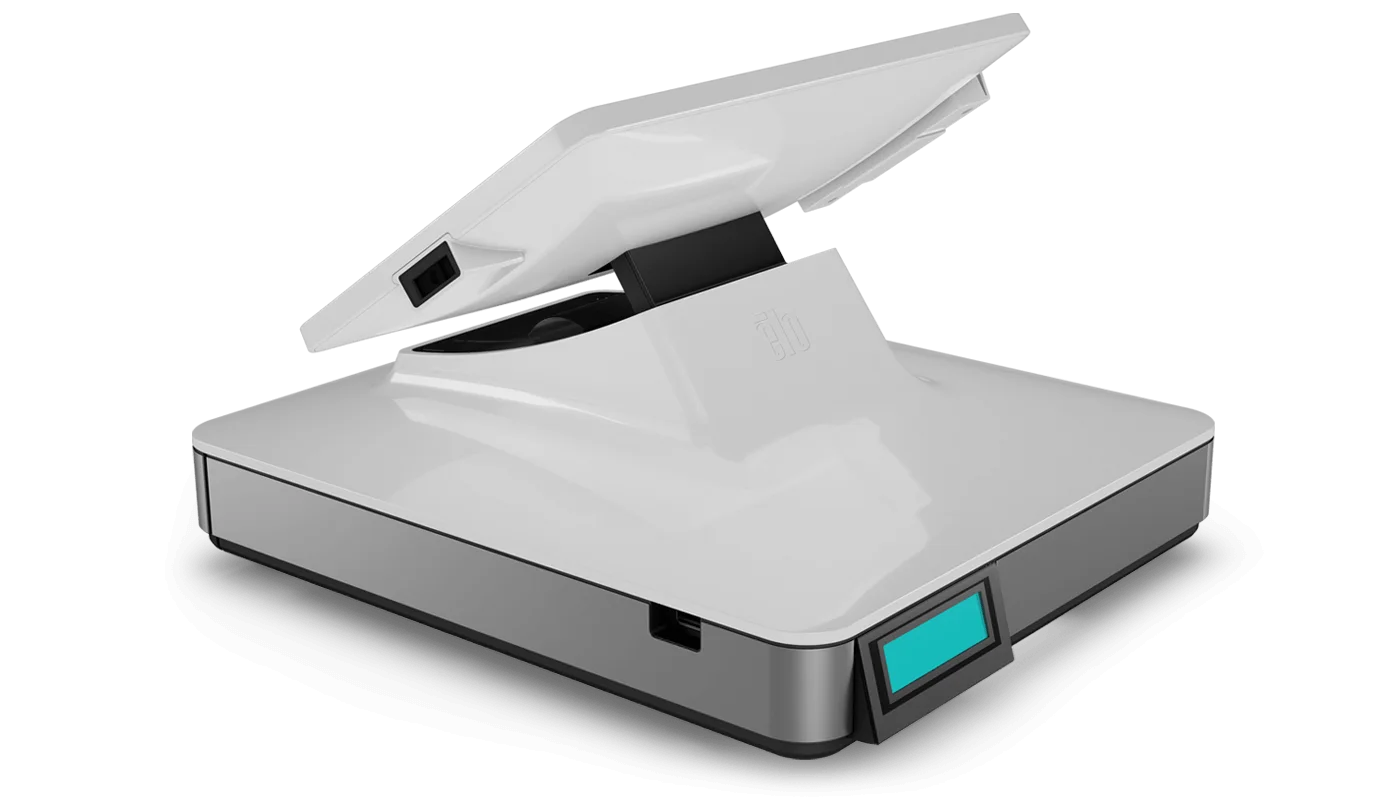

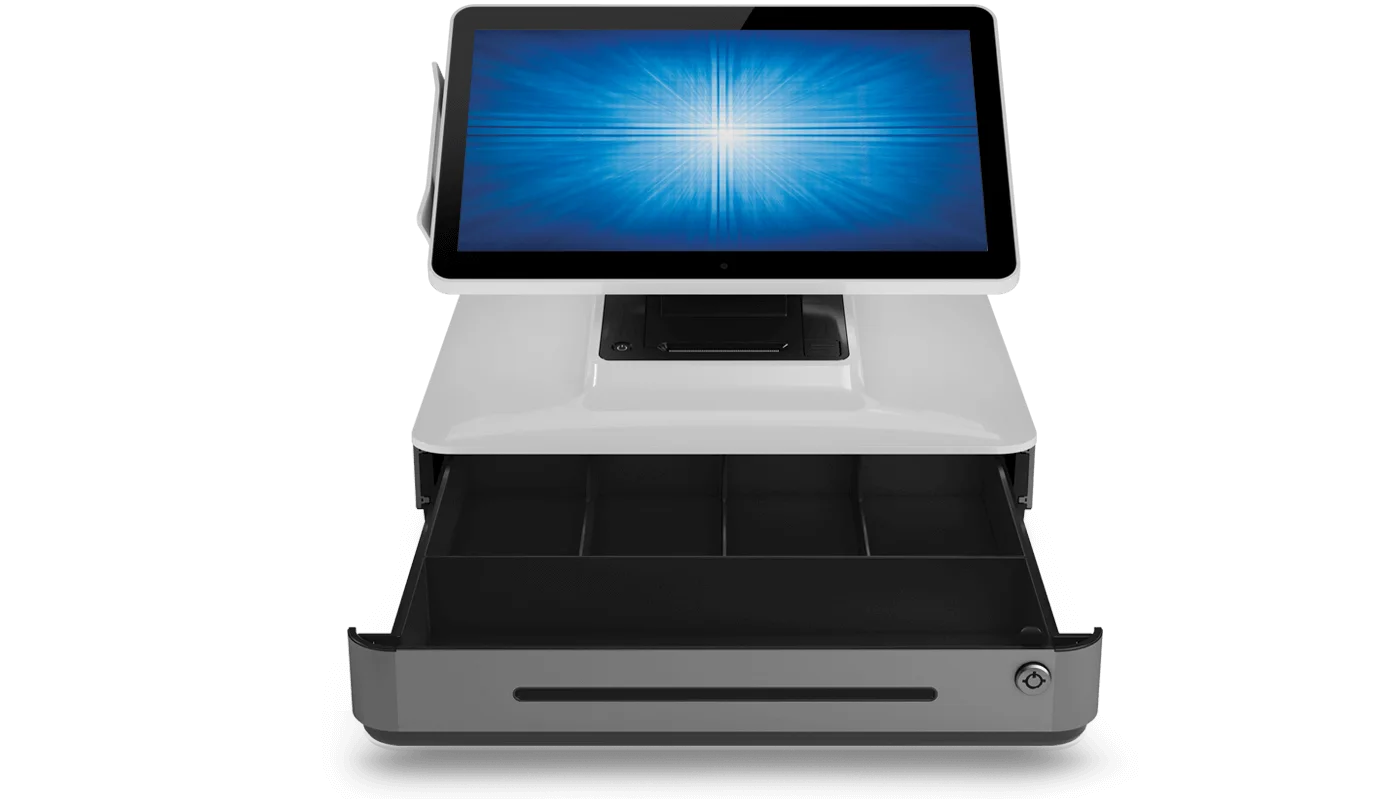

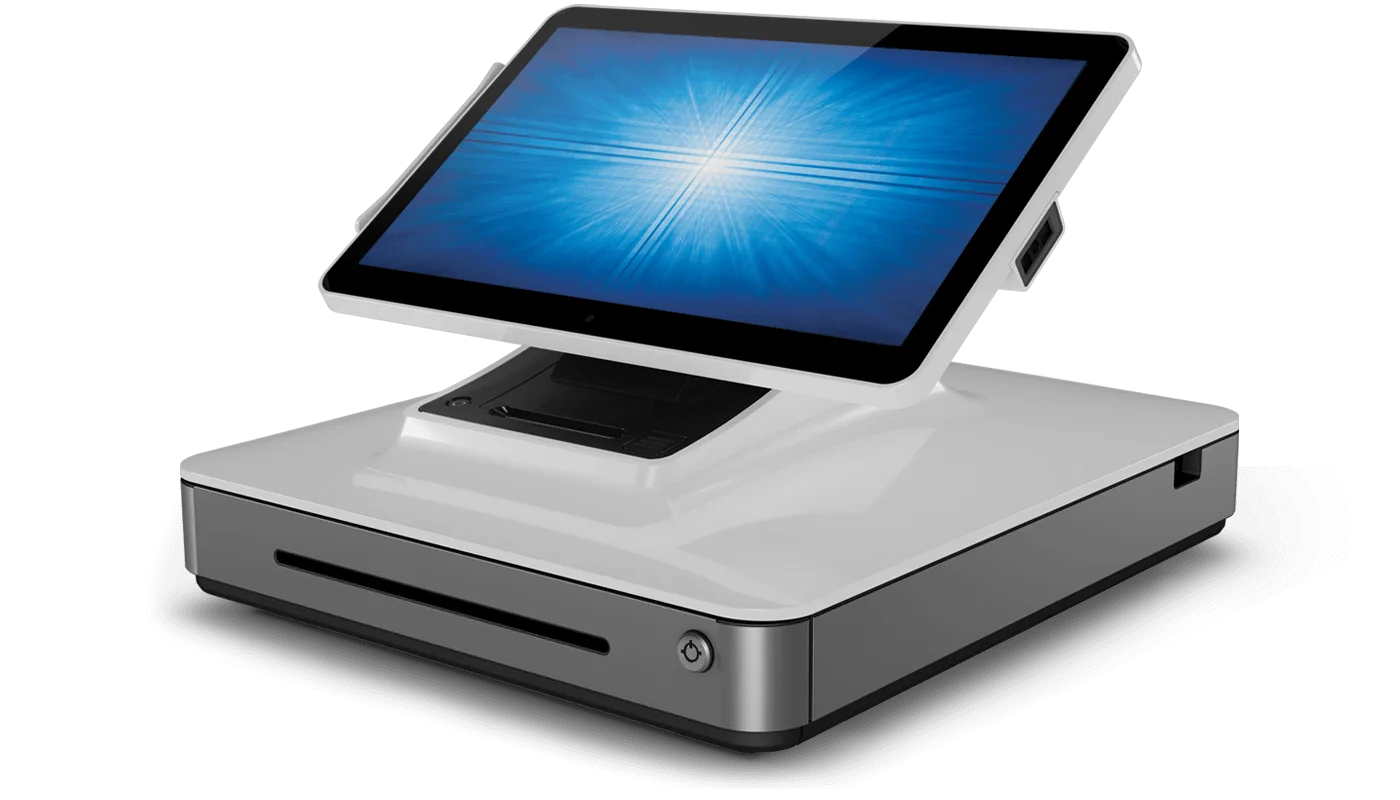

Elo Touch PayPoint for Android
Overview
- Operating systemAndroid 5.0.2 Lollipop
- Display13.3'' diagonal, Active matrix TFT LCD
- SealingTouchscreen sealed to LCD (all)
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
This version has been discontinued. Please see the replacement models - EloPOS for Android .
- PayPoint is an all-in-one mPOS solution that brings simplicity and elegance to the point of sale. Offering sleek, modern style with peripherals built in, the PayPoint platform is retail hardened and built to last with a three-year warranty.
- With its single cable design, PayPoint makes setting up the point of sale system fast and easy. Just unbox, plug in, connect, and go.
- For retailers and operators, counter space is always at a premium. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint turns the cash wrap into a beautiful and functional space to allow you to better serve your customers.
- PayPoint integrates a receipt printer, cash drawer, MSR, barcode scanner and customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth connectivity and expansion ports allows for the addition of optional peripherals such as a handheld scanner or weight scale.
- For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports highly secure EMV transactions.
Specifications
Technical
- Part Number(s)
- White (Americas) - E301918; White (Europe) - E314251; White (Asia/Pacific) - E067745
- Enclosure Color
- White
- Touch Technology & Capacity
- PCAP (Projected Capacitive) - 2 Touch
- Diagonal Size
- 13.3'' diagonal, Active matrix TFT LCD
- Aspect Ratio
- 16:9
- Resolution
- 1920 x 1080 @ 60Hz
- Active Area
- 11.6" x 6.5" / 293.47mm x 165.07mm
- Number of Colors
- 262,000
- Brightness (typical)
- LCD Panel: 400 nits
- Response Time-total (typical)
- 25 msec
- Contrast Ratio
- 700:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- Processor
- ARM A9 1GHz Dual-Core
- Chipset
- 2x Cortex-A9
- Graphics
- HD1080p 30 Video Decode; Dual HD720p Video Encode
- Memory (RAM)
- 1GB on board
- Hard Disk Drive
- 16GB on board; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
- USB Ports
- 2 x USB 2.0; 1 mini USB
- Ethernet Port
- 1 x LAN RJ45 (Gigabit)
- Wireless
- 802.11 b/g/n + Bluetooth 4.0
- Cash Drawer Port
- 4 bill, 5 coin built in cash drawer; Removable coin slot insert; Slot for checks
- Speakers
- 1 x .5W internal speaker
- OS
- Android 5.0.2 Lollipop
- Power
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- With All Peripherals Connected: 20W
- Dimensions
- 13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm (Display at 0° tilt, W x H x D)
- Shipping Box Dimensions
- 17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm
- Weight (Unpackaged)
- 13.85 lbs / 6.28kg
- Weight (Packaged)
- 19.25 lbs / 8.73kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95%
- Real-Time Clock
- lithium-ion battery
- MTBF
- 50,000 hours demonstrated
- Warranty
- 3-year
- Sealability
- Touchscreen sealed to LCD (all)
- Power Cables
- Included
- Other Features
- Serviceable internal components
- What's in the Box
- 13-inch PCAP display, cash drawer, printer, MSR, bar code scanner, customer facing display, Ethernet cable, Power cable (NA, EU, UK, China), 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide
- Optional Accessories
- PayPoint NFC Kit - Elo P/N: E149962; PayPoint Cash Drawer Kit US - Elo P/N: E332393; PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197; EMV Cradle for Ingenico ICMP - Elo P/N: E953516; EMV Cradle for Verifone E355 - Elo P/N: E002639
- Regulatory approvals and declarations
- UL/cUL, FCC, CE, CB, CCC
- Contact PayPoint Sales
- 1.844.356.3548
- Testing-X
- TEST
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- End of sale / last shipment
- February 2018
- Replacement
- EloPOS for Android
- Status basis
- elotouch.com product page marks it as discontinued
