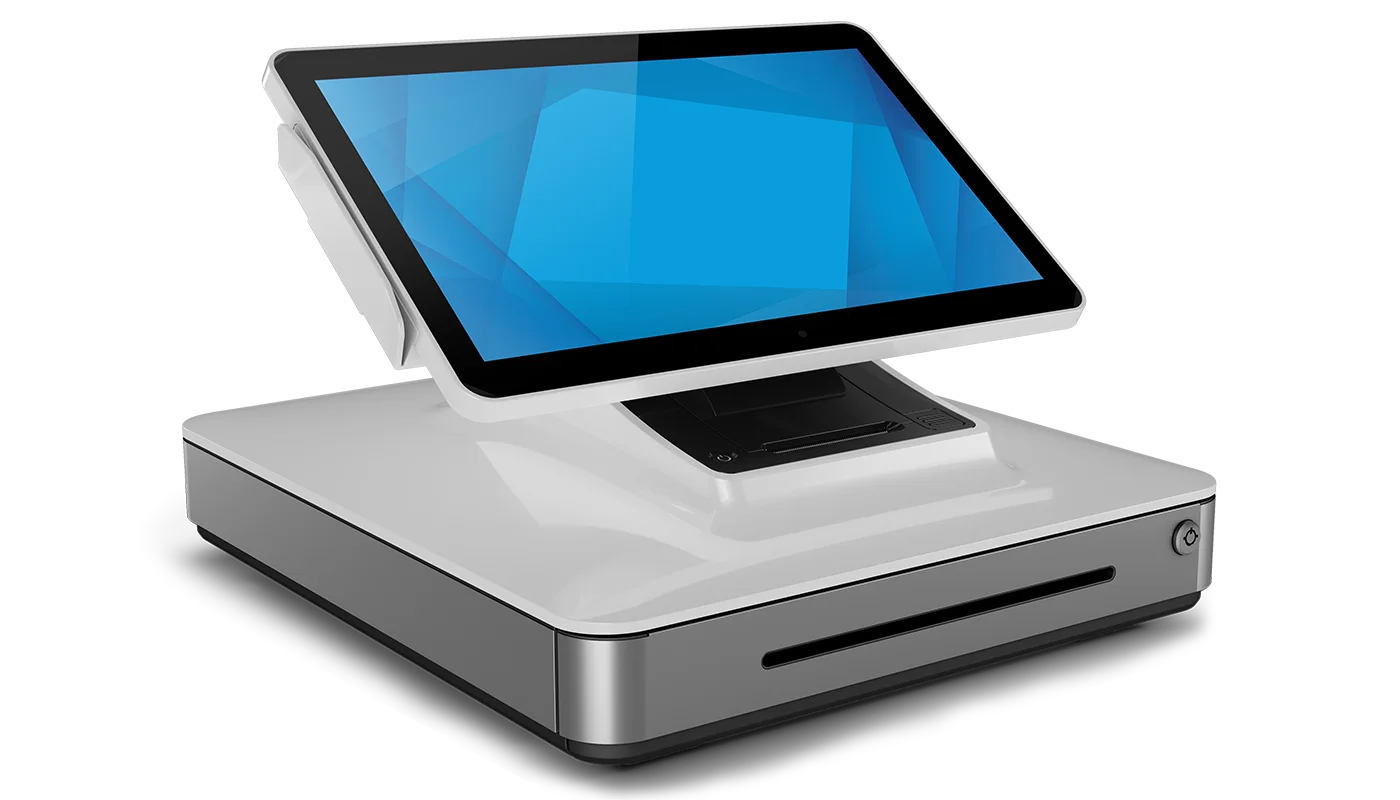

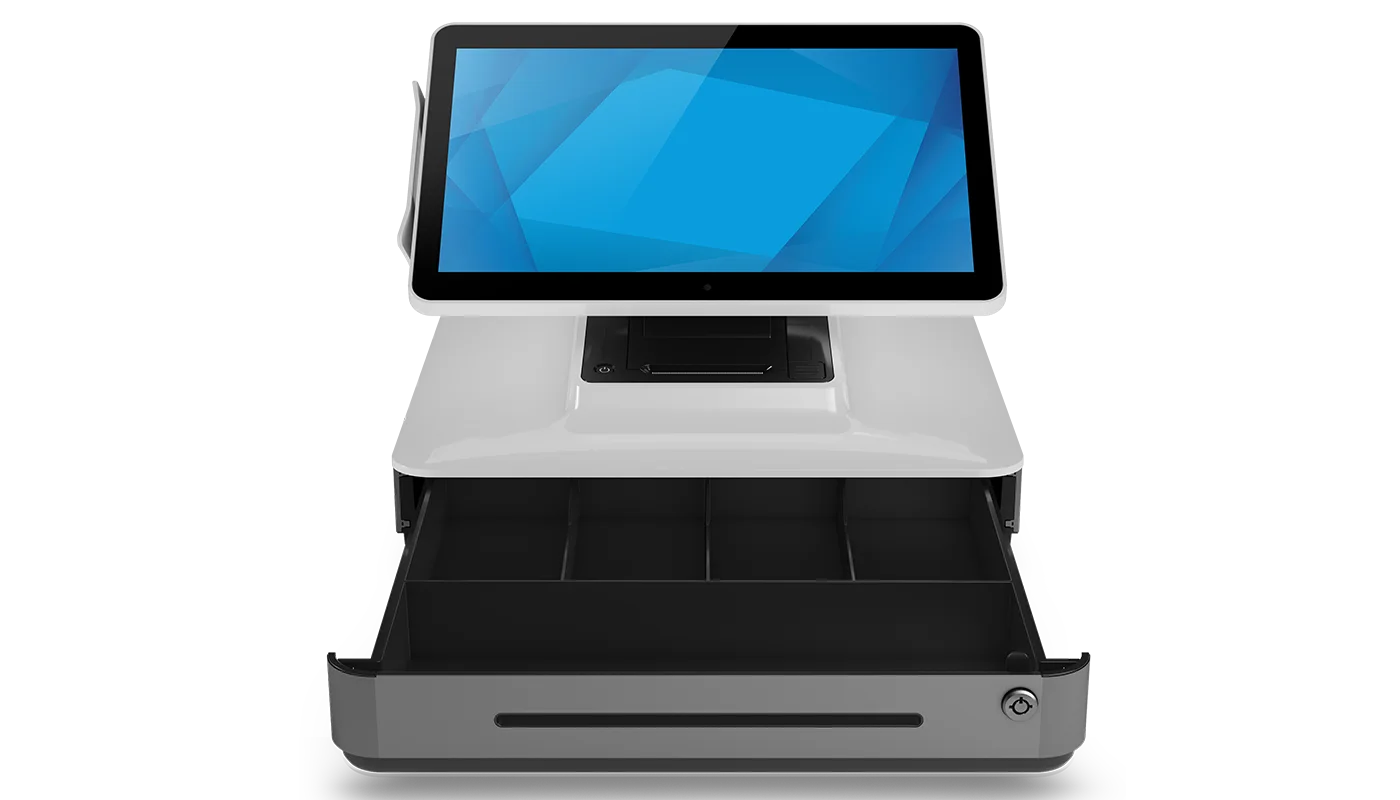

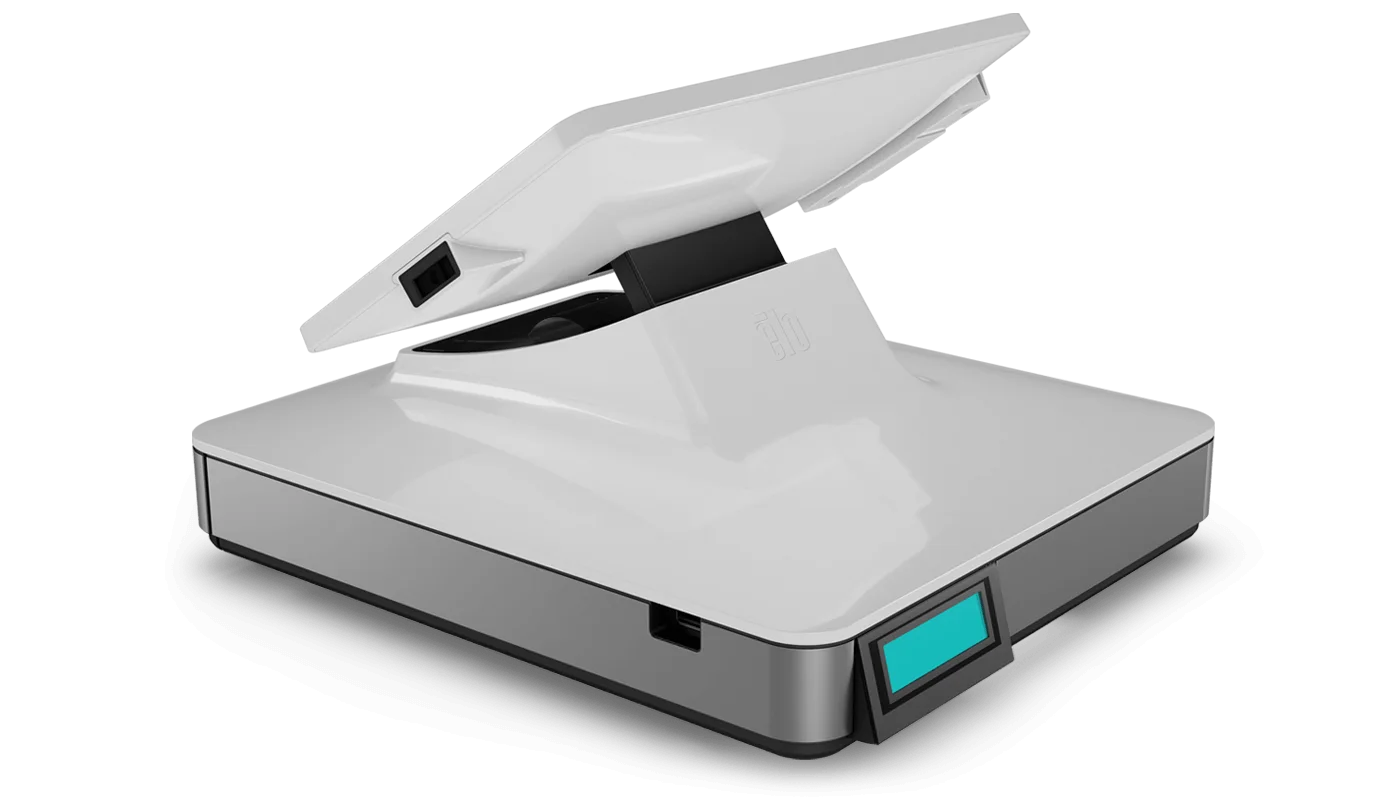

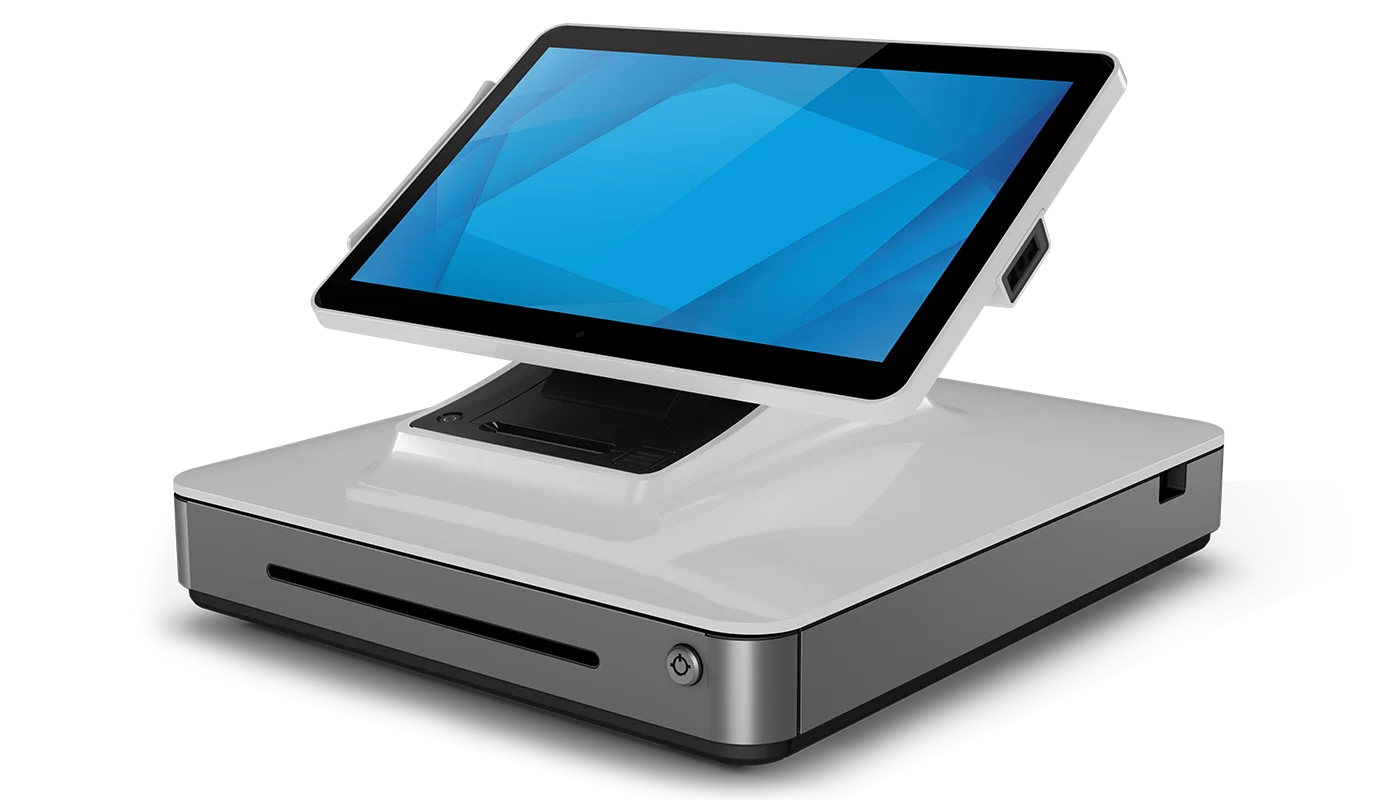

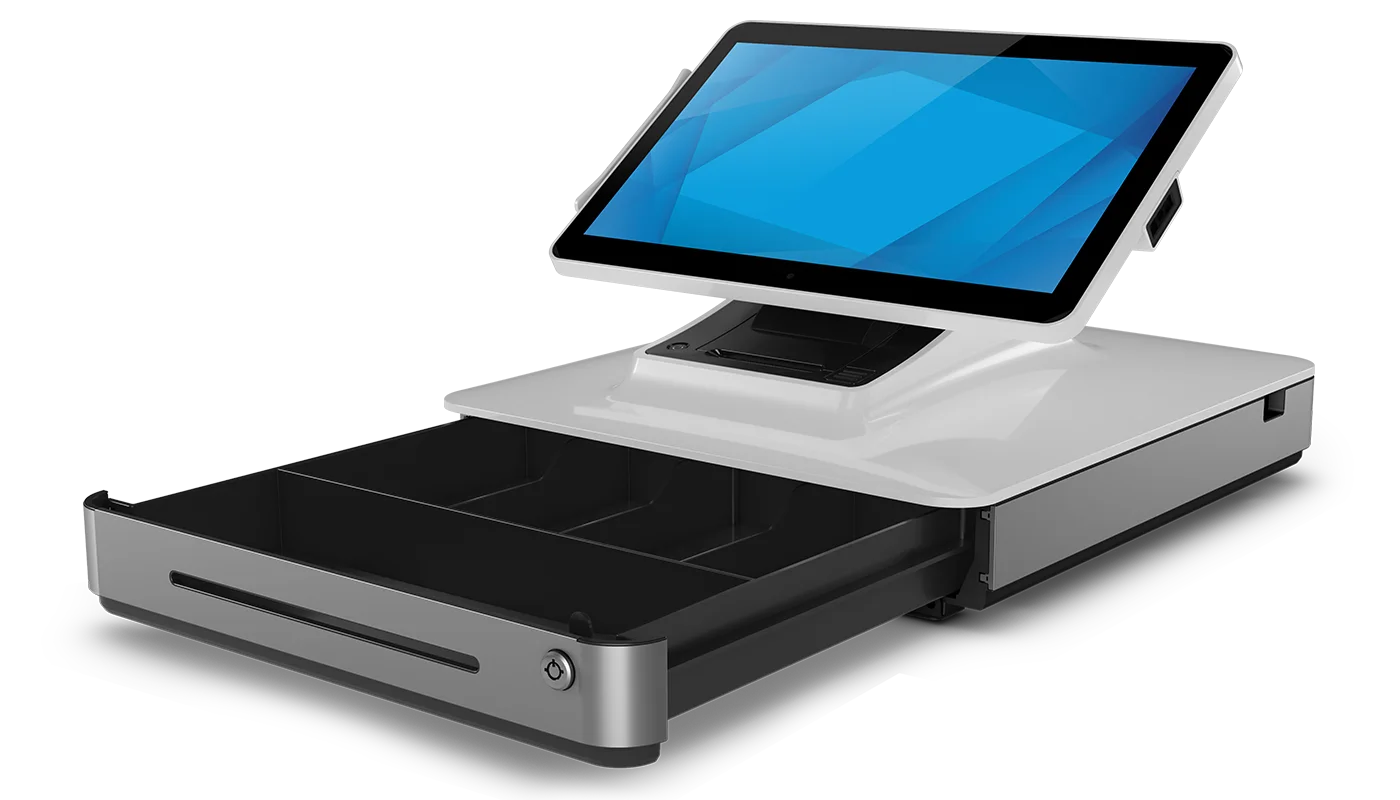

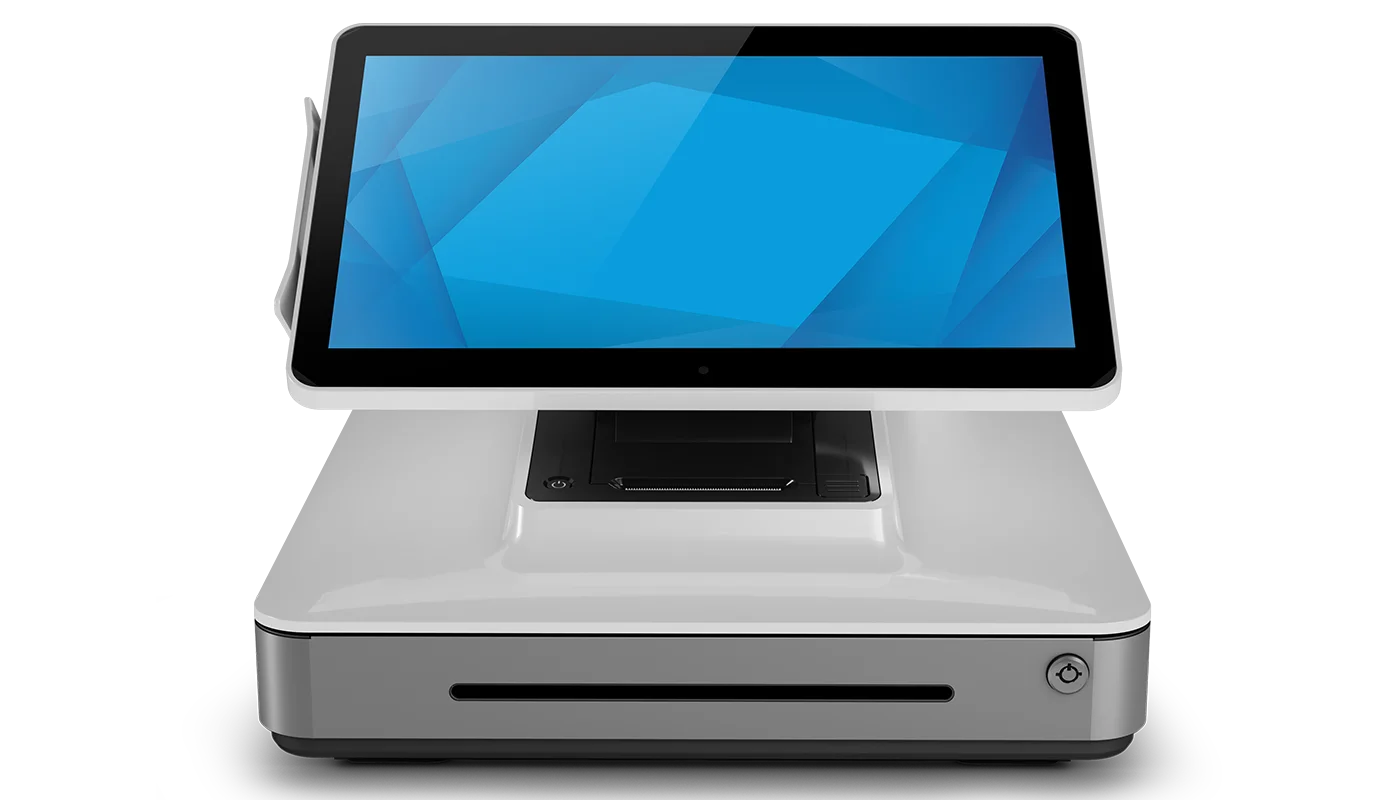

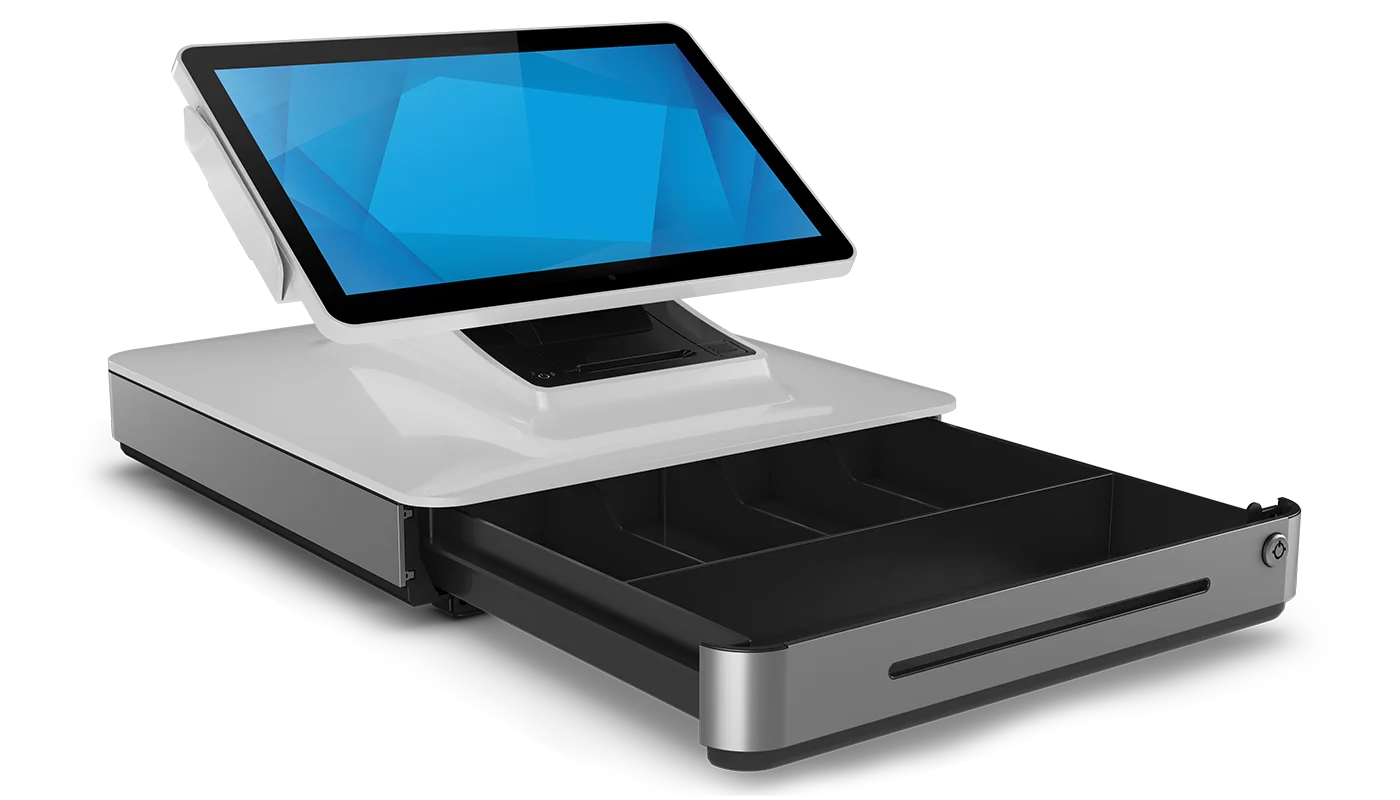

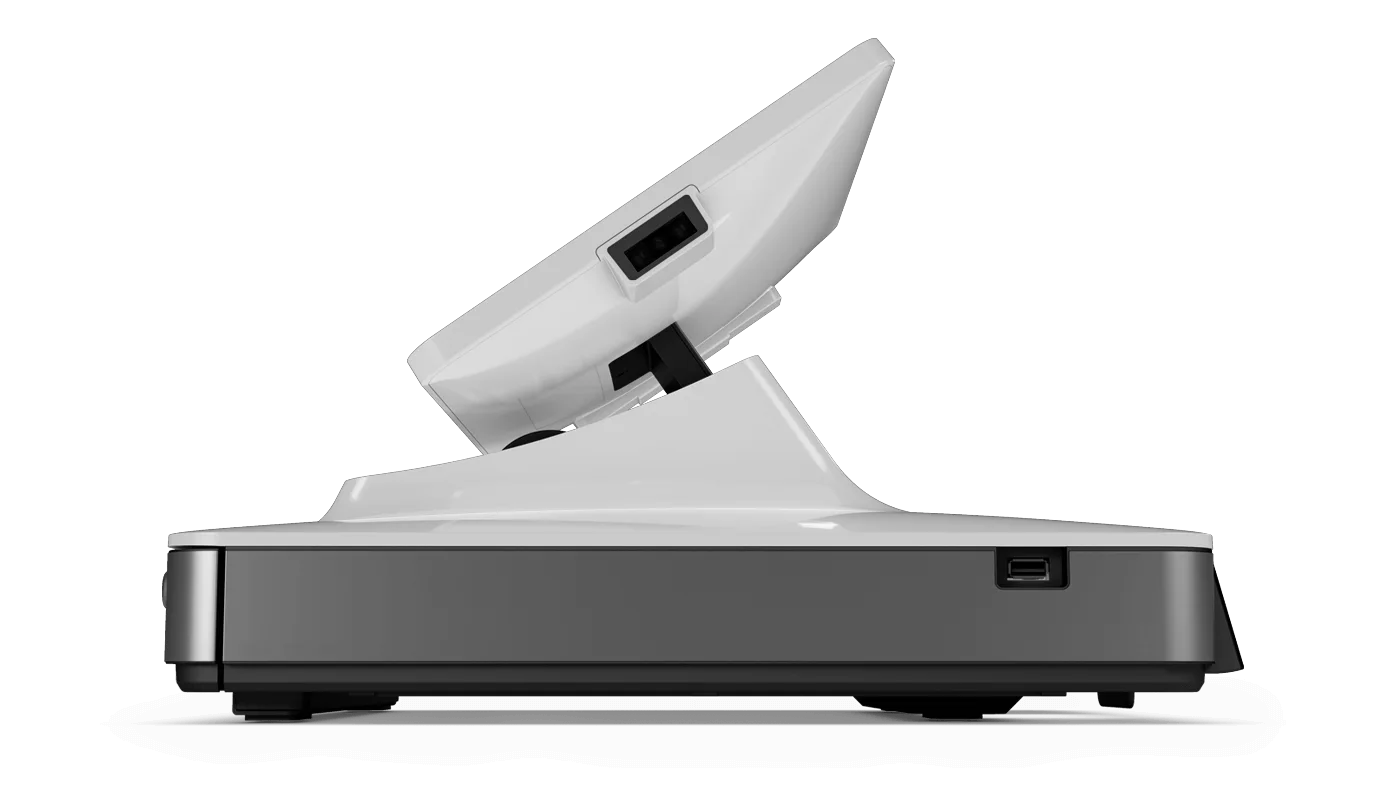

Elo Touch PayPoint for Android — with Android Open Source Rev B
Overview
- Operating systemAndroid 7.1 with EloView content deployment and management
- Display13.3'' diagonal, Active matrix TFT LCD
- Scanning1D CCD
- SealingTouchscreen sealed to LCD (all)
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
This version has been discontinued. Please see the replacement models - EloPOS for Android .
- Powered by Android™ 7.1 (Nougat), the upgraded PayPoint for Android point of sale solution offers the same sleek and elegant design now delivering 4x the speed with the Qualcomm™ Snapdragon™ octa-core processor, 3GB of RAM and 32GB of storage. The retail hardened all-in-one mPOS solution brings simplicity and modern style to the point of sale with peripherals built in and reliability backed by a three-year warranty.
- With its single cable design, PayPoint makes setting up the mobile point of sale system fast and easy. Just plug in, connect, and go.
- Whether in a retail or QSR environment, counter space is at a premium when it comes to the POS system. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint for Android turns the cash wrap into a beautiful and functional space to allow you to better serve your customers.
- The PayPoint for Android POS platform integrates a receipt printer, cash drawer, MSR, barcode scanner and, on select models, customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth 4.1 connectivity and expansion ports allow for the addition of optional peripherals such as a handheld scanner or weight scale.
- For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports secure EMV transactions.
Specifications
Technical
- Part Number(s)
- White (Americas) - E346732; White (Europe) - E347129
- Enclosure Color
- White
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - up to 5 touches
- Diagonal Size
- 13.3'' diagonal, Active matrix TFT LCD
- Aspect Ratio
- 16:9
- Resolution
- 1920 x 1080 @ 60Hz
- Active Area
- 11.53" x 6.49" / 293 mm x 165 mm
- Brightness (typical)
- LCD Panel: 350 nits; PCAP: 300 nits
- Response Time-total (typical)
- 30 msec
- Touch Interface
- USB/I2C
- Contrast Ratio
- 800:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- OS
- Android 7.1 with EloView content deployment and management
- Processor
- Qualcomm Snapdragon 2.0GHz Octa-Core
- Memory (RAM)
- 3GB
- Storage
- 32GB; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
- USB Ports
- 1 x USB 2.0; 1 x mini USB 2.0
- Ethernet Port
- 1 x LAN (Gigabit)
- Wireless
- 802.11 b/g/n/ac + Bluetooth 4.1
- Magnetic Stripe Reader (MSR)
- Magtek 3 track encryptable; Default Security Level 2
- Barcode Reader
- 1D CCD
- Customer Display
- 2x16 character display
- Printer
- 2" thermal printer with tear bar
- Cash Drawer
- 4 bill, 5 coin built in cash drawer; Removable coin slot insert; Slot for checks
- Speakers
- 1 x 1W internal speaker
- Power
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- 56W
- Dimensions
- 13.6" x 11.3" x 8.4" / 345 mm x 288 mm x 212 mm
- Shipping Box Dimensions
- 17.7" x 18.7" x 13.4" / 450 mm x 475 mm x 340 mm
- Weight (Unpackaged)
- 13.85 lbs / 6.28kg
- Weight (Packaged)
- 19.25 lbs / 8.73kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95%
- Real-Time Clock
- lithium coin cell battery
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
- Sealability
- Touchscreen sealed to LCD (all)
- Power Cables
- Internal Power Supply (North American or China, European or UK)
- Mounting Options
- Ability to secure base to tabletop
- What's in the Box
- 13-inch PCAP display, cash drawer, printer, MSR, barcode scanner, customer facing display, Power cable, 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide
- Optional Accessories
- PayPoint NFC Kit - Elo P/N: E149962; PayPoint Cash Drawer Kit US - Elo P/N: E332393; PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197; EMV Cradle for Ingenico ICMP - Elo P/N: E953516
- Regulatory approvals and declarations
- UL/cUL, FCC, CE, CB, CCC
- Contact PayPoint Sales
- 1.844.356.3548
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- EloPOS for Android
- Status basis
- elotouch.com product page marks it as discontinued
