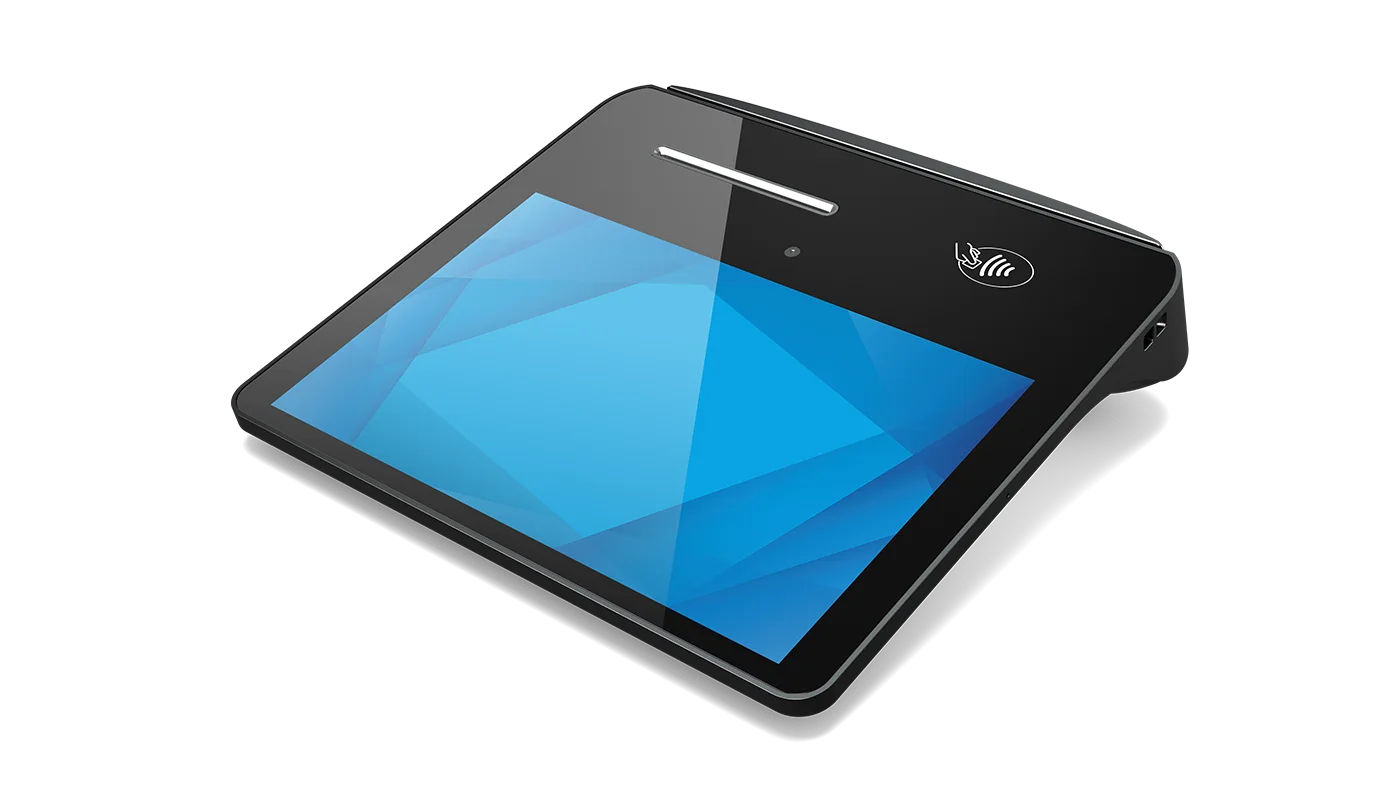

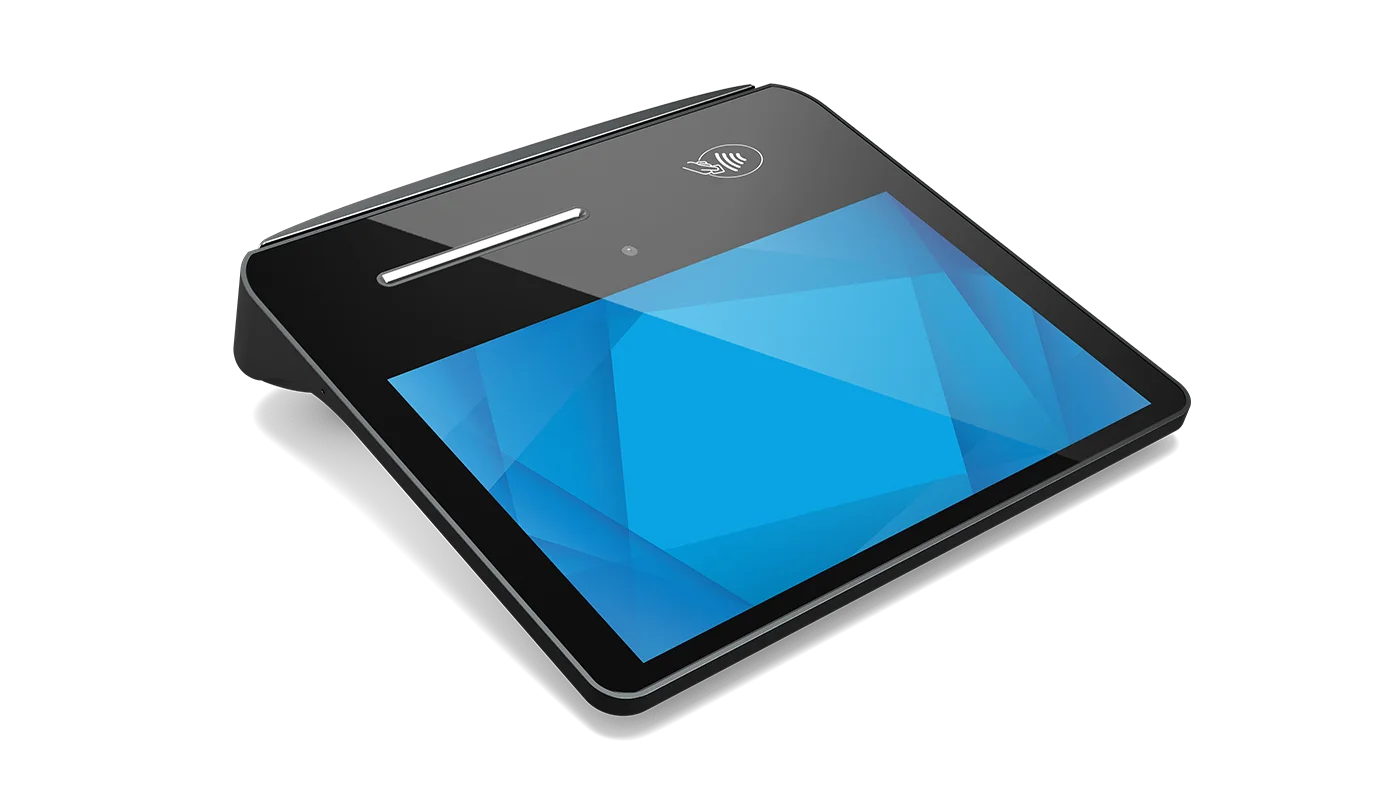

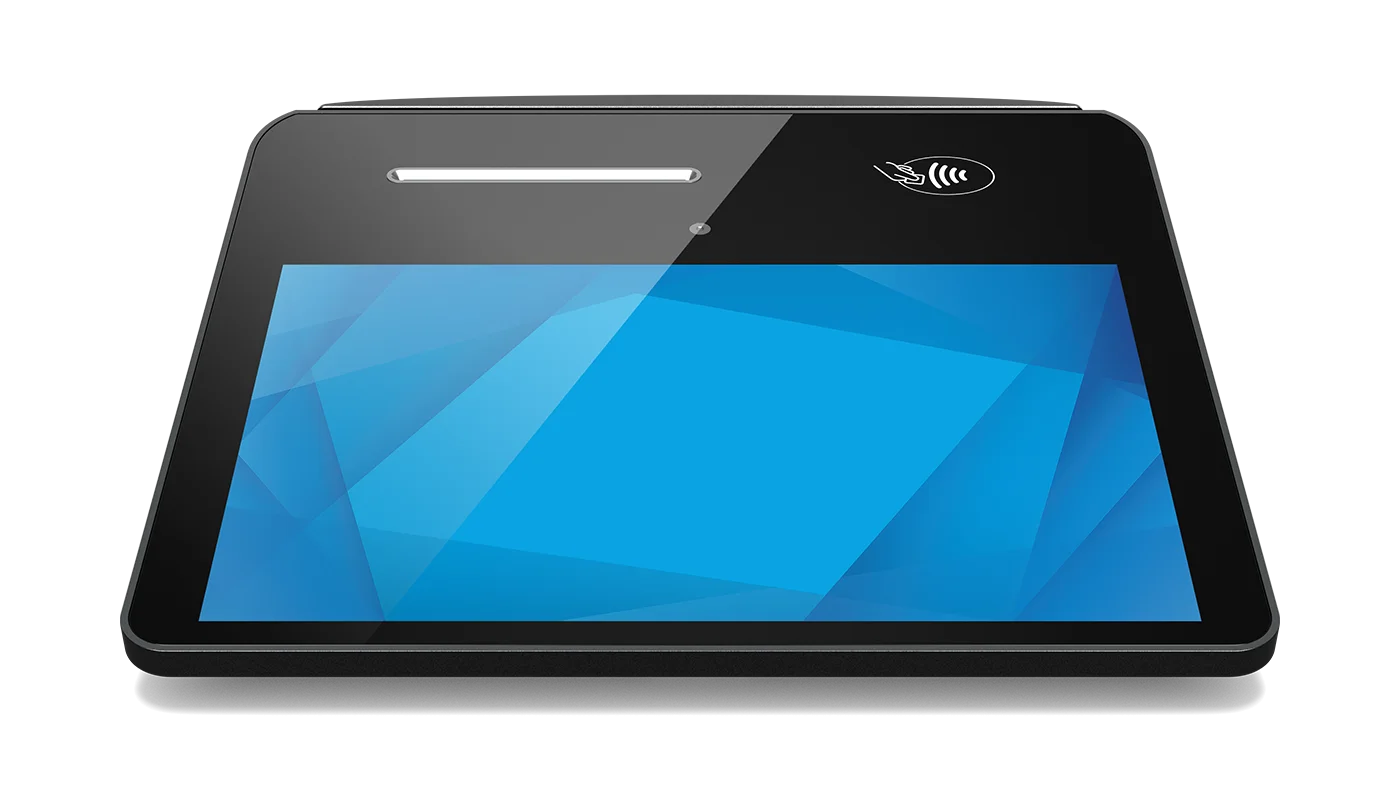

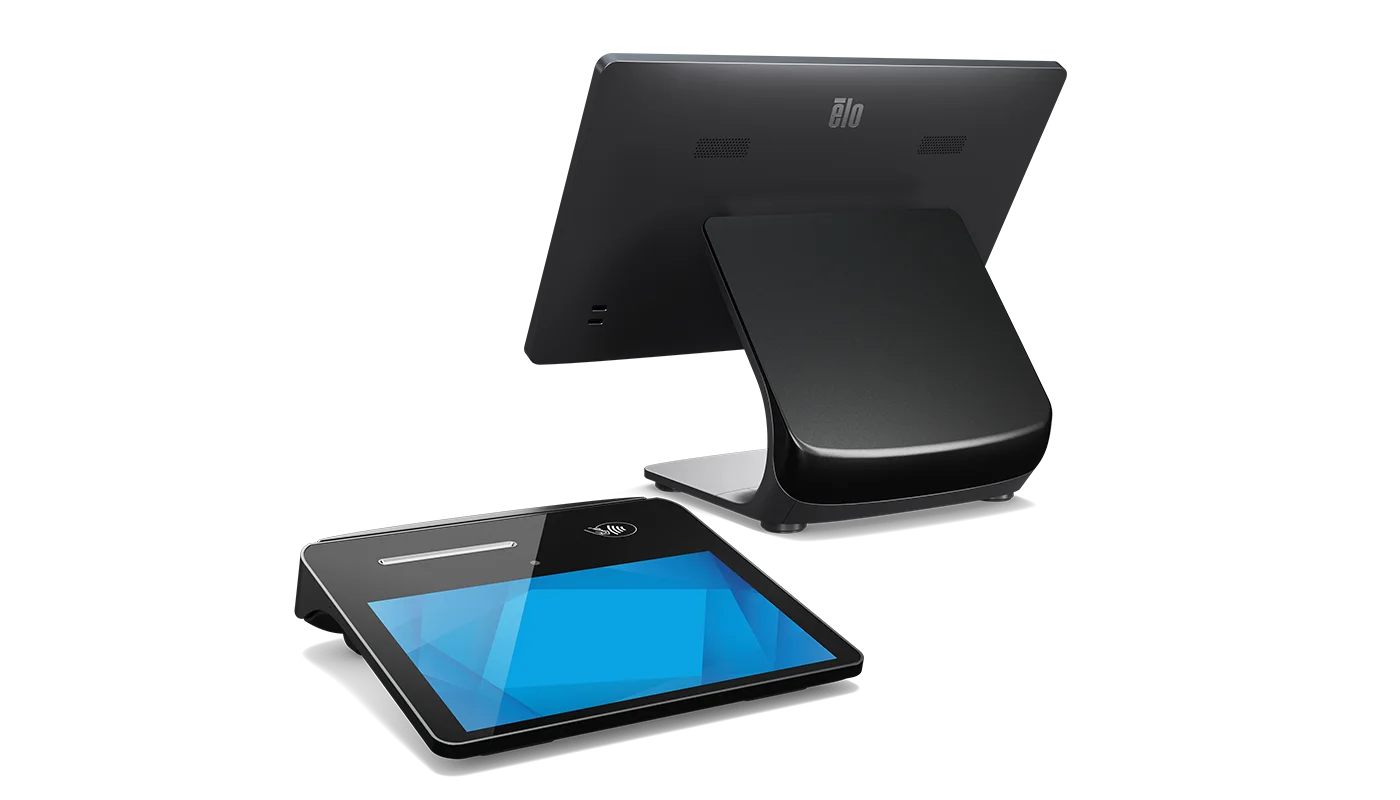

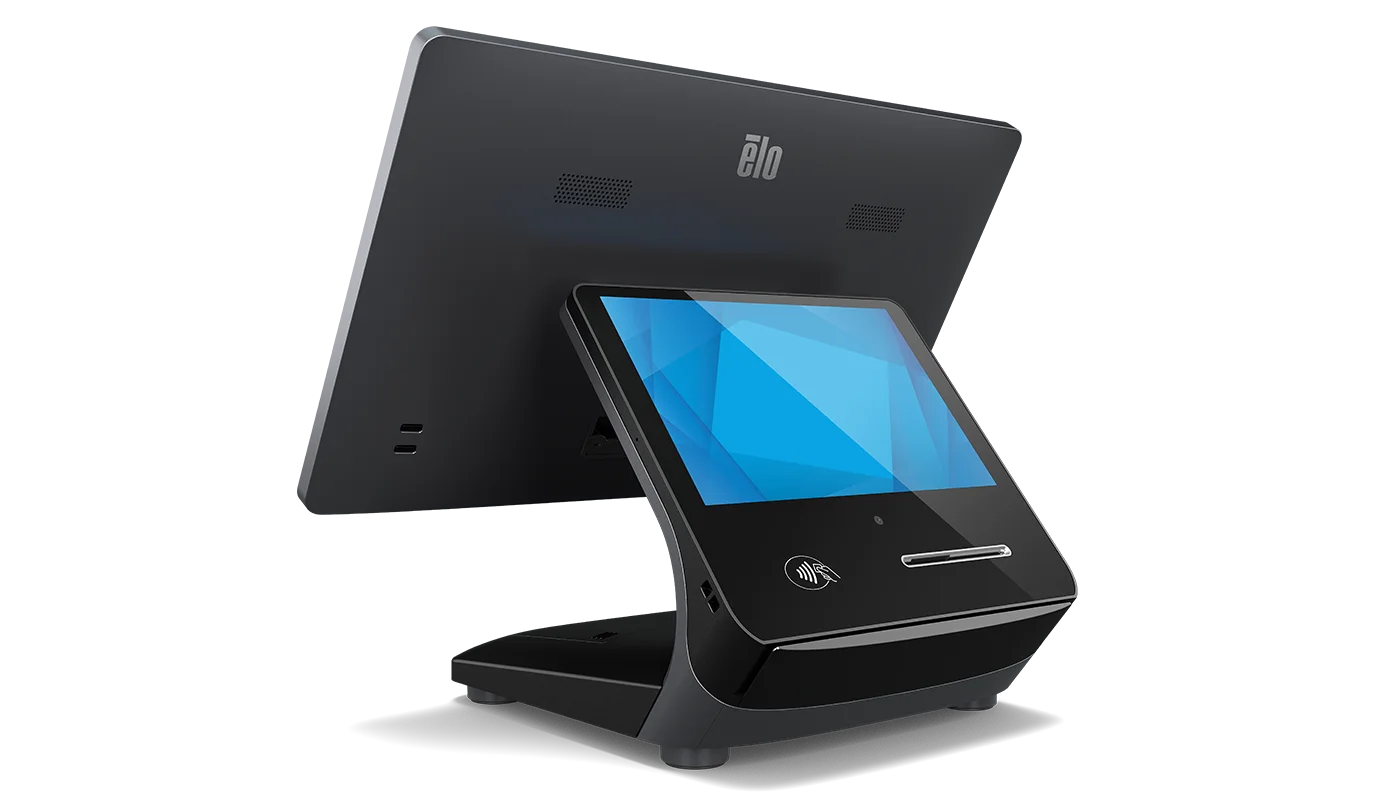

Elo Touch Elo Pay 7-inch Integrated Payment POS
The integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS and
- Operating systemAndroid 12 with Google Play Services
- SealingIP54 on the panel/front-facing side
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
The integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS and Qualcomm SD660 processor.
- Whether your customers have a physical card or contactless via their mobile phone, the Elo Pay 7" POS terminal accepts all forms of payment.
- Elo Pay terminals leverage one payment kernel to simplify the payment process, increase security, and improve the user experience.
- Elo Pay offers comprehensive payment services that enables merchants to process transactions with confidence. With access to multiple payment applications, end-to-end encryption, secure tokenization, robust terminal management services (TMS) and easy to use APIs for quick integration, merchants can get started quickly and securely.
- EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
- With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Best for: POS Systems for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems
Specifications
Technical
- Part Number(s)

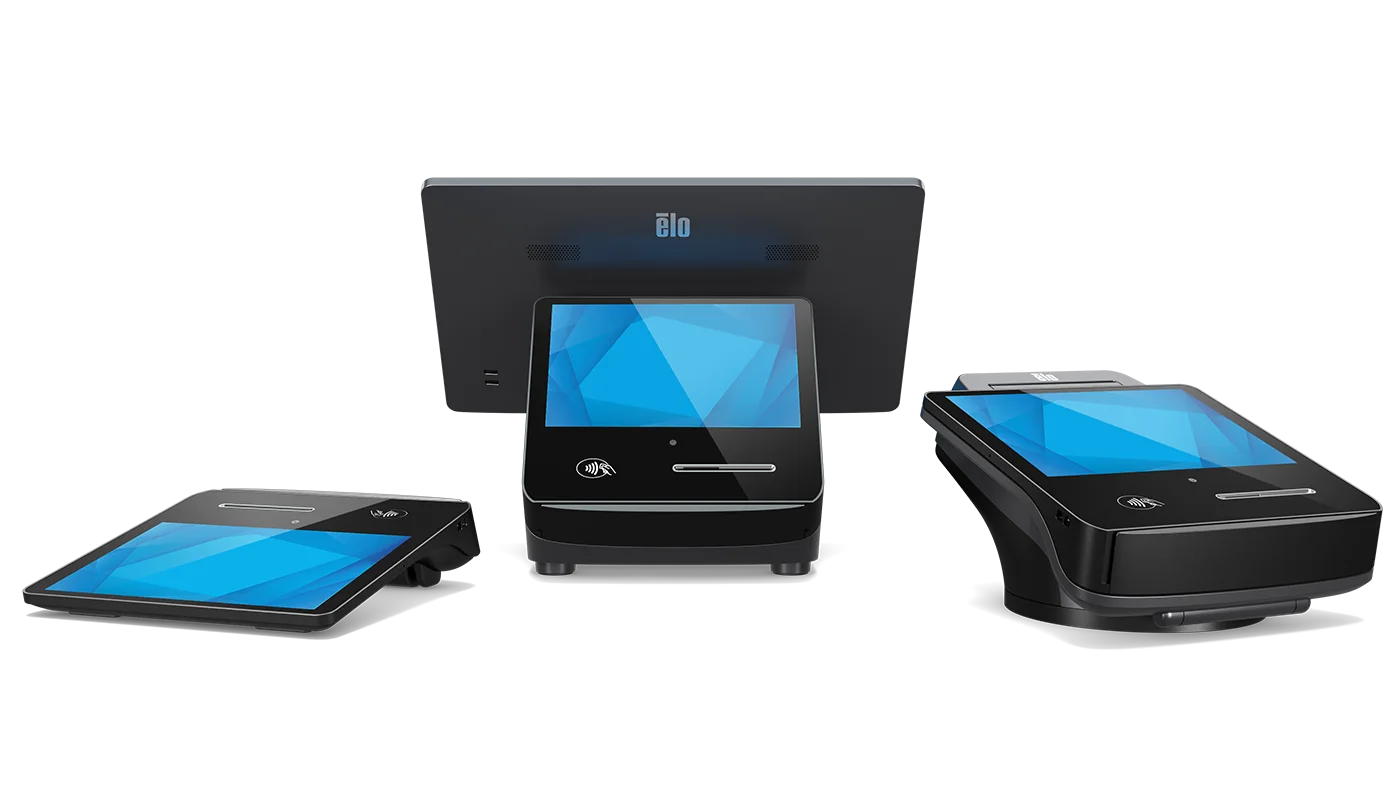

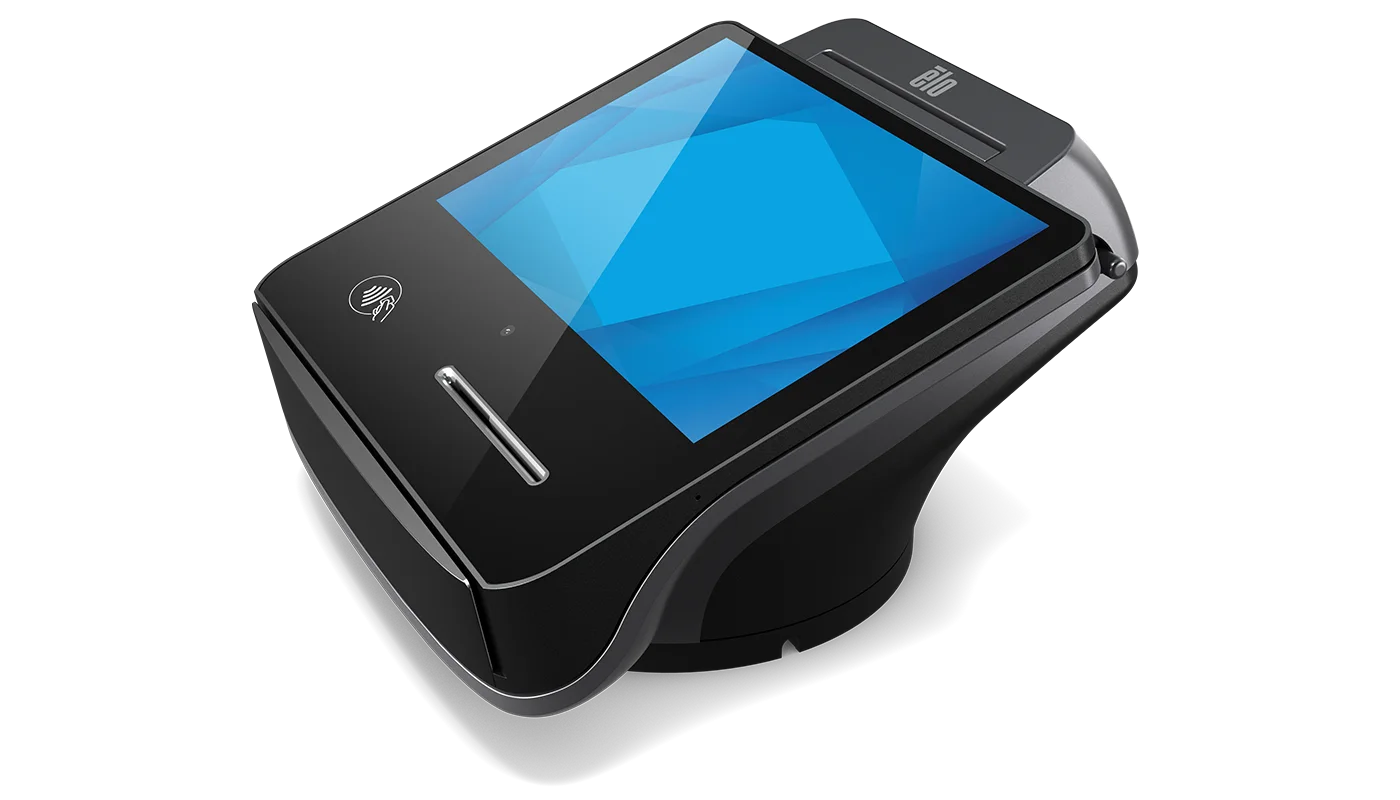

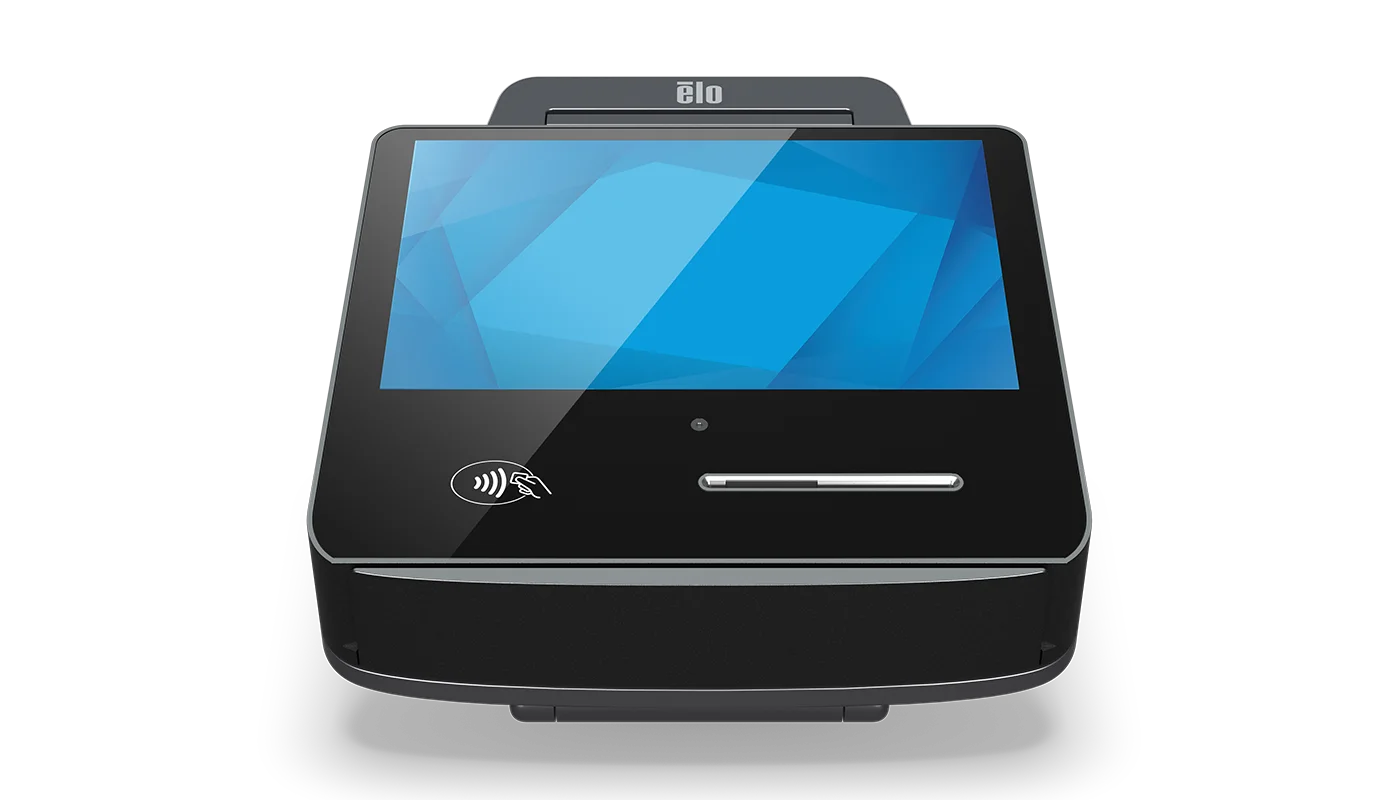

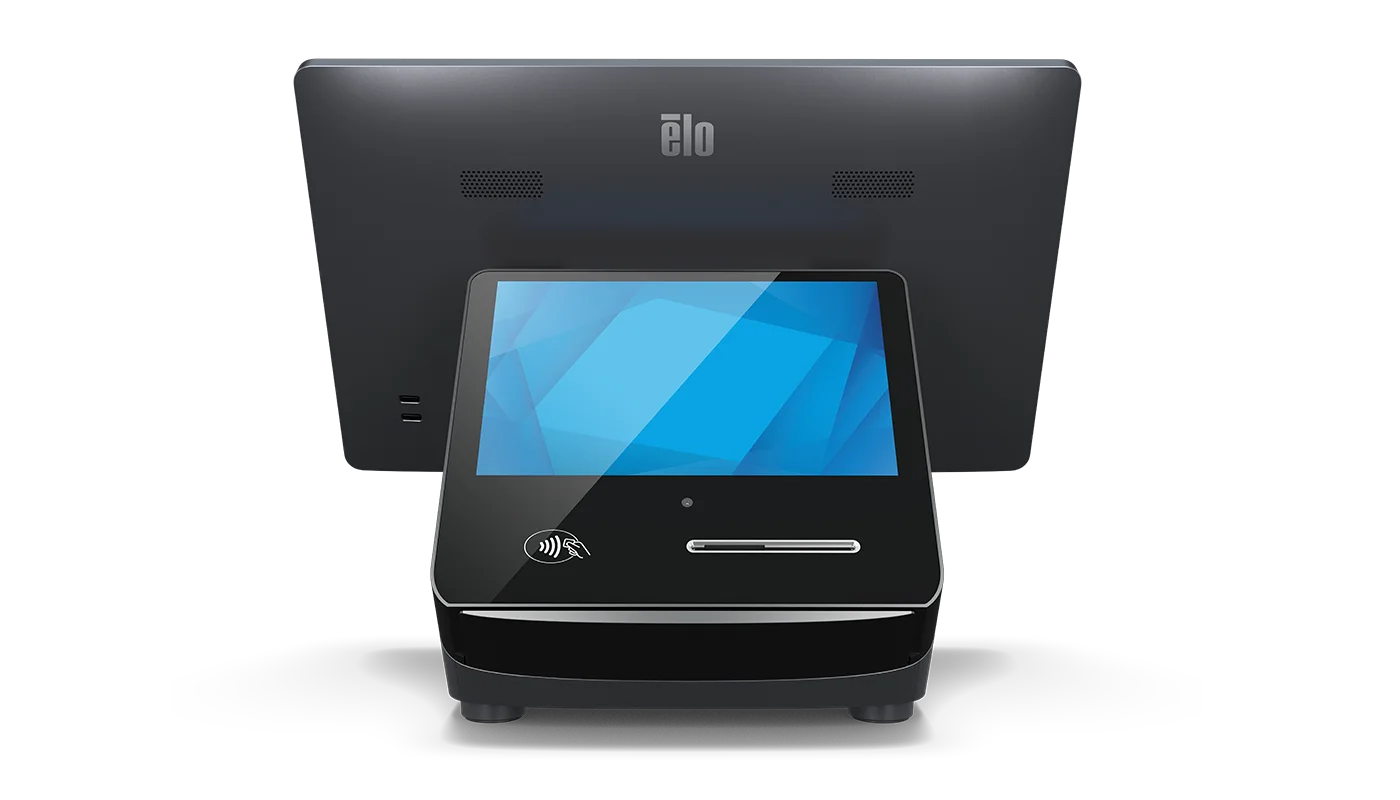

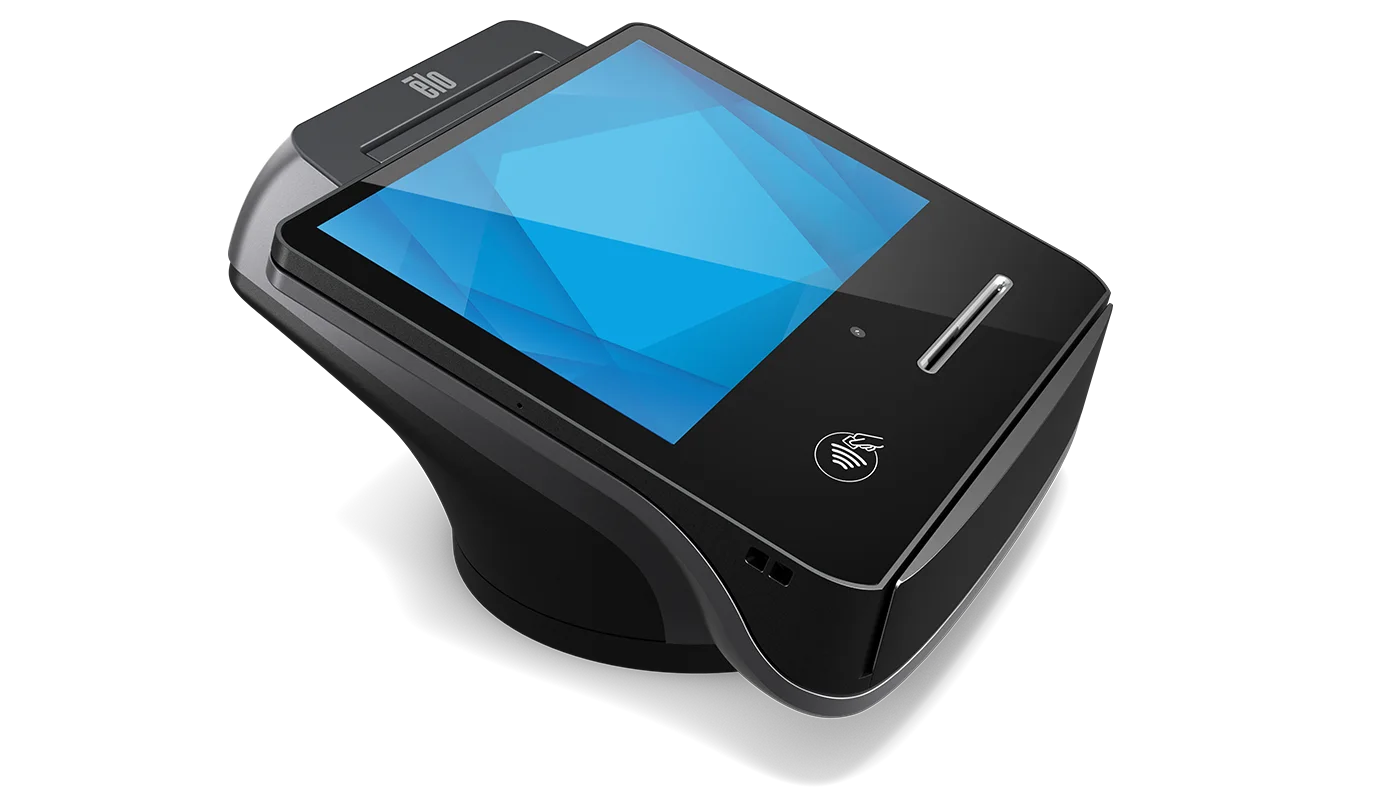

- E863808 - Elo Pay 7"; E814281 - Elo Pay 7" with Z70 POS Stand & External Hub*; E814473 - Elo Pay 7" with Z70 POS Stand & Integrated Hub*; E814661 - Elo Pay 7" with Printer Stand; *Monitor sold separately.
- Enclosure Color
- Black
- Processor
- Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
- Memory (RAM)
- 4GB
- Storage
- 64GB
- Expansion Options
- 1x MicroSD
- OS
- Android 12 with Google Play Services
- Display
- 7” Optically Bonded High Definition LCD
- Touchscreen
- 10-touch Projective capacitive with Corning Gorilla Glass; Water rejection
- Sensor
- Accelerometer
- Resolution
- 1920 x 1080
- Brightness (typical)
- 400 nits
- Contrast Ratio
- 1000:1
- I/O Ports
- Elo Pay 7": 1x USBC; Small External Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C; Large External Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V); EloPOS Z70 Pay with Integrated Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 1x USB-C, 1x RJ12 Cash Drawer
- Camera
- 1x 5MP FF
- Payment
- EMV Contactless ISO 14443-A/B, MiFare, ISO-18092; EMV Chip Card Reader (chip and pin-on-glass); 3-track MSR ISO 7810/7811
- Certifications
- PCI-PTS 6.2 (PCI Approval Number: 4-30548); EMV L1 & L2; Visa PayWave (coming soon); Mastercard PayPass; Amex ExpressPay; Discover D-PAS; Mastercard TQM (coming soon); China Union Pay International (coming soon); JCB J/Speedy (coming soon); Interac Flash (coming soon); EFTPOS (coming soon)
- Wireless
- 802.11a/b/g/n/ac with 2x2 MU-MIMO
- Bluetooth
- Bluetooth 5.0
- LED
- 1x Amber/White LED for Power; Programmable R/G/B/W LED for EMV-CL Reader; Programmable R/G/B/W LED for SCR Reader
- Keyboard
- On screen keyboard
- Audio
- 2x Microphone; 1x 1W speaker; 1x Buzzer
- Buttons
- 1x Power button; 1x Home Button
- Printer
- Paper width: 58mm; Print width: 48mm; Print speed: 100 mm / sec; Auto-cutter; Roll diameter: 48mm; Sensors: paper out, cover open
- Supported Monitors
- 1002L Without Stand - E155834* (for pairing with Z70 POS Stand); 1302L Black Without Stand – E683595* (for pairing with Z70 POS Stand); 1302L Black With Stand – E683204 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand); 1304LS Gray Without Stand – E968117 (for pairing with Z70 POS Stand); 1502L Without Stand – E125496* (for pairing with Z70 POS Stand); 1502L With Stand – E155645 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand); 1504LS Gray Without Stand – E968313 (for pairing with Z70 POS Stand); *requires VESA mount kit (included in box)
- Dimensions
- 6.9" x 6.6" x 1.7" / 176 mm x 168.68 mm x 42.95 mm
- Shipping Box Dimensions
- 8.7" x 7.3" x 2.7" / 220 mm x 185 mm x 68 mm
- Weight (Unpackaged)
- 1.4 lbs / 0.616 kg
- Weight (Packaged)
- 1.6 lbs / 0.716 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- 5% to 95% non-condensing
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B; RCM (Australia); China RoHS
- ESD
- Class B: 8kV contact, 15kV air
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E822682; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
- OS Support
- Monthly Android security updates available with Elo OS 360 package
- Sealability
- IP54 on the panel/front-facing side
- What's in the Box
- Elo Pay 7" (E863808); Elo Pay 7"; 18W USBC PD Charger w/ (US, EU, UK) Plug Options; Quick Install Guide; Elo Pay 7" with Z70 POS Stand and External Hub (E814281); Elo Pay 7"; Z70 POS Stand with External Hub (E815422); Small Hub (E815044); 120W Power Brick w/ (US, EU, UK) Cable Options; 1.8m USBC to USBC Cable; Quick Install Guide; Elo Pay 7" with Z70 POS Stand and Integrated Hub (E814473); Elo Pay 7"; Z70 POS Stand with Integrated Hub (E815605); 120W Power Brick w/ (US, EU, UK) Cable Options; 1.8m USBC to USBC Cable; Quick Install Guide; Elo Pay 7" with Printer Stand (E814661); Elo Pay 7"; Printer Stand (E815808); 45W USBC PD Charger w/ (US, EU, UK) Plug Options; Paper Roll; Quick Install Guide
- Stands, Mounts & Kits
- Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044; Large I/O Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V) – Elo P/N: E815235; VESA Mount Kit – Elo P/N: E220684
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
