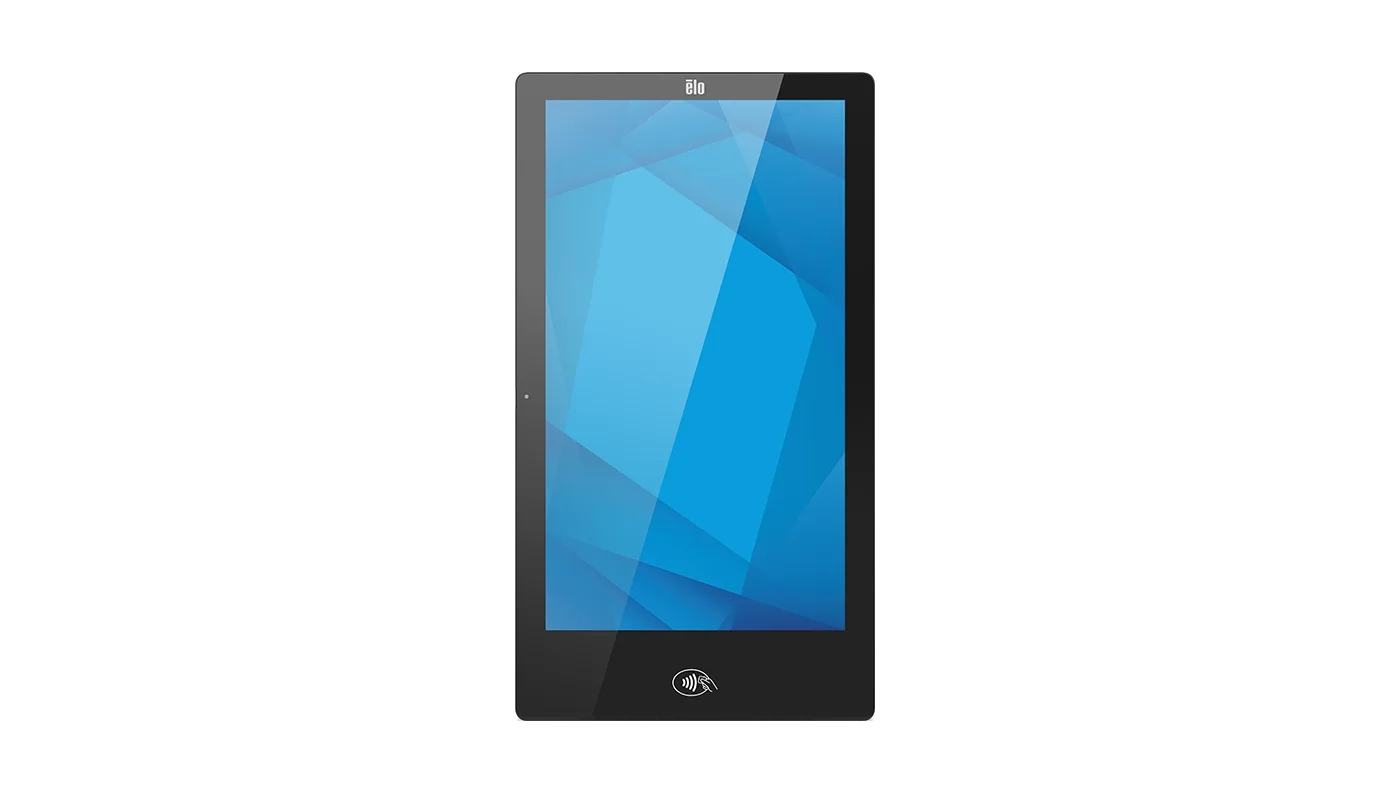

Elo Touch Elo Pay 22-inch 'Tap to Pay'

Elo Pay 22" 'Tap to Pay'

Operating systemAndroid 12 with Google Play Services
Display21.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

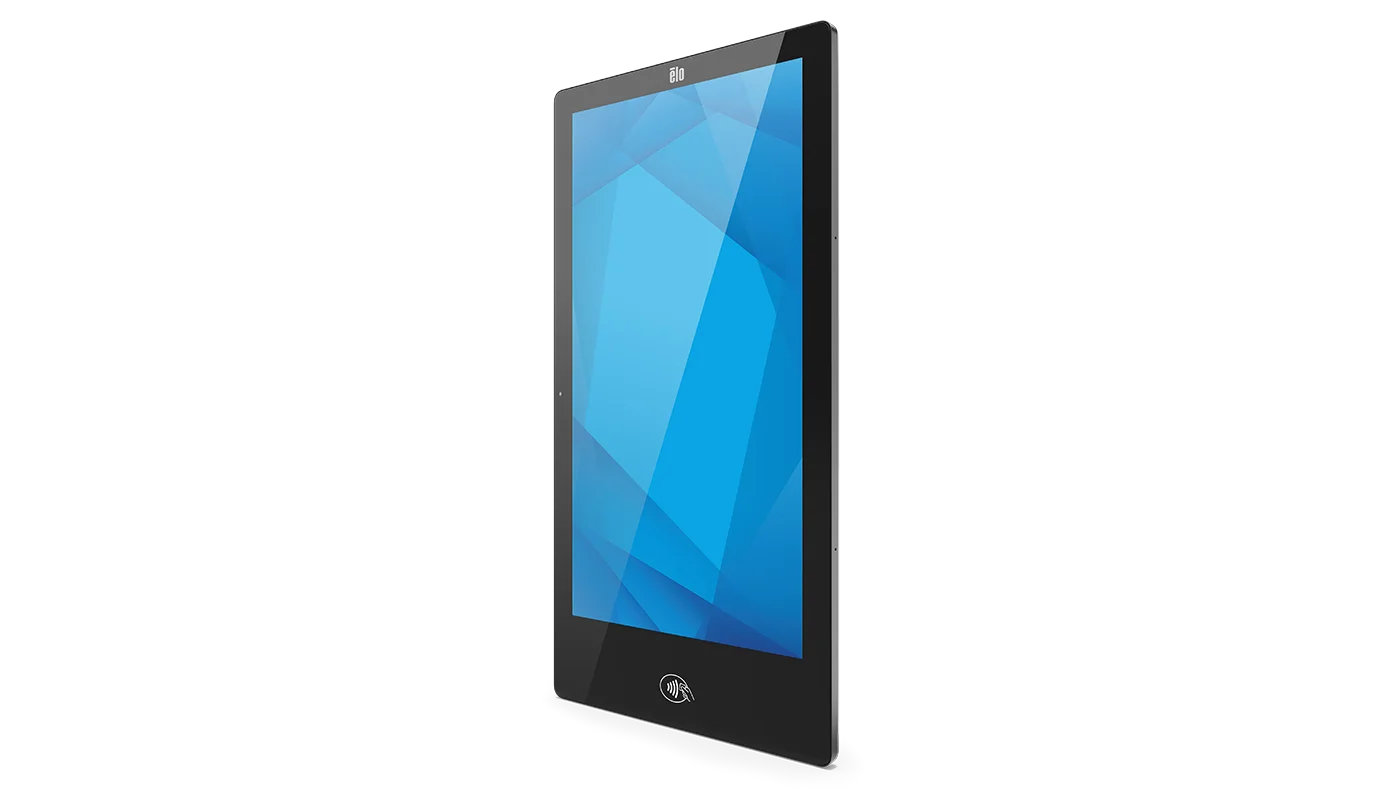

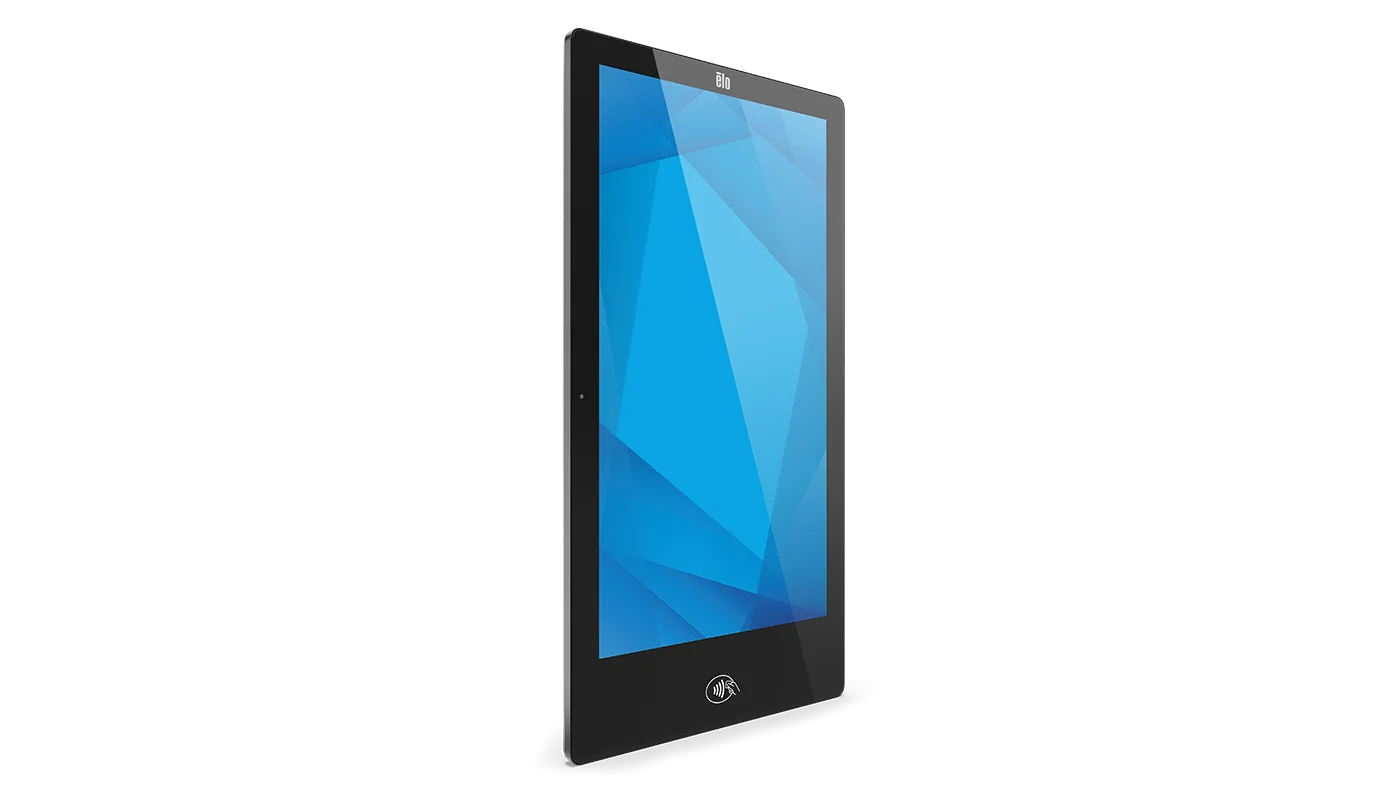

Discover seamless transactions with our Elo Pay 22" integrated payment solution based on the I‑Series 4. The user-friendly self-service platform features a FHD touch display, built-in NFC for contactless payment, Android 12 OS, and Qualcomm SD660 processor.

Elevate your customers' payment experience with the Elo Pay 22-inch touchscreen display. Designed for maximum visibility and effortless interaction, transform every transaction into a smooth and engaging encounter.

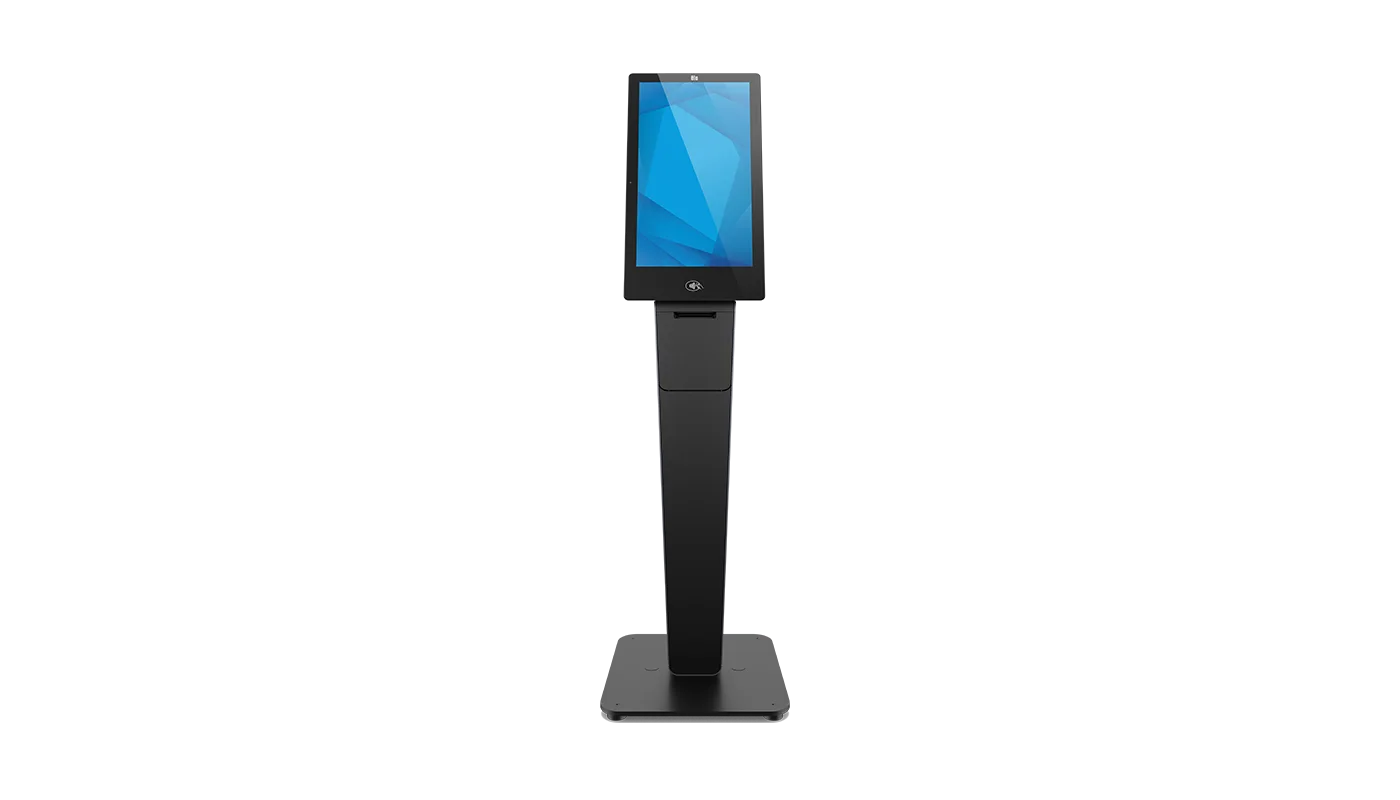

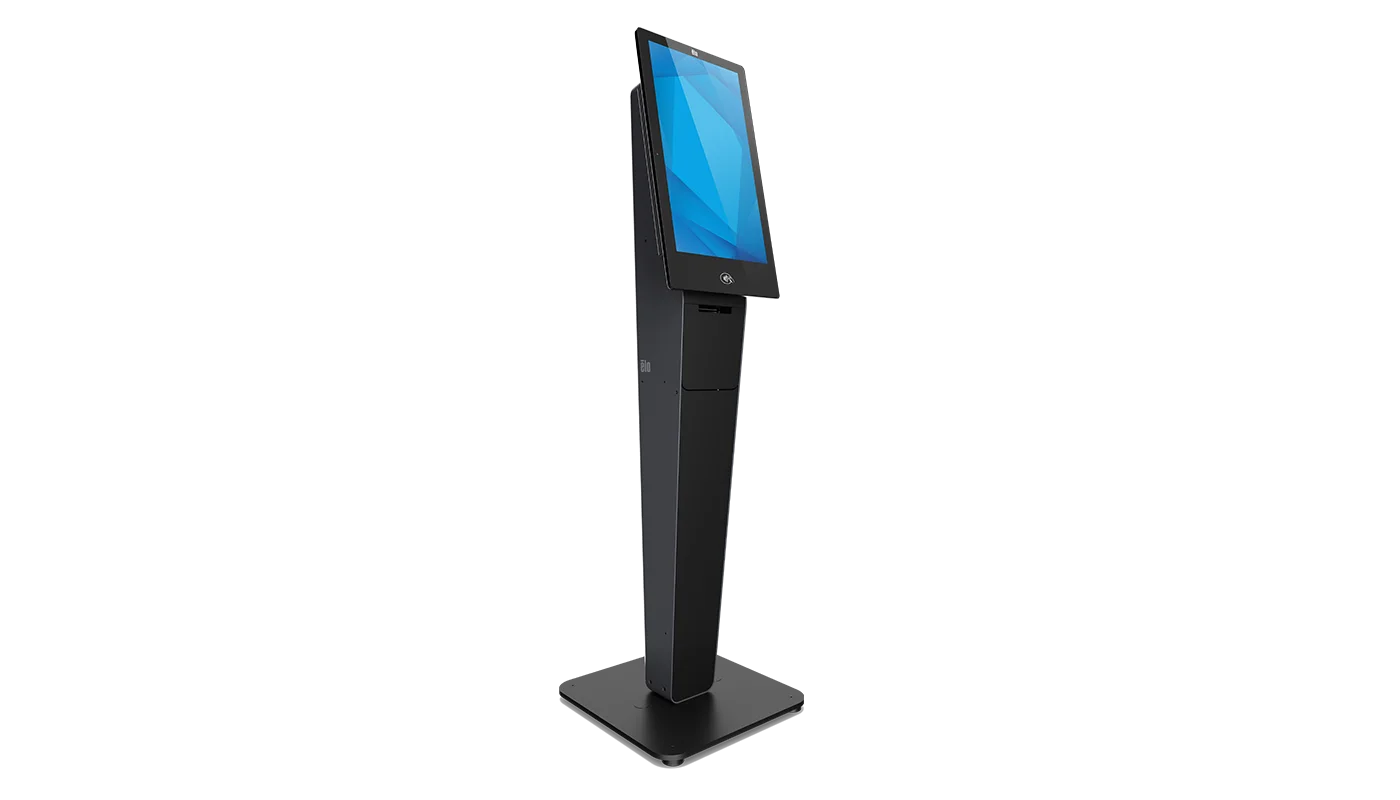

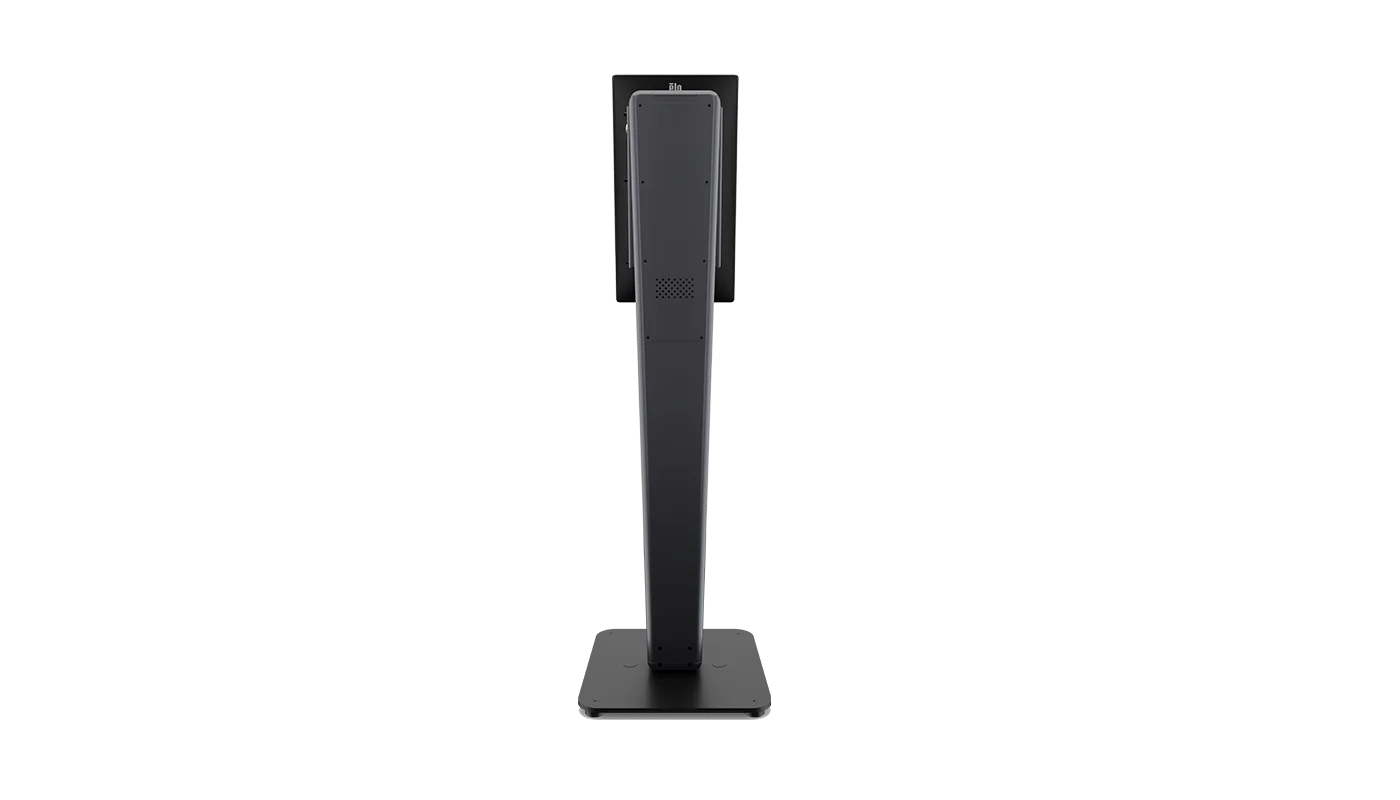

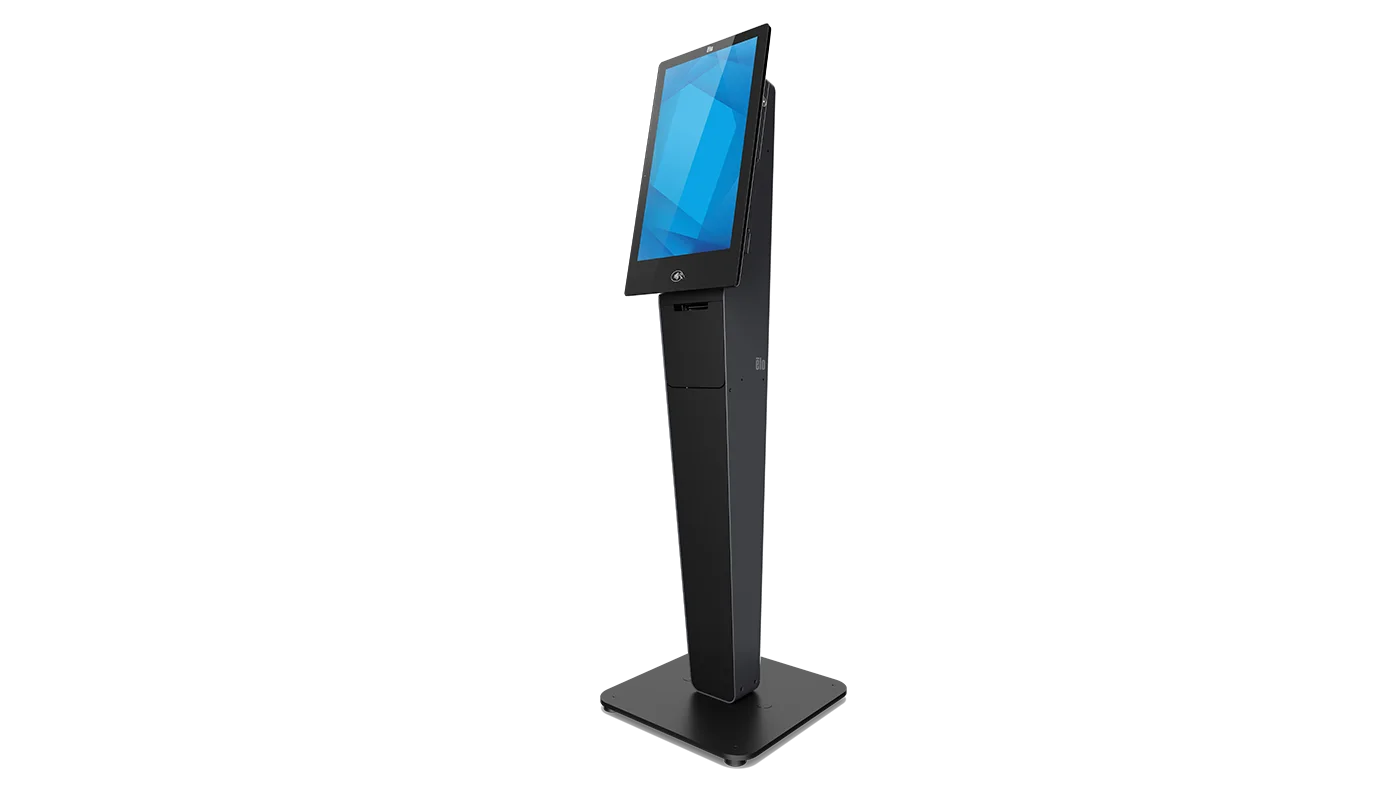

From self-order and ticketing to customer check-in and more, deploying kiosks has never been easier. Pair the Elo Pay 22” with a variety of stands, including the popular Wallaby Pro to create the self serve solution your business needs.

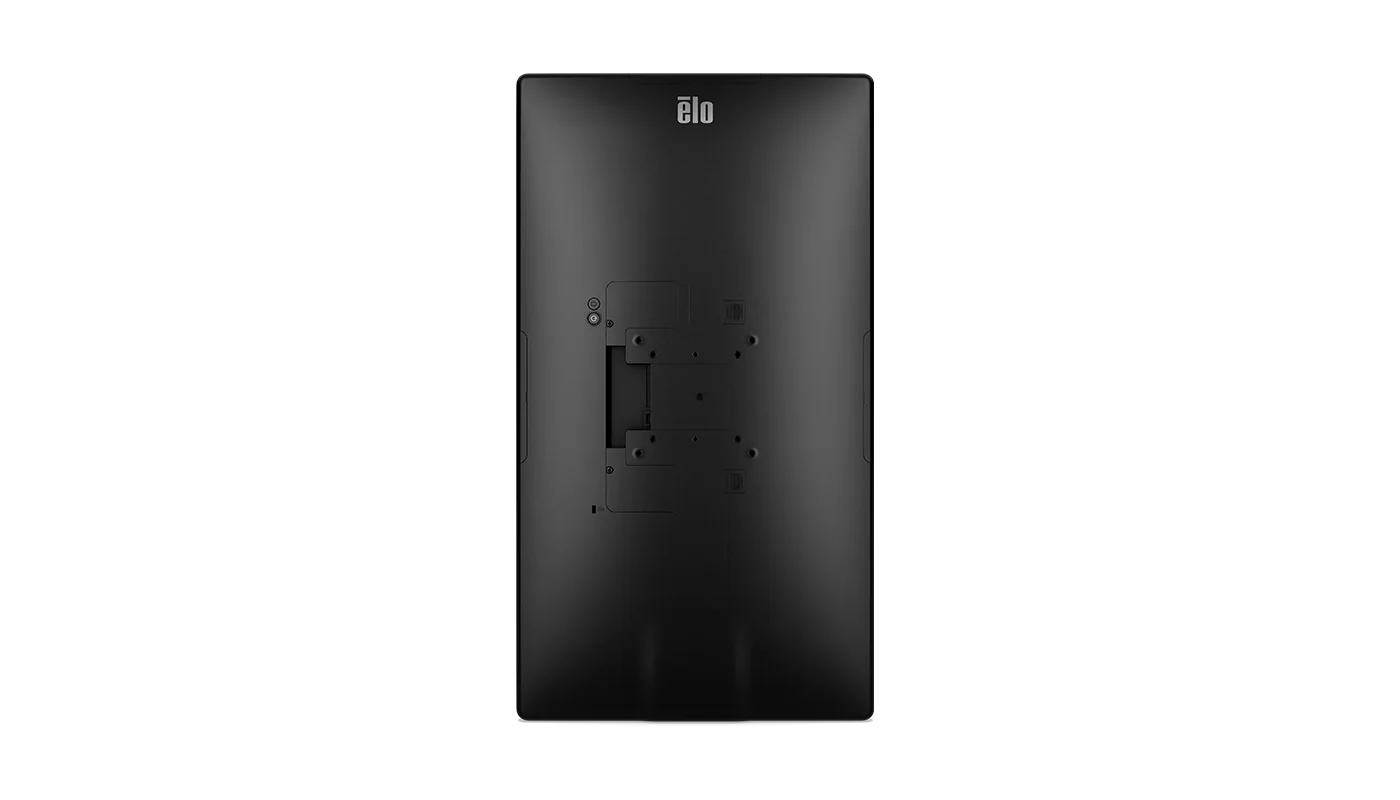

Easily mount the Elo Pay 22-inch with the built‑in VESA mount - making it easy to pair with a variety of stands, pole mounts and wall mounts.
Seamlessly attach any combination of peripherals including cameras, speaker bars and more.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.

Best for: POS Systems for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems

Specifications

Technical

Part Number(s): E574316
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Qualcomm Snapdragon SDA660
Memory (RAM): 4GB
Storage: 64GB
OS: Android 12 with Google Play Services
Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 18.74" x 10.54" / 476 mm x 268 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD Panel: 250 nits; TouchPro PCAP: 215 nits
Response Time-total (typical): 14 ms
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Peripheral Mounting: 3x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining two ports
I/O Ports: 1x USB 3.0 support (900mA); Type C USB output*; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in; * When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
NFC: Front facing NFC antenna; Programmable rear-lit white LED illuminates NFC contactless logo; Fully SoftPOS compatible
Webcam: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: 2x built-in Digital Microphones
Speakers: 2x 0.8W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
Power Consumption (Typical): On: 19.8W; Off: 0.4W; Sleep: 4.4W
Dimensions: 23.06" x 12.78" x 1.17" / 585.6 mm x 324.7 mm x 29.7 mm
Shipping Box Dimensions: 27.05" x 7.17" x 16.54" / 687 mm x 182 mm x 420 mm
Weight (Unpackaged): 9.1 lbs / 4.1 kg
Weight (Packaged): 15 lbs / 6.8 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil, Taiwan
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm and 100mm
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E873133; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen sealed to LCD
What's in the Box: Elo Pay 22"; North American Power Cable; European Power Cable; 1x Power Brick; Quick Install Guide; Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; Expansion Module – Elo P/N: E809509; RFID - Elo P/N: E673037
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162; Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363; Wallaby™ Pro countertop stand – Elo P/N: E989127; Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
