Elo Touch Elo Pay 15-inch 'Tap to Pay'

Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Discover seamless transactions with the Elo Pay 15-inch integrated payment solution. The self-service platform pairs a Full HD touch display with integrated NFC, Android 14, and the Qualcomm 6490 processor to deliver fast, reliable performance. With no complex payment certifications and immediate integration out of the box, getting started has never been easier.

Elevate your customers' payment experience with the 10-touch TouchPro PCAP 15-inch display. Designed for maximum visibility and effortless interaction, transform every transaction into a smooth and engaging encounter.
From self-checkout and self-order to ticketing, customer check-in and more, deploying kiosks has never been easier. Pair the Elo Pay 15” with a variety of stands to create the self serve solution your business needs.

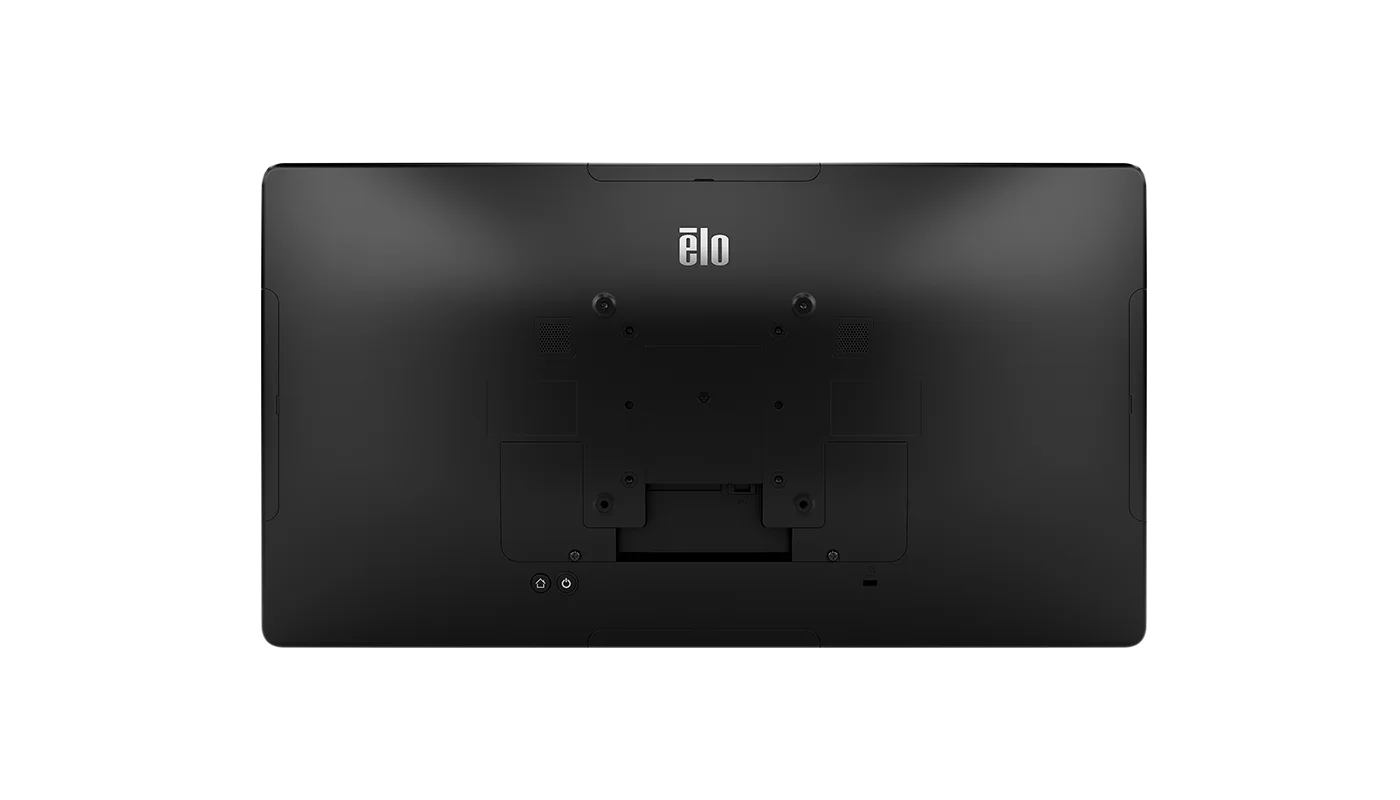

Easily mount the Elo Pay 15-inch with the built-in VESA mount - making it easy to pair with a variety of stands, pole mounts and wall mounts.
Seamlessly attach any combination of peripherals including cameras, speaker bars and more to the edge of the touchscreen for expanded use.
Whether you need a full service POS terminal or a mobile device to take payments on the go, the Elo Pay lineup makes it easy to accept payments on a unified platform.

Best for: POS Systems for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems

Specifications

Technical

Part Number(s): E488611
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Qualcomm Snapdragon QCS6490
Memory (RAM): 8GB
Storage: 64GB
OS: Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD Panel: 300 nits; TouchPro PCAP: 258 nits
Response Time-total (typical): 30 ms
Contrast Ratio: 800:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining three ports
I/O Ports: 1x USB-A 3.0 support (900mA); 1x USB-C output*; 1x Micro SD slot; 1x GPIO; 1x RJ45 Ethernet LAN (Gigabit); 1x DC input; * When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
NFC: Front facing NFC antenna; Programmable rear-lit white LED illuminates NFC contactless logo; Fully SoftPOS compatible
Webcam: 8MP; Max Resolution: 3264x2448 30fps; Auto Focus
Wireless: 802.11a/b/g/n/ac/ax + Bluetooth 5.2
Audio Ports: 2x built-in Digital Microphones
Speakers: 2x1.5W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): On: 9.2W; Off: 0.2W; Sleep: 2.0W
Power Over Ethernet (PoE): Supported via Elo PoE Device PN: E669163; Reference the I-Series 5 user guide for details.
Dimensions: 17.92" x 9.8" x 0.9" / 455.2 mm x 249.7 mm x 22.3 mm
Shipping Box Dimensions: 21.6" x 6.3" x 13.4" / 548 mm x 160 mm x 340 mm
Weight (Unpackaged): 4.0 lbs / 1.81 kg
Weight (Packaged): 8.4 lbs / 3.8 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan)
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm and 100mm
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Bi-monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen sealed to LCD
What's in the Box: Elo Pay 15"; North American Power Cable; European Power Cable; 1x Power Brick; Quick Install Guide; Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (White - SE2707) – Elo P/N: E551946; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; POE Module Kit - Elo P/N: E669163; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162; Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077; Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844; Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963; Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162; 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
