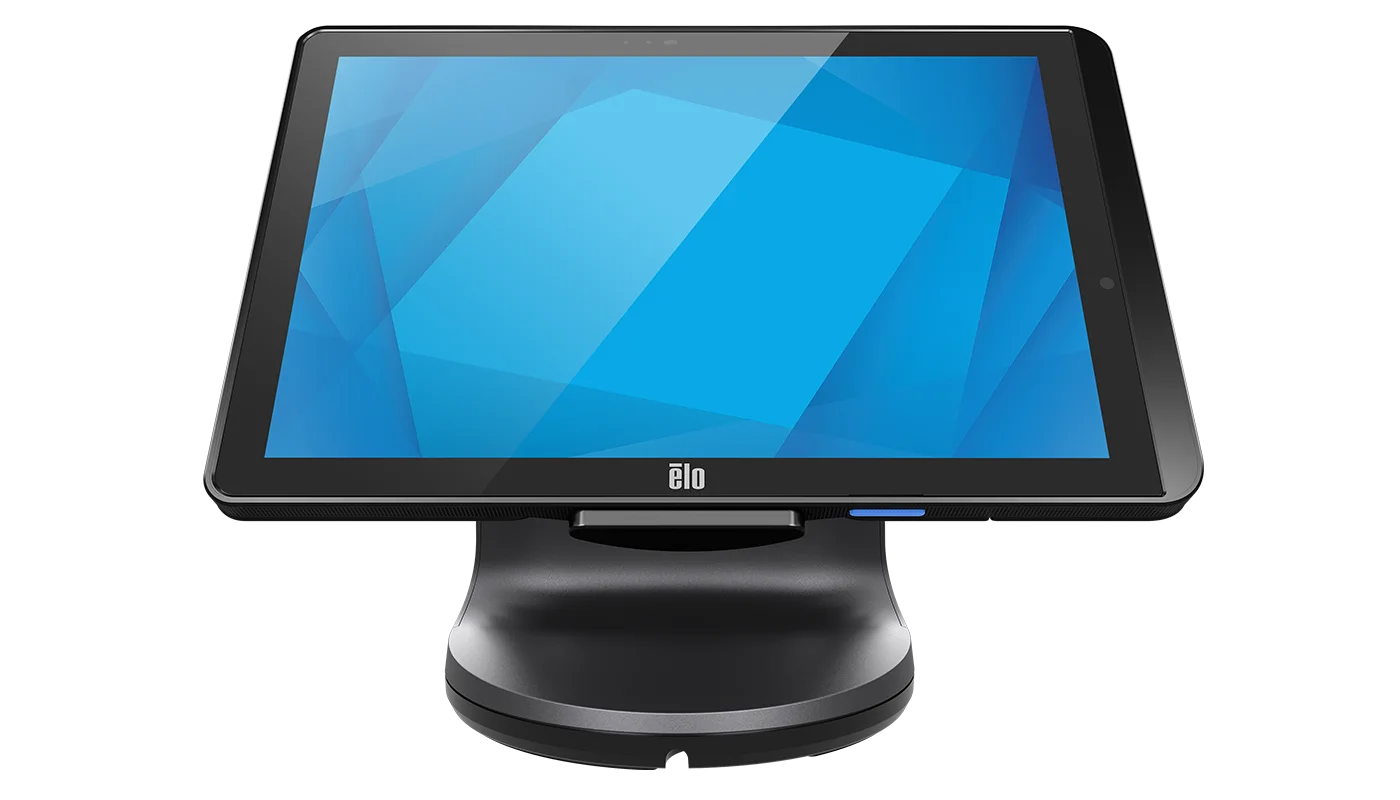

Elo Pay 10" Integrated Payment POS by Elo

Elo Touch · POS computer

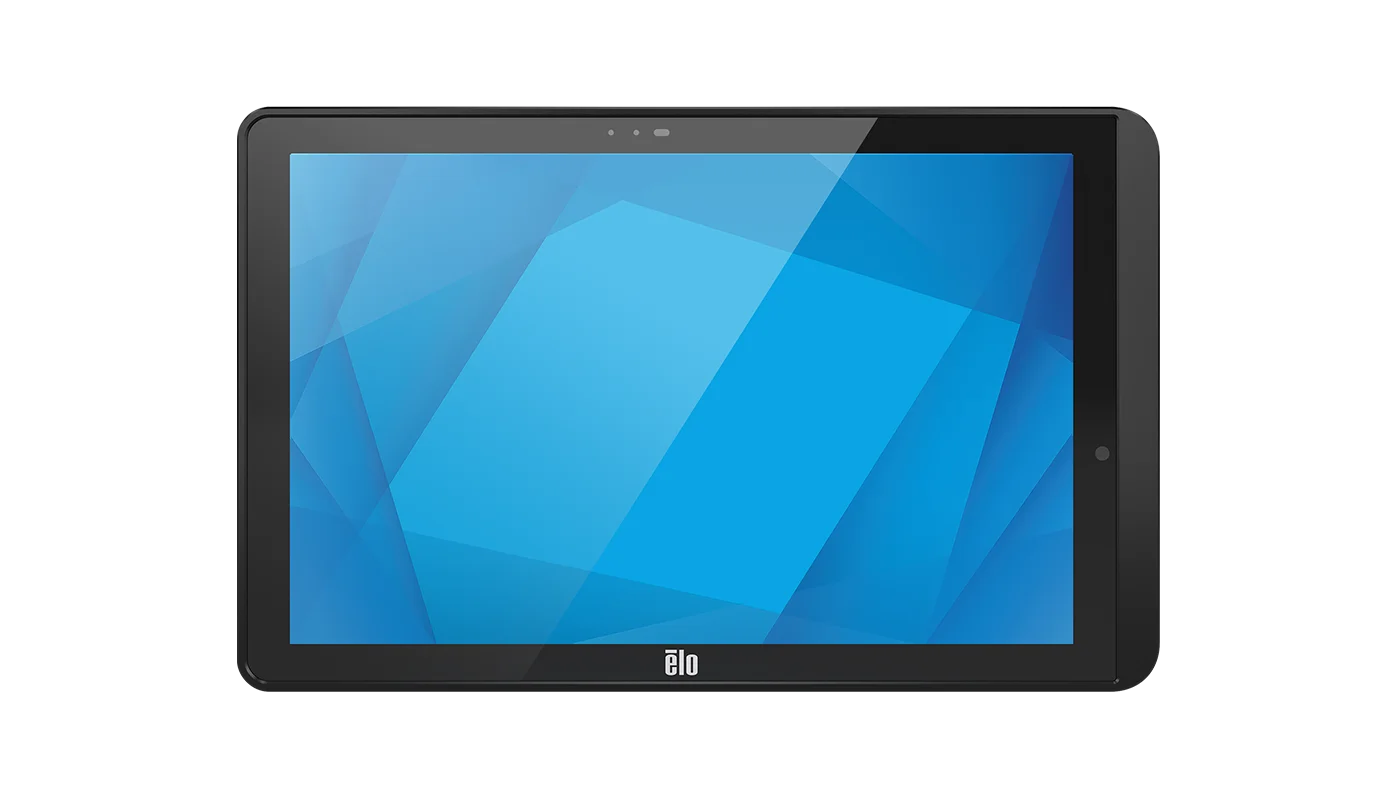

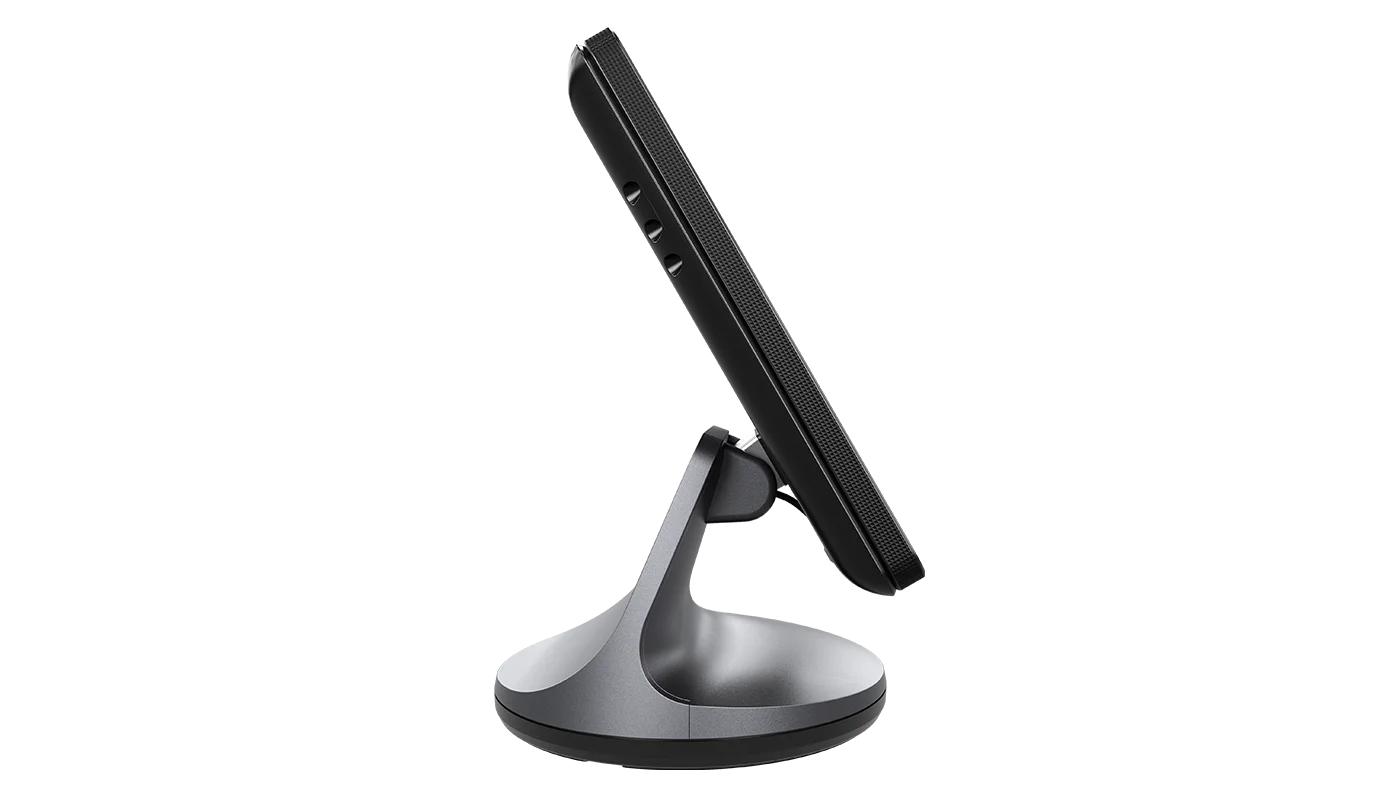

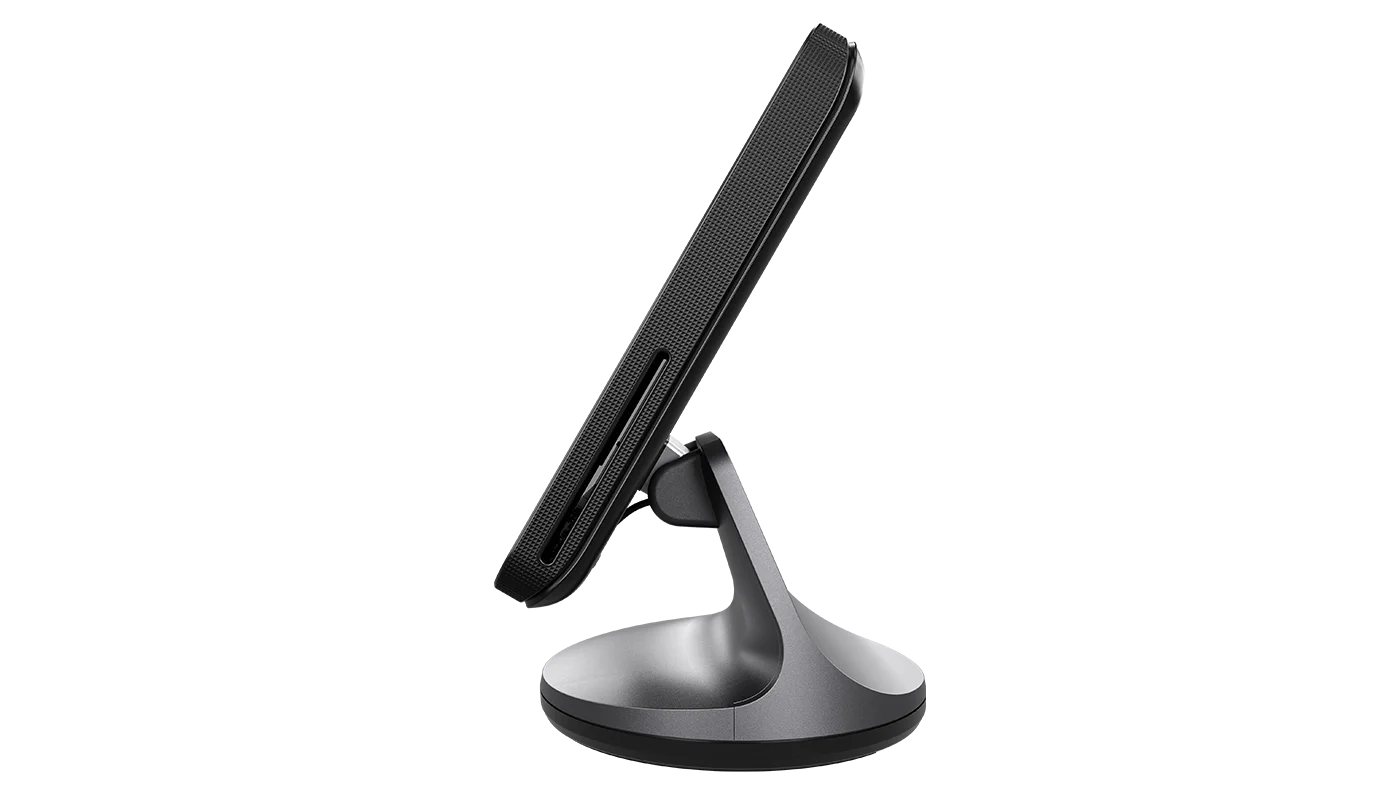

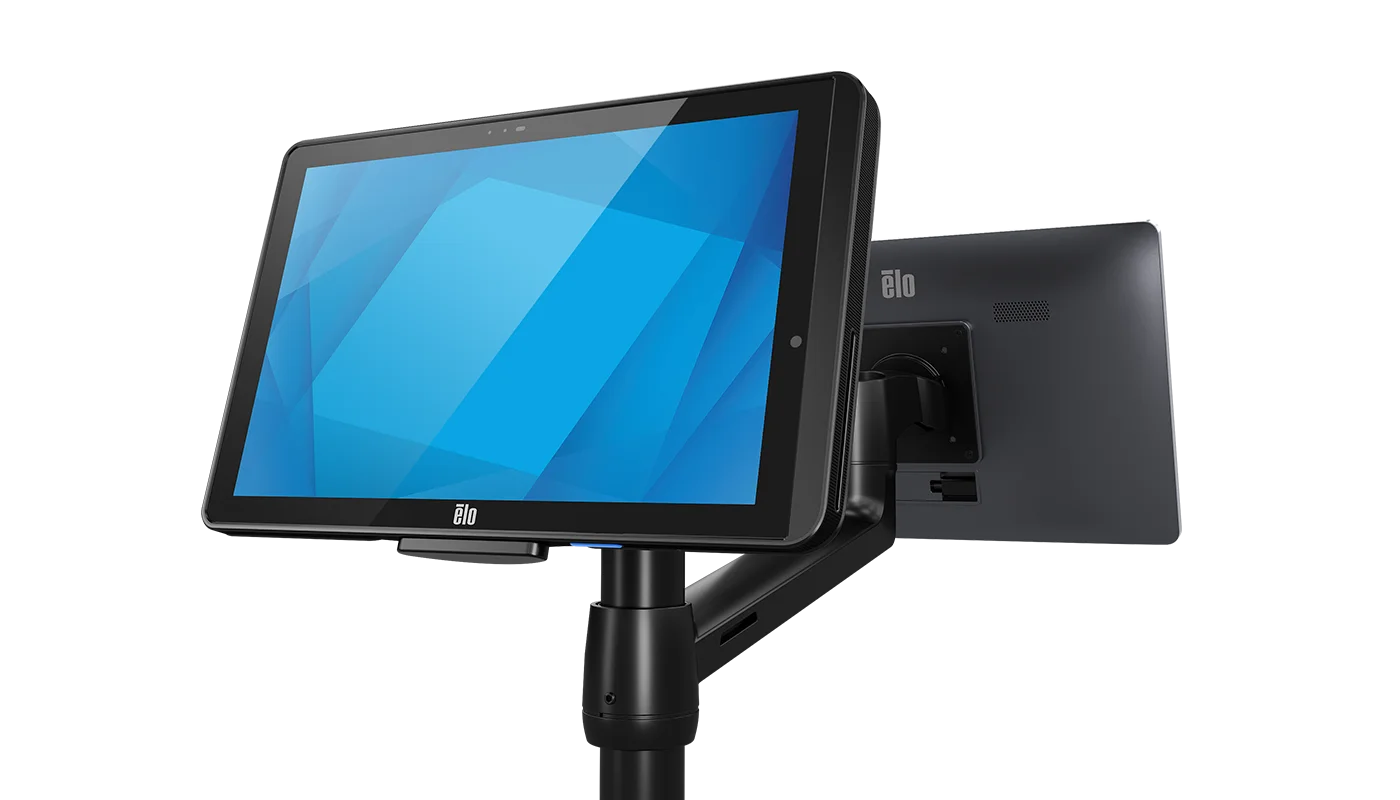

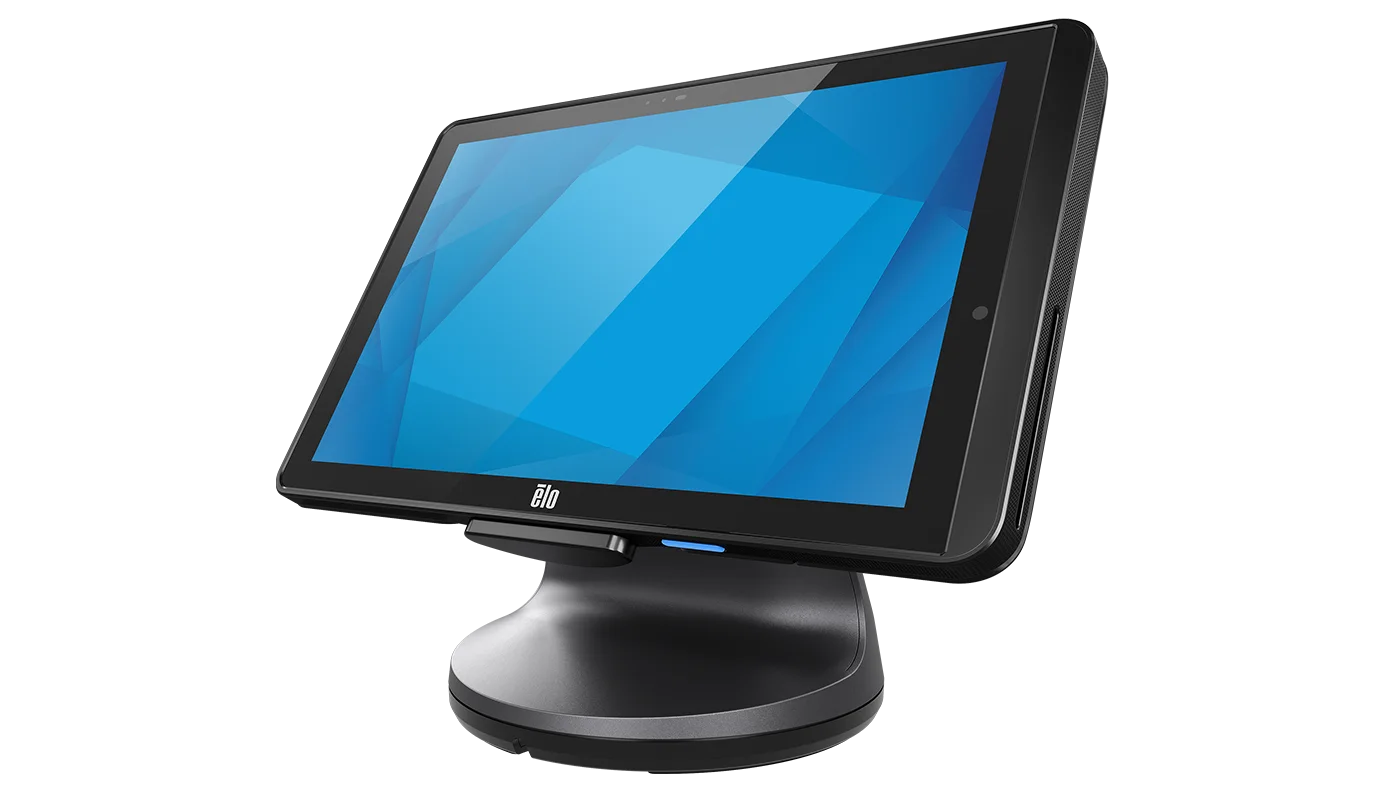

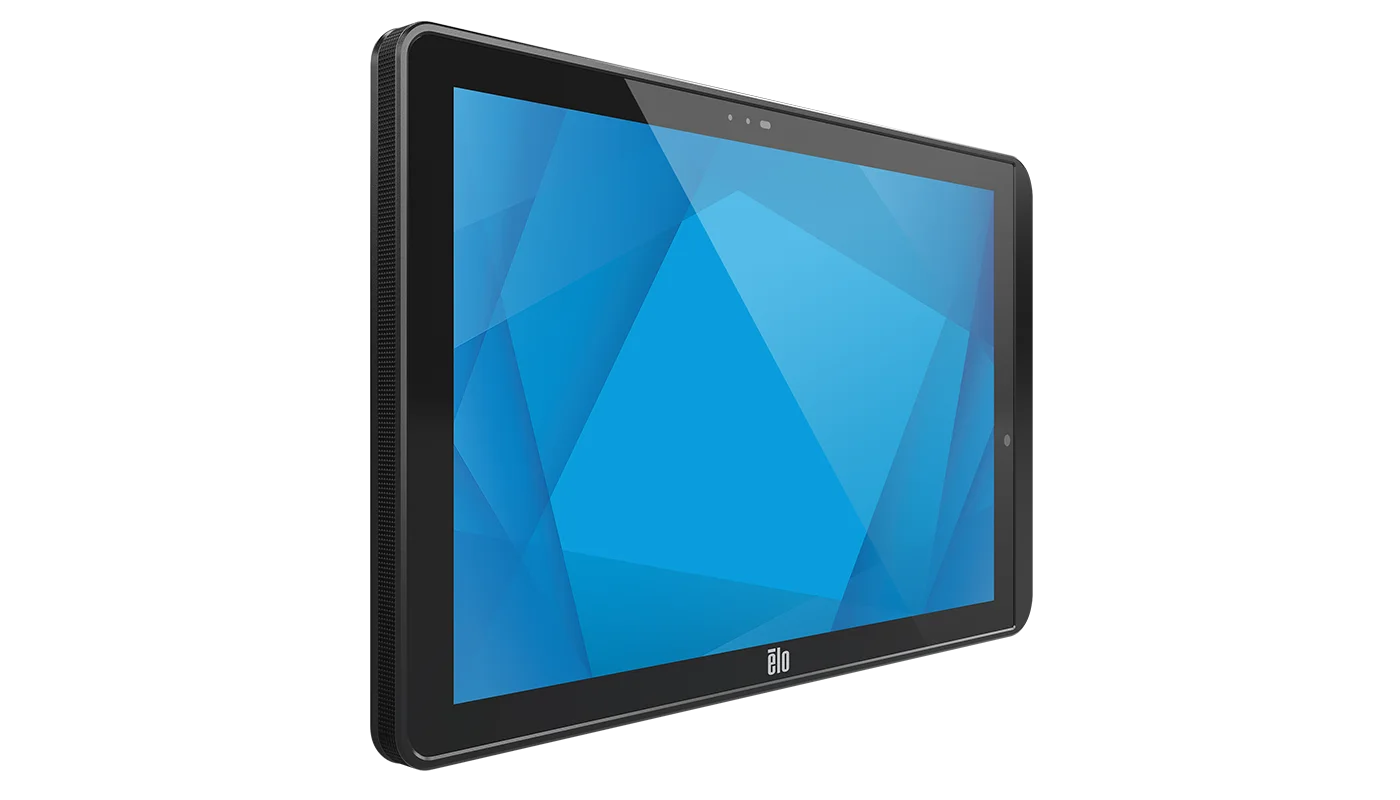

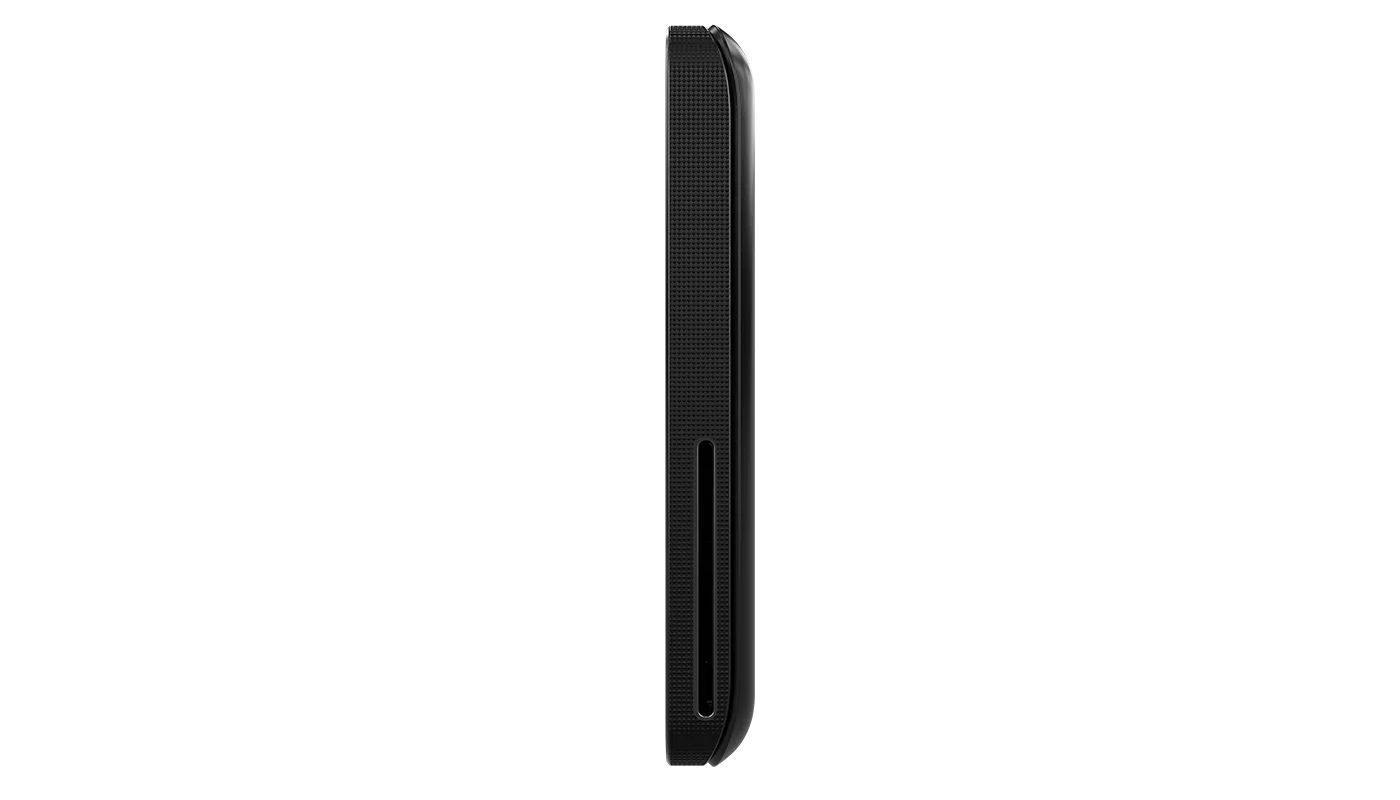

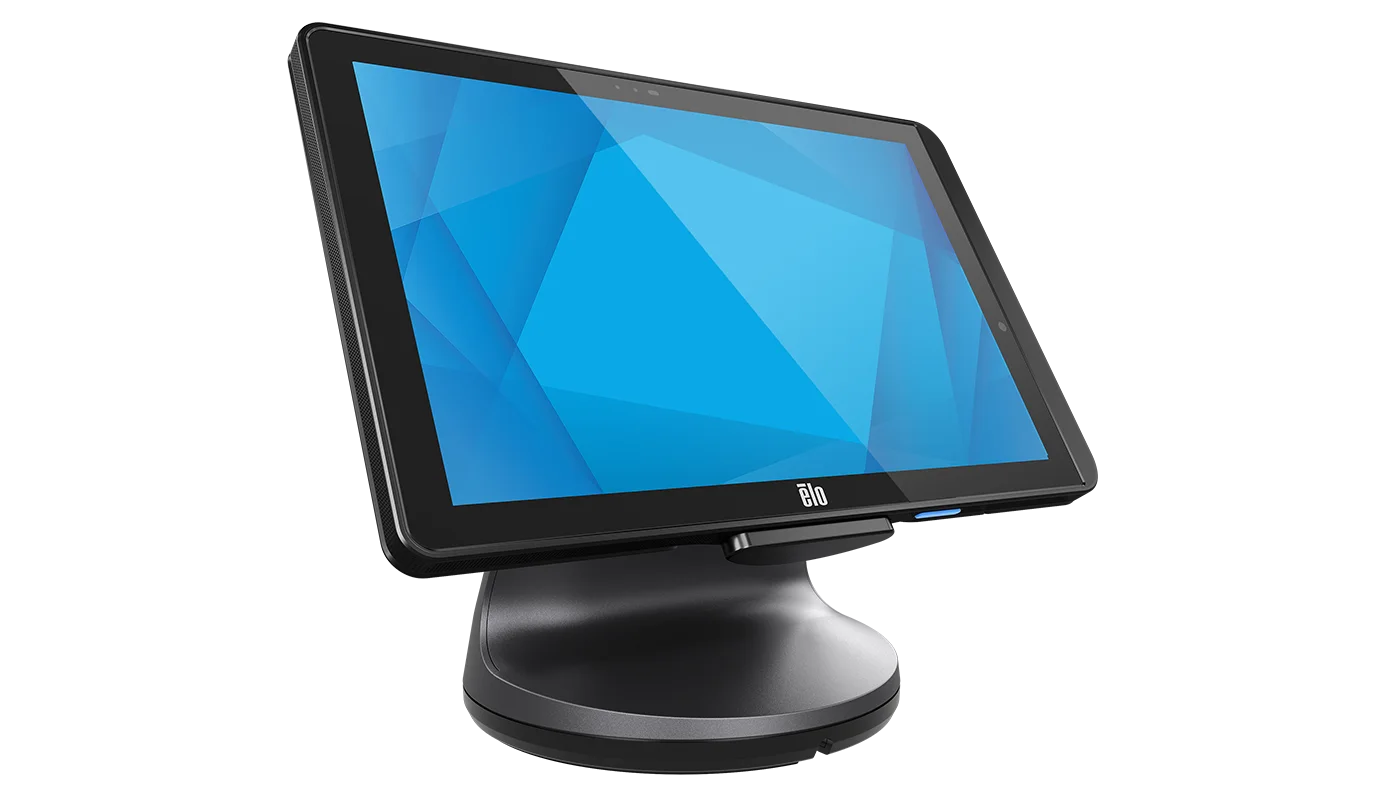

Elo Touch Elo Pay 10" Integrated Payment POS

Operating systemAndroid 12 with GMS (AOSP Capable); Planned upgrade to Android 14 available with OS 360 subscription
ScanningSE4100 scan engine (1D/2D imager)*; * on E593768 only

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Streamline your point of sale with the Elo Pay 10" integrated payment solution. Featuring a 10.1-inch FHD scratch-resistant touch display, Android 12 OS and Qualcomm SD660 processor, the Elo Pay 10" delivers unmatched quality, speed and reliability. And with advanced EMV and NFC technologies complemented by the convenience of PCI/PTS 6.2 certified pin-on-glass functionality, the Elo Pay system simplifies your POS operations, offering the efficiency and security that retailers and merchants require.

Whether your customers have a physical card or contactless via their mobile phone, the Elo Pay 10" POS Terminal accepts all forms of payment.
The fully integrated Elo Pay 10" POS system is purpose-built to endure commercial environments with features including:
Elo Pay Terminals leverage one payment kernel to simplify the payment process, increase security, and improve the user experience.
Elo Pay offers comprehensive payment services that enables merchants to process transactions with confidence. With access to multiple payment applications, end-to-end encryption, secure tokenization, robust terminal management and easy to use APIs for quick integration, merchants can get started quickly and securely.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.

Best for: POS Systems for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems

Specifications

Technical

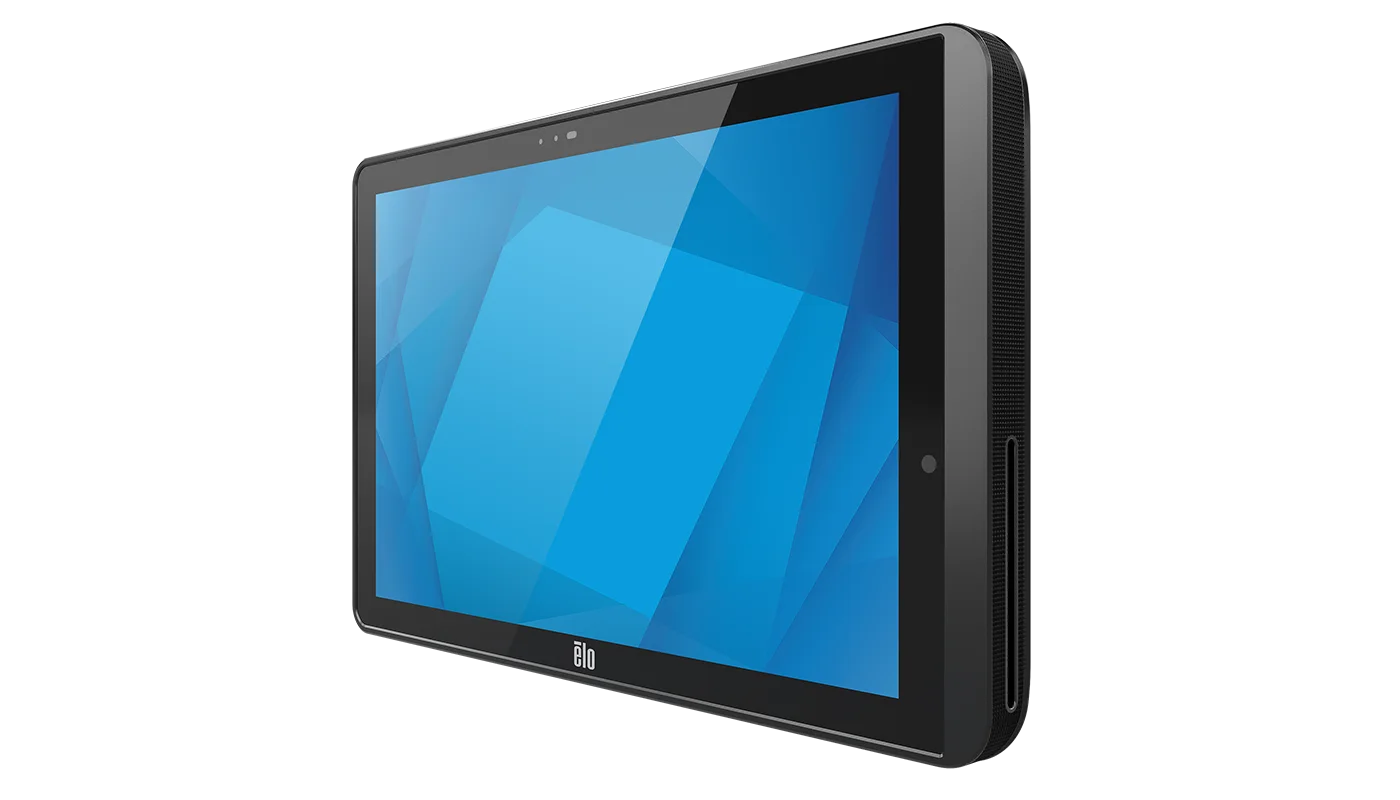

Part Number(s): With Stand - E369331; With Stand & Barcode Scanner - E593768; No Stand - E931600
Enclosure Color: Black
Processor: Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM): 4GB
Storage: 64GB
Expansion Options: MicroSD card supports up to 1TB SDXC
OS: Android 12 with GMS (AOSP Capable); Planned upgrade to Android 14 available with OS 360 subscription
Display: 10.1" Optically Bonded FHD
Touchscreen: Projective capacitive with Corning Gorilla Glass; Water rejection; Anti-Fingerprint Coating
Sensor: Light sensor (automatically adjust backlight brightness); Accelerometer
Resolution: 1920 x 1200
Brightness (typical): 500 nits
Contrast Ratio: 900:1
I/O Ports: USB Type-C: Support display and data
Camera: Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch); Front Camera: 5MP Fixed-Focus with Face Authentication
Payment: EMV Contactless ISO 14443-A/B, MiFare, ISO-18092; EMV Chip Card Reader (chip and pin-on-glass)
Certifications: PCI-PTS 6.2 (PCI Approval Number: 4-30551); EMV L1 & L2; Visa PayWave; Mastercard PayPass; Amex Express Pay; Discover D-PAS; EFTPOS; Interac Flash; JCB J/Speedy; China Union Pay International; COMMON.SECC; Mastercard TQM; Apple Pay™; Google Pay™; Samsung Pay™
Barcode Scanner: SE4100 scan engine (1D/2D imager)*; * on E593768 only
Wireless: IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO
Bluetooth: Bluetooth 5.0
LED: 1x combination Green/Amber LED for user programmable; 1x combination Blue/Red LED for scan, error, or user programmable
Keyboard: On screen keyboard
Audio: Dual microphone with noise cancellation; Dual speakers
Buttons: 2x Programmable buttons; Power button; Volume up/down buttons
Dimensions: E369331, E593768: 10.06" x 8.45" x 7.87" / 255.5 mm x 214.7 mm x 200 mm; E931600: 10.06" x 6.38" x 0.54" / 255.5 mm x 162 mm x 13.7 mm
Shipping Box Dimensions: E369331, E593768: 14.06" x 10.84" x 11.30" / 357 mm x 275 mm x 287 mm; E931600: 12.68" x 8.54" x 2.91" / 322 mm x 217 mm x 74 mm
Weight (Unpackaged): E369331: 2354g; E593768: 2349g; E931600: 625g
Weight (Packaged): E369331: 5550g; E593768: 5545g; E931600: 1307g
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: 5% to 95% non-condensing
Regulatory approvals and declarations: UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B
ESD: Class B: 8kV contact, 15kV air
Warranty: 1-year
Extended Service Options: 2 year warranty coverage - Elo P/N: E764955; 3 year warranty coverage - Elo P/N: E765148; 4 year warranty coverage - Elo P/N: E765352; 5 year warranty coverage - Elo P/N: E765553; 2 year warranty coverage + AUR - Elo P/N: E765759; 3 year warranty coverage + AUR - Elo P/N: E765956; 4 year warranty coverage + AUR - Elo P/N: E766156; 5 year warranty coverage + AUR - Elo P/N: E766346; 3 year warranty coverage + ADP - Elo P/N: E672040; 5 year warranty coverage + ADP - Elo P/N: E672239; 1 year warranty coverage + AUR + ADP - Elo P/N: E894512; 3 year warranty coverage + AUR + ADP - Elo P/N: E672440; 5 year warranty coverage + AUR + ADP - Elo P/N: E672646; 3 year OS 360 - Elo P/N: E822682
OS Support: Bi-monthly Android security updates available with Elo OS 360
What's in the Box: Elo Pay 10"; POS Dock and Base Plate (E369331 only); USB Type C Charger (US. EU and UK plugs); 1.8m USB-C Cable (E931600 only); Quick Install Guide
Optional Accessories: Stylus - Elo P/N: E120625; Large Hub -Elo P/N: E815235; Small Hub - Elo P/N: E815044; Fixed VESA Mount - Elo P/N: E119228

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
