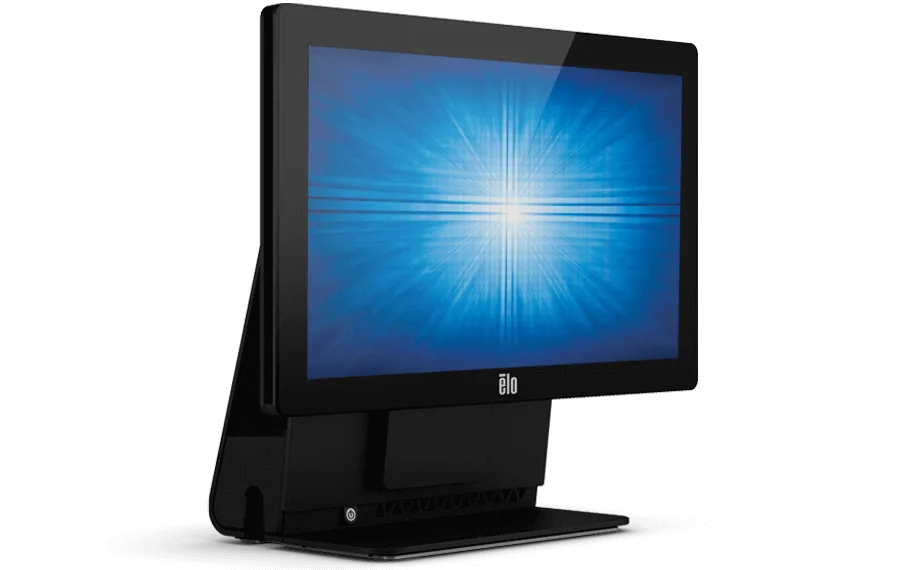

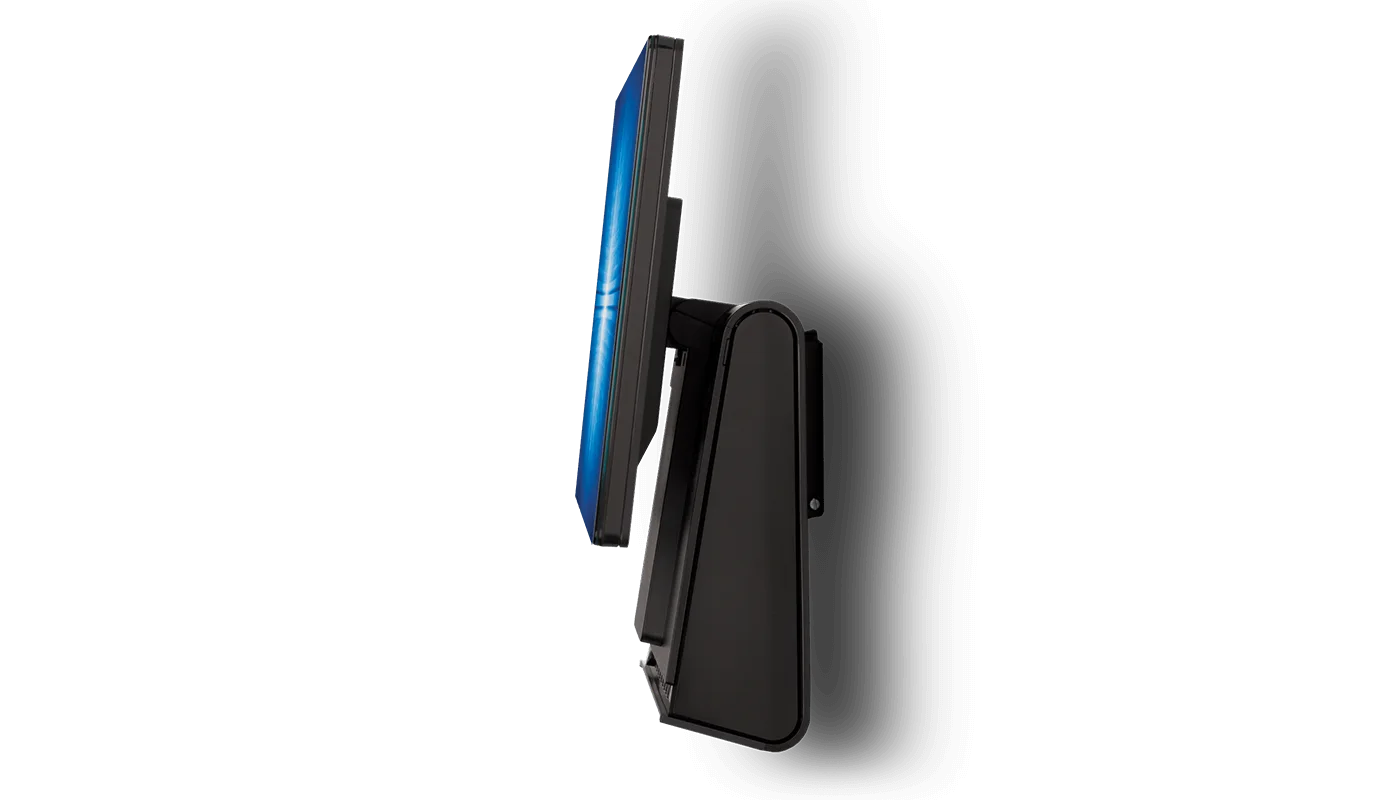

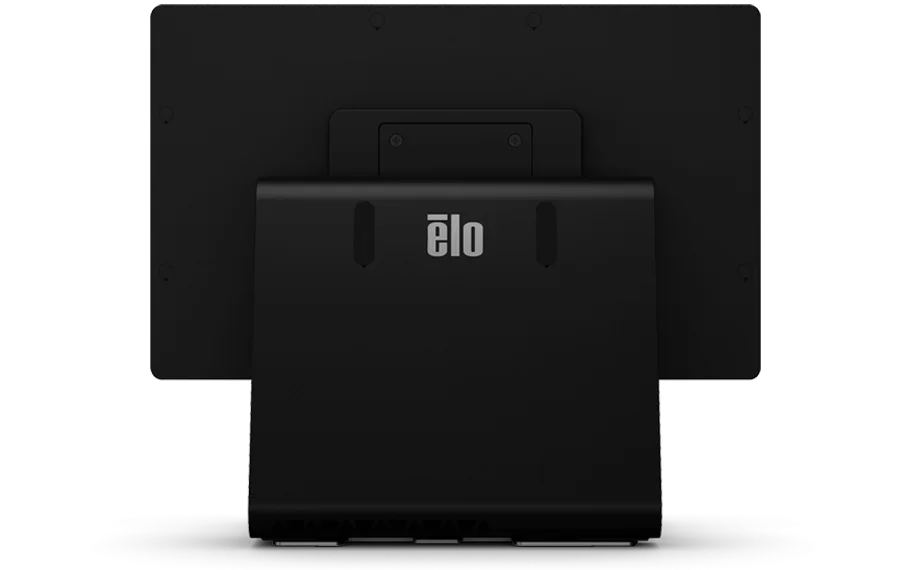

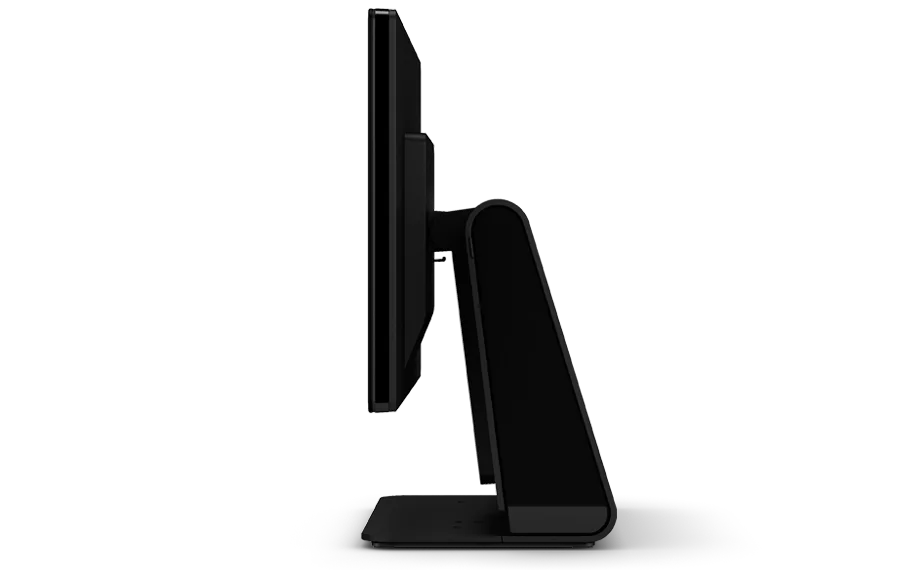

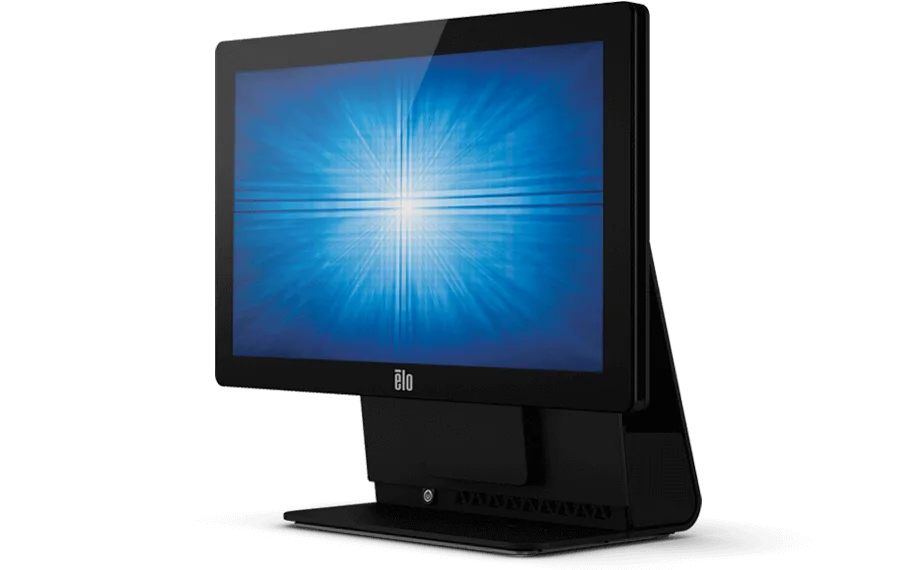

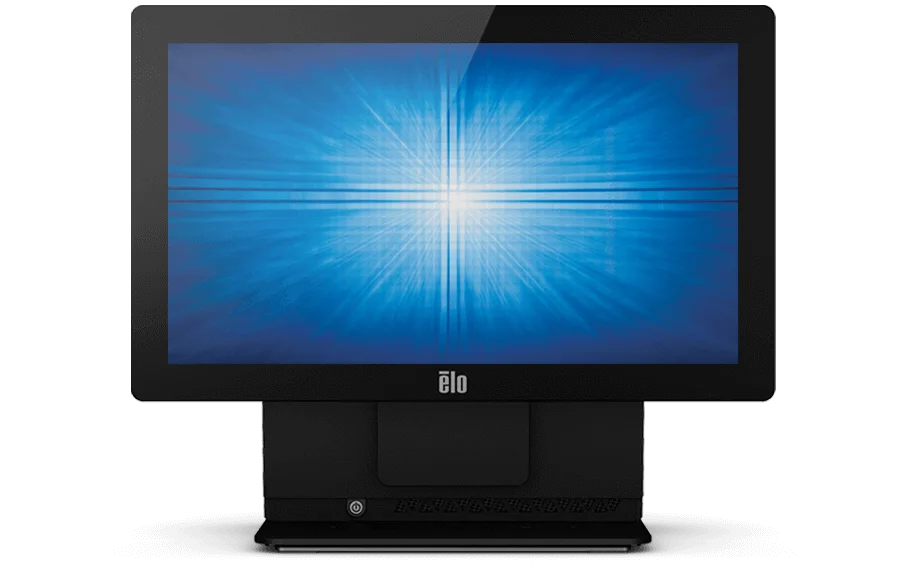

Elo Touch E-Series 15.6-inch (15E2) AiO Touchscreen Computer

Overview

Operating systemNo OS; Windows POSReady 7; Windows 10
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to sub-bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

The Elo E-Series 15-inch touchscreen computer is a commercial-grade solution that delivers widescreen impact in a greatly reduced form factor. With a rugged design and fan-less operation, the E-Series is ideally suited for use in any retail or hospitality environment. Powered by an Intel Celeron J1900 (RevD) processor, the E-Series provides top-notch performance at a value-based price.

The E-Series features a seamless edge-to-edge glass design that is easy to clean and built to endure commercial use. Available with IntelliTouch™ zero-bezel surface acoustic wave (SAW) or AccuTouch™ 5-wire resistive technologies, touch response using a finger, gloved hand, or soft stylus is fast, accurate, and drift free. Both feature pure glass construction that allows high light transmission without compromising durability or functionality.
The 15-inch E-Series supports third-party peripherals through four USB and two serial ports. A second VGA output is available to add a second customer-facing display for advertising and customer engagement.
Rigorously tested and backed by a three-year warranty, the E-Series delivers superior quality and reliability. The fan-less cooling design promotes a noise-free, dust-free and particulate-free operation, allowing you to maximize uptime and performance.
X-Series 15-inch AiO Touchscreen Computer X-Series 17-inch AiO Touchscreen Computer X-Series 19.5-inch AiO Touchscreen Computer

Specifications

Technical

Part Number(s): AccuTouch (J1900) POSReady (Worldwide) - E924675; AccuTouch (J1900) Win10 (Worldwide) - E353557; AccuTouch (J1900) No OS (Worldwide) - E757464; IntelliTouch (J1900) ZB POSReady (Worldwide) - E924393; IntelliTouch (J1900) ZB Win10 (Worldwide) - E353362; IntelliTouch (J1900) ZB No OS (Worldwide) - E732416
Enclosure Color: Black
Touch Technology & Capacity: 5-Wire Resistive (AccuTouch®) - Single-Touch; SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Processor: Intel Celeron 2 GHz (up to 2.42 GHz) Quad-Core J1900, 2MB L2 Cache
Graphics: Intel HD Graphics
BIOS: AMI
Memory (RAM): 4GB DDR3L SODIMM on 1 of 1 slot
Storage: 128GB 2.5” 7mm SATA SSD; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: IntelliTouch: 13.6" x 7.6" / 344.2mm x 193.5mm; AccuTouch: 13.7” x 7.8” / 348.2mm x 197.5mm
Resolution: 1366 x 768 @ 60Hz
Number of Colors: 262,000
Brightness (typical): LCD panel: 220 nits; IntelliTouch ZB: 198 nits; AccuTouch: 176 nits
Response Time-total (typical): 10 msec
Contrast Ratio: 600:1
Viewing Angle: Horizontal: ±45° or 90° total / Vertical: 20°/45° or 65° total
USB Ports: 4 x USB 2.0
Serial Ports: 2 x Native DB9 RS-232 (standard)
Ethernet Port: 1 x LAN RJ45 (Gigabit)
Additional Video Out: 2nd VGA out
Audio Ports: 1 x 3.5mm line out, 1 x 3.5mm line in, 1 x 3.5mm mic in
OS: No OS; Windows POSReady 7; Windows 10
Languages: Windows POSReady7 - 35 Language groups
Power Supply: External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 65W (Max Draw: 74W)
Power Consumption (Typical): 29W
Max Touchcomputer Dimensions With Stand: 15.4" x 13.0" x 6.3" / 390mm x 330mm x 161mm
Max Touchcomputer Dimensions Without Stand: 15.4" x 11.0" x 9.5" / 390mm x 280mm x 240mm
Shipping Box Dimensions: 18.1" x 15.8" x 9.8" / 460mm x 400mm x 250mm
Weight (with stand): 10.4lbs / 4.7kg
Shipping Weight (With stand): 16.1lbs / 7.3kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL, cUL, FCC, TUV, CB, CE, CoC, VCCI, CCC, KC, BSMI, RCM, UKSERTCOMPUTER
Real-Time Clock: lithium-ion battery
MTBF: 30,000 hours demonstrated

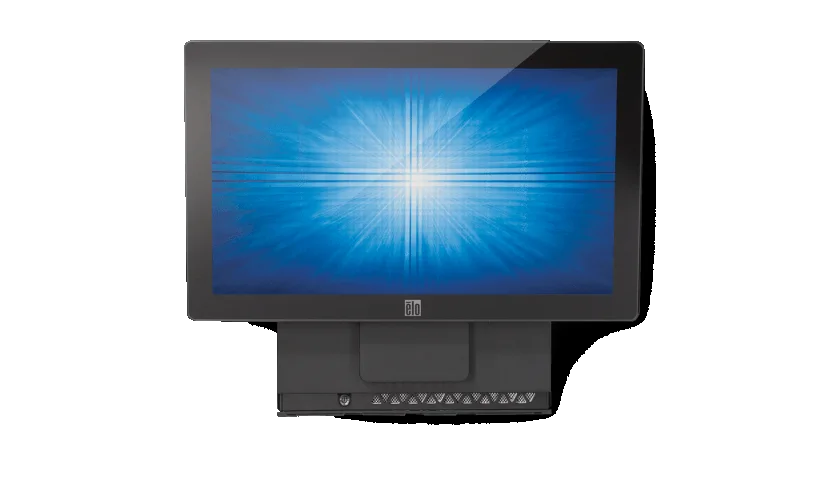

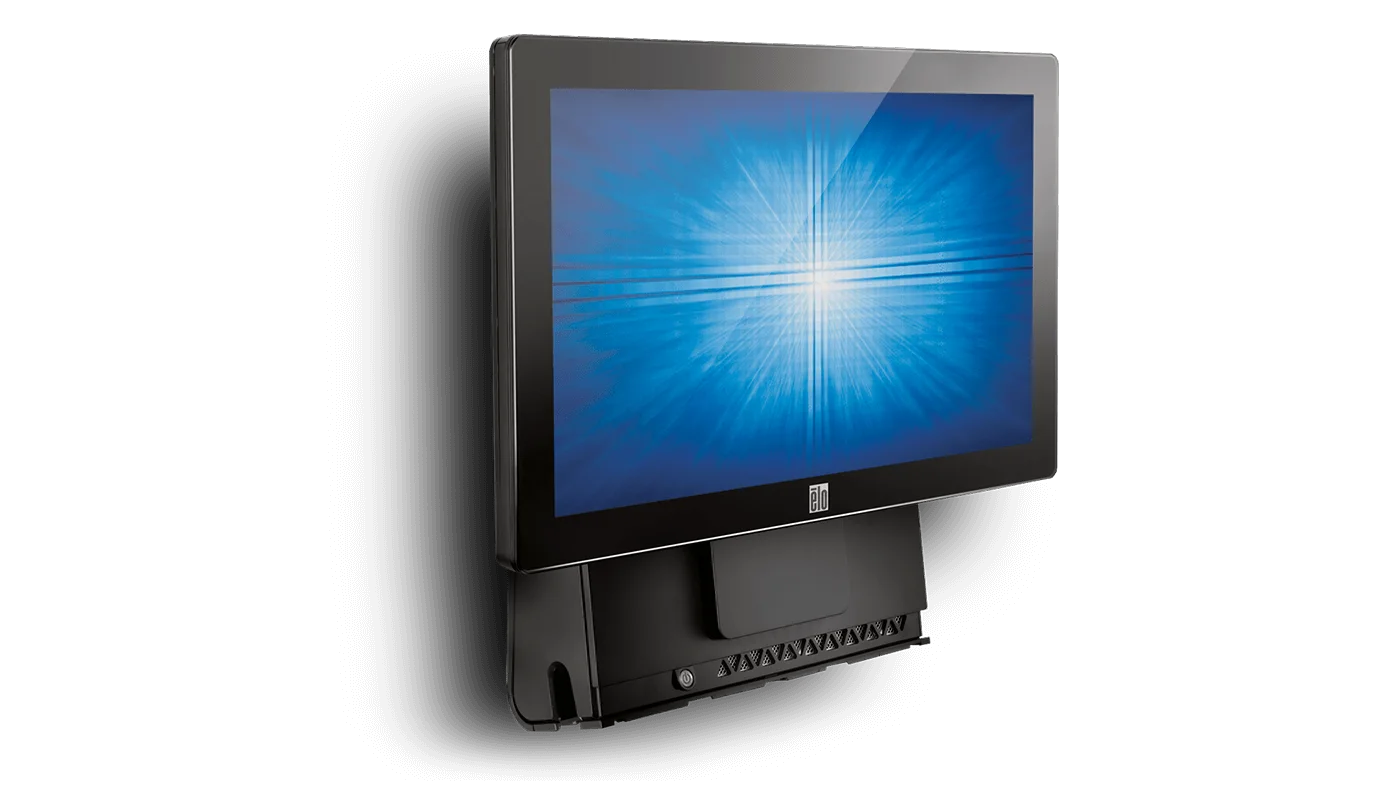

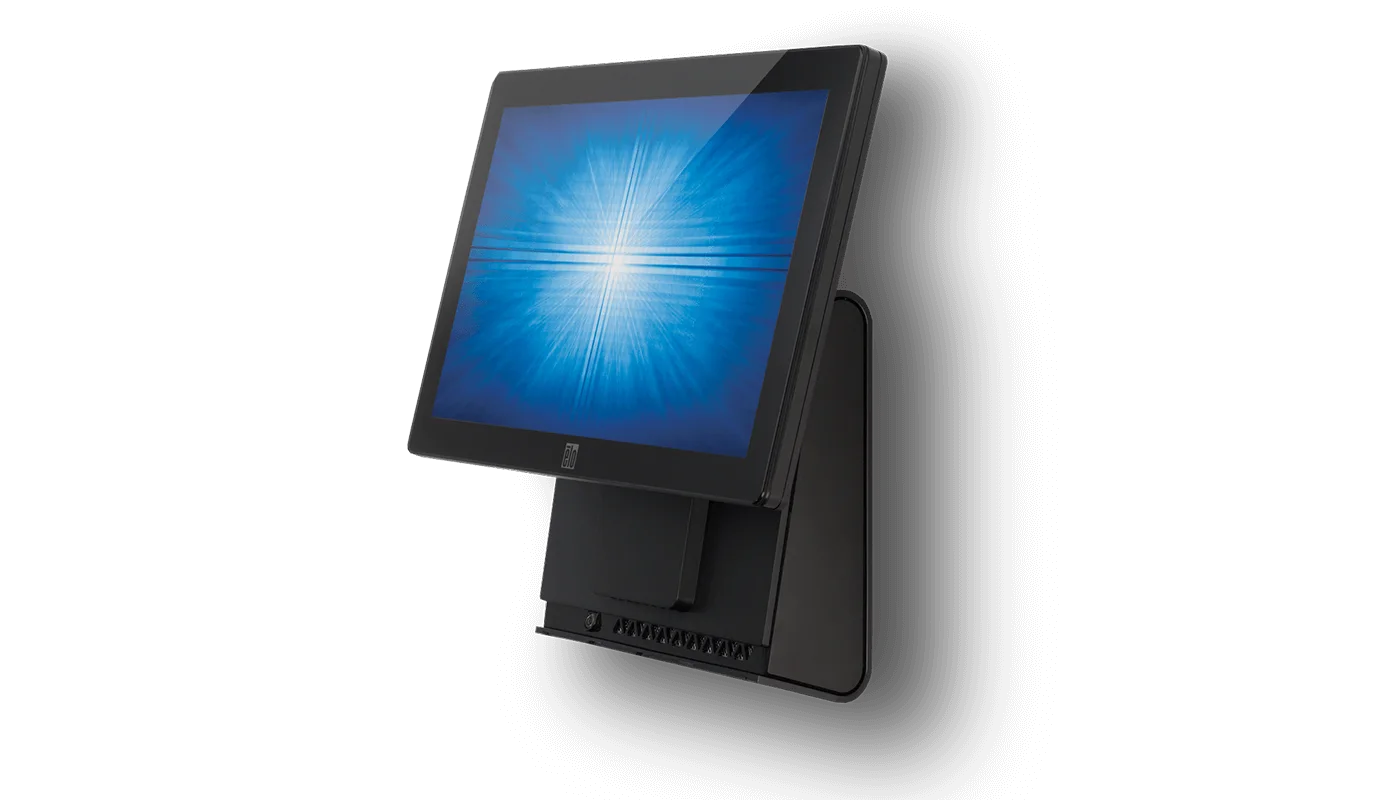

Mounting Options: Wall mount or secure base to tabletop/desktop
Warranty: 3-year
Sealability: Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Other Features: Serviceable internal components; Threaded holes on bottom of base for mounting; Removable base; Kensington security lock
What's in the Box: E-Series Touchcomputer, North America Power Cord; EU Power Cord; Power Adapter - 90W; Extended cable cover, Quick Installation Guide (QIG)
E-Series AC Power Cables Ordering Information: North America p/n: E042259; Europe/Korea p/n: E690013; China p/n: E030476; United Kingdom p/n: E235317; Taiwan p/n: E637694; Argentina p/n: E98419; Japan p/n: E109553; Japan 3-pin to 2-pin adapter p/n: E351985
Replacement DC Power Supply: 19V DC power brick (P/N: E395350) is available at additional cost
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E122229; Customer Display (VFD) – Elo P/N: E122426; 7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®); Dallas Key Kit – Elo P/N E055348
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Rear Facing Display Mount – Elo P/N: E122610

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: E-Series 2
Status basis: elotouch.com lists it as replaced by E-Series 2
