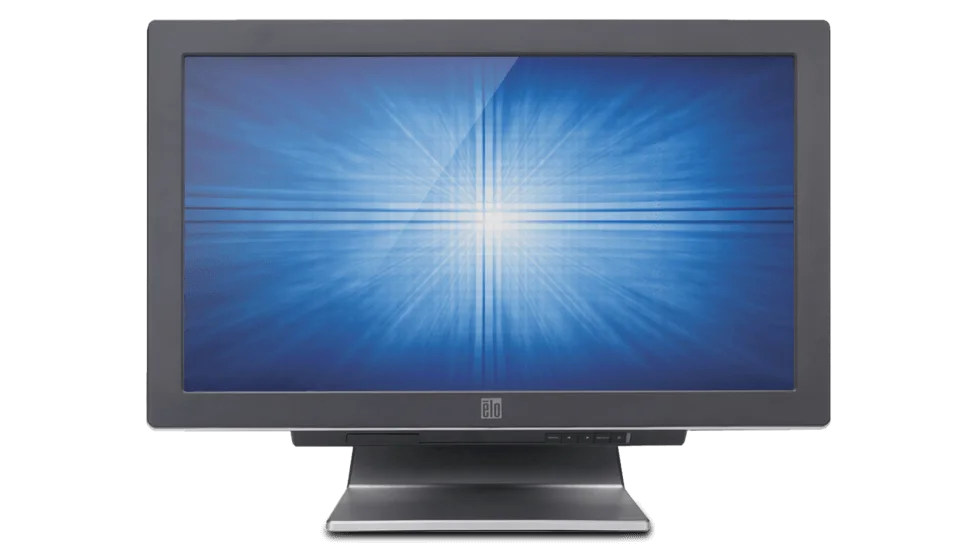

C-Series 21.5-inch AiO Touchscreen Computer by Elo

Elo Touch · Panel PC

Elo Touch C-Series 21.5-inch AiO Touchscreen Computer

Operating systemWindows Pro 7*
Display21.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to sub-bezel (IntelliTouch ZB Dual Touch); Touchscreen sealed to LCD (all); IPX1

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

The Elo C-Series Rev.B 22-inch all-in-one (AiO) touchscreen computer provides a highly configurable, ruggedized system available with Elo’s industry leading IntelliTouch™ surface acoustic wave (SAW) with zero-bezel dual-touch capacity. Featuring a fan-cooled 3rd Generation Intel Core-i3, 3.3GHz i3-3220 processor with HD2500 graphics, the 22-inch C3 has been developed to meet the demanding needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, Internet access sites and mobile kiosks.

With your choice of connectivity, serviceability with easy access to key components, and a choice in processing power, Elo’s 22-inch C-Series AiO brings flexibility required for many applications.
An array of field-installable peripherals, spill-resistant sealing, and a full range of standard of input/ output port connections make the C-Series both versatile and powerful.
The 22-inch C-Series delivers superior quality and reliability. Like all Elo products, the C-Series goes through extensive reliability testing (over 20 tests) to deliver 50,000 MTBF and is backed by our 3-year standard warranty.
"Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options

Specifications

Technical

Part Number(s): IntelliTouch ZB i3 Win Pro7 (Worldwide) - E568461
Enclosure Color: Black
Touch Technology & Capacity: SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch
Processor: Intel Core i3 3.3GHz 3220 3MB Intel Smart Cache; 5 GT/s Direct Media Interface (DMI)
Graphics: Intel HD Graphics 2500
BIOS: AMI
Memory (RAM): 2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots; (Expandable to 8GB maximum2 on 2 slots)
Hard Disk Drive: 320GB 2.5" 5400RPM Advanced Format (4K) SATA HDD; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Chipset: Intel H61 Express
RAID: X5 & X7 Models: RAID 0 / RAID 1
TPM: X5 & X7 Models: TPM 1.2
Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 18.8" x 10.6" / 476.6mm x 268.1mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 16.7 million
Brightness (typical): LCD panel: 250 nits; IntelliTouch ZB DT: 225 nits
Response Time-total (typical): 5 msec
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
USB Ports: 6 x USB 2.0 (4 on I/O, 2 x USB Front Access); Additional internal ports available for optional Elo peripherals
Serial Ports: 2 x NATIVE RS-232 Serial (standard)
Ethernet Port: 1 x LAN RJ45 (Gigabit)
Wireless: Optional USB wireless kit available (802.11b/g/n)
Cash Drawer Port: Built-in 12V/24V Cash Drawer Port (24V default; selectable via jumper)
Additional Video Out: 1 x 2nd VGA out port
Audio Ports: 1 x 3.5mm line-in; 1 x 3.5mm line-out; 1 x 3.5mm mic-in
Speakers: Two 2W internal speakers
OS: Windows Pro 7*
Languages: Windows XP – 24 Language groups; Windows 7 – 35 Language groups
Power Supply: External 12VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power:150W (Max Draw: 170W)
Power Consumption (Typical): 87W
Max Touchcomputer Dimensions With Stand: 21.2" x 14.3" x 12.7" / 540mm x 364mm x 323mm
Max Touchcomputer Dimensions Without Stand: 21.2" x 13.1" x 3.8" / 540mm x 333mm x 98mm
Shipping Box Dimensions: 26.0" x 20.3" x 14.2" / 660mm x 516mm x 360mm
Weight (with stand): 20.7 lbs / 9.4 kg
Weight (without stand): 16.8 lbs / 7.6 kg
Shipping Weight (With stand): 29.3 lbs / 13.3 kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL, cUL, FCC, TUV, CE, CB, CoC, Argentina S-mark (power brick only), RCM, VCCI, IPX1, Energy Star 6.1
Real-Time Clock: lithium-ion battery
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Sealability: Touchscreen sealed to sub-bezel (IntelliTouch ZB Dual Touch); Touchscreen sealed to LCD (all); IPX1
Power Cables: North American and European power cables included
What's in the Box: Touchcomputer, power adapter, US power cable, EU power cable, cable cover locking screw, quick installation guide (QIG), drivers and user manuals DVD
Upgrade Options: 4GB DDR3 SO-DIMM Memory Kit; 2GB DDR3 SO-DIMM Memory Kit; Second HDD/SSD Mounting Bracket Kit Only; Second 320GB Hard Disk Drive (HDD) Kit
Expansion Options: Wireless Adapter (USB, 802.11b/g/n)
Replacement DC Power Supply: NEW: 150W Standard Power Supply Kit, Efficiency rated Level VI - Elo P/N: E454252 (available at an additional cost)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E545781; Fingerprint Reader (FPR) – Elo P/N: E375206; Customer Display (2x20 VFD) – Elo P/N: E879762; Customer Display (VFD) – Elo P/N: E122426; 7" LCD Customer-facing Display – Elo P/N:E807955 (without touch) - *Requires POLE MOUNT (E038989)
Stands, Mounts & Kits: Rear Facing display Pole Mount Kit – Elo P/N: E750095
*Windows 7 License: Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. If your system has a Windows 10 license sticker, then your system includes this feature and, subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
