Elo Touch · Accessory

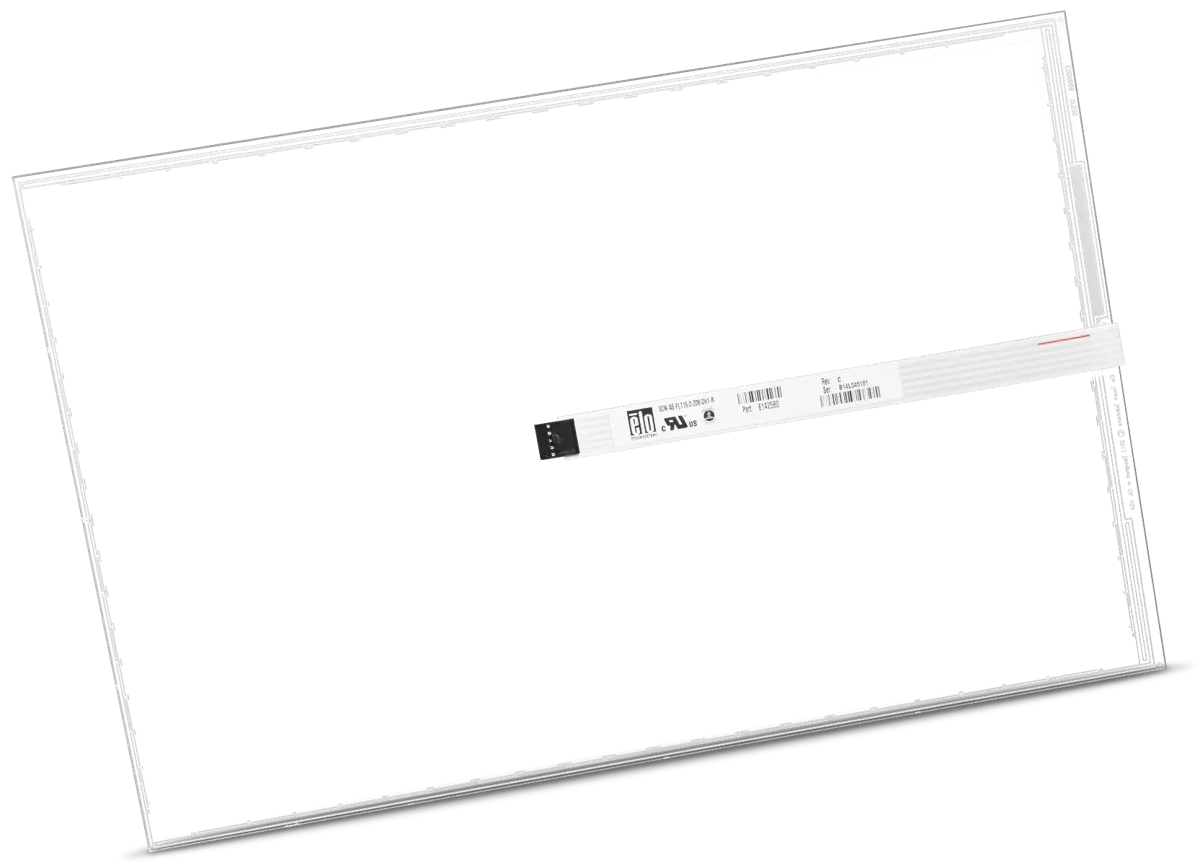

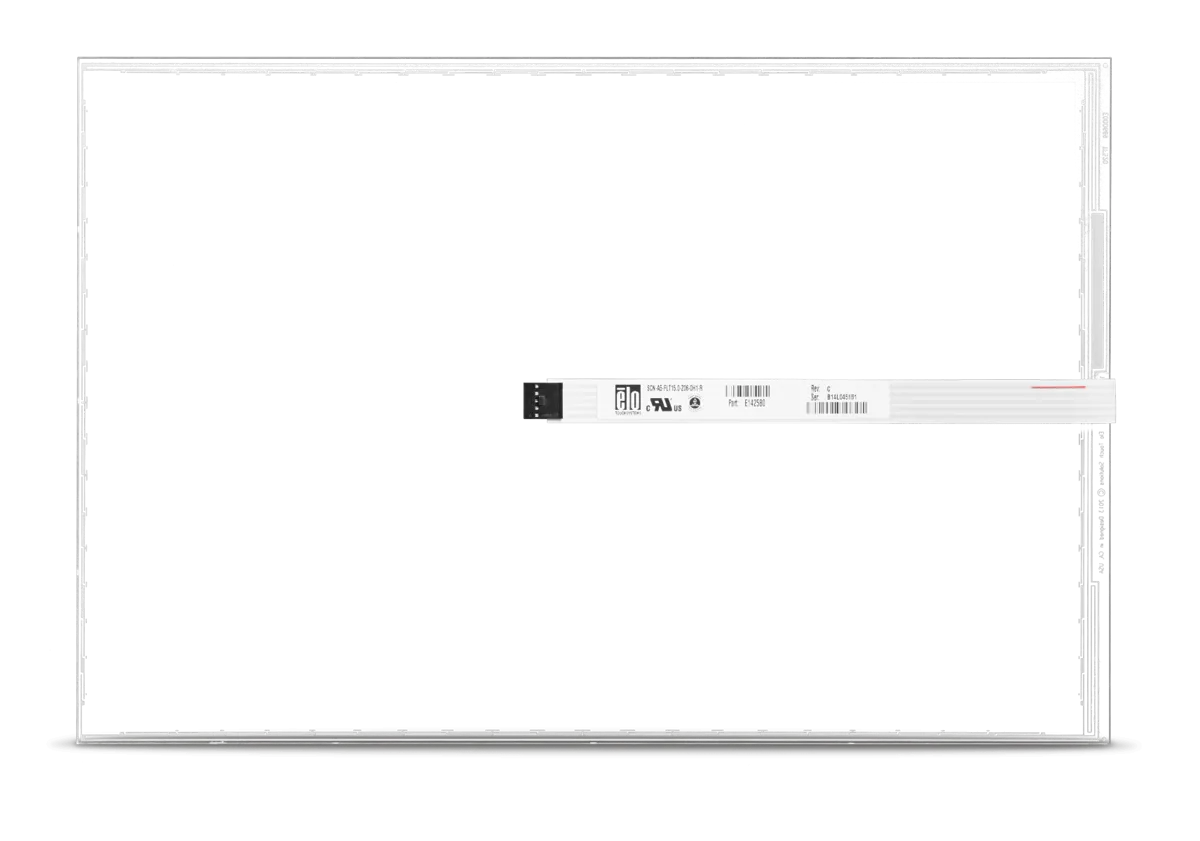

Elo Touch AccuTouch™ 5-Wire Resistive, Bezel
Overview AccuTouch touchscreens are based on proven five-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The screens work with standard Elo controller/chip solut
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Technology
- 5-Wire Resistive (AccuTouch®)
- Number of Touches
- Single Touch
- Input Methods
- Finger Gloved hand Passive stylus
- Dimensions
- controller dimensions in inches
- Light Transmittance
- HL products: 80% ±5% at 550nm wavelength
- Surface Treatment
- Clear
- Durability
- AccuTouch Zero-Bezel: meets pencil hardness 4H per ASTM D3363
- Sealability
- Can be sealed to meet NEMA 4 and 12 and IP 65 standards
- Operating temperature
- 1. -10°C to +50°C & 90% Relative Humidity (non-condensing on interior of screen) 2. -10°C to +60°C & 50% Relative Humidity (non-condensing on interior of screen) 3. -10°C to +70°C & 10% Relative Humidity (non-condensing on interior of screen)
- Operating Environment
- Designed for indoor and semi outdoor environments. Not intended for applications with direct sunlight/UV exposure.
- Storage temperature
- Low temperature: -40°C Temperature-Humidity (noncondensing on interior of screen): 1. 50° C and 90% Relative Humidity for 10 days, 2. 60º C and 50% Relative Humidity for 10 days or 3. 70º C and 10% Relative Humidity for 10 days.
- Humidity
- 90% RH at max 50°C
- Warranty
- 5-year
- Controller Cables
- Serial cable: P/N D16890-000 USB cable: P/N D38640-000 Dual serial/USB cable: P/N D40022-000
