Elo Touch · Accessory
Elo Touch AccuTouch™ 2218 Series Controller

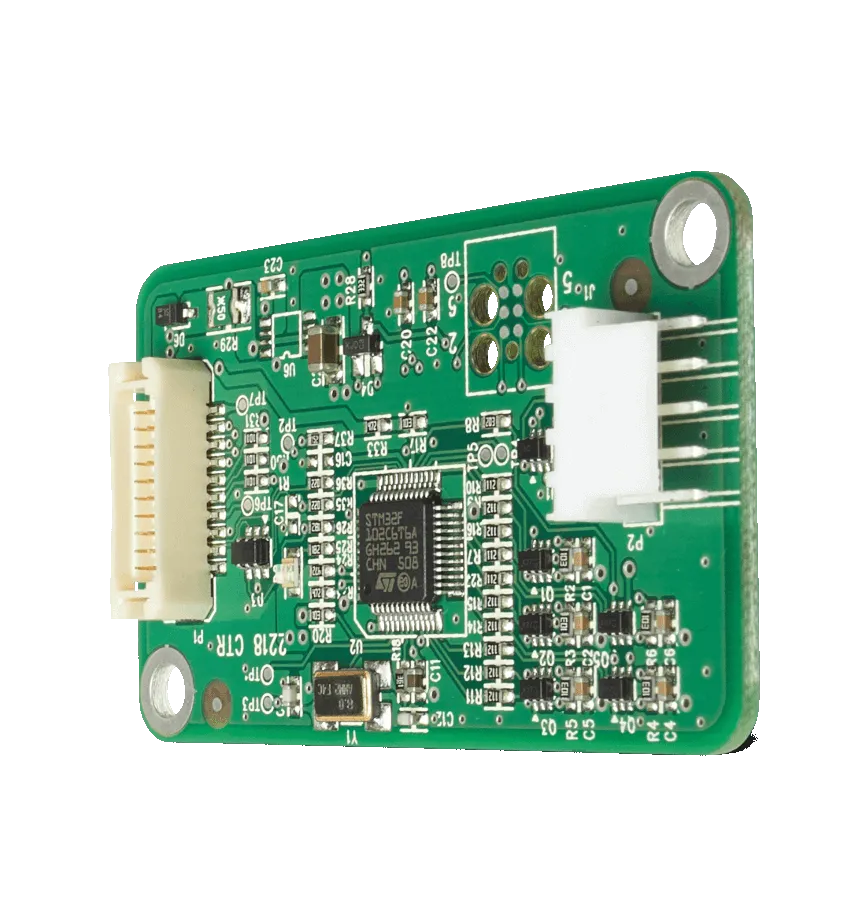

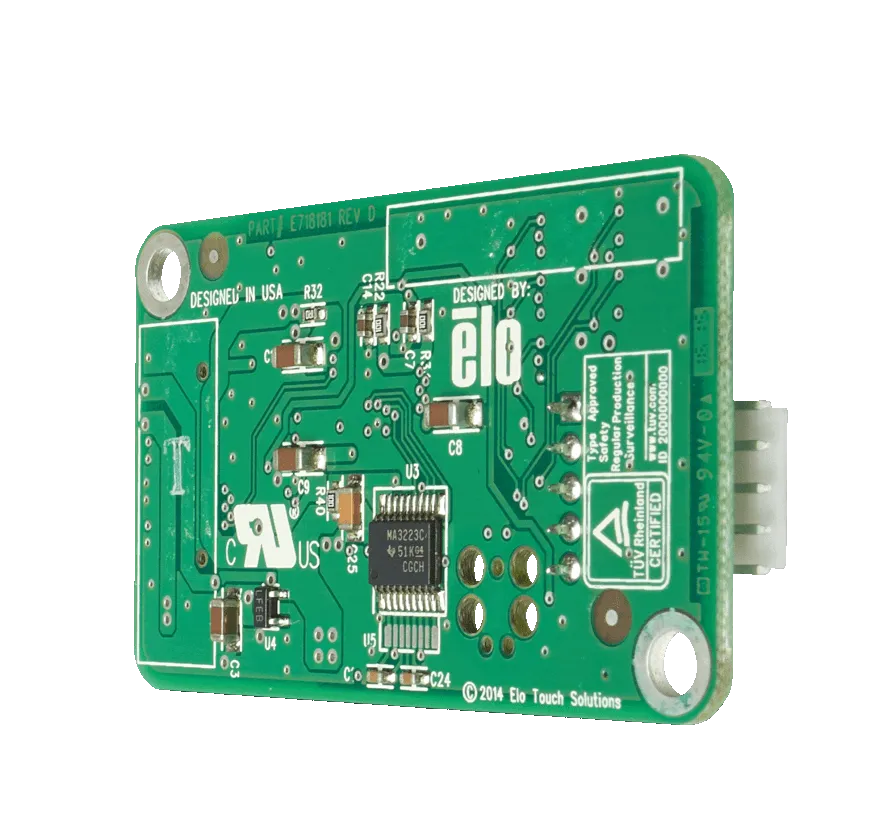

Overview The Elo Touch Solutions 2218 series controller is designed to work specifically with AccuTouch resistive touchscreens. Building technology with coordinating components enables a much smoother design and user experience.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Part Number(s)
- E329179
- Technology
- 5-Wire Resistive (AccuTouch®)
- Number of Touches
- Single Touch
- Input Methods
- Finger Gloved hand Passive stylus
- Dimensions
- 60mm x 35mm x 8mm
- Surface Treatment
- Clear
- Charging / power
- 5V +/- 10%
- Report Rate
- 10ms
- Baud Rate
- For RS232: 9600 (default) and 19200
- Current - Operating Mode
- 25mA Typical
- Operating temperature
- -40°C to 85°C
- Storage temperature
- -65°C to 125°C
- Humidity
- 10% to 90% RH, (Non Condensing)
- Warranty
- 2-year
- Controller Cables
- Serial cable: P/N D16890-000 USB cable: P/N D38640-000 Dual serial/USB cable: P/N D40022-000
- Resolution
- Touchpoint density is based on controller resolution of 4096 x 4096
- Temperature/Relative Humidity
- AccuTouch: -20 to 60°C, 90% RH (non-condensing) AccuTouch Zero-Bezel: Oto 50°C, 90% RH (non-condensing)
