Elo Touch · Panel PC

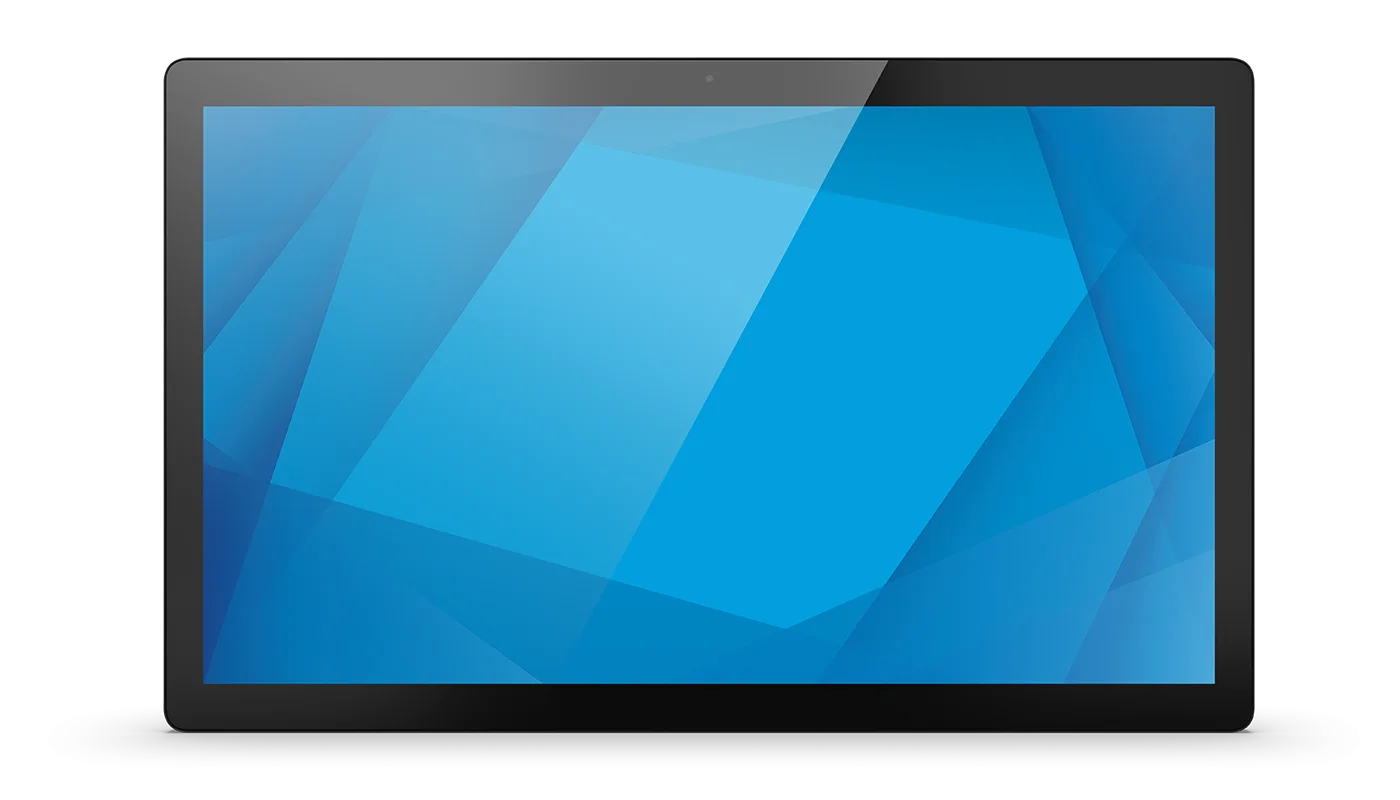

Elo Touch 22-inch I-Series 5 with Android

Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
Display21.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Elo’s I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 22-inch Full HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.

Available in sizes ranging from 10 to 22 inches, easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more. Universal VESA Mount
Say goodbye to the expense of power drops with the POE adapter with the I-Series and a POE-capable network.
The I-Series includes a 8MP camera and 2x digital microphones to support select application requirements.
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.

Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · POS Systems for Restaurants · Price Checkers · Android Price Checkers

Specifications

Technical

Part Number(s): Black - E541463; White - E541651

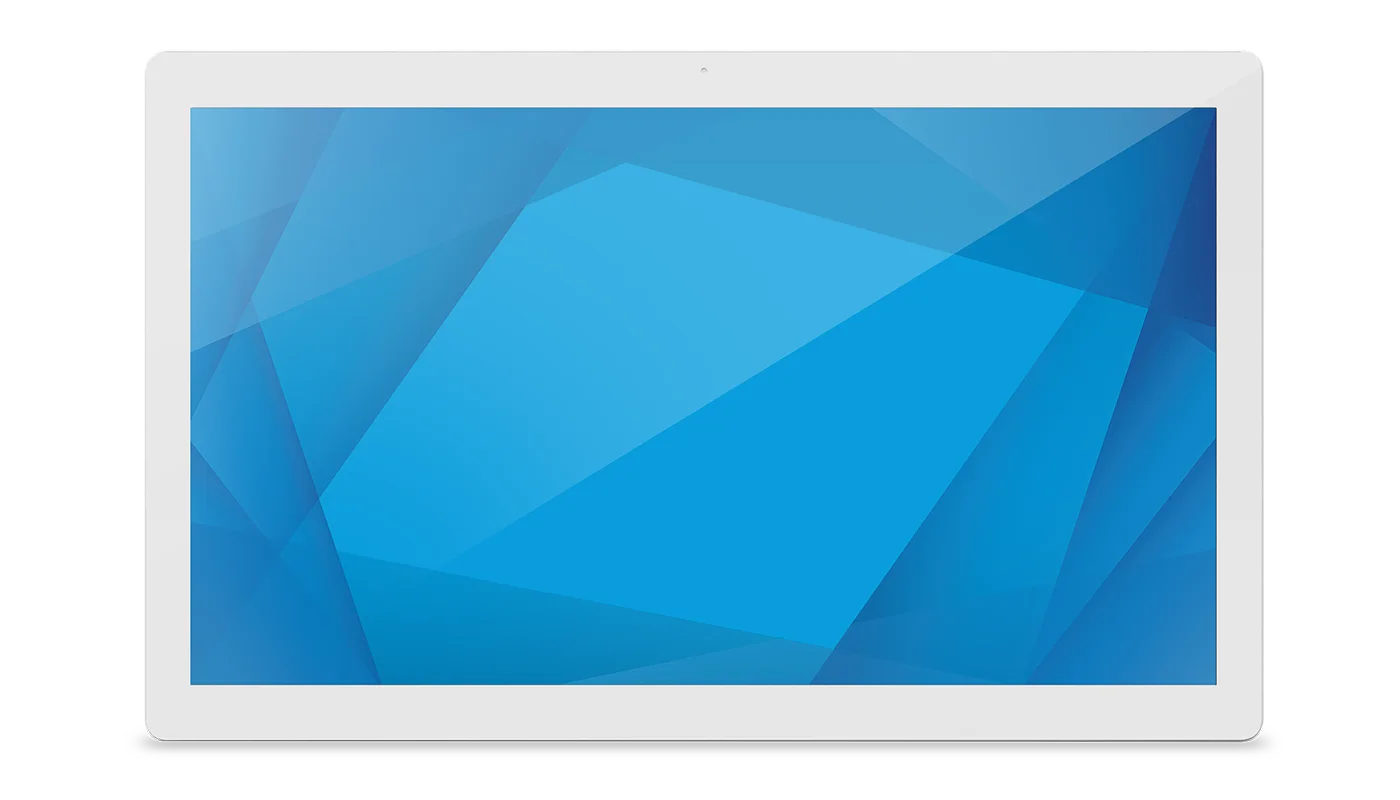

Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Qualcomm Snapdragon QCS6490
Memory (RAM): 8GB
Storage: 64GB
OS: Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 18.74" x 10.54" / 476 mm x 268 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD Panel: 250 nits; TouchPro PCAP: 215 nits
Response Time-total (typical): 14 msec
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining three ports
I/O Ports: 1x USB 3.0 support (900mA); Type C USB output*; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in; *When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
Webcam: 8MP, Max Resolution: 3264x2448 30fps, Auto Focus
Wireless: 802.11a/b/g/n/ac/ax + Bluetooth 5.2
Audio Ports: 2x built-in Digital Microphones
Speakers: 2x 1.5W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): On: 15.2W; Off: 0.2W; Sleep: 2.9W
Power Over Ethernet (PoE): Supported via Elo PoE Device PN: E669163; Reference the I-Series 5 user guide for details.
Dimensions: 20.7" x 12.8" x 1.2" / 524.8 mm x 324.8 mm x 29.7 mm
Shipping Box Dimensions: 23.2" x 6.6" x 15.8" / 590 mm x 168 mm x 400 mm
Weight (Unpackaged): 8.15 lbs / 3.7 kg
Weight (Packaged): 12.78 lbs / 5.8 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KCC (Korea); CCC/SRRC (China); NOM (Mexcio); United Kingdom UKCA
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated

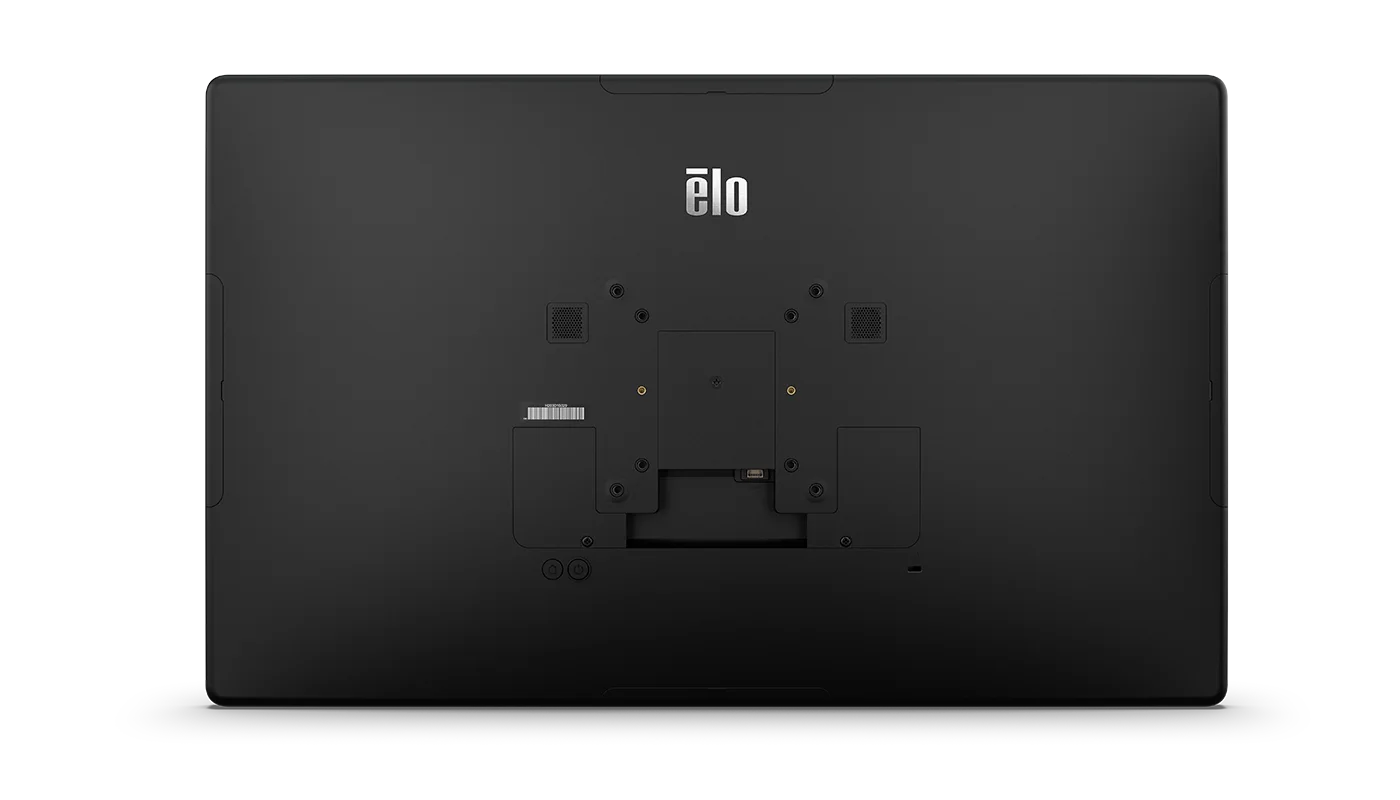

Mounting Options: VESA 75mm and 100mm
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Bi-monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series 5; North American Power Cable; European Power Cable; 1x Power Brick; Quick Install Guide; Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; POE Module Kit - Elo P/N: E669163; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Webcam - Elo P/N: E201494; Expansion Module – Elo P/N: E809509; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Elo Pay 7" - Elo P/N: E863808
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844; Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963; Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162; 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162; Wallaby™ Pro countertop stand – Elo P/N: E989127; Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512; Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705; Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
