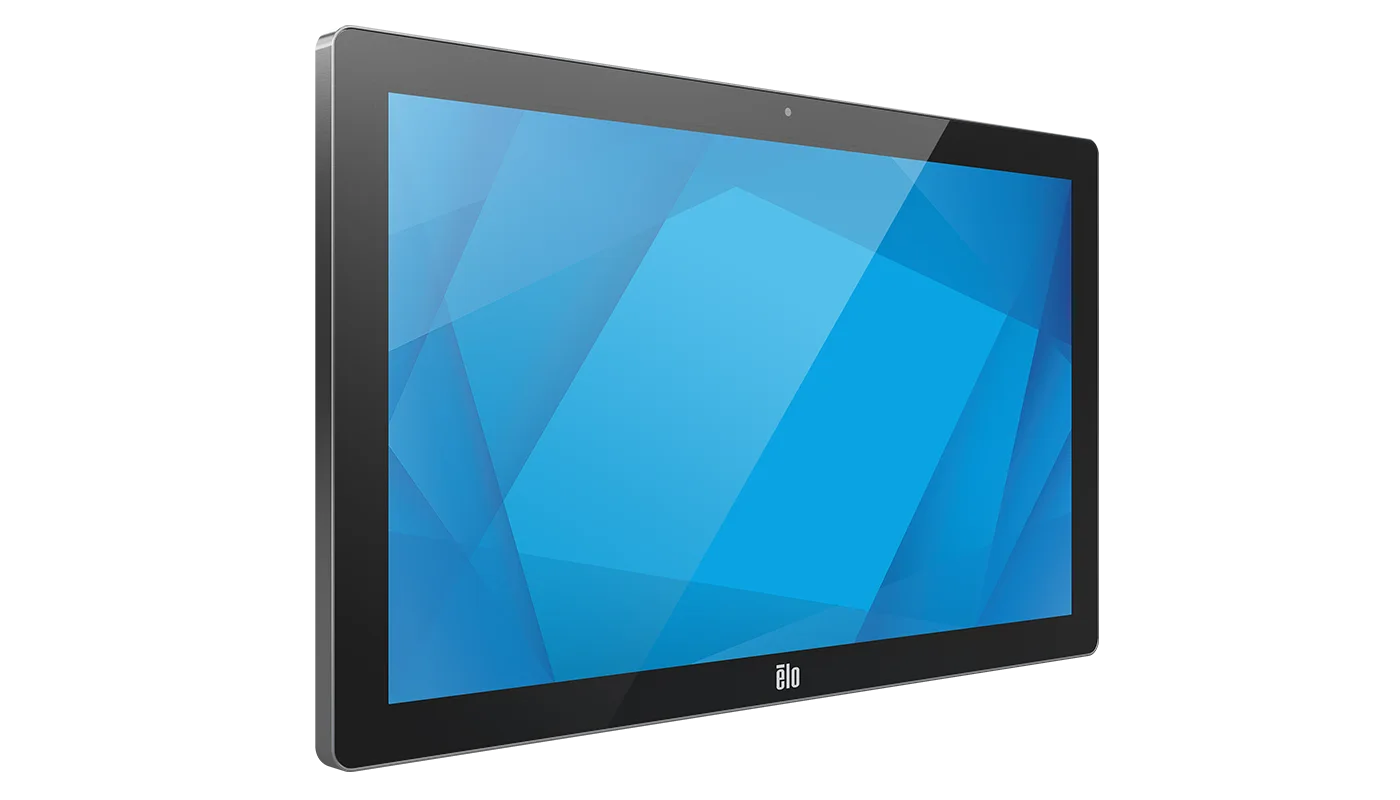

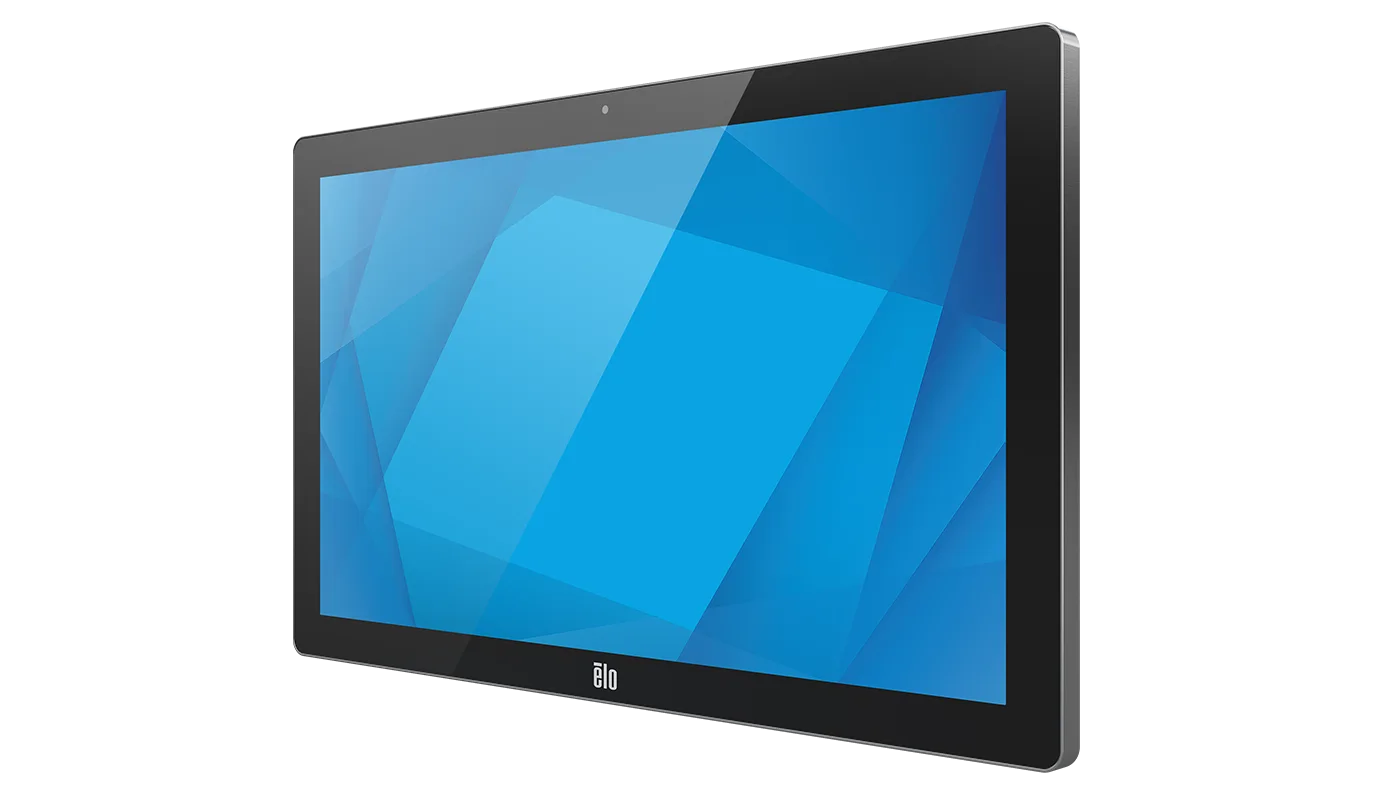

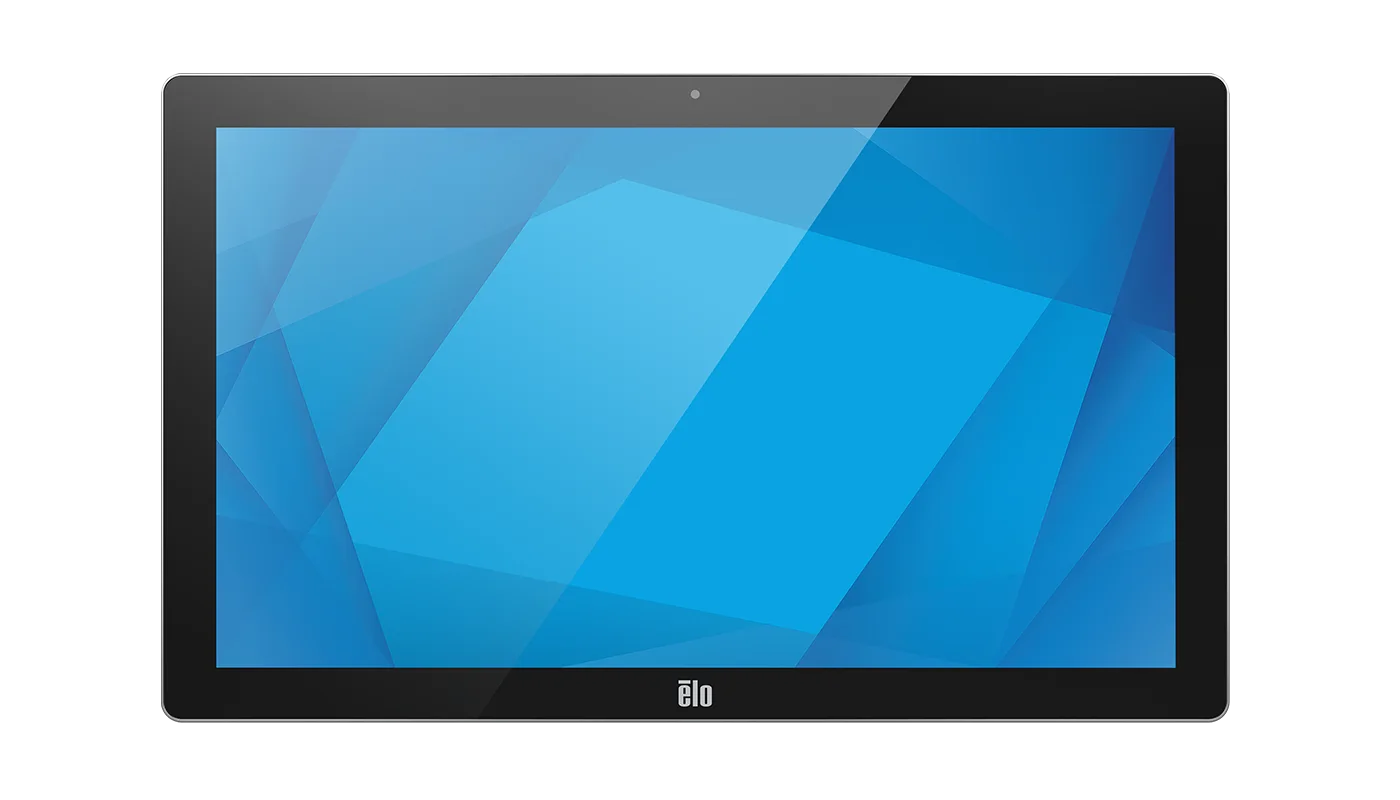

Elo Touch 22-inch I-Series 5 Steel for Android
Elo's I-Series Steel combines the durability of a stainless-steel chassis with the flexibility of Android. Complete with a chemically-strengthened touch display available in 10", 15" and 22" sizes, An
- Operating systemAndroid 14 with Google Play Services (AOSP capable)
- Display21.5'' diagonal, Active matrix TFT LCD (LED)
- SealingFront side IP65; Back side IP54
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
Elo's I-Series Steel combines the durability of a stainless-steel chassis with the flexibility of Android. Complete with a chemically-strengthened touch display available in 10", 15" and 22" sizes, Android 14 OS, integrated PoE and superior IP ratings to protect the device from the demands of industrial environments and commercial kitchens.
- Elo has designed and engineered the I-Series Steel to help ensure optimal versatility for seamless integration into almost any environment.
- Elo's 22-inch interactive display supports up to 10 simultaneous touches with rapid responsiveness.
- With POE, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and an ethernet cable and you are ready to power on.

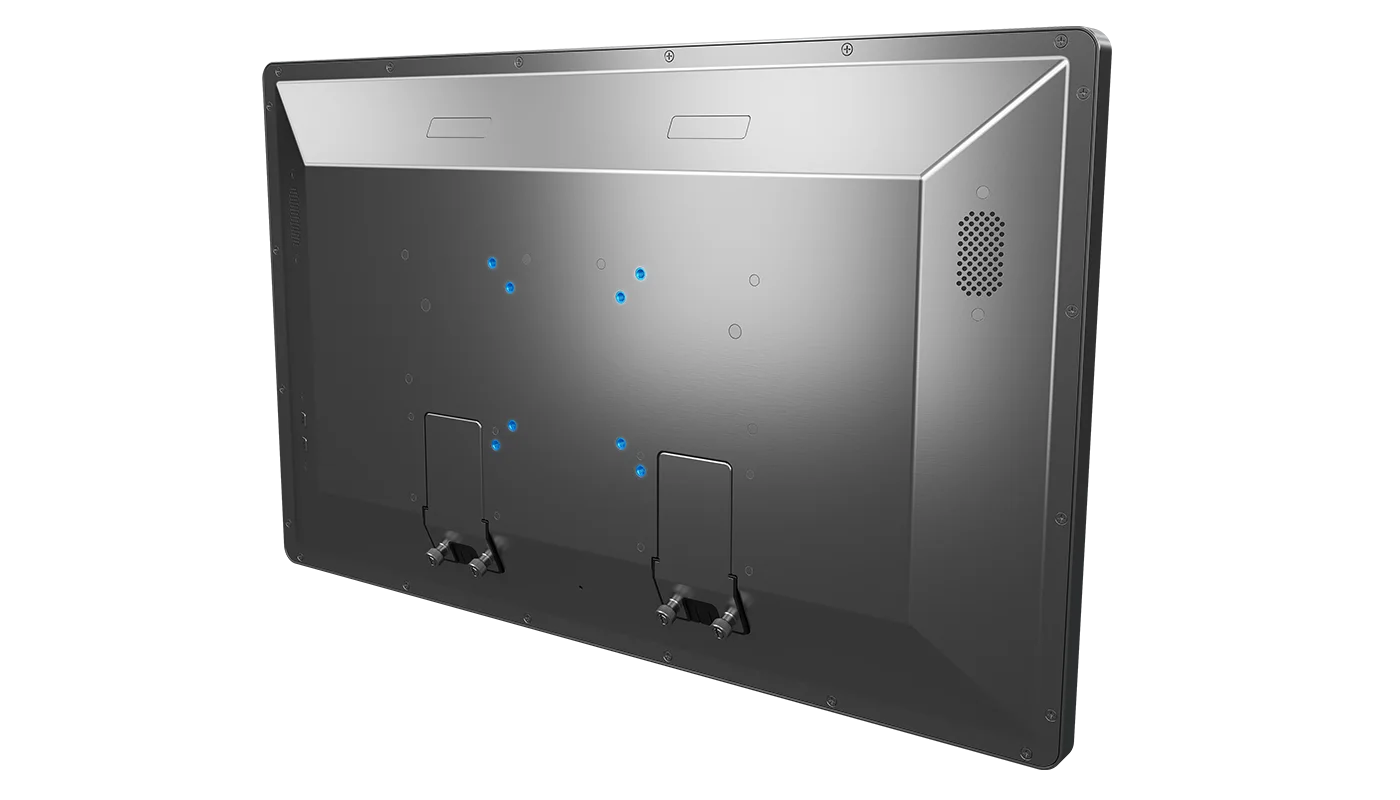

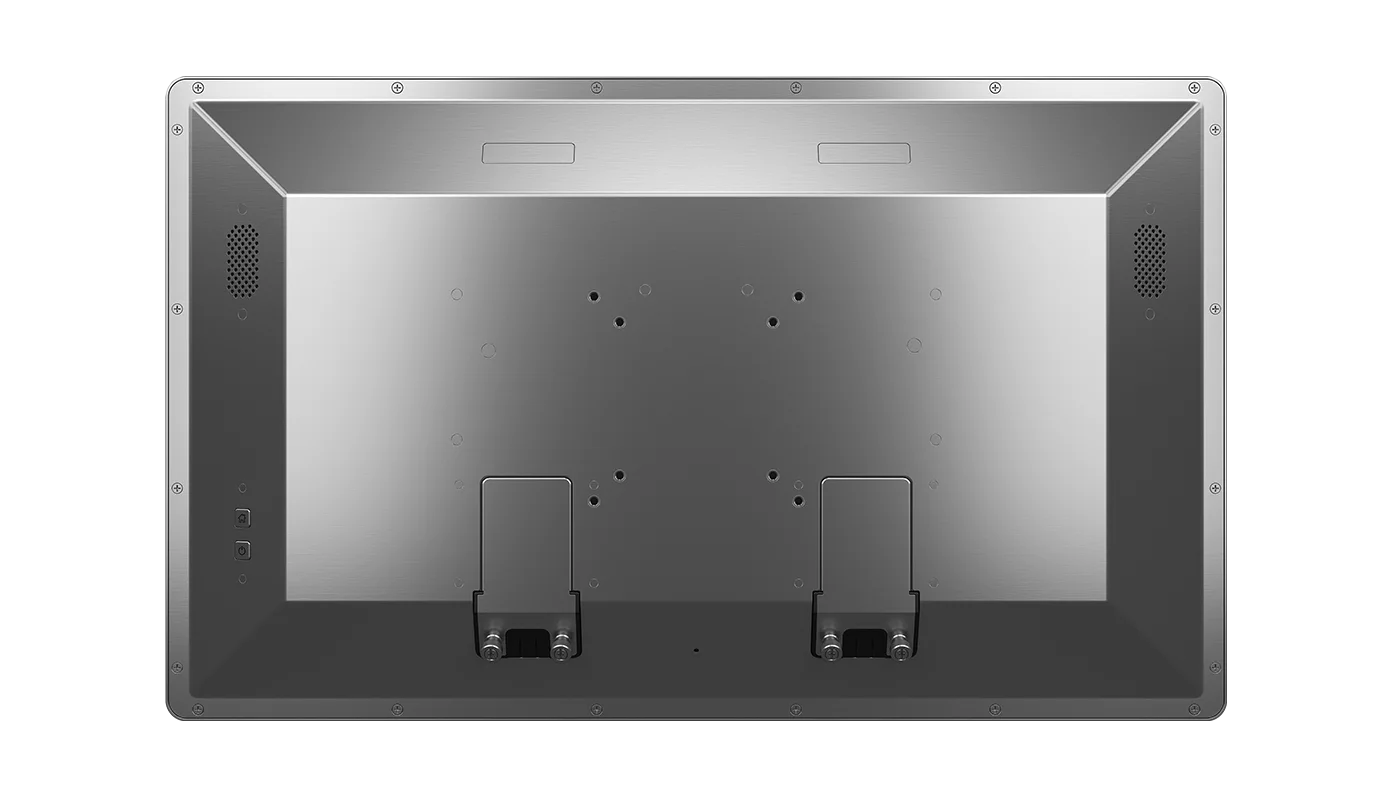

- The industrial-grade I-Series Steel can be mounted in landscape and portrait, providing optimal flexibility for mounting to a wall, pole, arm or any third party compatible VESA mount.
- With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business- friendly way.
Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · POS Systems for Restaurants · Retail POS Systems · Android Retail POS Systems
Specifications
Technical
- Part Number(s)
- With PoE - E176640; Without PoE - E176840
- Enclosure Color
- Stainless Steel
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Thru
- Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Processor
- Qualcomm QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- OS
- Android 14 with Google Play Services (AOSP capable)
- Diagonal Size
- 21.5'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 18.74" x 10.54" / 476 mm x 268 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- LCD Panel: 250 nits; TouchPro PCAP: 215 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Surface Treatment
- Clear
- I/O Ports
- 1x USB-A 3.0 support (900mA); 1x RJ45 Ethernet Giga-LAN (with optional PoE 51W); 1x USB-C output*; 1x DC input; * When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
- Webcam
- 8MP, Max Resolution: 3264x2448 30fps, Auto Focus
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2
- Audio Ports
- 2x built-in Digital Microphones
- Speakers
- 2x 1.5W
- Power Supply
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- On: 15.2W; Off: 0.2W; Sleep: 2.0W
- Power Over Ethernet (PoE)
- Max 51W (for PoE models)
- Dimensions
- 20.98" x 12.75" x 1.52" / 533 mm x 324 mm x 38.68 mm
- Shipping Box Dimensions
- 24.13" x 6.81" x 16.34" / 613 mm x 173 mm x 415 mm
- Weight (Unpackaged)
- 11.44 lbs / 5.2 kg
- Weight (Packaged)
- Without PoE: 18.04 lbs / 8.2 kg; With PoE: 16.5 lbs / 7.5 kg
- Operating Temperature
- 0°C to 45°C / 32°F to 113°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95%
- Ingress Protection
- Front side IP65; Back side IP54
- Regulatory approvals and declarations
- UL/cUL, FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 75mm and 100mm
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package
- Sealability
- Touchscreen sealed to LCD
- What's in the Box
- Without PoE:; I-Series 5 Steel; North American Power Cable; European Power Cable; Power Brick; Quick Install Guide; 2x Cable tie; With PoE:; I-Series 5 Steel; Quick Install Guide; 2x Cable tie
- Stands, Mounts & Kits
- Rear Facing display Pole Mount Kit – Elo P/N: E038989; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E557815
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
