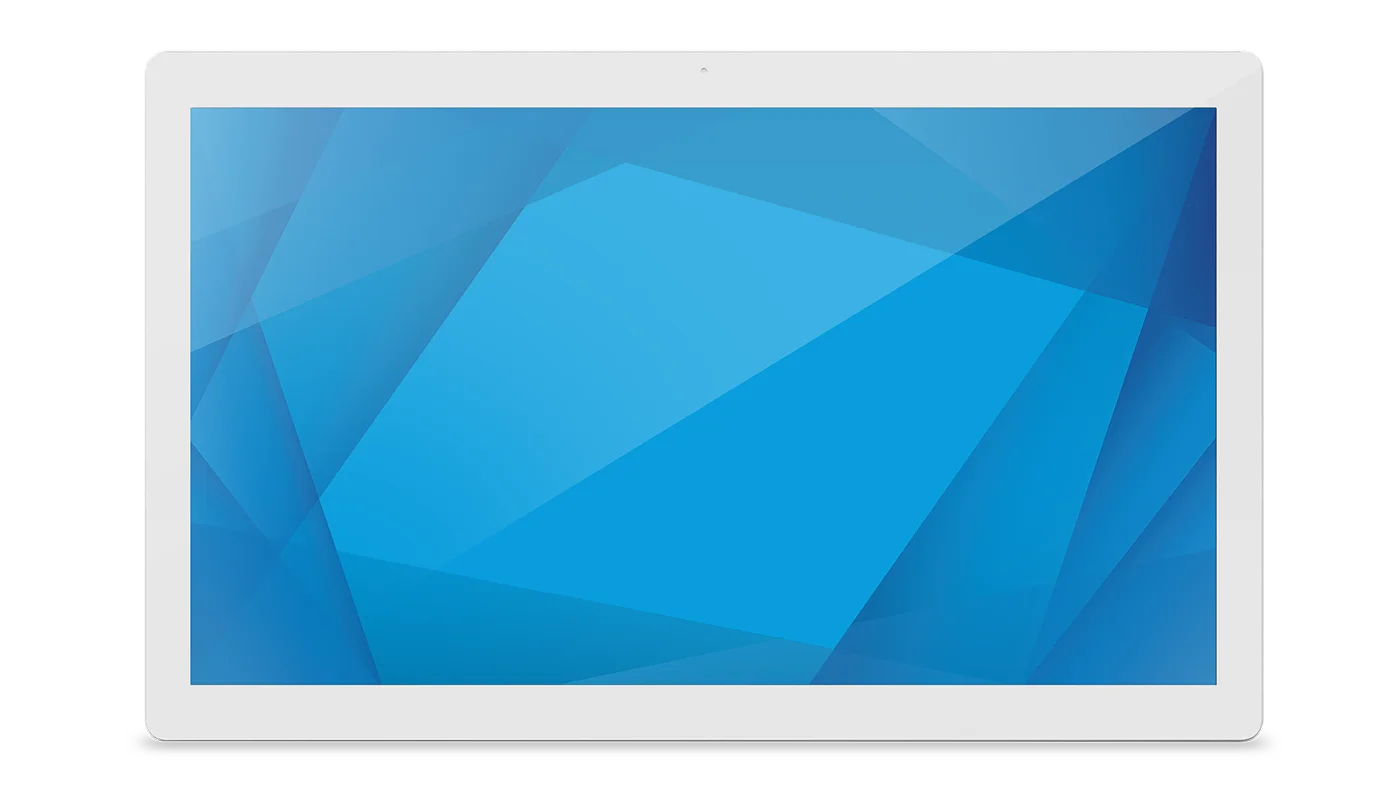

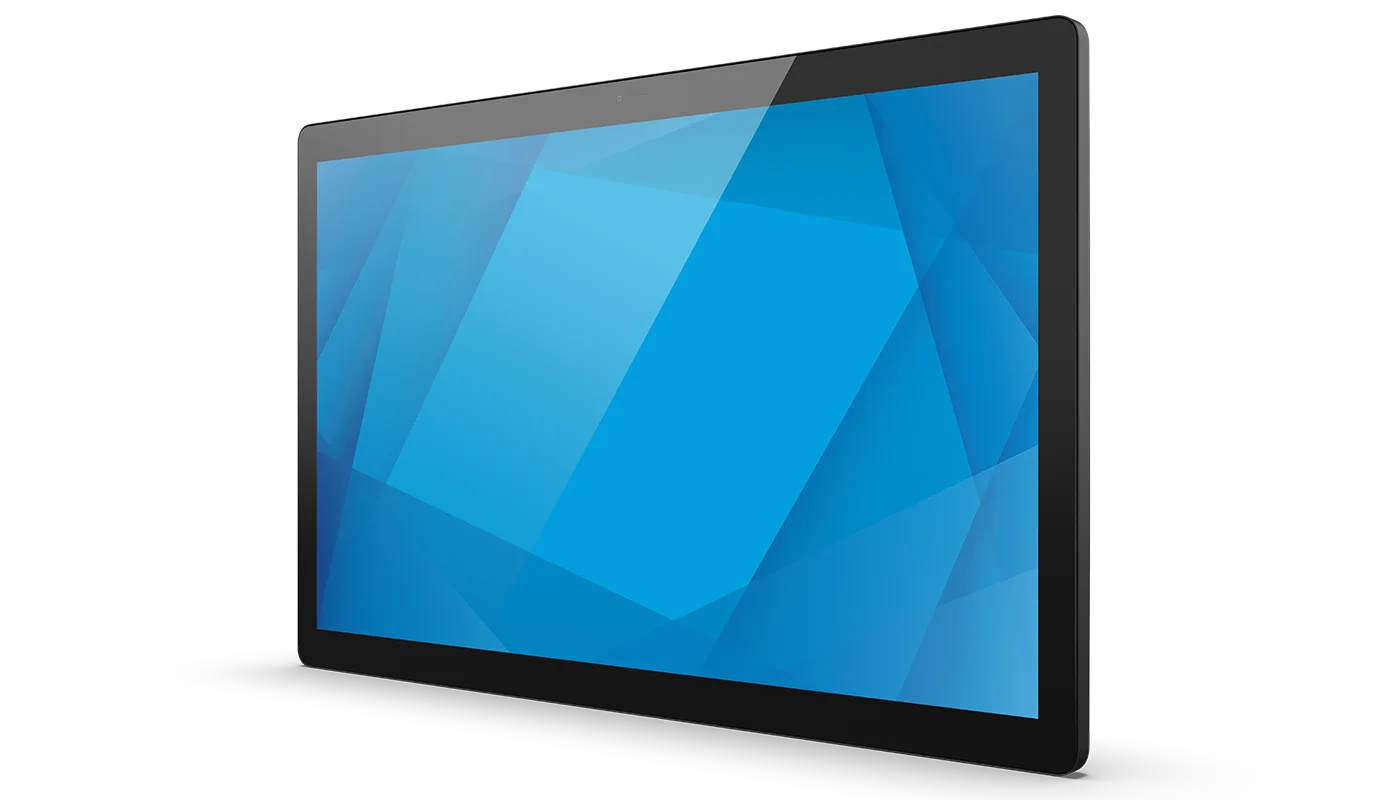

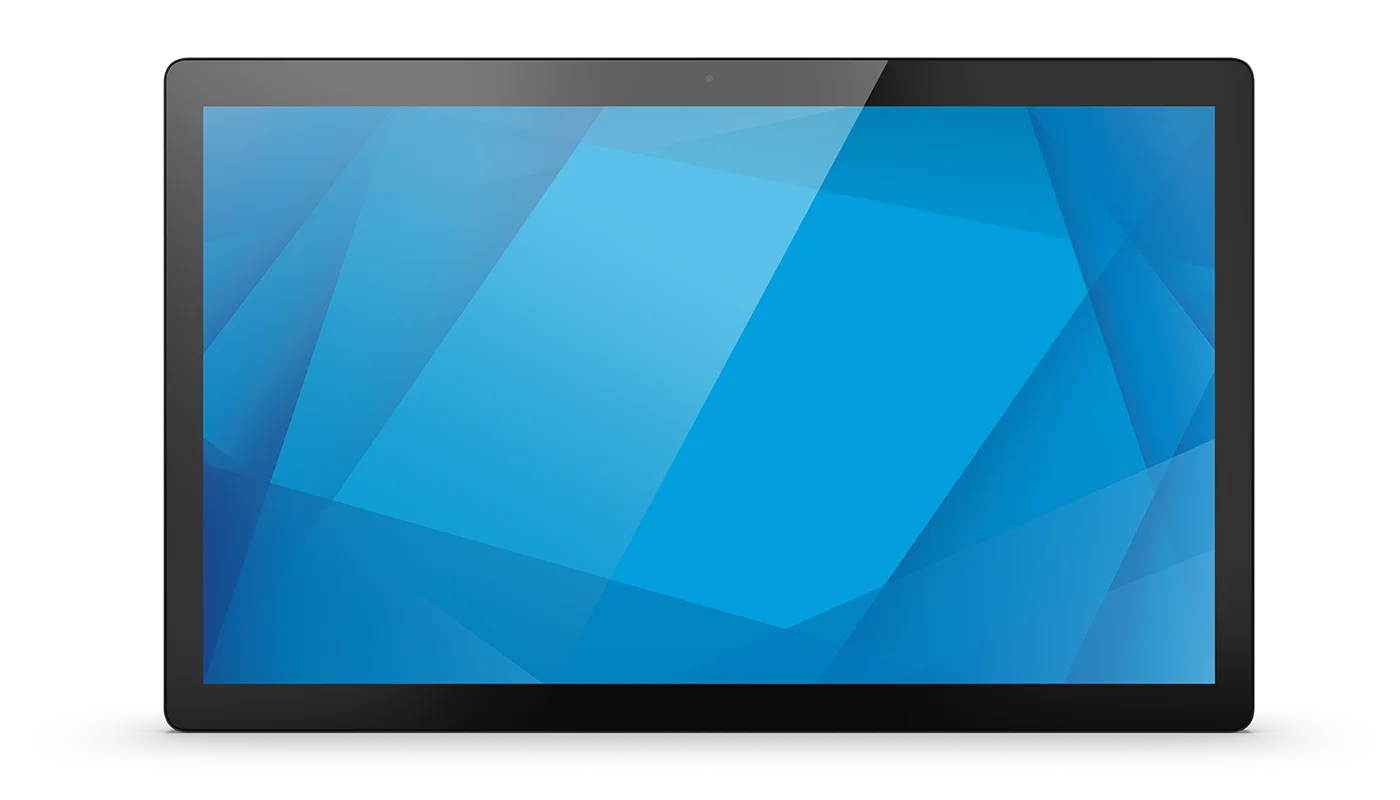

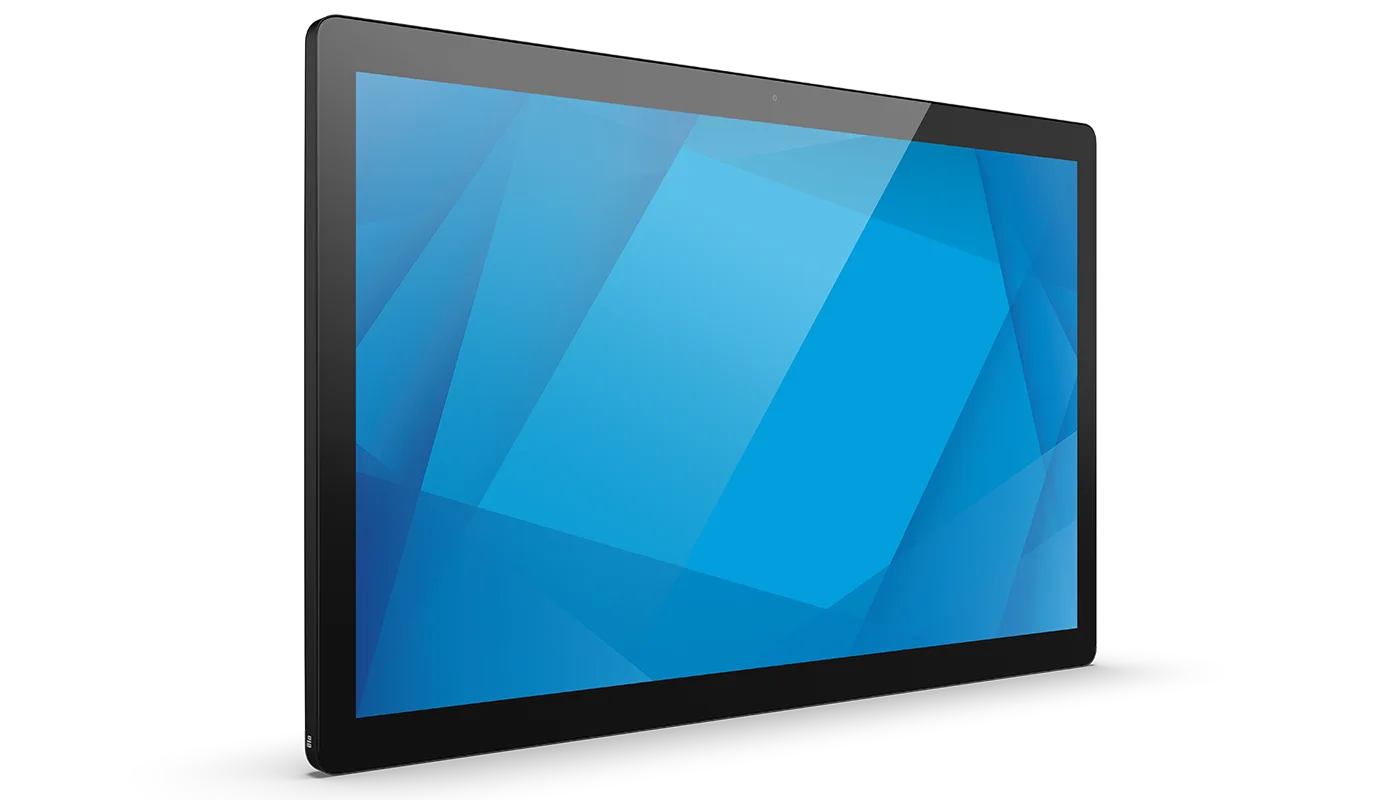

Elo Touch 22-inch I-Series 4 for Android

It’s the next level of awesome. Do more with I-Series 4. Android 10 with GMS 8MP Camera Digital Microphones Faster Wi-fi Performance USB Type-C Compatible 10”

Operating systemAndroid 10 with Google Play Services (AOSP capable); Upgrade to Android 12 and planned upgrade to Android 14…
Display21.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

One of our most popular product lines ever, the I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management.

The modular designed I-Series can be easily configured to fit nearly any use. Elo Edge Connect peripherals allow you to add a variety of accessories including payment devices, cameras, barcode readers and many others. And with the universal VESA compatibility and stand options you get additional flexibility.
Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
Many businesses are tasked with digital transformation and are trying to figure out how to incorporate consumer technologies into their business. With Elo’s approach to Android, including uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors, users gain the advantage of years of development and customizations Elo has made for many global Enterprise customers. Choose Elo to easily deliver the convenience and familiarity of Android in secure, business-friendly solutions.
Easily convert your favorite I-Series into a powerful, industrial-designed POS system that scales with your business.

Specifications

Technical

Part Number(s): Standard Model, Android 10, Black - E390263; Standard Model, Android 10, White - E412818 (MTO); Standard Model, Android 12, Black - E747123; Value Model, Android 10, Black - E391414; Value Model, Android 10, White - E413211 (MTO); Value Model, Android 12, Black - E792655
Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Standard Model: Qualcomm Snapdragon SDA660; Value Model: Rockchip RK3399
Memory (RAM): 4GB
Storage: Standard Model: 64GB; Value Model: 32GB
OS: Android 10 with Google Play Services (AOSP capable); Upgrade to Android 12 and planned upgrade to Android 14 are available with an OS 360 subscription
Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 18.74" x 10.54" / 476 mm x 268 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): Standard Model:; LCD Panel: 250 nits; TouchPro PCAP: 215 nits; Value Model:; LCD Panel: 250 nits; TouchPro PCAP: 215 nits
Response Time-total (typical): Standard Model: 14 msec; Value Model: 5 ms
Contrast Ratio: 1000:1
Viewing Angle: Standard Model:; Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total; Value Model:; Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining three ports
I/O Ports: 1x USB 3.0 support (900mA); Type C USB output; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in
Webcam: Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm; Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: Standard Model: 2x built-in Digital Microphones; Value Model: 1x built-in Analog Microphone
Speakers: Standard Model: 2x 0.8W; Value Model: 2x 2W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
Power Consumption (Typical): Standard Model:; On: 19.8W; Off: 0.4W; Sleep: 4.4W; Value Model:; On: 15.7W; Off: 0.45W; Sleep: 3.4W
Power Over Ethernet (PoE): Supported via Elo PoE Device PN: E413396; Reference the I-Series 4.0 user guide for details.
Dimensions: 20.66" x 12.79" x 1.17" / 524.8 mm x 324.8 mm x 29.7 mm
Shipping Box Dimensions: Standard Model: 23.2" x 6.6" x 15.8" / 590 mm x 168 mm x 400 mm; Value Model: 23.6" x 6.6" x 16.0" / 600 mm x 168 mm x 406 mm
Weight (Unpackaged): Standard Model: 8.4 lbs / 3.8 kg; Value Model: 9.5 lbs / 4.3 kg
Weight (Packaged): Standard Model: 12.4 lbs / 5.6 kg; Value Model: 16.1 lbs / 7.3 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated

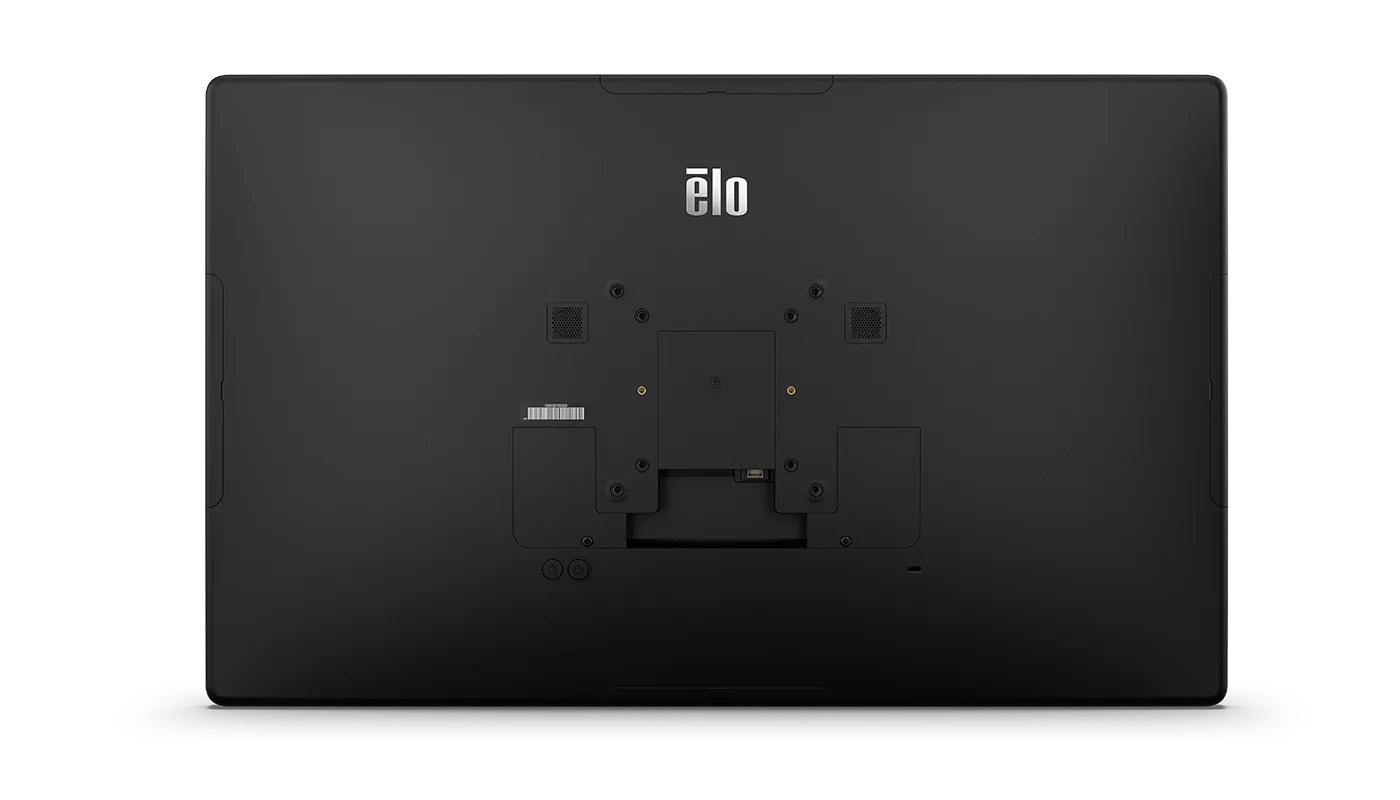

Mounting Options: VESA 75mm and 100mm
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E873133; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series 4; North American Power Cable; European Power Cable; 1x Power Brick; Quick Install Guide; Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (White - SE2707) – Elo P/N: E551946; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (White - SE4720) – Elo P/N: E454122; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; 2D Barcode Scanner (White - SE4107) – Elo P/N: E454318; POE Module Kit - Elo P/N: E413396; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; Expansion Module – Elo P/N: E809509; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844; 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162; Wallaby™ Pro countertop stand – Elo P/N: E989127; Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512; Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705; Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
