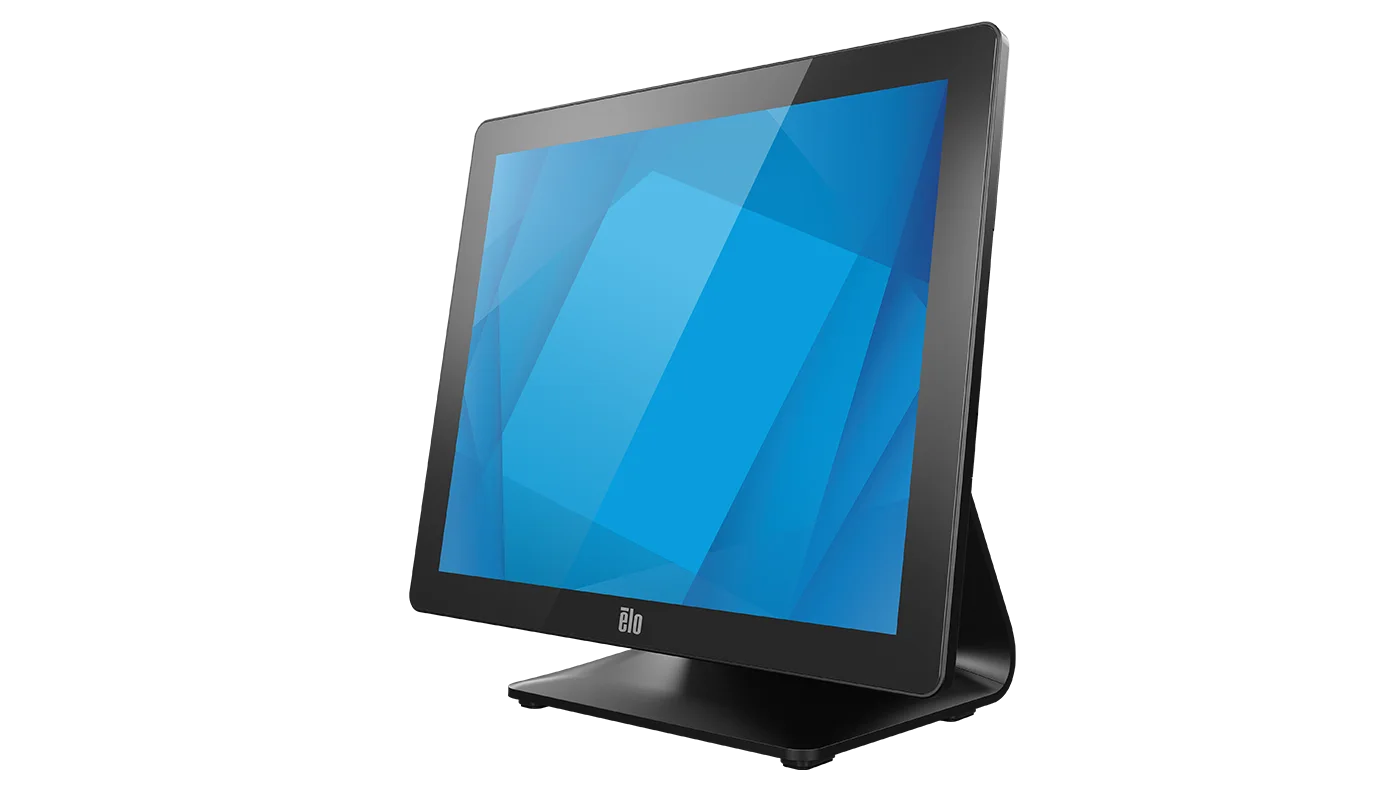

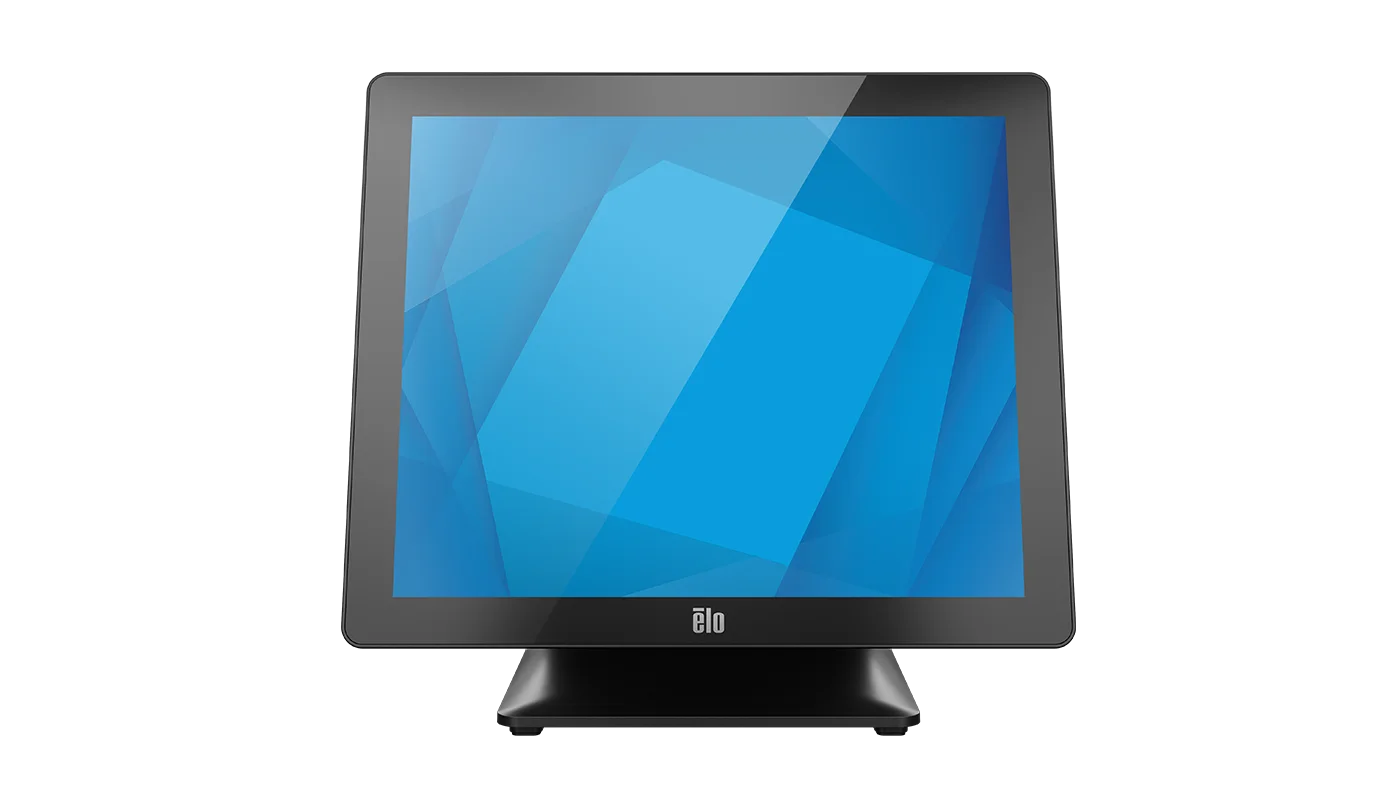

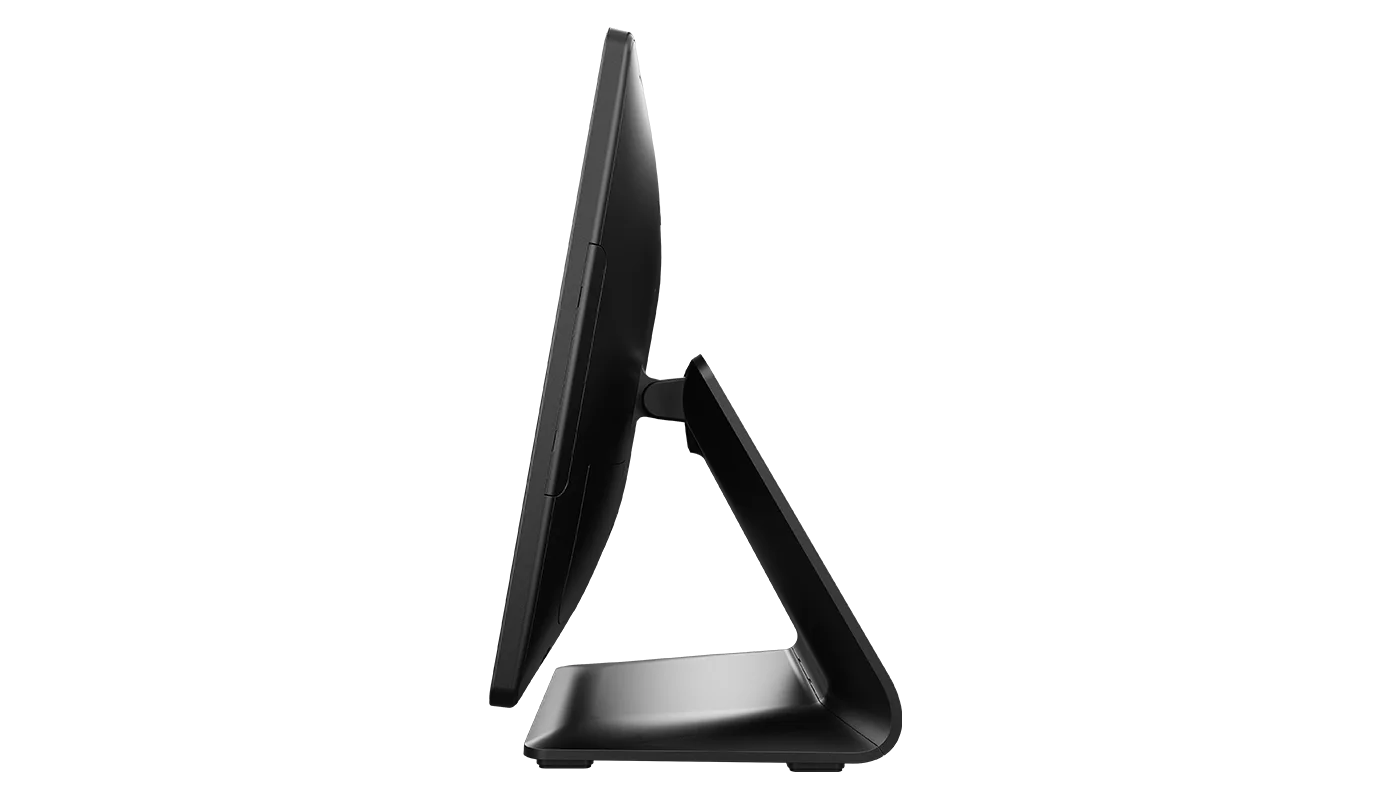

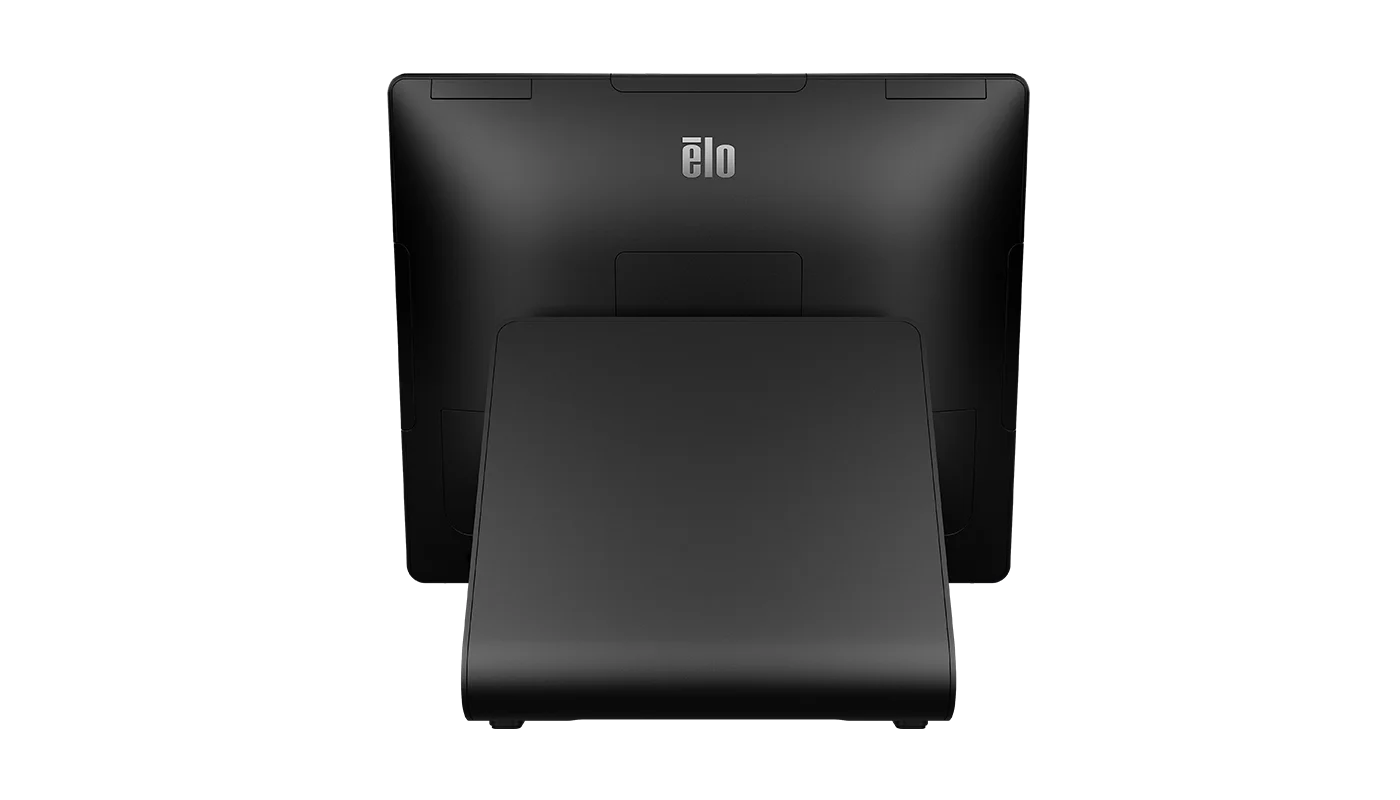

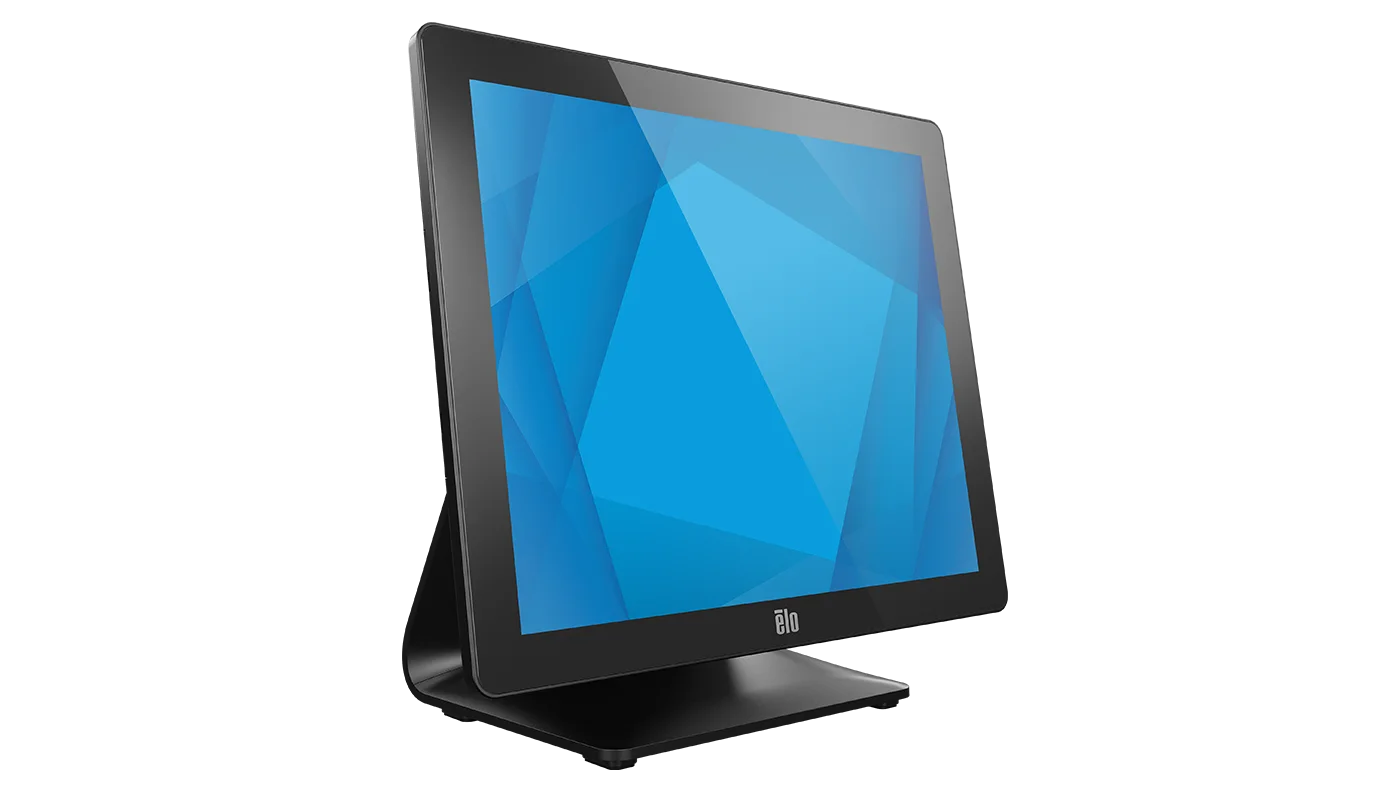

17-inch (5:4) I-Series 3 with Intel by Elo

Elo Touch · Panel PC

Elo Touch 17-inch (5:4) I-Series 3 with Intel

Brilliant and beautiful, interactive platform. 10-touch TouchPro PCAP Fanless, IP54 rated design HD IPS Touchscreen Easy to clean edge-to-edge glass 50,000 MTBF

Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit; Windows 11 IoT Enterprise LTSC 64-bit
Display17'' diagonal, Active matrix TFT LCD (LED)
SealingIP54

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.
Your browser does not support the video tag. Enhanced connectivity for all your accessories.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · POS Systems for Restaurants · Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems · Price Checkers · Intel Price Checkers

Specifications

Technical

Part Number(s): Celeron, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708554; Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand - E427505; Celeron, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708361; i3, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708953; i3, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand - E427699; i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708749; i5, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E709349; i5, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand - E427882; i5, Win10/Win11, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E741189; i5, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E709150; i7, Win10/Win11, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E428081; i7, No OS, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E709537; Looking for a different configuration? Please contact us .
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz); i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0); i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support; i7: Intel Core i7-1265UL Processor (12M Smart Cache, up to 4.80 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
Graphics: Intel UHD Graphics; For i5 & i7 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.
BIOS: AMI
Memory (RAM): Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots); i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots); NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.
Storage: 128GB M.2 PCIe (NVMe) SSD 80 TBW; 256GB M.2 PCIe (NVMe) SSD 160 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM: 2.0
Active Management Technology (AMT): Celeron & i3: N/A; i5 & i7: Intel Active Management Technology
Diagonal Size: 17'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 5:4
Active Area: 13.3" x 10.64" / 337.9 mm x 270.3 mm
Resolution: 1280 x 1024 @ 60Hz
Number of Colors: 16.7 million
Brightness (typical): LCD panel: 250 nits; TouchPro PCAP: 212.5 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
I/O Ports: 1x RJ45 LAN (Gigabit) Port; 4x USB 3.0 Ports; 4x Micro USB 2.0 Ports for Elo Edge Connect peripherals; 1x 24V Powered USB Port; 2x 12V Powered USB Ports; 1x RJ50 Powered Serial Port; 1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting); 1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out); 1x Audio Port (3.5 mm headset jack)
Wireless: 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth: Bluetooth 5.3
Speakers: 2 x 2W internal speakers
OS: No OS; Windows 10 IoT Enterprise LTSC 64-bit; Windows 11 IoT Enterprise LTSC 64-bit
Languages: Windows 10 - 36 Language groups
Power Supply: External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W
Power Consumption (Typical): Without Peripherals*; On Celeron: 33W; On i3: 47W; On i5: 50W; On i7: 54W; Sleep:
Dimensions: 15.49" x 14.61" x 8.09" / 393.4 mm x 371.2 mm x 205.6 mm
Shipping Box Dimensions: 20.8" x 21.2" x 12.4" / 529 mm x 539 mm x 315 mm
Weight (Unpackaged): 20.28 lbs / 9.2 kg
Weight (Packaged): 27.12 lbs / 12.3 kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F; Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95% (38.7°C max wet bulb temperature)
Energy Star: Energy Star 8.0 certified configurations available
Regulatory approvals and declarations: Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC; New Zealand R-NZ
Real-Time Clock: CR2450 lithium metal battery
MTBF: 50,000 hours demonstrated
Mounting Options: 100mm VESA mount
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
Ingress Protection: IP54
Sealability: Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Power Cables: North American and European power cables included
Other Features: Serviceable internal components; Kensington lock
What's in the Box: I-Series; North America Power Cord; European Power Cord; Power Adapter – 180W; Cable RJ-50 to DB-9; Quick Installation Guide (QIG); Cable tie; CFD mounting screw; VESA mounting screw; VESA cover and mounting screw
Upgrade Options: 8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053; 16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237; 32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430; M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613; M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803; Changing SO-DIMM or SSD requires opening the back cover. Special care must be taken when removing and replacing the back cover to prevent losing the IP rating or possibly damaging the touch computer. Please contact Elo technical support or product manag
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; Customer Display (2x20 VFD) – Elo P/N: E001003; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 17"/21.5" Displays - Elo P/N: E467190; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Power Brick Kit, 24V 180W - Elo P/N: E845269; 1002L - Elo P/N: E155834; 1002L - Elo P/N: E324341; 1302L - Elo P/N: E683595; Elo 2ft authorized USB-C cable - Elo P/N: E969524

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
