Elo Touch · POS computer

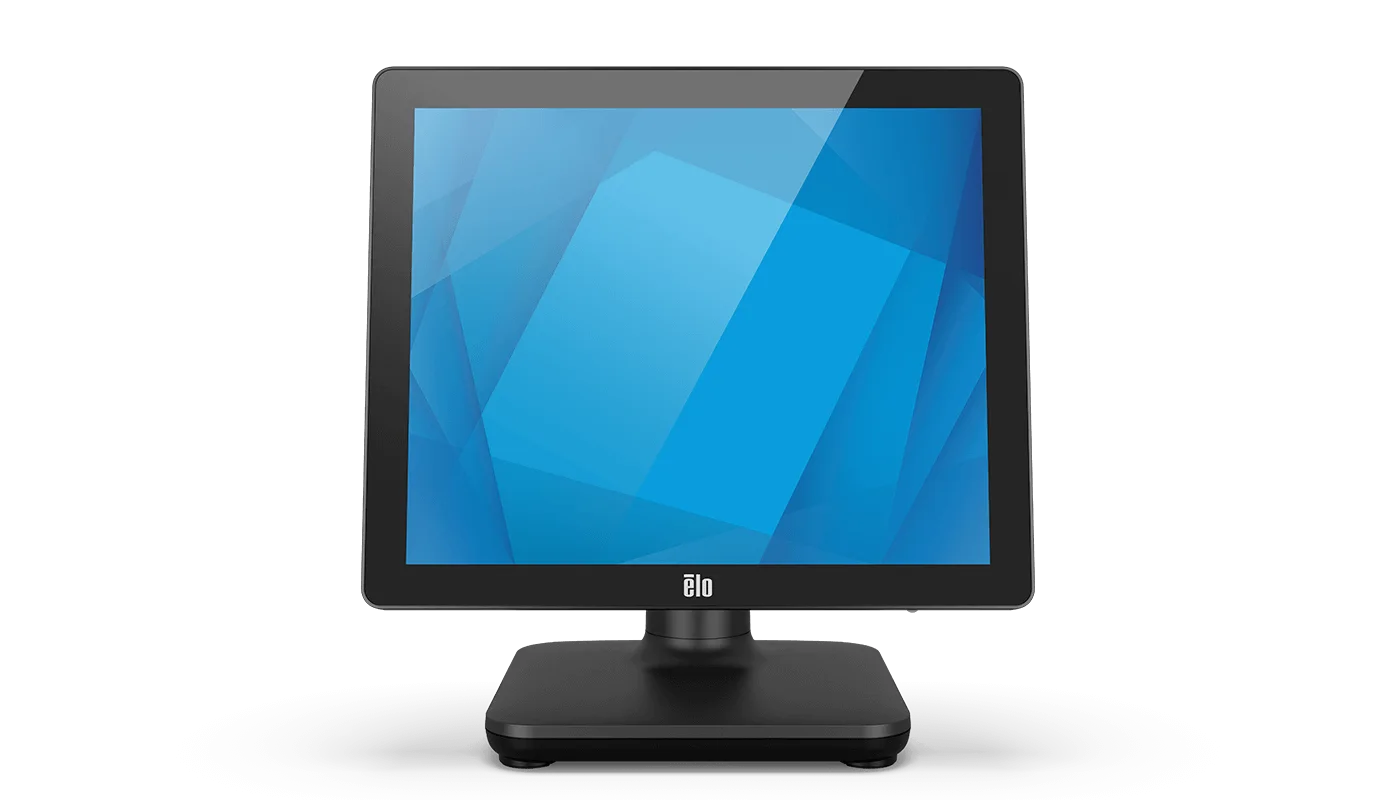

Elo Touch 17-inch (5:4) EloPOS System

Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit; Optional - Windows 10 Professional English 64-bit
Display17'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to sub-bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17-inch touchscreen display, choice of Intel’s 9th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
*Based on Passmark scores comparing 9th generation i3 and i5 vs the competitors current 6th and 7th generation processors
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Best for: POS Systems for Restaurants · Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems

Videos

Elo 17-inch (5:4) EloPOS System video

Specifications

Technical

Part Number(s): Celeron, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E548910; Celeron, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E549099; Celeron, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E549304; Celeron, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E549508; Celeron, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E549709; Celeron, Win 10, 8GB RAM, 256GB SSD with Wall Mount I/O Hub - E549896; i3, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E402576; i3, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E402382; i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E484495; i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E484291; i3, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E491458; i5, No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E402963; i5, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E402781; i5, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E484700; i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E484896
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Celeron: Intel Celeron® Processor G4900T (2M Cache, up to 2.9 GHz); i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0); i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support
Chipset: Celeron Models: Intel H310 Express; i3 Models: Intel H310 Express; i5 Models: Intel Q370 Express
Graphics: Celeron Models: Intel UHD Graphics 610; i3 & i5 Models: Intel UHD Graphics 630
BIOS: AMI
Memory (RAM): Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB); i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB); i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB); NOTE: Check brand of the memory included in your unit before purchasing the memory kit.
Storage: 128GB M.2 SATA SSD, 80 TBW; Optional M.2 PCIe (NVMe) SSD for select models; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM: 2.0
Active Management Technology (AMT): Celeron Models: N/A; i3 Models: N/A; i5 Models: Active Management Technology (Intel AMT 11.0) Support.
Diagonal Size: 17'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 5:4
Active Area: 13.3" x 10.64" / 337.9 mm x 270.3 mm
Resolution: 1280 x 1024 @ 60Hz
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 250 nits; PCAP: 212.5 nits
Response Time-total (typical): 5 msec
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
USB Ports: 3 x USB 3.0 (1 on display head, 2 on I/O); 2 x USB 2.0 (on I/O); 4 x Micro USB 2.0 (on display head)
Powered USB: 1 x 24V on I/O; 2 x 12V on I/O
Ethernet Port: 1 x LAN RJ45 (Gigabit)
Serial Ports: 2 x RJ45
Cash Drawer Port: 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal swtich)
Wireless: Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz
Bluetooth: Bluetooth 5.0
Additional Video Out: 1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
Audio Ports: 1 x 3.5 mm headset jack
Speakers: 2 x 2W internal speakers
OS: No OS; Windows 10 IoT Enterprise LTSC 64-bit; Optional - Windows 10 Professional English 64-bit
Languages: Windows 10 - 36 Language groups
Power Supply: External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W
Power Consumption (Typical): ON: Celeron: 42W, i3: 63W, i5: 76W; SLEEP:
Dimensions: With Stand: 15.49" x 12.83" x 8.71" / 393.5 mm x 325.9 mm x 221.3 mm; Without Stand: 15.49" x 12.83" x 3.28" / 393.5 mm x 325.9 mm x 83.3 mm
Shipping Box Dimensions: With Stand: 18.74" x 11.14" x 18.82" / 476 mm x 283 mm x 478 mm; Without Stand: 18.74" x 7.76" x 15.75" / 476 mm x 197 mm x 400 mm
Weight (Unpackaged): With Stand: 14.77 lbs / 6.7 kg; Without Stand: 10.58 lbs / 4.8 kg
Weight (Packaged): With Stand: 19.8 lbs / 9.0 kg; Without Stand: 15 lbs / 6.8 kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95% (38.7℃ max wet bulb temperature)
Energy Star: Energy Star 7.1
Regulatory approvals and declarations: UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC
Real-Time Clock: CR2032 lithium metal battery
MTBF: 50,000 hours demonstrated
Mounting Options: 75mm VESA mount
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
Sealability: Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Power Cables: North American and European power cables included
Other Features: Serviceable internal components.; Models with a stand for desktop application.; Models without a stand for 75mm VESA mounting.; Kensington lock.
What's in the Box: EloPOS System; North America Power Cord; EU Power Cord; Power Adapter – 180W; Cable RJ-45 to DB-9; Cable cover locking screw; Quick Installation Guide (QIG)
Upgrade Options: 4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186; 8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375; 16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989; M.2 SATA 128GB SSD – Elo P/N: E206352; M.2 SATA 256GB SSD – Elo P/N: E206556
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 10" LCD Customer-facing Display (10 touch) – Elo P/N: E155834 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524)); 10" LCD Customer-facing Display (no touch) – Elo P/N: E324341 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524)); 1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524)); 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Rear-facing Display Mount - Elo P/N: E835969 (Requires authorized 2ft USB-C cable); Power Brick Kit, 24V 180W - Elo P/N: E845269; Elo 2ft authorized USB-C cable - Elo P/N: E969524; RJ45 to DB9 cable kit - Elo P/N: E641484

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
