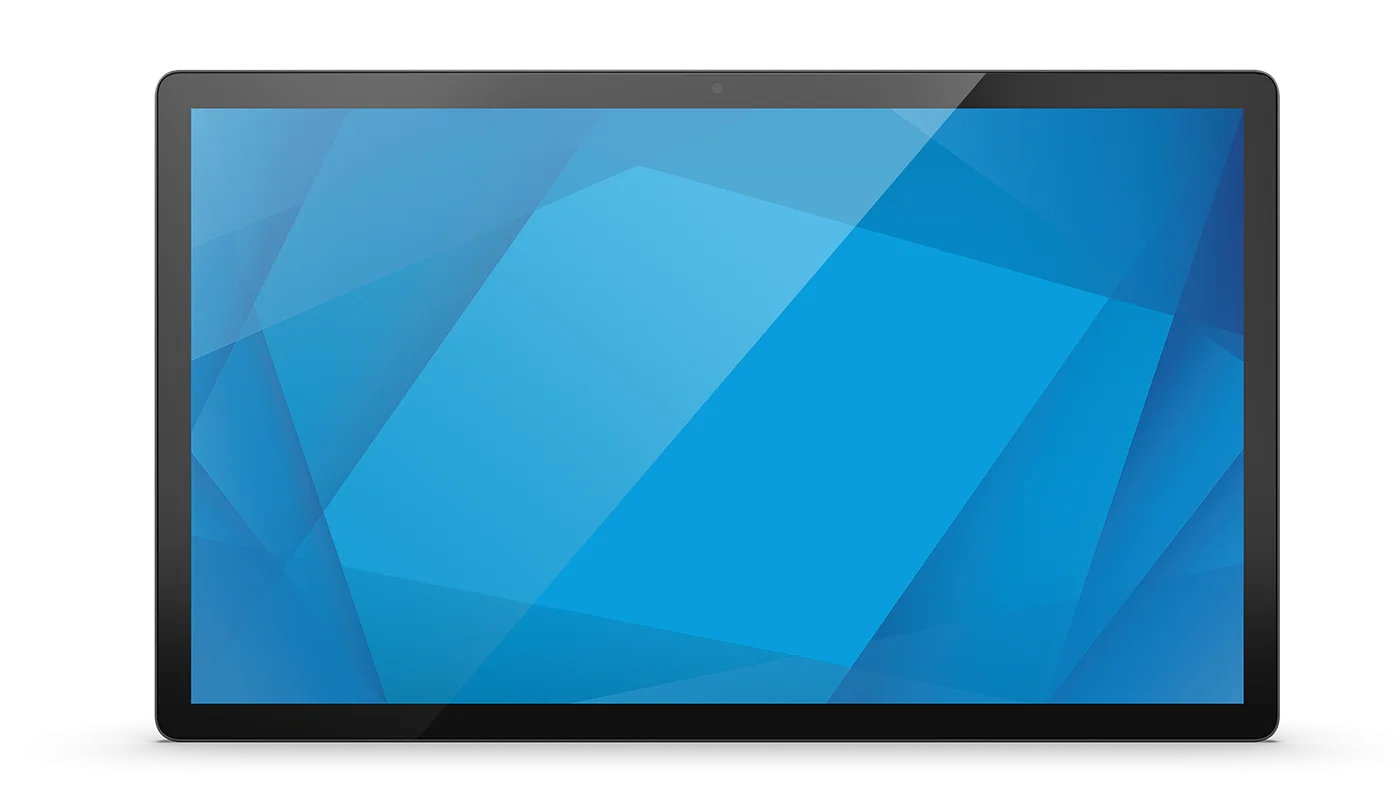

15-inch I-Series Slate with Linux by Elo

Elo Touch · Panel PC

Elo Touch 15-inch I-Series Slate with Linux

Built on Linux Debian 10 Razor thin design. Brilliant touchscreen.

Operating systemLinux Debian 10
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Works alongside Raptool apps running in the Raptool Client on Android, iOS, Windows and Mac. Scanner apps

Overview

Built to be one of the thinnest commercial-grade fixed tablet form factors, the I-Series Slate delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity.

Transform the I-Series Slate it into a powerful, industrial-design POS system that scales with your business.
The I‑Series Slate offers an I/O hub that extends connectivity from the display to your accessories.
Equipped with Rockchip 6-core processor and your choice of Debian 10 OS distributions or newer, the I-Series Linux computer delivers the performance your business needs.
From advance unit replacement to accidental damage protection, EloCare delivers service and support from the people who know your Elo Linux device best.

Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · Conference Room Technology · Conference Room Scheduler Touch Computers

Specifications

Technical

Part Number(s): E240416
Enclosure Color: Dark Gray Metallic
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Rockchip RK3399
Memory (RAM): 4GB
Storage: 32GB
OS: Linux Debian 10
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): Standard Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits; Value Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits
Response Time-total (typical): 20 ms
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports: Display Head Interface:; USB-C Connector; Supports USB 2.0/3.0, DP output; (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power); I/O Hub:; DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit)
Webcam: 5MP; Max Resolution: 1920x1080 30fps; Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: 1x built-in Analog Microphone
Speakers: 2x 1W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): ON: 9.32W; OFF: 0.4W; SLEEP: 4.84W
Dimensions: 14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm
Shipping Box Dimensions: 17.4" x 12.2" x 6.1" / 443 mm x 310 mm x 156 mm
Weight (Unpackaged): 3.3 lbs / 1.5 kg
Weight (Packaged): 7.61 lbs / 3.45 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm
Warranty: 2-year
Extended Service Options: 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series Slate; IO Hub; North American Power Cable; European Power Cable; 1x Power Brick 65W (E153026); Quick Install Guide; 4 x M4x6 mm Flathead screws in a plastic bag; 4 x M4x6 mm Panhead screws in a plastic bag
Stands, Mounts & Kits: 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; Z10 POS Stand (75mm VESA) - Elo P/N: E398278; Z30 POS Stand without CFD (75mm VESA) - Elo P/N: E483135; Z30 POS Stand with CFD (75mm VESA) - Elo P/N: E482940; I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
