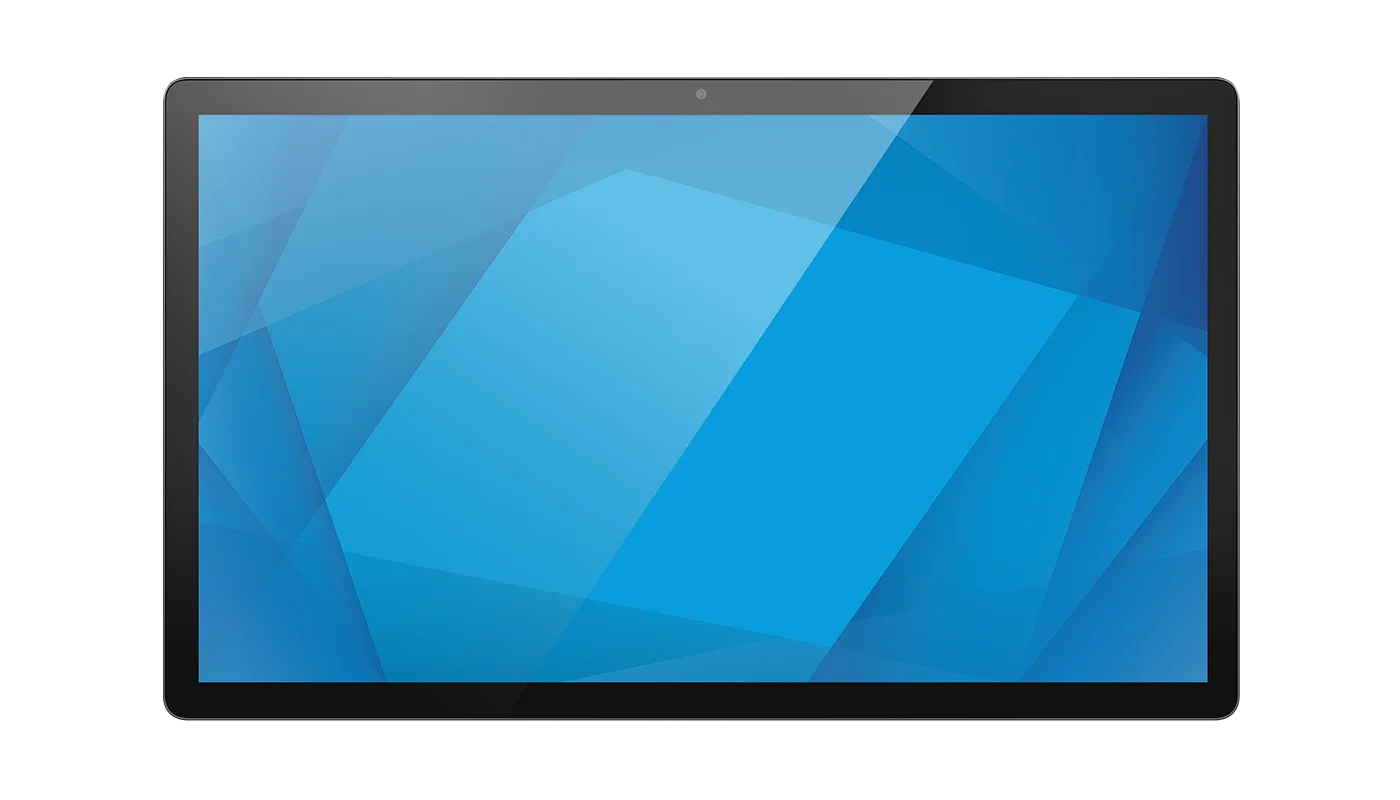

15-inch I-Series 5 Slate with Android by Elo

Elo Touch · Panel PC

Elo Touch 15-inch I-Series 5 Slate with Android

Elo's I-Series 5 Slate delivers a powerful 15.6-inch Full HD interactive system, complete with Android 14 OS, Qualcomm processor and an I/O hub. Built to be one of the thinnest commercial-grade fixed

Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen optically bonded to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Elo's I-Series 5 Slate delivers a powerful 15.6-inch Full HD interactive system, complete with Android 14 OS, Qualcomm processor and an I/O hub. Built to be one of the thinnest commercial-grade fixed tablet form factors, the I-Series 5 Slate delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity.

Transform the I-Series 5 Slate it into a powerful, industrial-design POS system that scales with your business.
The I‑Series 5 Slate offers an I/O hub that extends connectivity from the display to your accessories.
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.
Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.

Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · POS Systems for Restaurants · Retail POS Systems · Android Retail POS Systems · Conference Room Technology · Conference Room Scheduler Touch Computers

Specifications

Technical

Part Number(s): E540697
Enclosure Color: Dark Gray Metallic
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Qualcomm Snapdragon QCS6490
Memory (RAM): 8GB
Storage: 64GB
OS: Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD Panel: 350 nits; TouchPro PCAP: 280 nits
Response Time-total (typical): 20 ms
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports: Display Head Interface:; USB-C Connector; Supports USB 2.0/3.0, DP output; (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power); I/O Hub:; DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit)
Webcam: 8MP; Max Resolution: 3264x2448 30fps; Auto Focus
Wireless: 802.11a/b/g/n/ac/ax + Bluetooth 5.2
Audio Ports: 2x built-in Digital Microphones
Speakers: 2x 1W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): On: 8.5W; Off: 0.4W; Sleep: 3W
Dimensions: With VESA: 14.6" x 8.7" x 0.6" / 370.3 mm x 221.3 mm x 15.1 mm
Shipping Box Dimensions: 17.4" x 12.2" x 6.1" / 445 mm x 308 mm x 160 mm
Weight (Unpackaged): 3.44 lbs / 1.56 kg
Weight (Packaged): 7.74 lbs / 3.51 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KCC (Coreia); CCC/SRRC (China); United Kingdom UKCA
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated

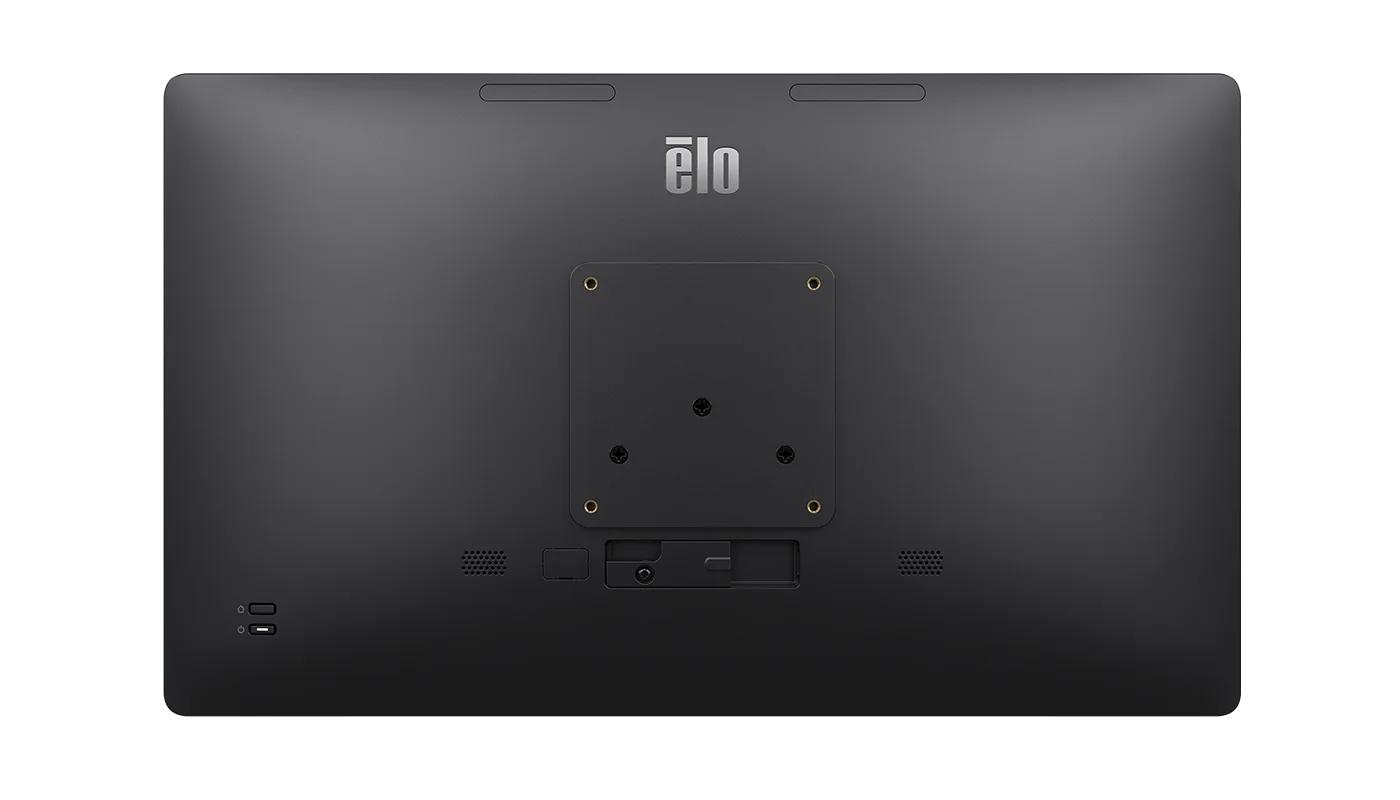

Mounting Options: VESA 75 mm / Z-Hinge
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Bi-monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen optically bonded to LCD
What's in the Box: I-Series 5 Slate; IO Hub; North American Power Cable; European Power Cable; 1x Power Brick 65W (E153026); Quick Install Guide; 4 x M4x6 mm Panhead screws in a plastic bag
Optional Peripherals: 1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
Stands, Mounts & Kits: Z10 POS Stand (75mm VESA) - Elo P/N: E767159; I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
