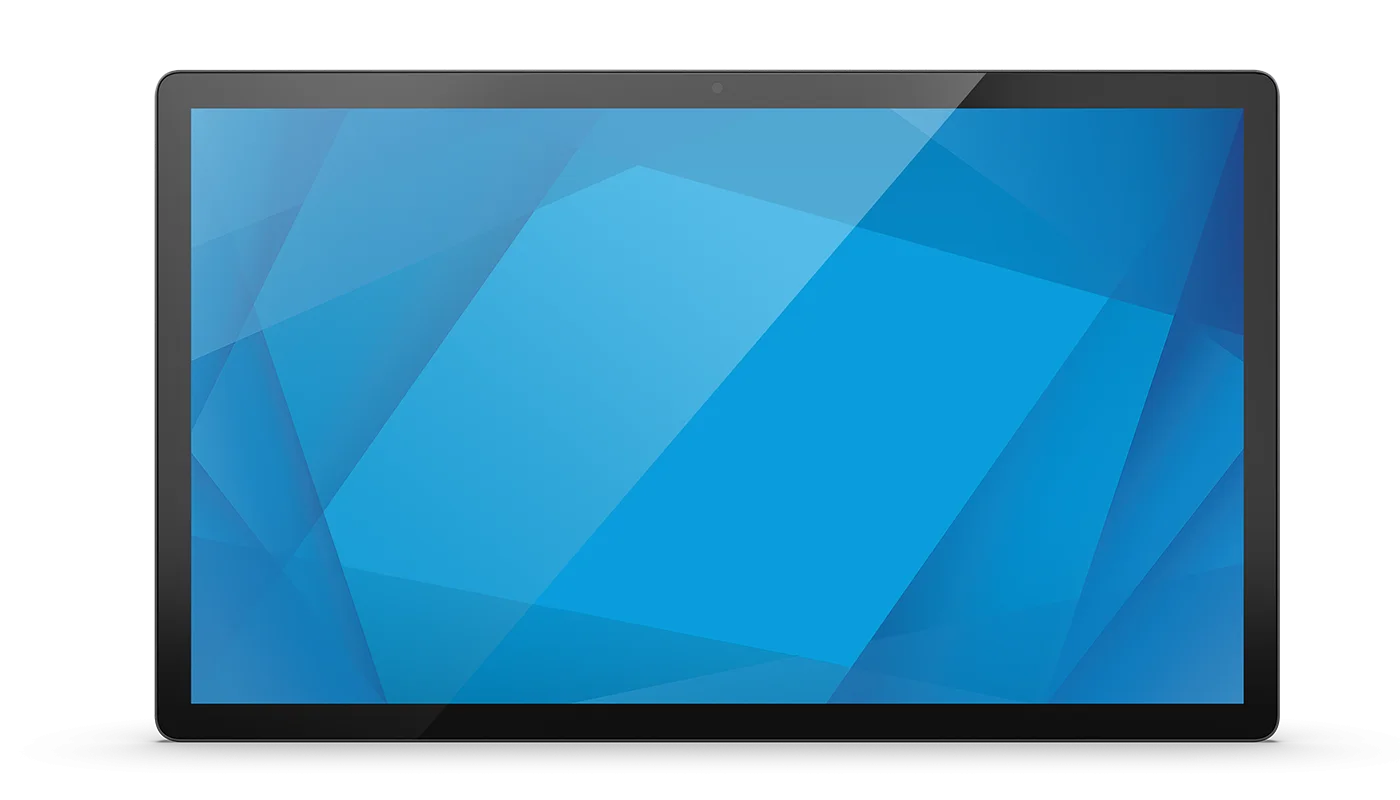

15-inch I-Series 4 Slate for Android by Elo

Elo Touch · Panel PC

Elo Touch 15-inch I-Series 4 Slate for Android

Built on Android 10 Razor thin design. Brilliant touchscreen.

Operating systemAndroid 10 with Google Play Services and EloView content deployment and management
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingStandard Model: Touchscreen optically bonded to LCD; Value Model: Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Built to be one of the thinnest commercial-grade fixed tablet form factors, the I‑Series 4 Slate delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity.

Transform the I‑Series 4 Slate it into a powerful, industrial-design POS system that scales with your business.
The I‑Series Slate offers an I/O hub that extends connectivity from the display to your accessories.
Whether equipped with the Qualcomm Snapdragon 8-core Kryo processor or the Rockchip 6-core processor, the I‑Series Slate for Android delivers the performance your point-of-sale system needs.
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.

Specifications

Technical

Part Number(s): Standard Model: E391994; Value Model: E392786
Enclosure Color: Dark Gray Metallic
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Standard Model: Qualcomm Snapdragon SDA660; Value Model: Rockchip RK3399
Memory (RAM): 4GB
Storage: Standard Model: 64GB; Value Model: 32GB
OS: Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): Standard Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits; Value Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits
Response Time-total (typical): 20 ms
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports: Display Head Interface:; USB-C Connector; Supports USB 2.0/3.0, DP output; (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power); I/O Hub:; DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit)
Webcam: 5MP; Max Resolution: 1920x1080 30fps; Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: Standard Model: 2x built-in Digital Microphones; Value Model: 1x built-in Analog Microphone
Speakers: Standard Model: 2x 0.7W; Value Model: 2x 1W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Standard Model:; On: 10W; Off: 0.4W; Sleep: 5W; Value Model:; On: 11.5W; Off: 0.68W; Sleep: 4.4W
Dimensions: Standard Model: 14.6" x 8.7" x 0.52" / 370.2 mm x 221.2 mm x 13.1 mm; Value Model: 14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm
Shipping Box Dimensions: 17.4" x 12.2" x 6.1" / 443 mm x 310 mm x 156 mm
Weight (Unpackaged): 3.3 lbs / 1.5 kg
Weight (Packaged): 7.61 lbs / 3.45 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated

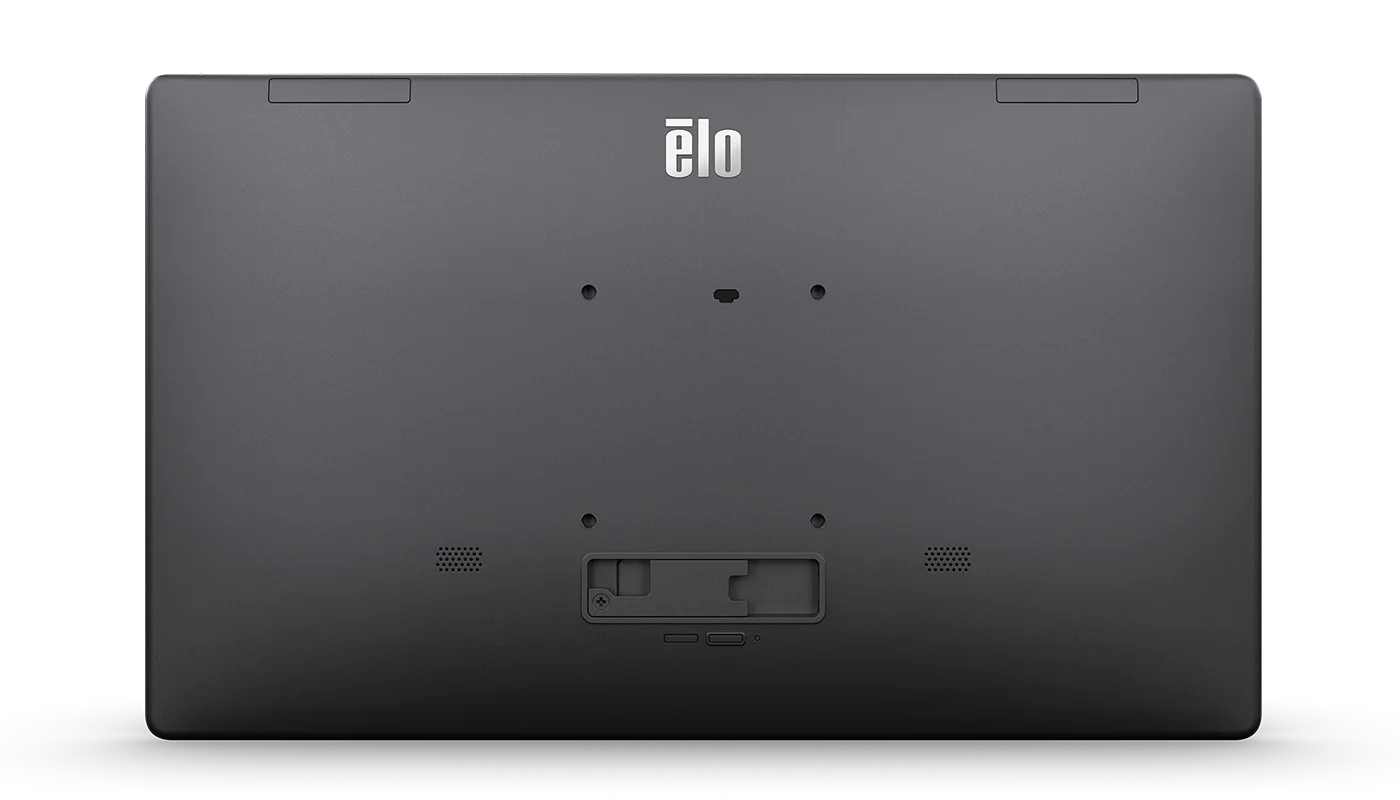

Mounting Options: VESA 75mm
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E873133; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Monthly Android security updates available with Elo OS 360 package.
Sealability: Standard Model: Touchscreen optically bonded to LCD; Value Model: Touchscreen sealed to LCD
What's in the Box: I-Series 4 Slate; IO Hub; North American Power Cable; European Power Cable; 1x Power Brick 65W (E153026); Quick Install Guide; 4 x M4x6 mm Flathead screws in a plastic bag; 4 x M4x6 mm Panhead screws in a plastic bag
Optional Peripherals: 1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
Stands, Mounts & Kits: Z10 POS Stand (75mm VESA) - Elo P/N: E398278; Z30 POS Stand without CFD (75mm VESA) - Elo P/N: E483135; Z30 POS Stand with CFD (75mm VESA) - Elo P/N: E482940; I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
