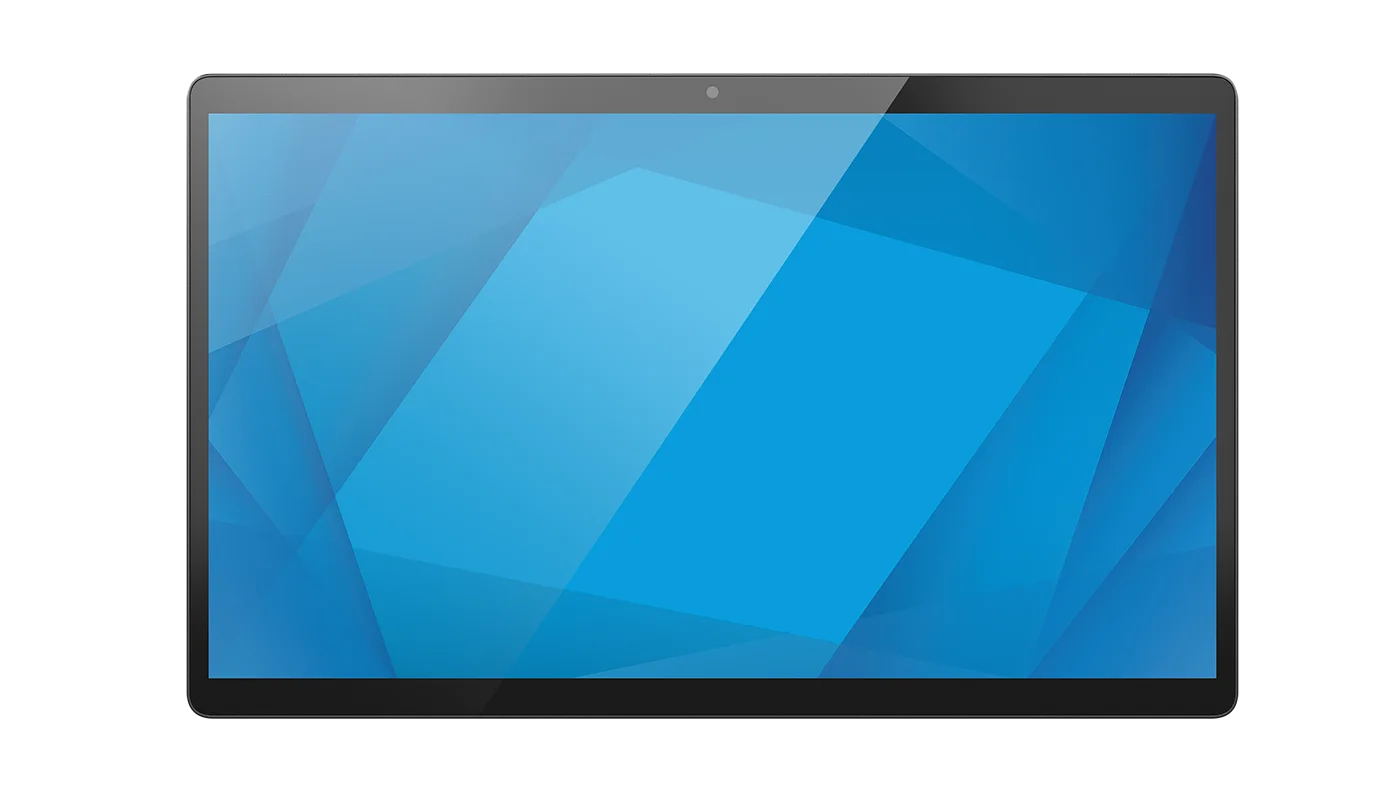

15-inch I-Series 3 Slate with Intel by Elo

Elo Touch · Panel PC

Elo Touch 15-inch I-Series 3 Slate with Intel

Brilliant, beautiful and razor thin. Z10 stand sold separately. 10-touch PCAP display 14.8mm thin Fanless & ventless 8MP webcam Interactive signage has never lo

Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit; Windows 11 IoT Enterprise LTSC 64-bit
Display15.6'' diagonal, Active matrix TFT LCD (LED)

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Transform the I-Series 3 Slate it into a powerful, industrial-design POS system that scales with your business.

Built with the reliability-tested performance and security of Intel 11th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system, the I-Series 3 Slate delivers the dependability businesses need.
For added flexibility, the I-Series 3 Slate offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · POS Systems for Restaurants · Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems · Conference Room Technology · Conference Room Scheduler Touch Computers

Specifications

Technical

Part Number(s): No OS, 8GB RAM, 128GB SSD - E983676; Win 10, 8GB RAM, 128GB SSD - E983895; Win 10, 16GB RAM, 128GB SSD - E128434; Win 11/10, 8GB RAM, 256GB SSD - E424795; Win 11/10, 16GB RAM, 256GB SSD - E424986
Enclosure Color: Dark Gray
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Intel Elkhart Lake J6426
Graphics: Intel UHD Graphics
BIOS: AMI
Memory (RAM): 8GB 3200MHz DDR4 SO-DIMM on 1 slot (Available up to 32GB in one slot)
Storage: 128GB M.2 NVME SSD 72 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM: 2.0
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344.2 mm x 193.5 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 16.2 million
Brightness (typical): LCD panel: 300 nits; TouchPro PCAP: 255 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Webcam: 8MP; Max Resolution: 1920x1080 30fps; Auto Focus
I/O Ports: Display Head Interface:; USB-C Connector; Supports USB 2.0/3.0, DP output; (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power); I/O Hub:; DC Input; 4 x USB-A 3.0; RJ45 Ethernet LAN (Gigabit) (wo Wake on Lan at S5 support)
Wireless: 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth: Bluetooth 5.2
Antenna: 2T2R design
Microphone: Digital Microphone
Speakers: 2 x 2W internal speakers
OS: No OS; Windows 10 IoT Enterprise LTSC 64-bit; Windows 11 IoT Enterprise LTSC 64-bit
Languages: Windows 10 - 36 Language groups
Power Supply: External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 65W
Power Consumption (Typical): ON: 30W; SLEEP:
Dimensions: Without VESA Adapter: 14.3" x 8.8" x 0.6" / 362.8 mm x 223.4 mm x 15.3 mm; With VESA adapter: 14.3" x 8.8" x 0.8" / 362.8 mm x 223.4 mm x 20.2 mm
Shipping Box Dimensions: 18.11" x 12.64" x 7" / 460 mm x 321 mm x 178 mm
Weight (Unpackaged): 3.53 lbs / 1.6 kg
Weight (Packaged): 8.81 lbs / 4 kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 10% to 90%; Storage: 0% to 95% (38.7°C max wet bulb temperature)
Energy Star: Energy Star 8.0
Regulatory approvals and declarations: UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA
Real-Time Clock: CR2450 lithium metal battery
MTBF: 50,000 hours demonstrated
Mounting Options: 75mm VESA mount
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
What's in the Box: I Series Slate; IO Hub; North America Power Cord; European Power Cord; 65W Power Adapter; Quick Installation Guide (QIG)

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
