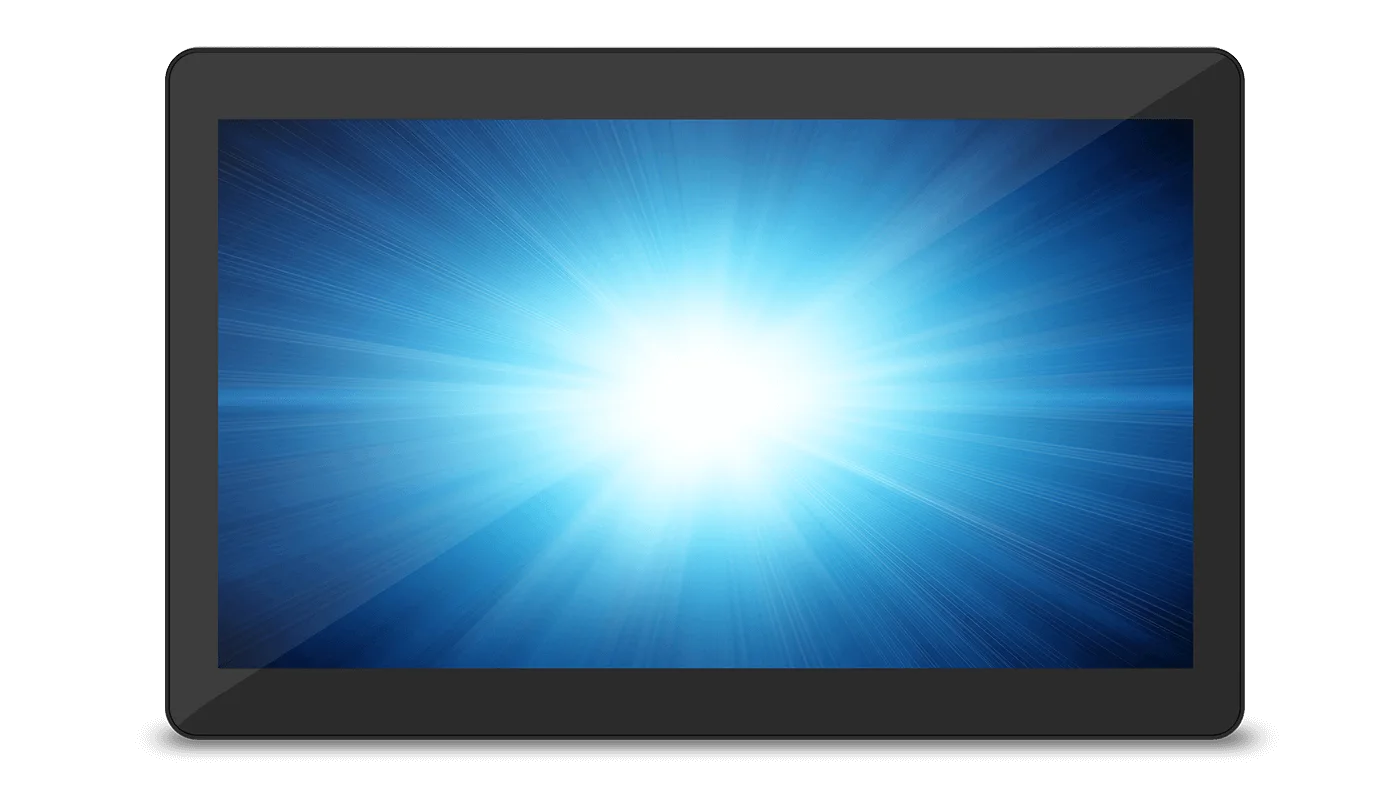

Elo Touch 15-inch I-Series 2 with Intel

Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform—all in a sleek, yet durable fixed tabl

Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit; Optional - Windows 10 Professional English 64-bit
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to sub-bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Network - Wi-Fi 802.11 b/g/n/ac supporting 2.4Ghz & 5Ghz bands, ethernet & BLE5.0
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10, ChromeOS Flex or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Best for: POS Systems for Restaurants

Specifications

Technical

Part Number(s): Celeron (J4125), Win10, 4GB, 128GB - E691852; Celeron (G4900T), Win10, 4GB, 128GB - E551068; Celeron (J4125), No OS, 4GB, 128GB - E692048; Celeron (G4900T), No OS, 4GB, 128GB - E551270; i3, Win10, 8GB, 128GB - E850204; i3, No OS, 8GB, 128GB - E850003; i5, Win10, 8GB, 128GB - E692244; i5, No OS, 8GB, 128GB - E692448; i5, Win 10, 8GB, 256GB - E294312; i5, No OS, 8GB, 256GB - E294494; i5, Win 10, 16GB, 256GB - E718055
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Celeron: Intel Celeron Processor J4125 (4M Cache, up to 2.7 GHz) or Intel Celeron G4900T Processor (2M Cache, up to 2.9 GHz); i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0); i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support
Chipset: Celeron: N/A or Intel H310 Express; i3: Intel H310 Express; i5: Intel Q370 Express
Graphics: Celeron: Intel UHD Graphics 600 or Intel UHD Graphics 610; i3 & i5: Intel UHD Graphics 630
BIOS: AMI
Memory (RAM): Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots); NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.; i3 & i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots); NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.
Storage: 128GB M.2 SATA SSD 72 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM: 2.0
Active Management Technology (AMT): Celeron: N/A; i3 & i5: Active Management Technology (Intel AMT 11.0) Support
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344.2 mm x 193.5 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 266,144
Brightness (typical): LCD panel: 300 nits; TouchPro PCAP: 270 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 700:1
Viewing Angle: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
USB Ports: 1 x USB 3.0; 4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals
Ethernet Port: 1 x LAN RJ45 (Gigabit)
Wireless: Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz
Bluetooth: Bluetooth 5.0
Audio Ports: 1 x 3.5mm line out
Speakers: 2 x 2W internal speakers
OS: No OS; Windows 10 IoT Enterprise LTSC 64-bit; Optional - Windows 10 Professional English 64-bit
Languages: Windows 10 - 36 Language groups
Power Supply: External USB-C power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 100W
Power Consumption (Typical): Celeron: 30 W; i3: 67 W; i5: 73 W; Sleep:
Dimensions: 15.13" x 9.7" x 1.72" / 384.2 mm x 246.4 mm x 43.8 mm
Shipping Box Dimensions: 18.19" x 8.5" x 13.57" / 462 mm x 216 mm x 346 mm
Weight (Unpackaged): 4.9 lbs / 2.2 kg
Weight (Packaged): 9.5 lbs / 4.3 kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95% (38.7°C max wet bulb temperature)
Regulatory approvals and declarations: UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC,; Korea KCC for i5 models only; Taiwan BSMI for i5 models only
Real-Time Clock: CR2032 lithium metal battery
MTBF: 50,000 hours demonstrated

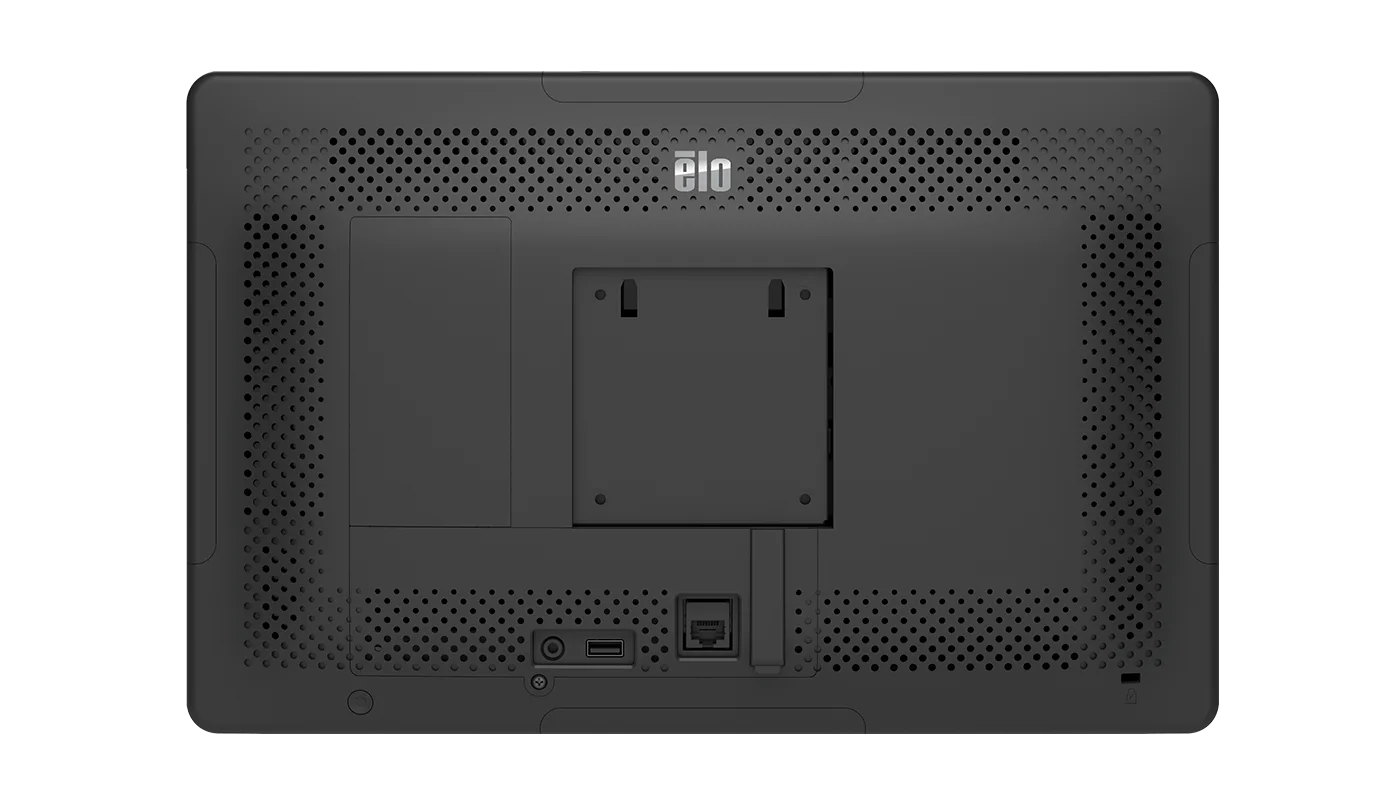

Mounting Options: 75mm VESA mount
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
Sealability: Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Power Cables: North American and European power cables included
Other Features: Serviceable internal components; Kensington lock
What's in the Box: I-Series 2.0 for Windows Touchcomputer; North America Power Cord; European Power Cord; Power Adapter - 100W; Cable cover locking screw; Quick Install Guide
Upgrade Options: 4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186; 8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375; 16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989; M.2 SATA 128GB SSD – Elo P/N: E206352; M.2 SATA 256GB SSD – Elo P/N: E206556; Note: Celeron SKUs only support 4GB DDR4 per slot
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 15'' I-Series - Elo P/N: E044162 (Requires E388675 adaptor kit); Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; 100W USB-C power supply - Elo P/N: E369922; USB Hub and mounting bracket - Elo P/N: E350807; Right angle RJ LAN cable adaptor kit - Elo P/N: E350616; EloPOS Expansion Module (with a 6-ft USB-C cable) – Elo P/N: E263603; 15” EloPOS Stand – Elo P/N: E203820; 100mm Adaptor Kit – Elo P/N: E388675; Right angle 6ft USB-C cable kit – Elo P/N: E667197; USB-C Hub & Bracket kit – Elo P/N: E350996; Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137; Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162; RJ45 to DB9 cable kit - Elo P/N: E641484

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
