Elo Touch · POS computer

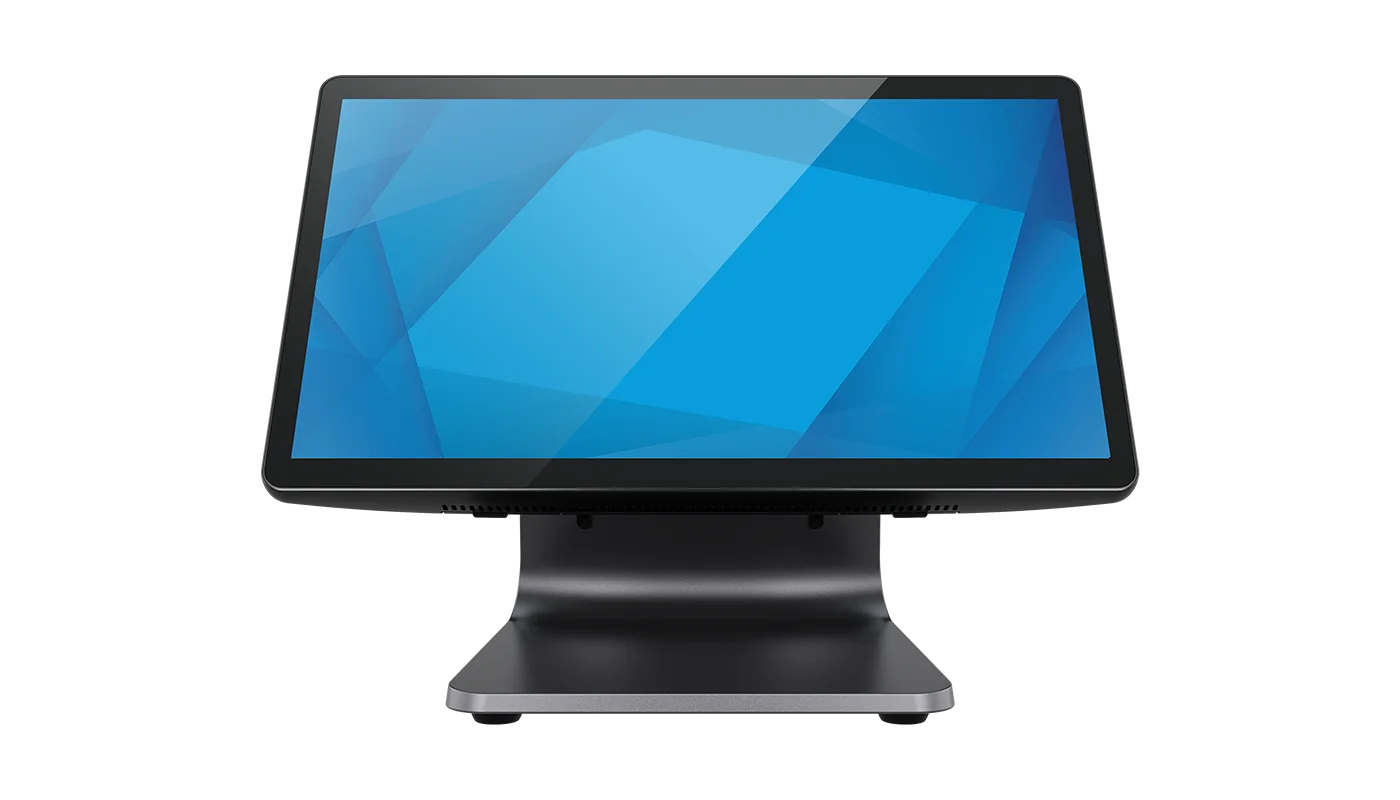

Elo Touch 15-inch E-Series 3 with Intel
The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro® PCAP display, a powerful Intel N97 processor, and your choice of Windows 11 or No OS with support for Linux. With integrated connec
- Operating systemNo OS; Windows 11 IoT Enterprise LTSC 64-bit
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro® PCAP display, a powerful Intel N97 processor, and your choice of Windows 11 or No OS with support for Linux. With integrated connectivity for all the peripherals you need—cash drawers, printers, barcode scanners, and payment devices—the E-Series 3 delivers the I/O flexibility to support a wide range of use cases.
- Available with and without stand options, you can easily configure the E-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
- The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.
- Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
- For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
- We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
Best for: POS Systems for Restaurants · Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems
Specifications
Technical
- Part Number(s)
- No OS, 8GB RAM, 128GB SSD, WiFi, Stand - E850098; Win 11, 8GB RAM, 128GB SSD, WiFi, Stand - E849902; No OS, 8GB RAM, 128GB SSD, Stand - E850312; Win 11, 8GB RAM, 128GB SSD, Stand - E849711; No OS, 8GB RAM, 128GB SSD, WiFi, No Stand - E567394; Win 11, 8GB RAM, 128GB SSD, WiFi, No Stand - E567592; No OS, 16GB RAM, 256GB SSD, WiFi, Stand - E153661; Win 11, 16GB RAM, 256GB SSD, WiFi, Stand - E153259
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Intel Processor N-series N97 (6M Smart Cache, up to 3.60 GHz)
- Graphics
- Intel UHD Graphics
- BIOS
- AMI
- Memory (RAM)
- 8GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum on 1 slot)
- Storage
- 128GB M.2 PCIe (NVMe) SSD 3 , 80 TBW; 256GB M.2 PCIe (NVMe) SSD 3 , 160 TBW; 3 GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- TPM
- Intel® Platform Trust Technology(Intel® PTT)
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344.2 mm x 193.5 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 262,000
- Brightness (typical)
- LCD Panel: 200 nits; PCAP: 170 nits
- Response Time-total (typical)
- 25 msec
- Contrast Ratio
- 500:1
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- I/O Ports
- 1x RJ45 LAN (Gigabit) Port; 2x USB 3.0 Ports; 2x USB 2.0 Ports; 2x Micro USB 2.0 Ports for Elo Edge Connect peripherals(Right/Bottom); 2x RJ45 Serial Port; 1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting); 1x Full-function USB-C Port (Power up to 27W - PD 5V-3A/9V-3A/15V1.85A, USB 3.0, Display Port, Additional Video Out); 1x Audio Port (3.5 mm headset jack)
- Wireless
- 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
- Bluetooth
- Bluetooth 5.3
- Speakers
- 2 x 2W internal speakers
- OS
- No OS; Windows 11 IoT Enterprise LTSC 64-bit
- Languages
- Windows 11 - 36 Language groups
- Power Supply
- External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 90W
- Power Consumption (Typical)
- On:
- Dimensions
- With Stand: 14.56" x 7.19" x 11.75" / 370.4 mm x 182.6 mm x 298.4 mm; Without Stand: 14.56" x 1.59" x 8.98" / 370.4 mm x 40.5mm x 228.2 mm
- Shipping Box Dimensions
- With Stand: 18.3" x 10.3" x 14.8" / 465 mm x 262 mm x 376 mm; Without Stand: 18.4" x 7.3" x 12.4" / 466 mm x 185 mm x 316 mm
- Weight (Unpackaged)
- With Stand: 7 lbs / 3.2 kg; Without Stand: 5.29 lbs / 2.4 kg
- Weight (Packaged)
- With Stand: 11 lbs / 5.0 kg; Without Stand: 9.2 lbs / 4.2 kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F (The thermal report pass airflow 0.5m/s + CPU Minimum assured power condition.)
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95% (38.7℃ max wet bulb temperature)
- Regulatory approvals and declarations
- Canada cUL, IC; United States UL, FCC; Germany, TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Mexico NOM; RoHS CoC
- Real-Time Clock
- CR2032 lithium metal battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- 75mm VESA mount
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
- Sealability
- Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
- Power Cables
- North American and European power cables included
- Other Features
- Serviceable internal components.; Kensington lock.
- What's in the Box
- E-Series 3; North America Power Cord; EU Power Cord; Power Adapter – 90W; Series Port Cable RJ-45 to DB-9; Quick Installation Guide (QIG); Cable tie
- Optional Peripherals
- Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; 10” Customer-facing Display – Elo P/N: E967935
- Stands, Mounts & Kits
- Rear Facing Display Mount – Elo P/N: E997555; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E120881; USB-C to USB-C Cable Kit – Elo P/N: E185034; 75mm VESA Adapter – Elo P/N: E193547; 15.6 inch E-Series Stand - Elo P/N: E804437
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
