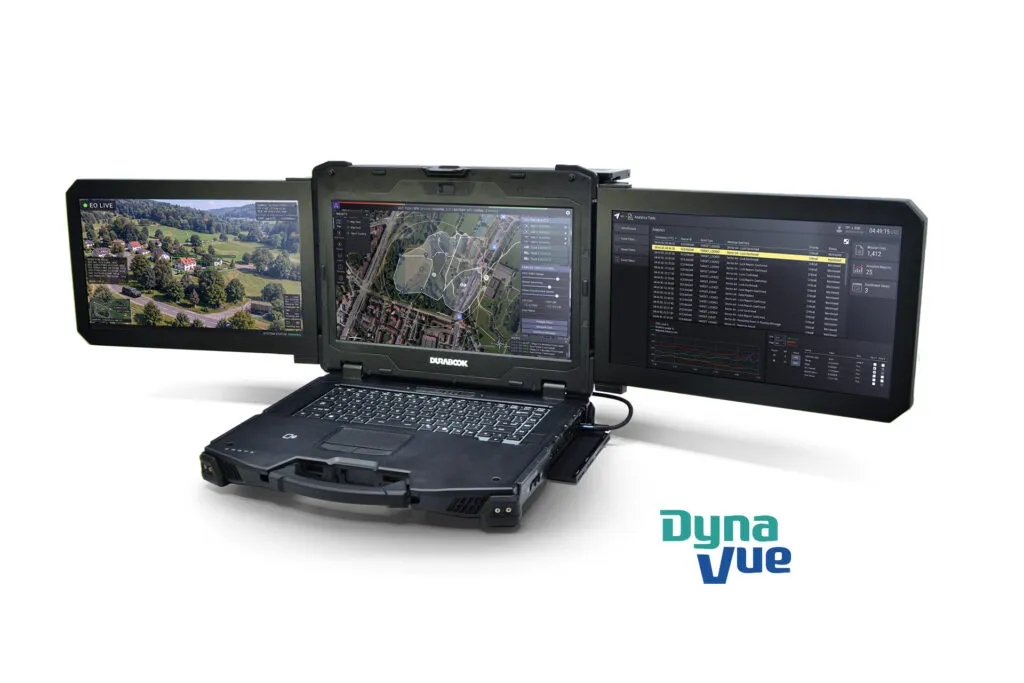

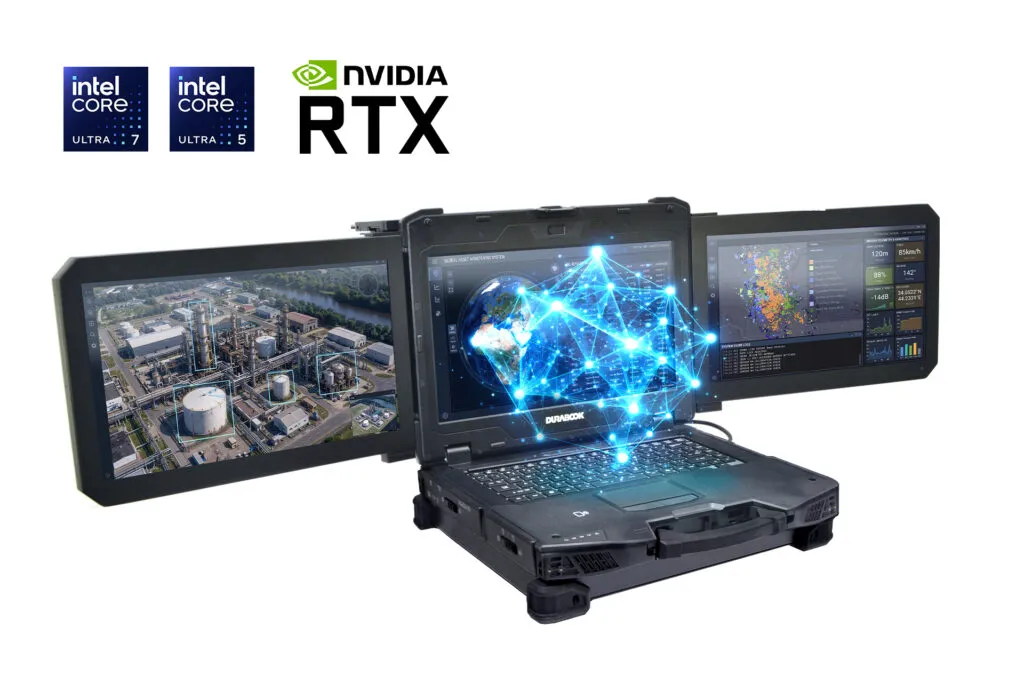

Durabook Z14I-DX3 Rugged Triple-Screen Workstation
The Durabook Z14I-DX3 extends a fully rugged laptop into a portable rugged triple-screen workstation for mobile command and field operations.
- Operating systemWindows® 11 Pro 64-bit
- Display3x 14.0” FHD (1920 x1080) 1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Windows® 11 Pro 64-bit
- Processor
- Intel® Core™ Ultra 7 165U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
- RAM / storage options
- 2 slots 16GB up to 64GB (5600MHz DDR5) 256GB NVME PCIE SSD Optional 512GB/1TB/2TB PCIE SSD Optional OPAL 2.0 SSD Optional 2nd storage NVME PCIE SSD Optional 3rd storage SATA SSD 1
Display
- Display size
- 3x 14.0” FHD (1920 x1080) 1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Data capture
- Cameras
- Integrated 2.0 MP web-cam with shutter design Optional 5.0 MP IR camera for Windows Hello 1
Power
- Charging / power
- AC adapter: 100-240V, 50Hz-60Hz, 210W Main battery Li-Ion, 10.8V, 6900mAh Optional 2nd battery Li-Ion 10.8V, 4700mAh Additional battery for screens : Li-Ion, 14.4V, 6700mAh
Connectivity
- Ports / interfaces
- Thunderbolt 4 (type C) x 1 USB 3.2 Gen2 (type A) x 1 USB 3.2 Gen1 (type A) x 1 USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 2 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232/RS422/RS485: D-sub,9-pin) x 2 Docking connector (41-pin Pogo) x 1 Dual SIM (Nano SIM & eSIM) Smart card reader x 1 ExpressCard 54 x 1 DC-In jack x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN
Software & service
- Warranty
- 3-year limited warranty standard
Send a request
Get a quote for the Z14I-DX3 Rugged Triple-Screen Workstation
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
